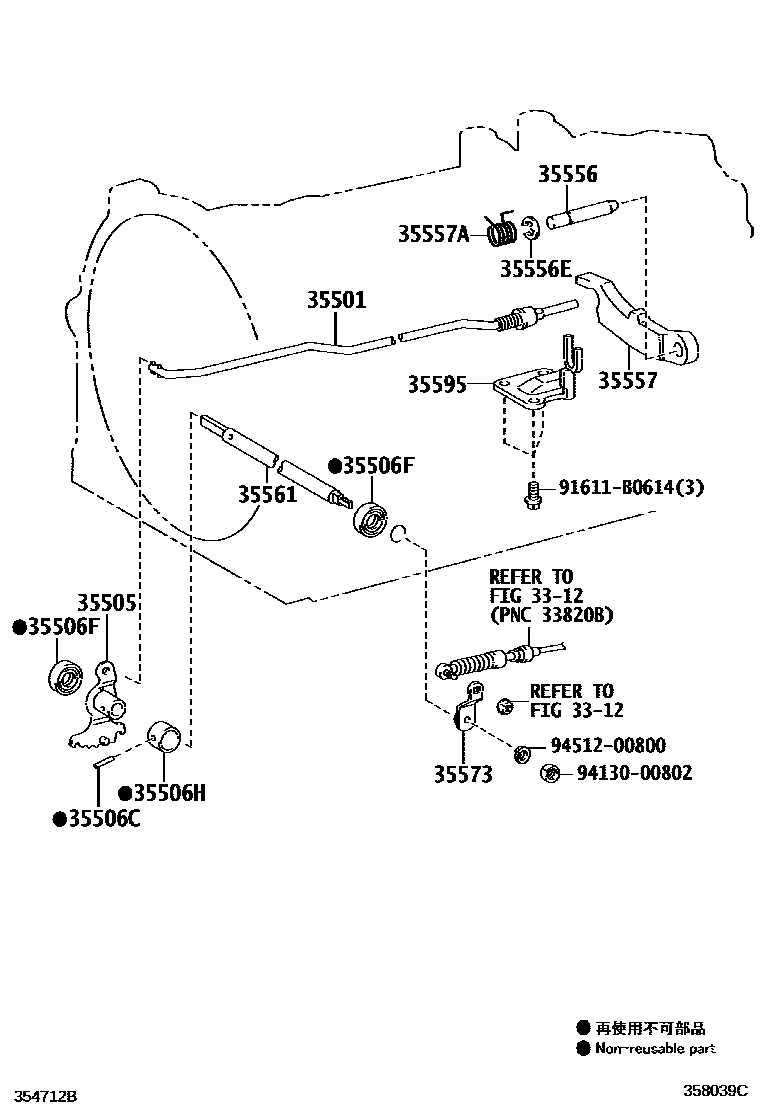

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iKUN25..4FC..PKN201107-201609

main35501-60020iGGN15,25,35,KUN26..5FC201107

main35501-60030iKUN16,3#..5FC201208-201504

main35501-71010iKUN25..4FC..MA201107-201601

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26020iTGN36201802

main35505-60030iKUN26..SADCB..4FC201107-201801

sub35505-26020

main35505-60040iGGN15,25,35,KUN16,26,3#..5FC201107

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKUN26..SADCB..4FC201107-201609

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iKUN26..SADCB..4FC201107-201609

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iKUN26..SADCB..4FC201107-201609

35556SHAFT, PARKING LOCK PAWL

main35556-30020iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

main35556-60020iGGN15,25,35,KUN16,26,3#..5FC201107

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKUN26..SADCB..4FC201107-201609

35557PAWL, PARKING LOCK

main35557-60020iKUN26..SADCB..4FC201107-201609

main35557-60040iGGN15,25,35,KUN16,26,3#..5FC201107

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iKUN26..SADCB..4FC201107-201609

main90949-03123iGGN15,25,35,KUN16,26,3#..5FC201107

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iKUN26..SADCB..4FC201107-201609

main35561-60030iGGN15,25,35,KUN16,26,3#..5FC201107

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iKUN26..SADCB..4FC201107-201609

35595BRACKET, PARKING LOCK PAWL

main35595-60010iKUN26..SADCB..4FC201107-201609

main35595-60030iGGN15,25,35,KUN16,26,3#..5FC201107

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
