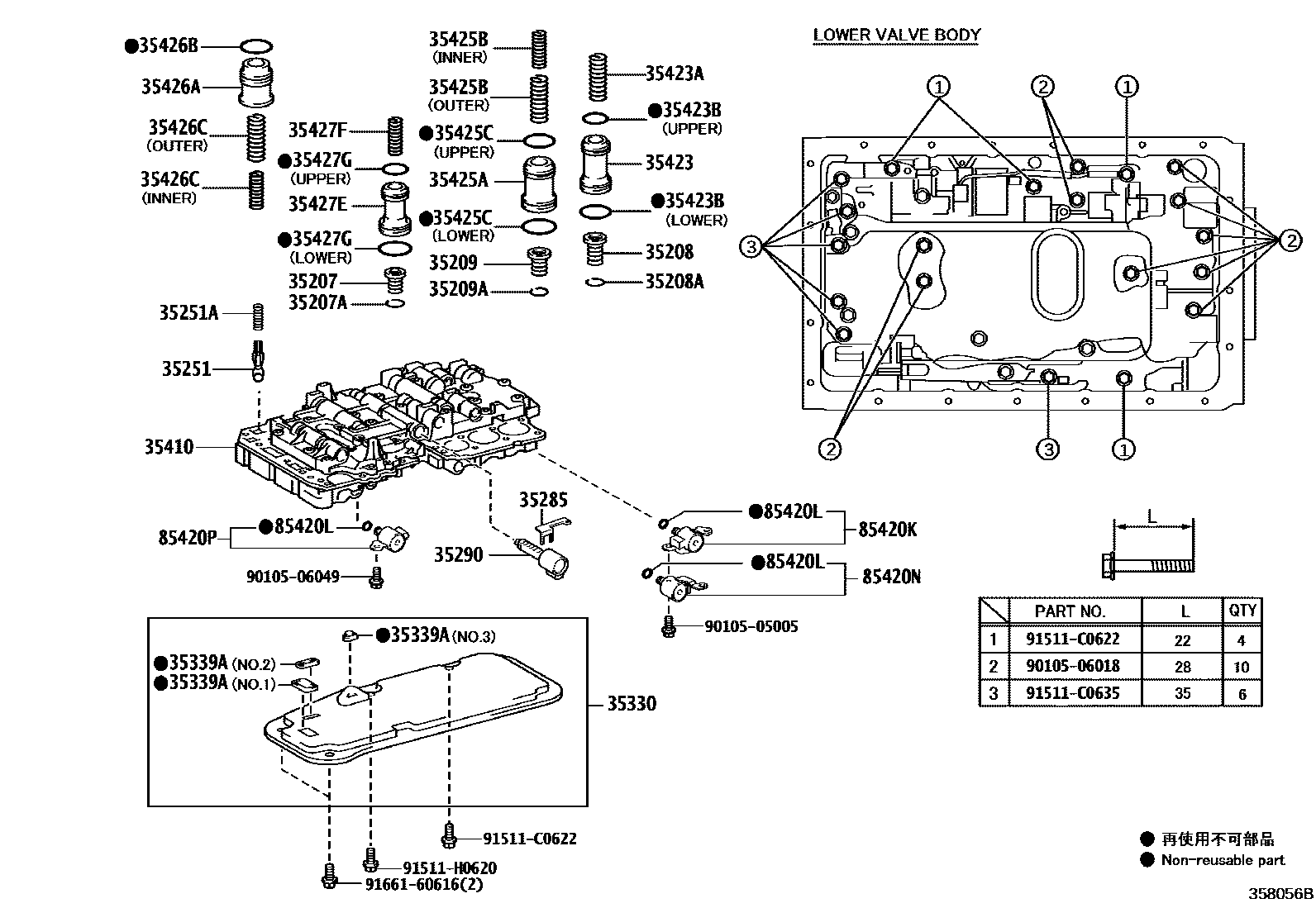

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F 0003 1A340E,A340F,A343E,A343F 0004 1A750E,A750F

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iKUN25..4FC..PKN201107-201609

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iKUN26..SADCB..4FC201107-201609

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKUN25..4FC..MA201107-201601

main35208-30010iKUN25..4FC..MA201107-201609

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKUN26..SADCB..4FC201107-201609

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKUN26..SADCB..4FC201107-201601

main35209-24010iKUN25..4FC..DLX201109-201609

main35209-50020iTGN16,26,36..4FC201107

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

35251BODY, CHECK BALL

main35251-30020iKUN26..SADCB..4FC201107-201609

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

35285PLATE, SOLENOID LOCK

main35285-24020iKUN26..SADCB..4FC201107-201609

main35285-34010iGGN15,25,35,KUN16,26,3#..5FC201107

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iGGN15,25,35,KUN16,26,3#..5FC201107

main35290-71010iKUN25..4FC..PKN201107-201609

35330STRAINER ASSY, VALVE BODY OIL

main35330-60030iKUN26..SADCB..4FC201107-201609

main35330-60050iGGN15,25,35,KUN16,26,3#..5FC201107

35339AGASKET, OIL STRAINER, NO.1

main35339-30080iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

NO.1

main35339-30090iKUN25..4FC..PKN201107-201609

NO.2

main35339-30100iKUN26..SADCB..4FC201107-201609

NO.3

35410BODY ASSY, TRANSMISSION VALVE

main35410-35870iGGN25201804

main35410-60580iGGN15,25,35,KUN16,26,3#..5FC201107-201803

sub35410-35870

main35410-71010iTGN16,36..4FC..HTWC201107

main35410-71020iTGN26..4FC..HTWC201107-201512

main35410-71030iKUN16,3#..4FC201107-201512

main35410-71040iKUN26..SADCB..4FC201107-201601

main35410-71060iKUN25..4FC..MA201109-201609

main35410-71080iTGN36..4FC..LA201110-201510

main35410-71090iTGN26..SR..HTWCF201110-201510

35423PISTON, B-2 ACCUMULATOR

main35423-30030iKUN26..SADCB..4FC201107-201609

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24015iTGN16,26,36..4FC201107

main90501-25026iKUN25..4FC..DLX201109-201609

main90501-25028iKUN26..(DCB,SCB,THDCB)..4FC;KUN16,25,3#..4FC..SR..(GEN,IDN,PHL,SA,TH)201107-201601

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

UPPER

main90301-31010iKUN25..4FC..PKN201107-201609

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKUN26..SADCB..4FC201107-201609

main35425-50020iGGN15,25,35,KUN16,26,3#..5FC201107

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKUN25..SR..IDN;KUN16,26,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC201107-201512

OUTER

main90501-22062iGGN15,25,35,KUN16,26,3#..5FC201107

main90501-23135iKUN25..4FC..MA201109-201609

OUTER

main90501-25027iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

INNER

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iGGN15,25,35,KUN16,26,3#..5FC201107

UPPER

main90301-25010iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

UPPER

main90301-28008iGGN15,25,35,KUN16,26,3#..5FC201107

LOWER

main90301-31010iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-40010iKUN26..SADCB..4FC201107-201609

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iKUN26..SADCB..4FC201107-201609

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iKUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201609

INNER

main90501-23073iKUN26..SADCB..4FC201107-201609

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iKUN26..SADCB..4FC201107-201609

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iTGN16,26,36..4FC..HTWC201107

main90501-23095iKUN26..SADCB..4FC201107-201609

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iKUN26..SADCB..4FC201107-201609

UPPER

main90301-26011iKUN25..4FC..PKN201107-201609

LOWER

85420KSOLENOID ASSY, TRANSMISSION

main35250-30050iKUN25..4FC..PKN201107-201609

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004iKUN16,2#,3#,TGN16,26,36..4FC201107

85420NSOLENOID ASSY, TRANSMISSION

main35250-30070iKUN25..4FC..PKN201107-201609

85420PSOLENOID ASSY, TRANSMISSION

main35250-50030iKUN25..4FC..PKN201107-201609

9010505005

main90105-05005

9010506018

main90105-06018

9010506049

main90105-06049

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

36 parts on this diagram · 4 diagrams in section
