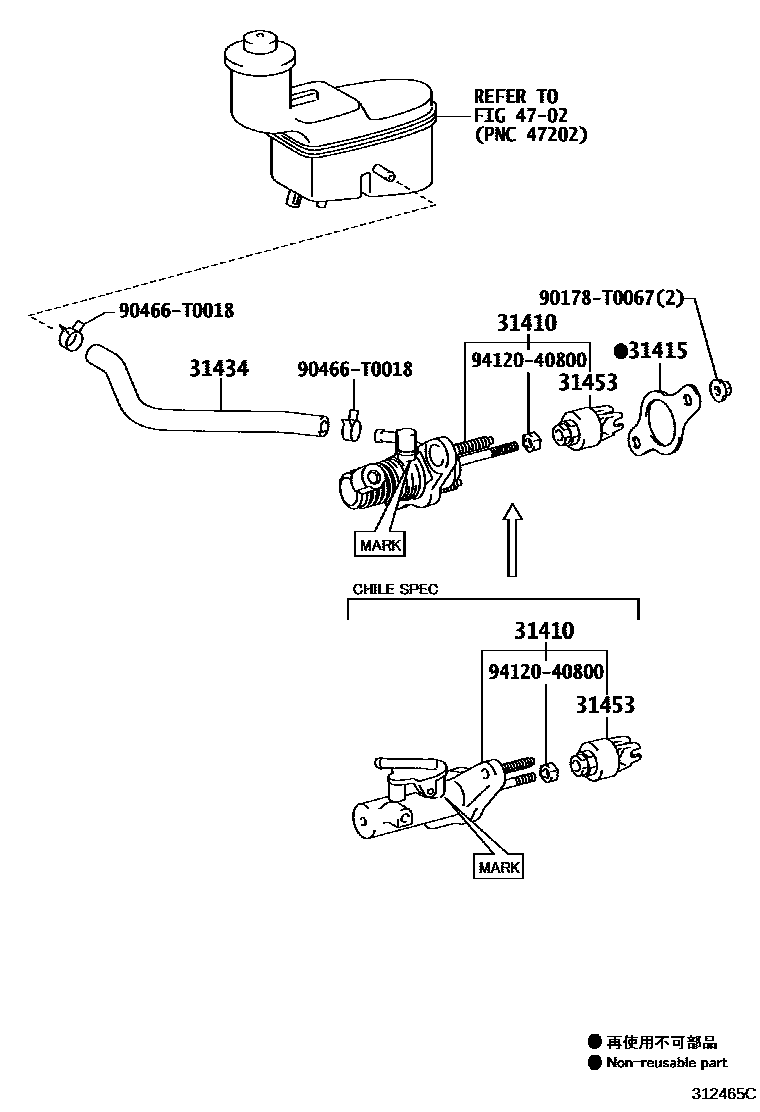

CLUTCH MASTER CYLINDER

0001 1 0004 1 0005 1 0007 1W(VSC)

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K013iTGN10,15..GCC,IDN201107-201911

sub31420-0K014

main31420-0K014iTGN26201912

main31420-0K021iGGN15,25..5F201107-201310

main31420-0K030iKUN25,35..CO201107-201510

main31420-0K030iKUN16..ARL;KUN25,35..5F..(IDN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201107-201306

CHILE SPEC(EURO 4 REGULATION)

main31420-0K030iKUN16..ARL;KUN25,35..5F..(IDN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201107-201306

CHILE SPEC(EURO 5 REGULATION)

main31420-0K040iTGN15..SA201107-201512

sub31420-0K041

main31420-0K050iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201307-201411

CHILE SPEC(EURO 5 REGULATION),MARK = 5/8

main31420-0K050iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201307-201411

MARK = 5/8

main31420-0K080iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201411-201601

MARK = 3/4

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGGN15,25..DCB..5F201107-201609

31434TUBE, CLUTCH RESERVOIR

main31434-71011iKUN25..5F..MA;KUN35..SR..SA201107-201609

main31434-71020iKUN35..PHL201107-201410

main31434-71030iKUN26..(SCB,XTR)..5F..ARL201107-201601

main31434-71040iKUN25,35..CO201107-201512

main31434-71070iKUN26..DCB..5F..ARL201308-201504

main31434-71080iKUN26,36..5F..SR..DCR..LA201110-201510

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iKUN16..ARL;KUN35..SR..SA;KUN15..(DCB,SCB,SMT)..HDCR;KUN25,35..5F..(IDN,MA,PHL,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201107-201310

main31453-35010iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN26..(SCB,XTR)..5F..ARL;KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(G201307-201311

CHILE SPEC(EURO 5 REGULATION)

main31453-35010iKUN25,35..THDCB201307-201311

CHILE SPEC(EURO 4 REGULATION)

main31453-35010iKUN26..DCB..5F..ARL201307-201312

main31453-52010iTGN10,15..GCC,IDN201107-201512

main31453-71010iKUN35..DLX..PHL;KUN35..5F..SR..(PHL,SA);KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,MA,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH)201312-201601

4702

90178T0067

main90178-T0067

90466T0018

main90466-T0018

9412040800

main94120-40800

8 parts on this diagram · 4 diagrams in section
