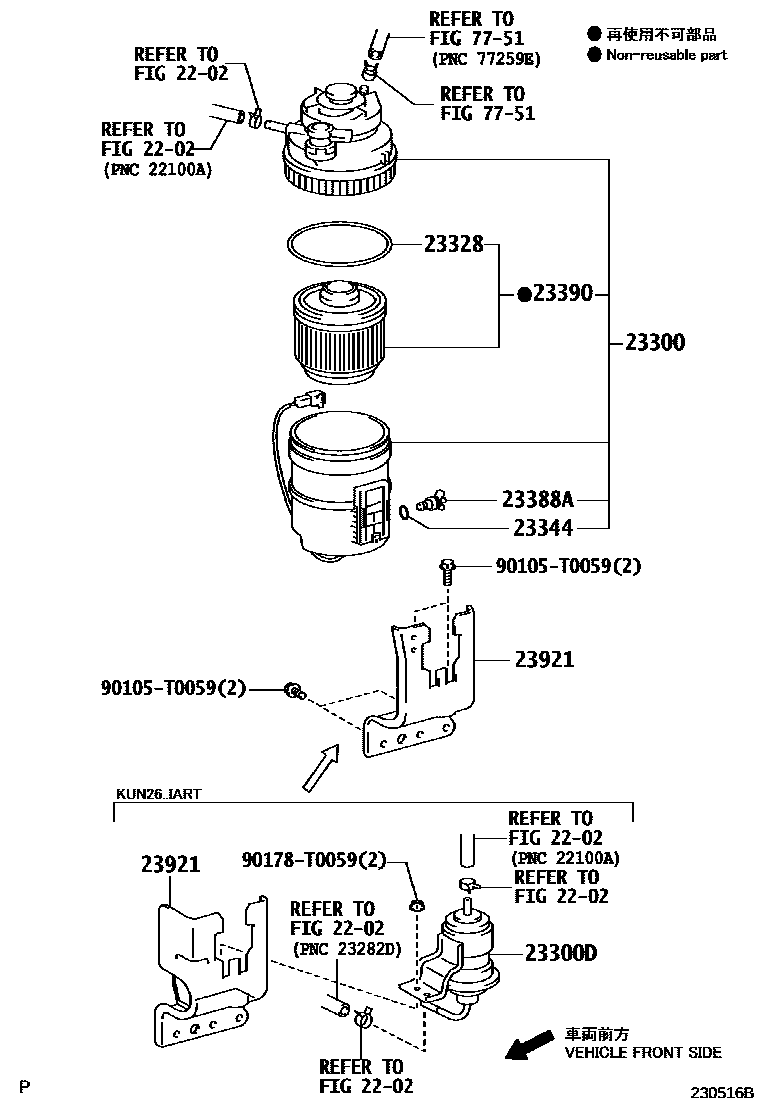

FUEL FILTER

0001 1 0002 1 0003 1

2202

23300FILTER ASSY, FUEL

main23300-0L041i1KDFTV,2KDFTV..KUN2#,3#..LA201107-201205

sub23300-0L042

main23300-0L042i1KDFTV..KUN26..4FC..ARL;1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(GCC,GEN,IDN,MA,PHL,PKN,TH)201206-201503

MARK=23300-0L042

main23300-0L042i1KDFTV..KUN26..IART201206-201609

main23300-0L050i1KDFTV..KUN26..IART201210-201510

main23300-0L050i1KDFTV..KUN16,26..ARL201312-201503

MARK=23300-0L050

main23300-0L060i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..LA201201-201205

sub23300-0L061

main23300-0L061i1KDFTV..KUN26..4FC..LA201206-201404

main23300-0L120i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201404-201510

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-30450i1KDFTV..KUN26..IART201204-201510

23328GASKET(FOR FUEL FILTER)

main23344-0L010i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201609

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1KDFTV,2KDFTV..KUN1#,2#,3#201107-201609

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i5LE..LAN15,25,35201107-201609

23390ELEMENT ASSY, FUEL FILTER

main23390-0L041i5LE..LAN15,25,35201107-201609

main23390-0L050i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201210-201510

23921SUPPORT, FUEL FILTER

main23921-0L010i2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);1KDFTV,2KDFTV..KUN1#,2#,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201601

main23921-0L040i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA201108-201512

main23921-0L050i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..(CO,LA)201110-201510

sub23921-0L010

main23921-0L080i2KDFTV..KUN15,25..PKN201202-201609

main23921-0L090i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main23921-30130i1KDFTV..KUN26..IART201204-201510

7751

90105T0059

main90105-T0059

90178T0059

main90178-T0059

11 parts on this diagram · 3 diagrams in section
