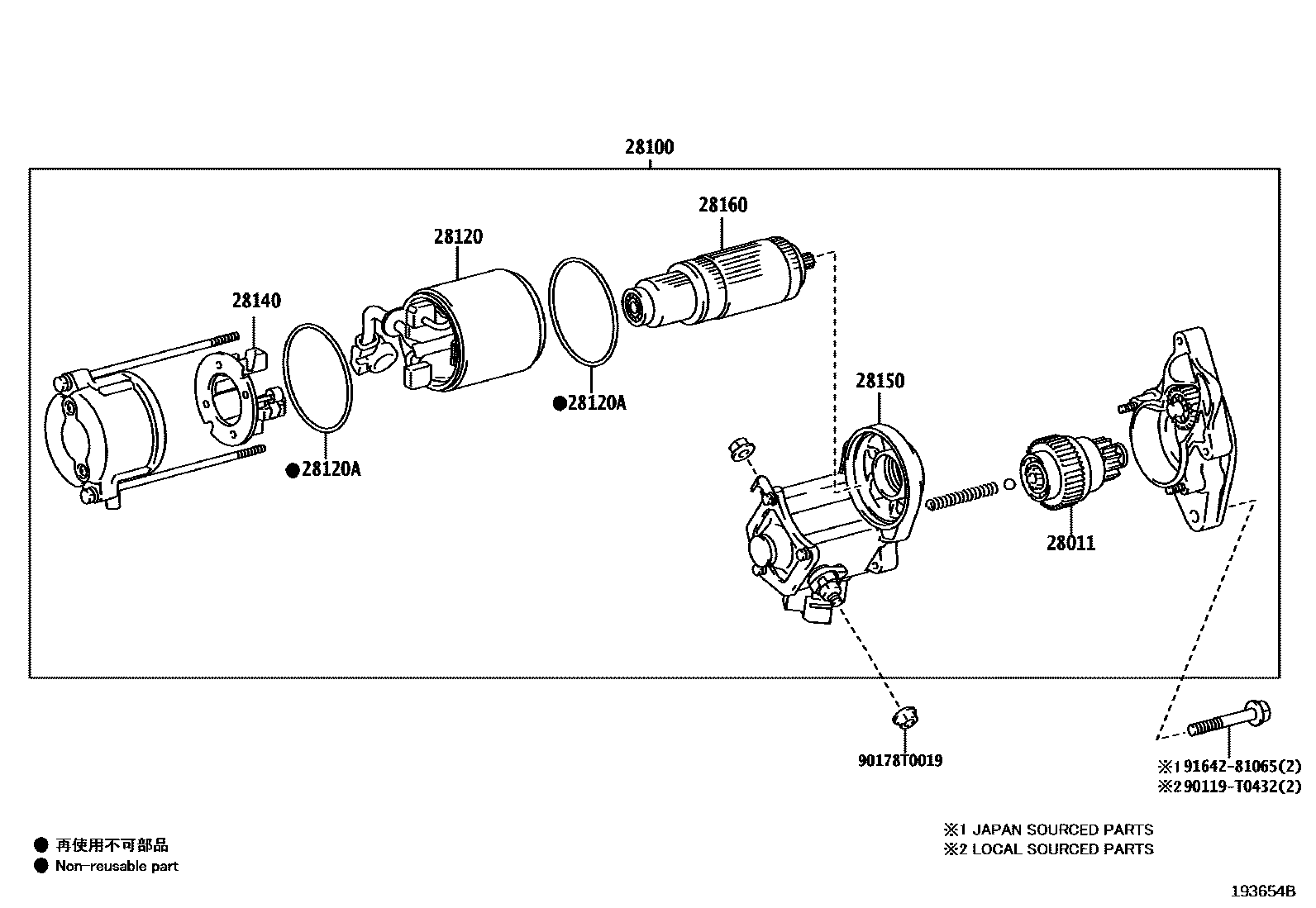

STARTER

0001 112V 1.4KW 0002 112V 1.6KW 0003 112V 2.0KW 0004 112V 2.2KW 0005 112V 1.0KW 0006 112V 1.4KW,12V 2.0KW 0008 112V 1.4KW 0010 112V 1.4KW 0012 112V 1.6KW 0013 112V 1.6KW 0014 112V 2.2KW 0015 112V 2.7KW 0016 112V 2.2KW 0017 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0C041i2TRFE..TGN26,36201108

main28011-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202008

main28011-0L030i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH)201107-201601

main28011-0L071i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201110-201202

main28011-0L072i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201202-201510

main28011-0L120i1KDFTV..KUN26..5F..CO201108-201512

main28011-0T070i1TRFE..TGN10,15..GCC,IDN201203-201504

main28011-30040i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main28011-30050i2KDFTV..KUN25,35..4FC,5FC201109-201609

main28011-54260i5LE..LAN15,25,35201108-201512

main28011-66020i1GRFE..GGN15,25..ARL201107-201504

main28011-70020i1TRFE..TGN10,15..GCC,IDN201107-201203

main28011-76070i2TRFE..TGN11,16,26..GCC201107-201504

28100STARTER ASSY

main28100-0C031i1TRFE..TGN10,15..GCC,IDN201107-201504

12V 1.0KW

main28100-0C041i1TRFE,2TRFE..TGN15,16,26,36..SA201108

12V 1.4KW

main28100-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202007

12V 1.4KW

sub28100-0C041

main28100-0L032i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH)201107-201601

12V 2.2KW

main28100-0L041i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201307

12V 2.0KW

sub28100-0L042

main28100-0L042i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201308-201609

12V 2.0KW

main28100-0L051i2KDFTV..KUN25,35..4FC,5FC201109-201306

12V 2.7KW

sub28100-0L052

main28100-0L052i2KDFTV..KUN25,35..4FC,5FC201307-201609

12V 2.7KW

main28100-0L071i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201110-201201

12V 2.2KW

sub28100-0L072

main28100-0L072i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201202-201510

12V 2.2KW

main28100-0L121i1KDFTV..KUN26..4FC..LA;1KDFTV..KUN26,36..CO,SA201108-201202

12V 2.2KW

sub28100-0L141

main28100-0L141i1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA)201203-201512

12V 2.2KW

sub28100-0L032

main28100-31041i1GRFE..GGN25,35..ANCOM,SA201108

12V 1.6KW

main28100-31111i1GRFE..GGN15,25..ARL201107-201504

12V 1.4KW

main28100-54491i5LE..LAN15,25,35201108-201512

12V 2.2KW

main28100-75091i2TRFE..TGN11,16,26..GCC201107-201504

12V 1.4KW

main28100-75191i2TRFE..TGN16,26,36..ARL,GEN,TH201107-201211

12V 1.6KW

main28100-75210i2TRFE..TGN16,26,36..ARL,GEN,TH201212-201504

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-0C030i1TRFE..TGN10,15..GCC,IDN201107-201504

main28120-0C041i1TRFE,2TRFE..TGN15,16,26,36..SA201108

main28120-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202008

main28120-0L030i1KDFTV..KUN26..5F..CO201107-201601

main28120-0L050i2KDFTV..KUN25,35..4FC,5FC201109-201609

main28120-0L070i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201110-201510

main28120-28060i1GRFE..GGN25,35..ANCOM,SA201107-201212

main28120-54260i5LE..LAN15,25,35201108-201512

main28120-66040i2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC201107-201504

main28120-75210i2TRFE..TGN16,26,36..ARL,GEN,TH201212-201504

main28120-YE010i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

28120ARING, O(FOR STARTER YOKE)

main90068-14029i1TRFE..TGN10,15..GCC,IDN201203-201504

main90099-14092i1TRFE..TGN10,15..GCC,IDN201107-201203

main90099-64040i1KDFTV..KUN26..5F..CO201107-201210

28140HOLDER ASSY, STARTER BRUSH

main28140-0C041i1TRFE,2TRFE..TGN15,16,26,36..SA201108

main28140-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202008

main28140-0L030i1KDFTV..KUN26..4FC..LA;1KDFTV..KUN26,36..CO,SA201107-201601

main28140-0L070i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201110-201510

main28140-0L141i1KDFTV..KUN26..5F..CO201203-201512

main28140-0T070i1TRFE..TGN10,15..GCC,IDN201203-201504

main28140-35060i1GRFE..GGN15,25..ARL201107-201504

main28140-37050i2TRFE..TGN16,26,36..ARL,GEN,TH201212-201504

main28140-54380i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main28140-64040i5LE..LAN15,25,35201108-201512

main28140-70020i1TRFE..TGN10,15..GCC,IDN201107-201203

main28140-76070i2TRFE..TGN11,16,26..GCC201107-201504

main28140-77090i2KDFTV..KUN25,35..4FC,5FC201109-201609

28150SWITCH ASSY, MAGNET STARTER

main28150-0C030i1TRFE..TGN10,15..GCC,IDN201203-201504

main28150-0C041i1TRFE,2TRFE..TGN15,16,26,36..SA201108

main28150-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202008

main28150-0L030i1KDFTV..KUN26..4FC..LA;1KDFTV..KUN26,36..CO,SA201107-201601

main28150-0L041i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main28150-0L050i2KDFTV..KUN25,35..4FC,5FC201109-201609

main28150-0L071i1KDFTV..KUN26..5F..CO201110-201510

main28150-0L141i1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB;1KDFTV..KUN26..(4FC,5FC)..(CO,LA)201203-201512

main28150-31110i1GRFE..GGN15,25..ARL201107-201504

main28150-40130i2TRFE..TGN16,26,36..ARL,GEN,TH201212-201504

main28150-54330i5LE..LAN15,25,35201108-201512

main28150-75130i2TRFE..TGN11,16,26..GCC201107-201504

main28150-75150i1TRFE..TGN10,15..GCC,IDN201107-201203

28160ARMATURE ASSY, STARTER

main28160-0C041i2TRFE..TGN26,36201108

main28160-0C060i2TRFE..TGN26,36..ANCOM,CO,LA201110-202008

main28160-0L070i1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA201110-201510

main28160-0T070i1TRFE..TGN10,15..GCC,IDN201203-201504

main28160-21060i2TRFE..TGN16,26,36..ARL,GEN,TH201107-201212

main28160-37050i2TRFE..TGN16,26,36..ARL,GEN,TH201212-201504

sub28160-75210

main28160-54140i2KDFTV..KUN25,35..4FC,5FC201109-201609

main28160-64041i1KDFTV..KUN26..(4FC,5FC)..(CO,LA);1KDFTV,5LE..KUN16,26,36,LAN15,25,35..ARL,GEN,MA,PHL,SA,TH201107-201601

main28160-70050i1TRFE..TGN10,15..GCC,IDN201107-201203

main28160-74070i2TRFE..TGN16..GCC;1GRFE,2TRFE..GGN15,25,TGN11,26..ARL,GCC201107-201504

main28160-YE010i2KDFTV..KUN10,15,25,35..5F..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

90119T0432

main90119-T0432

9164281065

main91642-81065

9 parts on this diagram · 14 diagrams in section
