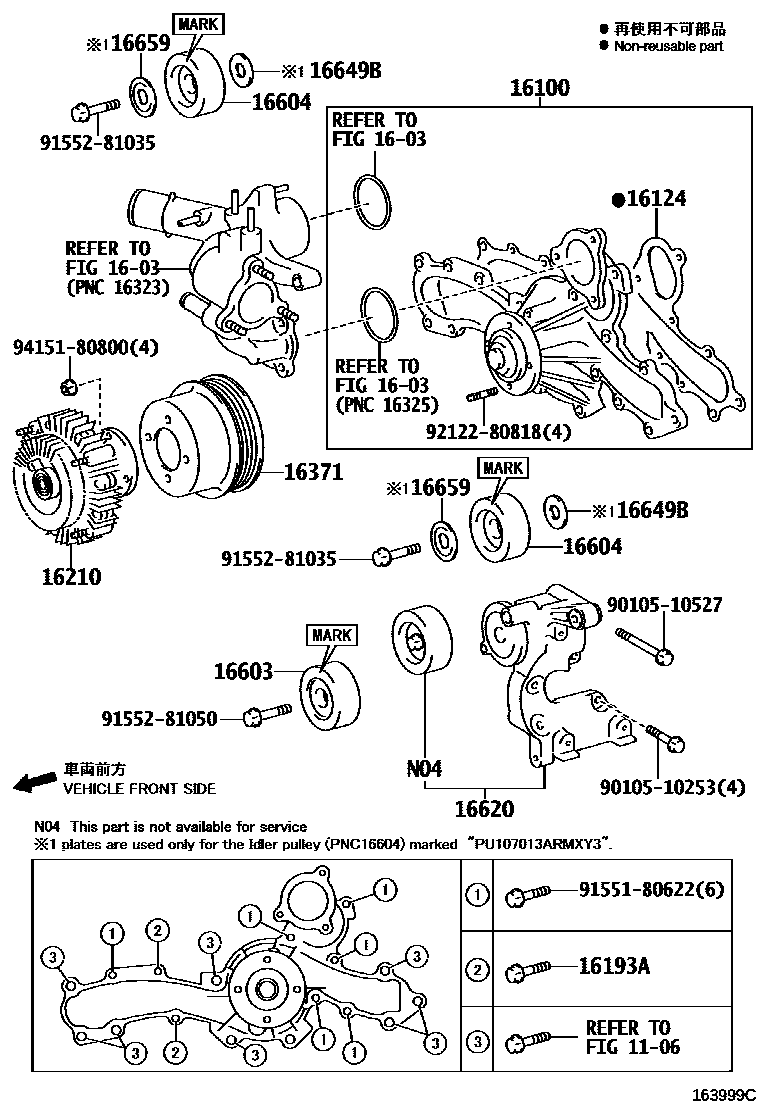

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09260i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201410

*130

sub16100-09261

main16100-09261i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201410-201609

*130

main16100-09460i2TRFE..TGN16,26,36..ANCOM,CO,LA,SA201201

(L)

main16100-09460i2TRFE..TGN16,26,36..CO,LA,SA201107-201512

main16100-39406i1GRFE..GGN15,25,35201107

main16100-39485i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201406

*360

sub16100-39486

main16100-39485i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201406

THAI SPEC(EURO 3 REGULATION),*360

sub16100-39486

main16100-39486i1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..GEN,PHL,SA,TH;1KDFTV..KUN26,36..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201407-201610

*360

main16100-59257i5LE..LAN15,25,35201108-201512

16124GASKET, WATER PUMP COVER

main16124-0C010i2TRFE..TGN16,26..ARL,GCC,GEN,TH;1TRFE,2TRFE..TGN10,11,15,36..(DLX,STD)..(GCC,GEN,IDN,SA)201107

main16124-0C010i2TRFE..TGN16,26,36..ANCOM,CO,LA,SA201108-201412

(L)

main16124-31070i1GRFE..GGN15,25,35201107

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i1GRFE..GGN15,25,35201107

16210COUPLING ASSY, FLUID

main16210-0C010i1TRFE,2TRFE..TGN1#,26,36201107-201201

main16210-0C010i1TRFE,2TRFE..TGN1#,26,36201201

*299

main16210-0L011i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201112

*130

main16210-0L011i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201112-201609

*130,(L)

main16210-30030i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201508

*360

sub16210-30031

main16210-30030i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206

*130,(J)

sub16210-30031

main16210-30031i1KDFTV,2KDFTV..KUN15,2#,3#..GEN,MA,PKN,SA201509-201610

*360

main16210-31020i1GRFE..GGN15,25,35201107-201606

sub16210-31021

main16210-31021i1GRFE..GGN25201607

main16210-54230i5LE..LAN15,25,35201108-201512

main16210-75120i1TRFE,2TRFE..TGN1#,26,36201201-201206

*300

16371PULLEY, FAN

main16371-05010i5LE..LAN15,25,35201108-201512

(L)

main16371-0C010i1TRFE,2TRFE..TGN1#,26,36201107

main16371-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main16371-30020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

*360

main16371-31040i1GRFE..GGN15,25,35201107

main16371-54030i5LE..LAN15,25,35201108-201512

(J)

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0C013i1TRFE,2TRFE..TGN1#,26,36201107

PU107029RMXY

main16603-31050i1GRFE..GGN15,25,35201107

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020i1GRFE..GGN15,25,35201107

MARK=PU107013ARMXY3

main16604-31030i1GRFE..GGN15,25,35201107

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201112

*130

main16620-0L020i2KDFTV..KUN25,35..CO201112-201609

*130,(L)

main16620-0L040i2KDFTV..KUN25,35..CO201309-201510

main16620-30031i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206

*130,(J)

main16620-30031i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

*360

main16620-31012i1GRFE..GGN15,25,35201107-201602

sub16620-31013

main16620-31013i1GRFE..GGN25201603

16649BPLATE, IDLER PULLEY COVER

main16649-31020i1GRFE..GGN15,25,35201107

MARK=PU107013ARMXY3

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i1GRFE..GGN15,25,35201107

MARK=PU107013ARMXY3

9010510253

main90105-10253

9010510527

main90105-10527

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

9415180800

main94151-80800

19 parts on this diagram · 4 diagrams in section
