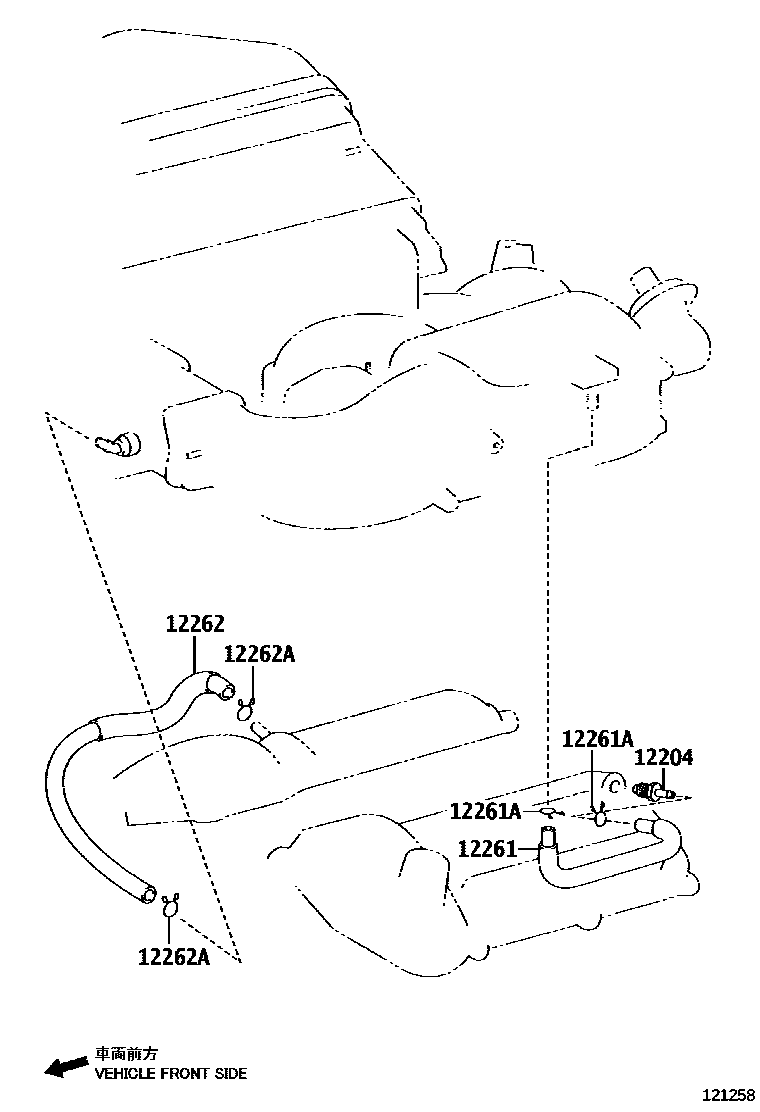

VENTILATION HOSE

0001 1 0002 1W/O(INTERCOOLER) 0008 1 0017 1CHILE SPEC(EURO 4 REGULATION)0018 1CHILE SPEC(EURO 5 REGULATION)0019 1CHILE SPEC(EURO 4,5 REGULATIO0020 1 0021 1 0022 1KAZAKHSTAN SPEC

12204VALVE SUB-ASSY, VENTILATION

main12204-0C010i1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC201107

main12204-31030i1GRFE..GGN15,25,35201107

main12204-75050i2TRFE..TGN26,36..HTWCF201110-201510

12261HOSE, VENTILATION

main12261-0C010i1TRFE,2TRFE..TGN15,16,26,36..HTWC..(ANCOM,CO,LA,SA)201108

main12261-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main12261-0C030i2TRFE..TGN26,36..HTWCF201110-201510

main12261-0L021i2KDFTV..KUN35..PHL201107-201609

main12261-0L030i2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV201112-201601

*130,(L)

main12261-0L030i1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH201107-201112

*130

main12261-0P060i1GRFE..GGN15,25,35201107-201612

(L)

main12261-30040i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*360

main12261-30040i2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH201112-201206

*130,(J)

main12261-31030i1GRFE..GGN15,25,35201107

(J)

main12261-54200i5LE..LAN15,25,35201108-201512

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0026i1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC201107

main90466-T0026i2TRFE..TGN26,36..HTWCF201110-201510

NO.2

main90466-T0032i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201609

main90467-14017i1GRFE..GGN15,25,35201107

main90467-15012i2TRFE..TGN26,36..HTWCF201110-201510

NO.1

main90467-18003i5LE..LAN15,25,35201108-201512

12262HOSE, VENTILATION, NO.2

main12262-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108

main12262-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main12262-0L010i2KDFTV..KUN35..5F..PHL201112-201601

*130,(L)

main12262-0L010i1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH201107-201112

*130

main12262-0P050i1GRFE..GGN15,25,35201107-201612

(L)

main12262-30040i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*360

main12262-30040i2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH201112-201206

*130,(J)

main12262-31030i1GRFE..GGN15,25,35201107

(J)

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-T0027i1TRFE,2TRFE..TGN1#,26,36201107

NO.1

main90467-21152i1GRFE..GGN15,25,35201107

main90467-24038i1TRFE,2TRFE..TGN1#,26,36201107

NO.2

5 parts on this diagram · 9 diagrams in section
