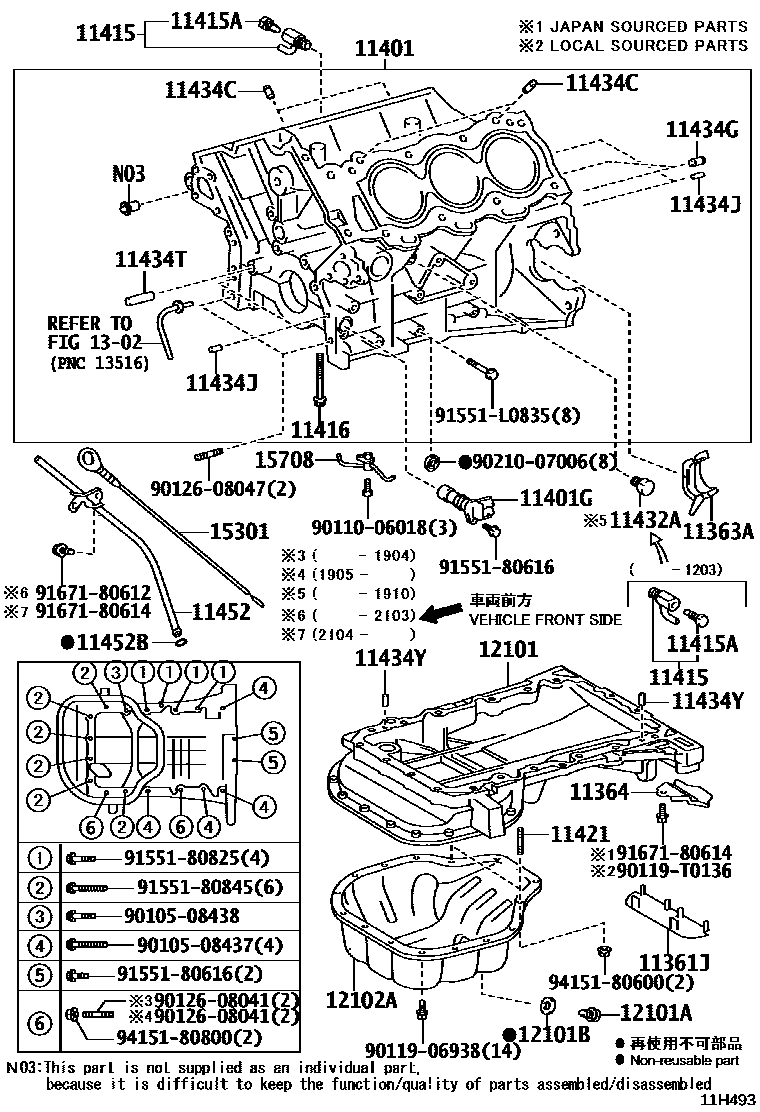

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0011 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GGN15,25,35201107

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GGN15,25,35201107-201501

sub11363-31050

main11363-31050i1GRFE..GGN15,25,35201502

11364PLATE, UNDER COVER SUB, NO.1

main11364-0P010i1GRFE..GGN15,25,35201107-201612

(L)

main11364-31020i1GRFE..GGN15,25,35201107

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-09400i1TRFE..TGN10,15201107-201404

sub11401-09401

main11401-09401i1TRFE..TGN10,15201404-201408

sub11401-09402

main11401-09402i1TRFE..TGN10,15201408-201512

sub11401-09890

main11401-09410i2TRFE..TGN11,16,26,36201107-201404

sub11401-09411

main11401-09411i2TRFE..TGN11,16,26,36201404-201408

sub11401-09412

main11401-09412i2TRFE..TGN11,16,26,36201408

sub11401-09A61

sub11444-75020

main11401-09492i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201512

sub11401-39796

main11401-09492i2KDFTV..KUN25..4FC..DLX201202

(L)

sub11401-39796

main11401-09524i1KDFTV..KUN26,36..DCR..(CO,LA)201310-201311

sub11401-39898

main11401-09702i1KDFTV..KUN26,36..5F..TH201107-201503

sub11401-09703

main11401-09702i1KDFTV..KUN26..5F..PHL201107-201503

(L)

sub11401-09703

main11401-09702i1KDFTV..KUN16..TH;1KDFTV..KUN26..5F..PHL;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,TH)201107-201503

AIR CONDITIONER-SINGLE AIR CONDITIONER,(L)

sub11401-09703

main11401-09703i1KDFTV..KUN26,36..5F..SA;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201503-201512

(L)

sub11401-80838

main11401-09703i1KDFTV..KUN16,26,36..MA,PHL,TH201503-201601

sub11401-80838

main11401-09741i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201311-201504

*130

sub11401-80782

main11401-09770i2KDFTV..KUN25,35..4FC..(IDN,PHL)201208-201601

*130

sub11401-80780

main11401-09770i2KDFTV..KUN25,35..CO201107-201510

sub11401-80780

main11401-39796i2KDFTV..KUN25..4FC..DLX201202

(J)

main11401-39796i2KDFTV..KUN25..(DCB,SCB)..5F..GEN201107-201609

main11401-39897i1KDFTV..KUN26..5F..PHL201107-201311

CHILE SPEC(EURO 4 REGULATION)

sub11401-39898

main11401-39897i1KDFTV..KUN26..5F..PHL201107-201311

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub11401-39898

main11401-39897i1KDFTV..KUN26..5F..PHL201107-201311

AIR CONDITIONER-SINGLE AIR CONDITIONER,(J)

sub11401-39898

main11401-39897i1KDFTV..KUN26,36..4FC..SA;1KDFTV..KUN26..LHD..SADCB;1KDFTV..KUN16,26,36..RHD..(ARL,GEN);1KDFTV..KUN26..LHD..(DCB,THDCB)..4FC..GEN201107-201311

(J)

sub11401-39898

main11401-39898i1KDFTV..KUN36..GEN,LA;1KDFTV..KUN26..LHD..SADCB..5F;1KDFTV..KUN26..5F..DCR..(CO,LA);1KDFTV..KUN16,26..RHD..(ARL,GEN);1KDFTV..KUN26..LHD..(4FC,5FC)..GEN;1KDFTV..KUN2201311-201510

*360

sub11401-80838

main11401-59767i5LE..LAN15,25,35201108-201512

main11401-80780i2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR201311-201504

ENGINE-2KD-FTV,*360

main11401-80780i2KDFTV..KUN15..SCB..TH;2KDFTV..KUN15..SMT..SR201208-201504

*360

main11401-80782i2KDFTV..KUN25,35..LA;2KDFTV..KUN15..SCB..HDCR..GEN201110-201510

main11401-80782i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201311-201504

*360

main11401-80795i1GRFE..GGN15,25,35201107-201702

sub11401-80845

main11401-80802i1KDFTV..KUN26..IART201204-201510

sub11401-80837

main11401-80803i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main11401-80837i1KDFTV..KUN26..IART201510

main11401-80838i1KDFTV..KUN26,36..4FC..SA;1KDFTV..KUN26,36..DCR..(CO,GEN,LA)201510

*360

main11401-80845i1GRFE..GGN25201702-201910

sub11401-80858

main11401-80858i1GRFE..GGN25201910

sub11401-80A06

11401GSENSOR, CRANK POSITION

main90919-05005i5LE..LAN15,25,35201108-201512

main90919-05057i1GRFE..GGN15,25,35201107

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09110i5LE..LAN15,25,35201108-201512

main90910-09118i2TRFE..TGN11,16,26,36201112-201206

(J)

main90910-09129i1GRFE..GGN15,25,35201107-201512

main90910-T9002i2TRFE..TGN11,16,26,36201107-201112

main90910-T9002i2TRFE..TGN11,16,26,36201112

(L)

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90334-14002i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201609

*130,(J)

main90334-14002i2KDFTV..KUN35..PHL201107-201610

*360

main90339-T0002i2KDFTV..KUN35..PHL201107-201609

*130,(L)

main90910-09087i2TRFE..TGN11,16,26,36201112-201206

(J)

main90910-09087i1TRFE..TGN10,15201107-201512

main90910-T9001i2TRFE..TGN11,16,26,36201107

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i5LE..LAN15,25,35201108-201512

main90910-02113i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

main90910-02113i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main90910-02176i1GRFE..GGN15,25,35201107

main90910-02179i1TRFE..TGN10,15..GCC,IDN201107-201406

(J)

main90910-T2002i1TRFE,2TRFE..TGN1#,26,36201107

(L)

main90910-T2003i2KDFTV..KUN15..DCR..(GCC,GEN,PHL,PKN,SA);2KDFTV..KUN10,25..GCC,GEN,IDN,MA,PKN,SA,TH;2KDFTV..KUN15,35..(4FC,5F)..HDCR..(PHL,SA,TH);2KDFTV..KUN15,35..LHD..(DCB,THDCB,201107-201508

*130

sub90910-T2009

main90910-T2009i2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(CO,PHL,SA,TH);2KDFTV..KUN10,25..CO,G201502-201609

*130

11421BOLT, STUD(FOR OIL PAN)

main90126-06015i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201503

TYPE A

main90126-06028i1GRFE..GGN15,25,35201107

main90126-06028i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201502-202110

TYPE B

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i5LE..LAN15,25,35201108-201512

main90345-52001i1GRFE..GGN15,25,35201203-201910

main90345-53009i2TRFE..TGN11,16,26,36201107

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1GRFE..GGN15,25,35201107

L=18,OD=8

main90253-15005i5LE..LAN15,25,35201108-201512

L=7,OD=14.5

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1GRFE..GGN15,25,35201107-201512

main90250-10192i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main90250-T0008i2KDFTV..KUN25,35..CO201110-201510

main90250-T0008i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097i1GRFE..GGN15,25,35201107

main90253-15016i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main90253-T0002i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

main90253-T0002i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

main90253-T0007i1TRFE,2TRFE..TGN1#,26,36201107

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GGN15,25,35201107

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097i1GRFE..GGN15,25,35201107

main90253-T0006i1TRFE,2TRFE..TGN1#,26,36201107

11452GUIDE, OIL LEVEL GAGE

main11409-0C011i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108-201503

main11409-0C021i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main11409-0C070i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

main11452-0L010i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH201107-201202

*130

main11452-0L010i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201202-201609

*130,(L)

main11452-0L020i2KDFTV..KUN25,35..CO201110-201510

main11452-30070i1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH201202-201206

*130,(J)

main11452-30070i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFT201107-201610

*360

main11452-30150i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

main11452-31070i1GRFE..GGN15,25,35201107

main11452-54190i5LE..LAN15,25,35201108-201512

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09018i5LE..LAN15,25,35201108-201512

main90301-T0025i1TRFE,2TRFE..TGN1#,26,36201107-201808

main90301-T0025i2TRFE..TGN26,36201808

MADE IN THAILAND

main90301-T0081i2TRFE..TGN26,36201808

MADE IN INDONESIA

main96723-19010i1GRFE..GGN15,25,35201107

12101PAN SUB-ASSY, OIL

main12101-0C010i1TRFE,2TRFE..TGN15,16,26,36..CO,LA,SA201108-201112

main12101-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201112-201503

*303

main12101-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201112

main12101-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201112-201502

*299

main12101-0C030i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

*303

main12101-0C040i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201502-201504

main12101-0L030i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201505

*360,(L)

sub12101-0L031

main12101-0L030i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201504

*130

sub12101-0L031

main12101-0L031i1KDFTV..KUN26..4FC..GEN;1KDFTV,2KDFTV..KUN15,2#,3#..DCB,SCB,XTR201505-201609

*130

main12101-30090i2KDFTV..KUN35..DCB..DLX..GEN201308-201504

main12101-30100i1KDFTV,2KDFTV..KUN15,2#,3#..GEN,MA,PKN,SA201505-201610

*360

main12101-30100i1KDFTV..KUN26,36..5F..TH201107-201505

*360,(J)

main12101-54340i5LE..LAN15,25,35201108-201512

main12101-75150i1TRFE,2TRFE..TGN1#,26,36201112-201206

*300

main12111-31130i1GRFE..GGN15,25,35201107

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201604

main90341-12012i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main90341-12032i2TRFE..TGN26,36201605-201709

main90341-T0004i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201503

main90341-T0004i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201112-201609

*130,(L)

main90080-43030i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201112

*130

main90430-12031i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main90430-12031i5LE..LAN15,25,35201107-201605

main90430-12031i2TRFE..TGN26,36201605

(J)

main90430-12031i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206

*130,(J)

main90430-T0024i2TRFE..TGN26,36201605

(L)

12102APAN SUB-ASSY, OIL, NO.2

main12102-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108-201503

main12102-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

(J)

main12102-0C020i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

(L)

main12102-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main12102-31060i1GRFE..GGN15,25,35201107

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0C010i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main15301-0C020i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

MADE IN THAILAND

main15301-0C030i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201503

MADE IN INDONESIA

main15301-0L030i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2K201107-201609

*130

main15301-0L040i2KDFTV..KUN25,35..CO201110-201510

main15301-30070i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFT201107-201610

*360

main15301-30070i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main15301-31060i1GRFE..GGN15,25,35201107

main15301-54111i5LE..LAN15,25,35201108-201512

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201406

MADE IN INDONESIA

main15708-0L011i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201202-201609

*130,(L)

main15708-0L011i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201202

*130

main15708-30011i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201202-201206

*130,(J)

main15708-30011i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main15708-31020i1GRFE..GGN15,25,35201107

main15708-54060i5LE..LAN15,25,35201108-201512

main15708-75010i1TRFE,2TRFE..TGN1#,26,36201107-201301

sub15708-75020

main15708-75020i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201301

MADE IN JAPAN

main15708-75020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201301-201504

9010508437

main90105-08437

9010508438

main90105-08438

9011006018

main90110-06018

9011906938

main90119-06938

90119T0136

main90119-T0136

9012608041

main90126-08041

9012608047

main90126-08047

9021007006

main90210-07006

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0835

main91551-L0835

9167180612

main91671-80612

9167180614

main91671-80614

9415180600

main94151-80600

9415180800

main94151-80800

40 parts on this diagram · 9 diagrams in section
