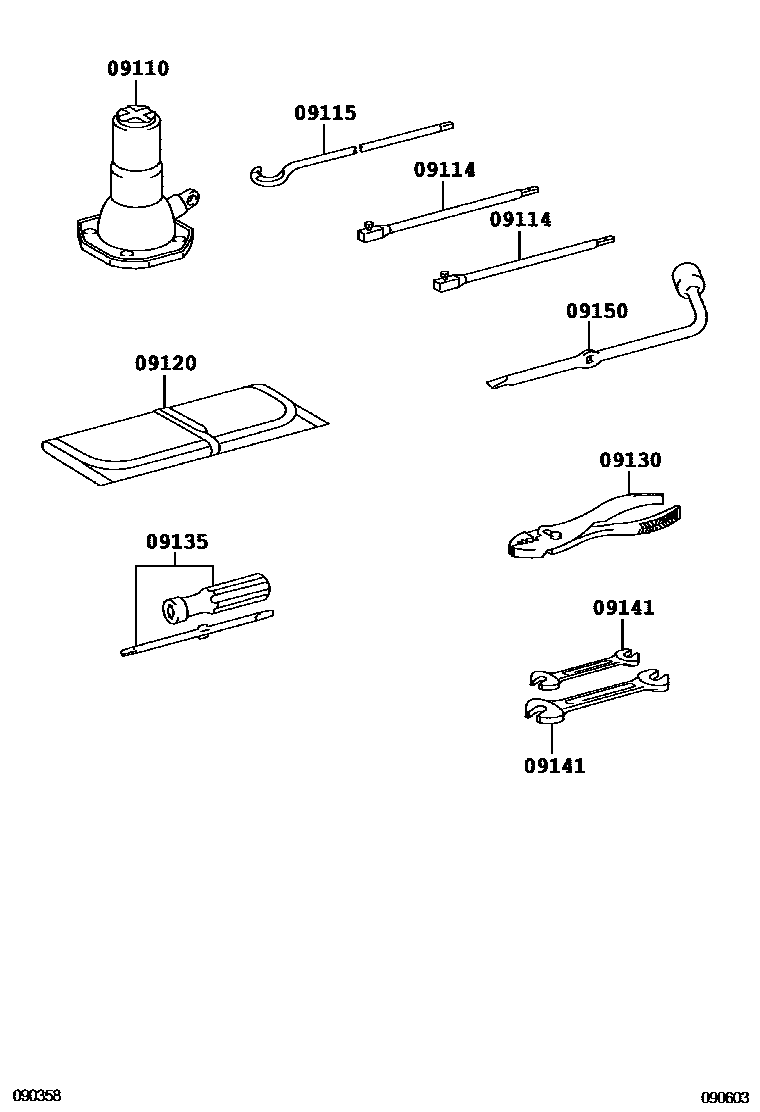

STANDARD TOOL

09110JACK ASSY

main09111-0K070iGGN15,KUN1#,TGN1#201107-201109

sub09111-0K071

main09111-0K071iGGN15,KUN1#,LAN15,TGN1#201109-201609

main09111-0K080iGGN25,KUN2#,3#,TGN26,36201107-201109

sub09111-0K081

main09111-0K081iKUN25..PKN201109-201609

sub09111-0K082

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201601

main09114-0K030iKUN2#,3#,TGN26,36..CO,LA201110-201510

main09114-0K060iKUN15,25..PKN201202-201609

main09114-0K070iGGN25,TGN26,36..ANCOM201204

main09114-0K100iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K060iKUN15,25..PKN201202-201609

main09115-0K080iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH201107-201601

main09115-0K090iKUN2#,3#,TGN26,36..CO,LA201110-201510

main09115-0K100iGGN25,TGN26,36..ANCOM201204

09120BAG, TOOL

main09120-02080iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201405

main09120-0K010iKUN15..SMT..SR;KUN25..4FC..MA;KUN15,26..DCB..(GCC,PHL);TGN26..(DCB,THDCB)..5F..GEN;KUN26,TGN16..(THDCB,XTR)..GEN;KUN15..RHD..(DCB,XTR)..(GEN,TH);KUN15,35..LHD..(DCB201107-201306

sub09120-0K160

main09120-0K030iKUN2#,3#,TGN26,36..CO,LA201110-201309

sub09120-0K180

main09120-0K070iKUN15,25..PKN201202-201609

main09120-0K080iGGN25,TGN26,36..ANCOM201204

main09120-0K130iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201204-201205

sub09120-0K010

main09120-0K160iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201306-201601

sub09120-0K240

main09120-0K180iKUN2#,3#,TGN26,36..CO,LA201310-201510

main09120-0K260iKUN26..SADCB201405-201512

main09120-0K270iGGN25,35,KUN15,2#,3#,LAN15,25,TGN15,16,26,36..SA201405-201512

09130PLIERS

main90080-99020iKUN26..4FC..LA201110-201510

PERU SPEC(HIGH ALTITUDE SPEC)

main90080-99020iKUN26..4FC..LA201110-201510

PERU SPEC

main90080-99020iKUN26..4FC..LA201110-201510

EXPORT FROM ARGENTINA

main90080-99020iKUN26..4FC..LA201110-201410

CHILE SPEC(EURO 4 REGULATION)

main90080-99020iKUN26..4FC..LA201110-201510

HIGH ALTITUDE COUNTRY SPEC

main90080-99020iKUN35..LA;KUN25..LA..CBU;TGN36..SCB..HTWC..LA201110-201310

MEXICO SPEC

main90080-99020iKUN2#,35,TGN26..CO201111-201510

main90089-99010iTGN16..ARL,GCC,TH;TGN16..(DCB,XTR)..GEN;GGN15,25,KUN1#,2#,3#,TGN10,11,15,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH201107-201609

main99913-11500iGGN25,TGN26,36..ANCOM201204

09135DRIVER, SCREW

main90080-99019iKUN2#,3#,TGN26,36..CO,LA201110-201510

sub09135-0K070

main90089-99009iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main99915-10700iGGN25,TGN26,36..ANCOM201204

09141SPANNER

main09141-0K030iKUN26..SADCB;KUN35..(DCB,SCB)..SA;GGN25,35,KUN15,2#,36,LAN15,25,TGN15,16,26,36..SA201107-201601

8 X 10

main09141-0K040iKUN35..XTR;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201601

12 X 14

main09141-0K110iKUN2#,3#,TGN26,36..CO,LA201404-201510

12 X 14

main09141-0K120iKUN2#,3#,TGN26,36..CO,LA201404-201510

8 X 10

main90080-99021iKUN2#,3#,TGN26,36..CO,LA201110-201403

12 X 14

sub09141-0K110

main90080-99022iKUN2#,3#,TGN26,36..CO,LA201110-201403

8 X 10

sub09141-0K120

main90089-99006iKUN15,25..PKN;LAN15,25,35..RHD201108-201609

8 X 10

main90089-99007iKUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..SA201108-201609

12 X 14

main99914-10810iGGN25,TGN26,36..ANCOM201204

8 X 10

main99914-11214iGGN25,TGN26,36..ANCOM201204

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main09150-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201601

main09150-0K030iKUN2#,3#,TGN26,36..CO,LA201110-201510

main09150-0K060iGGN25,TGN26,36..ANCOM201204

main09150-0K070iKUN15,25..PKN201202-201609

8 parts on this diagram · 1 diagram in section
