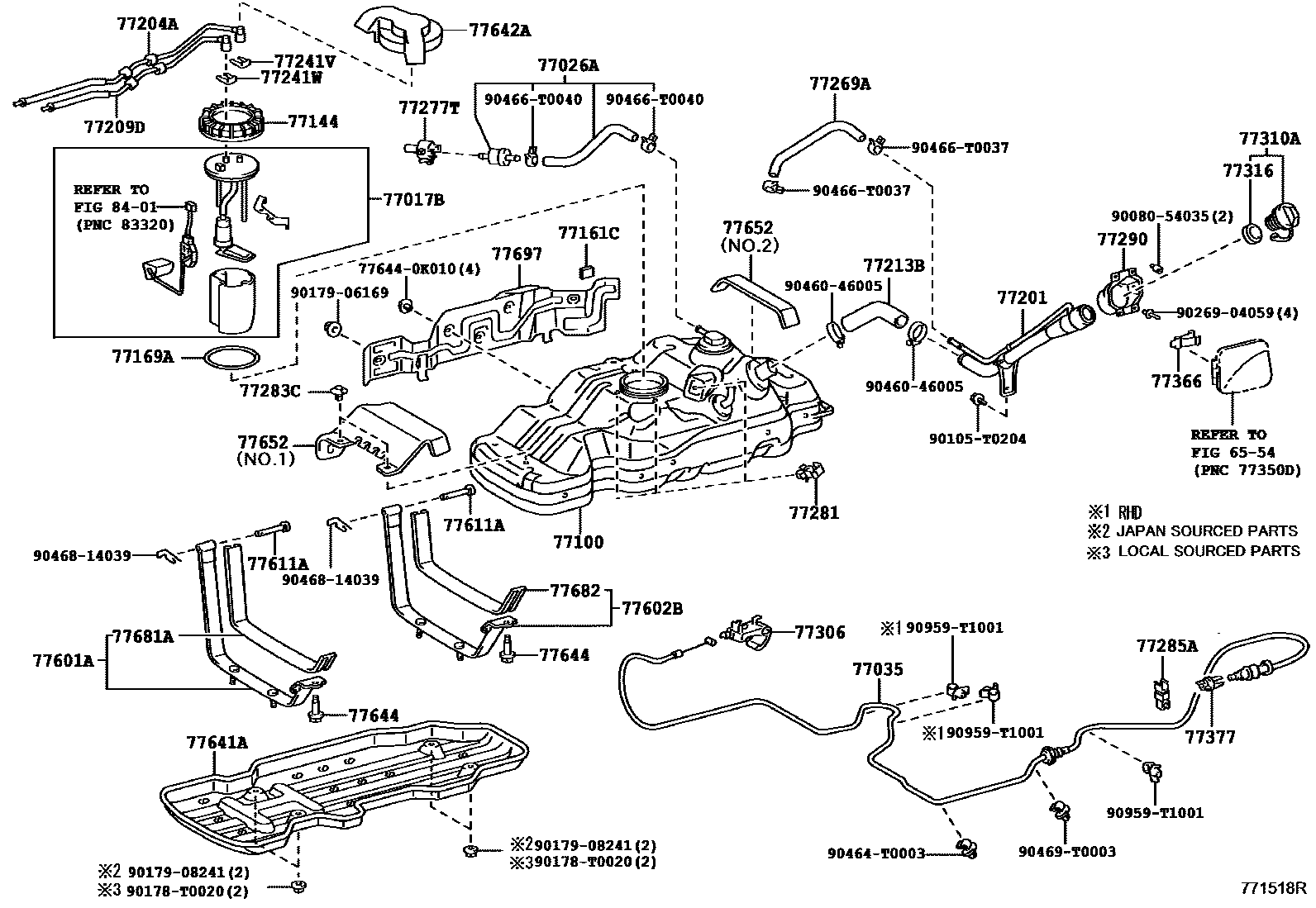

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK LEADED GASOLINE SPE0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TUBE(BRAZIL SPEC) 0010 1FUEL TUBE 0013 1FUEL TUBE,W(FUEL COOLER) 0014 1FUEL TUBE 0015 1FUEL TUBE LEADED GASOLINE SPE0016 1FUEL TUBE 0017 1FUEL TUBE

6554

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K010iKUN2#,3#..ANCOM,LA200501-200512

sub77010-0K011

main77010-0K011iKUN15..SR..SA200512-201204

main77010-0K020iKUN10200510-200512

sub77010-0K021

main77010-0K021iKUN10200601-201107

main77010-0K040iKUN36..DCB..TH200408-200601

sub77010-0K041

main77010-0K041iKUN16..4FC;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN25..(DCB,SCB,SMT)..(GCC,GEN,MA,PKN,TH);KUN15,26,3#..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,PHL,TH)200512-201202

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K010iGGN15..5F..SR;GGN25..SCB,XTR200501-201204

main77026-0K020iTGN10,11200510-201107

main77027-0K010iKUN26..IDN;KUN16..DCB..5F..TH;TGN16..(DCB,SCB)..GEN200408-201202

main77027-0K020iKUN10200510-201107

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0K010iTGN16..5F..ARL..CBU;GGN15,25,KUN15,16,2#,3#,LAN25,35,TGN26,36..RHD..DCB..(ARL,GEN,SA,TH)..CBU200408-201107

main77035-0K030iGGN15,KUN15,16,25,TGN16..RHD..SCB..(ARL,GEN,TH)..CBU200409-201202

main77035-0K040iKUN15,25,LAN15,25,TGN15,16,26..LHD..(SCB,THSCB)..(GCC,GEN,SA)..CBU200502-201107

main77035-0K050iTGN10..IDN..CBU200608-201107

main77035-0K110iGGN25..XTR200408-201108

main77035-0K120iTGN16..XTR..GEN200502-201107

main77035-0K130iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA200411-201107

main77035-0K140iKUN25..SR..MA200503-201109

main77035-0K170iKUN25..SCB..MA200503-201109

main77035-0K210iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

sub77035-0K130

main77035-0K220iKUN25,35,TGN26,36..SCB..(ANCOM,LA)..CBU200502-200812

sub77035-0K040

main77035-0K240iKUN10,TGN10,11..GCC200510-201107

main77035-0K290iGGN25,35,KUN2#,3#,LAN25,35,TGN36..RHD..DCB..SA201103-201108

sub77035-0K010

main77035-0K300iKUN15,2#,3#,LAN15,25,TGN15,36..RHD..SCB..SA..CBU201103-201108

sub77035-0K030

main77035-0K310iKUN15,25,LAN15,25,TGN16..LHD..SCB..SA201103-201108

sub77035-0K040

main77035-0K320iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA201103-201108

sub77035-0K130

77100TANK ASSY, FUEL

main77001-0K011iGGN15,25,TGN15,16,26..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,TH)200501-201107

main77001-0K020iKUN1#,2#200408-200410

sub77001-0K021

main77001-0K021iKUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN25..(DCB,SCB)..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,36,LAN15..(DC200411-201202

main77001-0K030iTGN10,11200510-201107

main77001-0K040iKUN10200510-201107

main77001-0K071iGGN25,TGN15,16,26,36..SA200504-201108

main77001-0K081iKUN15,2#,3#,LAN15,25,35..(DCB,SCB)..SA200504-201108

main77001-0K091iTGN26..LA;GGN25,TGN36..LHD;TGN26..ANCOM..CBU200504-201204

main77001-0K101iKUN2#,3#..ANCOM,LA200501-201204

main77001-0K220iKUN15,2#,3#..(THDCB,THSCB,XTR)..(GEN,SA)200708-201108

main77001-0K240iTGN26..THDCB200708-201107

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

77161CPROTECTOR, FUEL TANK, LOWER

main77671-0K010iTGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCO200408-201202

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K010iTGN10,11200510-201107

main77201-0K020iKUN10200510-201107

main77201-0K070iGGN25..XTR;GGN15..5F..SR200501-201204

main77201-0K080iGGN15,TGN16,36..(ANCOM,ARL,GCC)..IV3200502-201204

main77201-0K090iKUN25..SCB..MA;KUN36..XTR..TH;KUN15..GCC..IV3;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN15,16..LHD..GEN;TGN26..(DCB,THDCB)..DLX..(GEN,LA200408-201202

main77201-0K110iTGN36..LA..IV3;KUN15,16,2#,35..(ANCOM,ARL,LA,TH)..IV3200409-201204

main77201-0K220iTGN10..IV3200908-201107

77204ATUBE, FUEL TANK RETURN

main77204-0K010iGGN15..5F..SR;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN200501-201204

main77204-0K020iKUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DCB,SCB,SMT,XTR)..(DLX,SR)..(ANCOM,ARL200408-201202

main77204-0K030iTGN10,11200510-201107

main77204-0K040iKUN10200510-201107

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K010iTGN16..XTR;GGN25..5FC..SA;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,TGN15,36..CBU;GGN15..DCB..5FC..SR;TGN16..ARL,GCC,SA,TH;GGN25..DCB200501-201204

main77209-0K020iKUN15..SR..SA200408-201202

main77209-0K030iTGN10,11200510-201107

main77209-0K040iKUN10200510-201107

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K010iKUN10200510-201107

main77213-0K020iKUN26..IDN;GGN25..SCB,XTR;KUN35..DCB..DLX..SA;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

sub77213-0K021

main77213-0K050iTGN10,11200510-201107

main77213-0K060iGGN25,TGN26,36..LA200504-201204

77241VCLIP, TUBE JOINT

main77241-35450iKUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA).200408-201202

77241WCLIP, TUBE JOINT

main77241-33011iTGN16..XTR;TGN15,36..CBU;GGN25..5FC..SA;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN15..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD200408-201204

77269AHOSE, FUEL TANK BREATHER

main77269-0K010iKUN10,TGN10,11200510-201107

main77269-0K020iKUN26..IDN;GGN25..SCB,XTR;KUN35..DCB..DLX..SA;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

77277TBRACKET, CHECK VALVE

main77277-0K010iKUN25..SCB..MA;TGN26..DCB..GEN;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN16..LHD..GEN;KUN10,16,LAN15,25,35..DCB,SCB;KU200408-201202

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K040iKUN10,TGN10,11200408-201011

sub77281-0K070

main77281-0K070iKUN15..PKN201012-201202

77283CBRACKET, FUEL TANK PROTECTOR

main77283-0K010iTGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L200408-201202

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-0K190iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K010iGGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN,200408-201202

main77290-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA..CBU200504-201108

main77290-0K030iTGN36..DLX..CBU;TGN26..ANCOM..CBU;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..(ANCOM,LA)..CBU200501-200812

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH200408-201202

main77306-0K030iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA..CBU200504-201108

77310ACAP ASSY, FUEL TANK

main77300-28010iTGN16..XTR..TH;TGN36..SCB..CBU;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);GGN15,25,TGN1#..(5F,5FC)..CBU;TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU200501-200812

main77300-52030iKUN15..SR..SA200808-201108

main77300-60010iKUN26..THDCB;KUN25..SCB..MA;KUN36..XTR..TH;KUN15..GCC..IV3;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(D200408-201202

77316GASKET, FUEL TANK CAP

main77316-16010iKUN26..THDCB;KUN25..SCB..MA;KUN15..GCC..IV3;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX200408-201202

main77316-52040iGGN25..XTR;KUN26..IDN;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-0K030iGGN25..XTR;KUN26..IDN;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0K010iKUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB.200408-201202

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K010iTGN16..RHD;GGN15,KUN16..DCB..DLX;KUN15,TGN15..GEN,PHL,TH;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR200408-201202

main77601-0K020iKUN10,TGN10,11200510-201107

main77601-0K040iKUN35..GEN;TGN16..SCB..SR;KUN15..SCB..GCC;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200408-201107

main77601-0K080iKUN15,LAN15,TGN15,16..DLX..SA200504-201108

main77601-0K090iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..(DCB,SCB)..SA200504-201108

main77601-0K100iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-200812

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K010iTGN16..RHD;GGN15,KUN16..DCB..DLX;KUN15,TGN15..GEN,PHL,TH;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR200408-201202

main77602-0K020iKUN10,TGN10,11200510-201107

main77602-0K040iKUN35..GEN;TGN16..SCB..SR;KUN15..SCB..GCC;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200408-201107

main77602-0K070iKUN15,LAN15,TGN15,16..SA200504-201108

main77602-0K080iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..(DCB,SCB)..SA200504-201108

main77602-0K090iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

77611APIN (FOR FUEL TANK BAND)

main77653-0K040iTGN10..IDN200408-200611

sub77653-0K041

main77653-0K041iKUN10,TGN10,11..GCC200607-201202

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K030iKUN25,TGN26..GCC200408-200704

main77641-0K050iKUN26..IDN;GGN25..SCB,XTR200808-201107

main77641-0K060iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200612

sub77641-0K150

main77641-0K070iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200504-200612

sub77641-0K090

main77641-0K120iKUN25..RHD;KUN35..SCB;KUN35..LHD..DCB;KUN25..LHD..(DCB,SCB)..(ANCOM,GEN,LA);GGN25,KUN26,36,LAN25,35,TGN26,36..(DCB,SCB,XTR)..(ANCOM,GEN,LA,PHL,SA,TH)200608-200808

sub77641-0K050

77642APROTECTOR, FUEL TANK, NO.2

main77641-0K100iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR200509-201108

77644BOLT, FUEL TANK

main77644-35030iKUN10,TGN10,11..GCC200408-201202

77652CUSHION, FUEL TANK, NO.1

main77652-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

NO.1

main77652-0K020iTGN15..IV3;KUN15..SR..SA200408-201202

NO.2

main77652-0K030iKUN10,TGN10,11200510-201107

77681SEAT, FUEL TANK BAND, RH

main77681-0K050iKUN10,TGN10,11200510-201107

77681ASEAT, FUEL TANK BAND

main77681-0K040iTGN15..IV3;KUN15..SR..SA200408-201202

main77681-0K070iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

77682SEAT, FUEL TANK BAND, LH

main77682-0K010iKUN10,TGN10,11200510-201107

main77682-0K020iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main77682-0K040iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K010iTGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L200408-201202

main77697-0K020iKUN10,TGN10,11200510-201107

8401

776440K010BOLT, FUEL TANK

main77644-0K010

9008054035

main90080-54035

90105T0204

main90105-T0204

90178T0020

main90178-T0020

9017906169

main90179-06169

9017908241

main90179-08241

9026904059

main90269-04059

9046046005

main90460-46005

90464T0003

main90464-T0003

90466T0037

main90466-T0037

90466T0040

main90466-T0040

9046814039

main90468-14039

90469T0003

main90469-T0003

90959T1001

main90959-T1001

51 parts on this diagram · 15 diagrams in section
