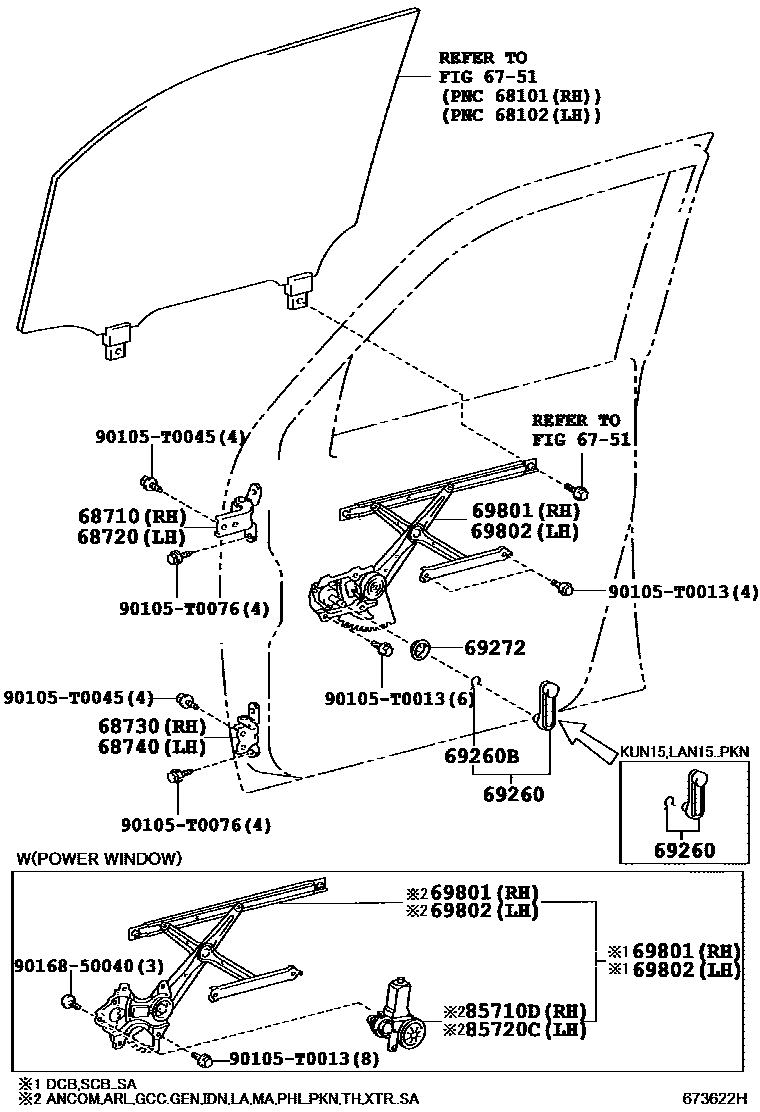

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200704-201108

main68710-0D030iKUN15..SR..SA200408-201202

main68710-12150iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,LA,SA200501-200609

sub68710-12151

main68710-12151iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200610-200812

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200704-201108

main68720-0D030iKUN15..SR..SA200408-201202

main68720-12150iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,LA,SA200501-200609

sub68720-12151

main68720-12151iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200610-200812

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02020iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-200812

main68730-52010iGGN25..5FC..SA;GGN25..DCB..ARL;GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;TGN26..LHD..(GCC,GEN,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..200408-201202

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02020iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

main68740-52010iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GC200408-201202

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-04030-B3iKUN25..PKN200710-201202

GRAY,TRIM1#

sub69260-04030

main69260-0K010-B0iKUN10,15,25,TGN1#,26..DLX..GCC201002-201107

GRAY,TRIM1#,3#

main69260-0K010-B0iKUN35..LHD..(SCB,THDCB);KUN35,TGN26..DCB..DLX..(GEN,LA);TGN26..(SCB,THDCB)..DLX..(ANCOM,GEN);KUN15,26,TGN36..5F..DLX..(ANCOM,GEN,LA,PHL);KUN25,36,TGN10,16..(DLX,STD200408-201204

GRAY,TRIM1#

main69260-0K020-B0iKUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA200504-201108

GRAY,TRIM1#

main69260-0K050-B0iKUN25..SCB..MA;KUN36,TGN26..DCB..DLX..LA;TGN16,26..5F..DLX..(ANCOM,ARL,GEN);KUN15,2#,35,TGN10,15,36..DLX..(ANCOM,GEN,IDN,LA,PHL)200411-201204

GRAY,TRIM1#

main69260-0K050-B0iKUN10,15,25,TGN1#,26..DLX..GCC200507-201002

GRAY,TRIM1#,3#

main69260-0K050-E1iKUN25..DCB..DLX..MA200809-200909

SAND BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iTGN16..XTR;TGN36..DLX..CBU;TGN36..ANCOM..IV3;KUN35..ANCOM,GEN,LA;TGN26..DLX..ANCOM..CBU;KUN25..SCB..(GEN,LA,MA);TGN16..DLX..(ARL,GCC,TH);KUN25..(DCB,THDCB,THSCB)..D200408-201108

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020iKUN25..SCB..MA;TGN36..4FC..ANCOM;TGN16..5F..DLX..(ARL,GCC,GEN);KUN15,36,TGN26..DCB..DLX..(LA,PHL);KUN16,25,TGN10..DLX..(ANCOM,GCC,GEN,IDN,LA,TH);KUN15,TGN26..(DCB,S200408-201202

main69268-0K010iKUN15,25,35,LAN15,25,35,TGN15,16,26..SA200504-201108

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K010iTGN26..THDCB..DLX200808-200908

ECUADOR & COLOMBIA SPEC&POWER DOOR LOCK-WITH

sub69801-0K011

main69801-0K010iKUN16..ARL;KUN26..SR..GEN;KUN26..ARL,IDN,TH;GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH);KUN16,25,36,TGN16,26..SR..(GCC,GEN,MA,TH)200808-200909

POWER DOOR LOCK-WITH

sub69801-0K011

main69801-0K010iKUN26..SR..GEN;KUN16..(DCB,SCB)..ARL;GGN15,25,KUN26,36,TGN36..ARL,PHL,TH;KUN15,16,25,TGN16,26..SR..(GCC,GEN,MA,PHL,TH)200408-200809

sub69801-0K011

main69801-0K011iKUN15..SR..SA200909-201109

main69801-0K011iTGN16..(DCB,SCB)..GEN200909-201107

POWER DOOR LOCK-WITH

main69801-0K050iKUN2#,3#,TGN26,36..DCB..DLX..LA200501-200808

POWER DOOR LOCK-WITH

sub69801-0K051

main69801-0K051iKUN2#,3#..DCB..DLX..LA;TGN26,36..DCB..DLX..(ANCOM,LA)200809-201003

POWER DOOR LOCK-WITH

sub69801-0K052

main69801-0K052iGGN25,KUN26,36,TGN26,36..SR..(ANCOM,LA)201004

POWER DOOR LOCK-WITH

main69810-0K010iKUN25..SCB..MA;TGN16..5F..DLX..(ARL,GCC,GEN);KUN1#,2#,35,LAN15,TGN10,11,15,26..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,TH)200408-200909

sub69810-0K011

main69810-0K011iTGN16..XTR;TGN16..DLX..(ARL,GCC,TH);KUN15,16..(DLX,STD)..(GCC,GEN,PHL,TH);KUN10,2#,35,TGN10,11,15,26..(DLX,STD)..(GCC,GEN,IDN,MA,PKN)200909-201202

main69810-0K030iKUN15,25,35,LAN15,25,35,TGN15,16,26..SA200504-200902

sub69810-0K031

main69810-0K031iKUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA200903-201108

main69810-0K040iKUN26,36,TGN36..SCB..SA200810-200902

POWER DOOR LOCK-WITH

sub69810-0K041

main69810-0K040iKUN36,TGN36..SCB..SA200504-200810

sub69810-0K041

main69810-0K041iKUN26,36,TGN36..SCB..SA200903-201108

POWER DOOR LOCK-WITH

main69810-0K110iKUN2#,3#,TGN26,36..DLX..(ANCOM,LA)200501-200808

sub69810-0K111

main69810-0K111iTGN26..DLX..ANCOM;TGN26..DCB..DLX..LA;KUN2#,3#,TGN36..DLX..(ANCOM,LA)200809-201003

sub69810-0K112

main69810-0K112iKUN2#,3#,TGN26,36..DLX..(ANCOM,LA)201004

main69810-0K140iKUN25..RHD..DCB..SA200710-200810

POWER DOOR LOCK-WITH

sub69810-0K141

main69810-0K140iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-200902

sub69810-0K141

main69810-0K141iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200903-201108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K010iGGN15,25,KUN16,26..ARL;KUN26,TGN16,26..SR..(GCC,GEN)200808-200908

ECUADOR & COLOMBIA SPEC&POWER DOOR LOCK-WITH

sub69802-0K011

main69802-0K010iTGN16..DLX..TH;KUN15..SMT..DCR200808-200909

POWER DOOR LOCK-WITH

sub69802-0K011

main69802-0K010iKUN26..SR..GEN;KUN16..(DCB,SCB)..ARL;GGN15,25,KUN26,36,TGN36..ARL,PHL,TH;KUN15,16,25,TGN16,26..SR..(GCC,GEN,MA,PHL,TH)200408-200809

sub69802-0K011

main69802-0K011iKUN16..ARL;KUN16..SMT;GGN15..SCB,XTR;GGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN26,36..(THDCB,XTR)..SR..(GEN,SA);GGN25,KUN35..(DCB,SMT)..(ARL,PHL,TH);KUN26.200909-201109

main69802-0K011iTGN16..(DCB,SCB)..GEN200909-201107

POWER DOOR LOCK-WITH

main69802-0K050iKUN2#,3#,TGN26,36..DCB..DLX..LA200501-200808

POWER DOOR LOCK-WITH

sub69802-0K051

main69802-0K051iKUN2#,3#..DCB..DLX..LA;TGN26,36..DCB..DLX..(ANCOM,LA)200809-201003

POWER DOOR LOCK-WITH

sub69802-0K052

main69802-0K052iTGN36..IV3;TGN36..DCB..DLX;TGN26..DLX..ANCOM;KUN2#,3#,TGN26..DCB..DLX..LA201004

POWER DOOR LOCK-WITH

main69820-0K010iTGN16..DLX..(ARL,GCC,GEN,TH);KUN1#,2#,35,TGN10,11,15,26..DLX..(GCC,GEN,IDN,MA,PHL,TH)200408-200909

sub69820-0K011

main69820-0K011iTGN16..XTR;TGN16..DLX..(ARL,GCC,TH);KUN15,16..(DLX,STD)..(GCC,GEN,PHL,TH);KUN10,2#,35,TGN10,11,15,26..(DLX,STD)..(GCC,GEN,IDN,MA,PKN)200909-201202

main69820-0K030iKUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA200504-200902

sub69820-0K031

main69820-0K031iKUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA200903-201108

main69820-0K040iKUN15..RHD..SA;KUN15,LAN15,25..DCB..SA;KUN25,35,LAN35,TGN15,16,26..DLX..SA200810-200902

POWER DOOR LOCK-WITH

sub69820-0K041

main69820-0K040iGGN25,KUN26,36,TGN36..SA200504-200810

sub69820-0K041

main69820-0K041iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200903-201108

POWER DOOR LOCK-WITH

main69820-0K090iKUN2#,3#,TGN26,36..DLX..(ANCOM,LA)200501-200808

sub69820-0K091

main69820-0K091iTGN26..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN2#,3#,TGN36..DLX..(ANCOM,LA)200809-201003

sub69820-0K092

main69820-0K092iKUN2#,3#,TGN26,36..DLX..(ANCOM,LA)201004

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K010iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

POWER DOOR LOCK-WITH

main85710-0K010iKUN15,16,2#,TGN26..DCB..SR..TH200408-200812

main85710-0K030iKUN35..TH;KUN16..4FC;KUN16..SMT;KUN26,36..XTR..SA;KUN15,2#,36,TGN16..RHD..SR..(GEN,MA,TH)200512-201109

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iKUN26,36..SR..LA200408-201108

main85720-0K010iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200808-201107

POWER DOOR LOCK-WITH

main85720-0K050iKUN26..SR..GEN200708-200810

POWER DOOR LOCK-WITH

main85720-0K050iKUN15,26,35..SR..PHL200908

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
