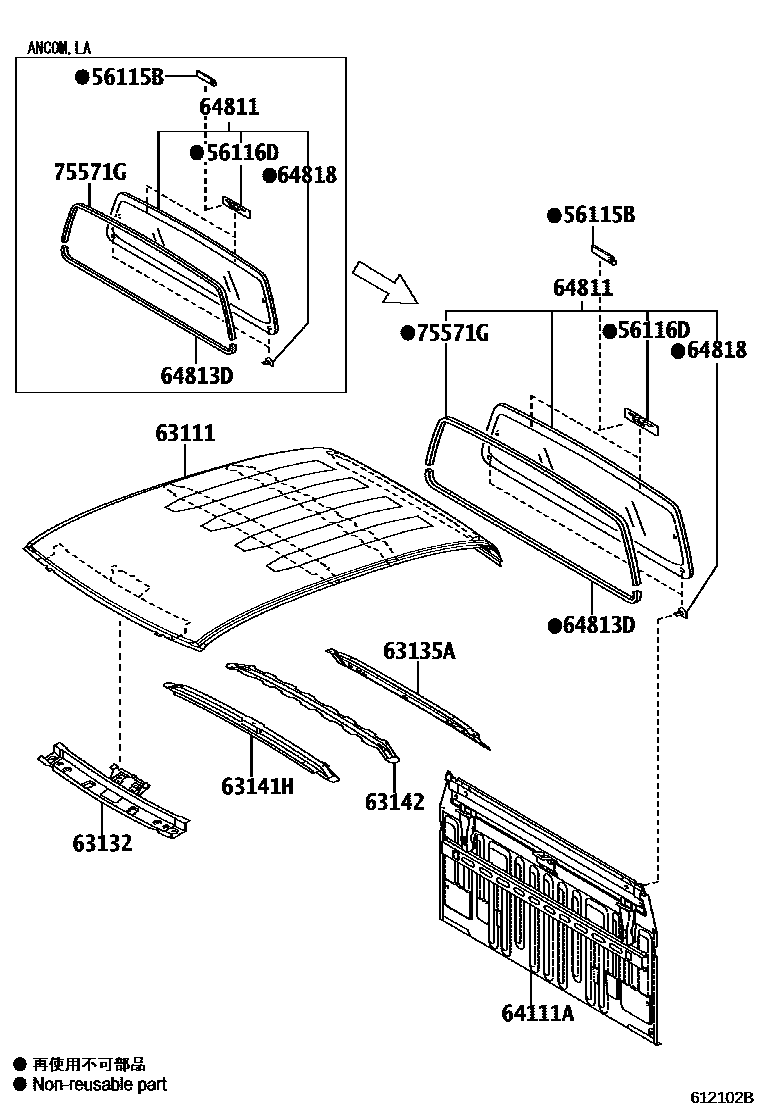

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-02020iTGN15..IV3;KUN15..SR..SA200408-201202

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-02020iTGN15..IV3;KUN15..SR..SA200408-201202

63111PANEL, ROOF

main63111-0K010iTGN16..DCB..(ARL,GCC,TH);GGN15,KUN16,TGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15,2#,3#,TGN26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH)200408-201107

main63111-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200810-201108

main63111-0K030iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA200810-201108

main63111-0K040iGGN25..IV3;TGN16..SCB..GEN200409-201202

main63111-0K050iGGN25..XTR200408-201108

63132PANEL, WINDSHIELD HEADER, INNER

main63102-0K010iKUN16..SMT;GGN25..5FC..SA;KUN26..LHD..DLX;KUN35..SR..(PHL,SA);GGN35,KUN36..DCB,SMT,XTR;GGN15,KUN16..(4FC,5FC)..SR;KUN25,35..(DCB,SMT)..(MA,TH);KUN26,TGN36..(DCB,SMT200408-201108

main63132-0K010iGGN15,25,KUN26..SR..ARL200408-201202

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-0K010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36200408-200706

sub63135-0K011

main63135-0K011iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN200707-201202

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,XTR200408-200706

sub63141-0K011

main63141-0K011iKUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN16,25,TGN16..RHD..(DCB,XTR)..SR;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);TGN26,36..(DCB,THDCB,XTR)..(ANCOM,GCC,GEN,PHL,200707-201108

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB200408-200706

sub63142-0K011

main63142-0K011iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200707-201107

64111APANEL, BACK

main64101-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

sub64101-0K050

main64101-0K020iTGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCO200409-201202

sub64101-0K060

main64101-0K030iGGN15,KUN15,16,26,36,TGN16..XTR200408-201108

main64101-0K040iKUN15,16,2#,3#,TGN16..SMT200809-201107

64811GLASS, BACK WINDOW

main64801-0K010iKUN25..SCB..MA200408-201109

*TEM,T=3.5,GREEN

sub64801-0K090

main64801-0K020iKUN25..SR..MA200805-200809

*EHT,T=3.5,GREEN,*301

sub64801-0K100

main64801-0K020iTGN16..RHD..CBU;KUN25,TGN26..THDCB..DLX;KUN15,25,TGN26..SR..(GEN,MA,TH);GGN15,25,KUN16,26,3#..(DCB,THDCB,XTR)..(ARL,GEN,TH)200408-200805

*EHT,T=3.5,GREEN,*299

sub64801-0K100

main64801-0K020iKUN25..DCB..MA200809-201109

*EHT,T=3.5,GREEN

sub64801-0K100

main64801-0K030iKUN25..RHD..DCB..SA200504-201108

*TEM,T=3.5,GREEN

main64801-0K050iTGN26..SCB..ANCOM;KUN25,35,TGN36..SCB..(ANCOM,LA)200502-200812

*TEM,T=3.5,GREEN

sub64801-0K051

main64801-0K060iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200501-200812

*EHT,T=3.5,GREEN

sub64801-0K061

main64801-0K070iGGN15,25,KUN26..DCB..SR..ARL200908-201107

*EHT,T=3.5,PRIVACY

sub64801-0K071

main64801-0K090iGGN25..IV3;TGN16..(DCB,SCB)..GEN200805-201202

*TEM,T=3.5,GREEN

sub64801-0K092

main64801-0K100iKUN15,25,TGN15,16,26..(DCB,XTR)..GEN200805-200808

*EHT,T=3.5,GREEN,REAR WINDOW DEFOGGER-WITH,*301

sub64801-0K102

main64801-0K100iTGN26..SR..(GEN,TH);KUN25,TGN26..THDCB..DLX;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,TH);KUN16,25,36,TGN16..(DCB,XTR)..(ARL,TH);GGN15,25,KUN15,35..(DCB,THDCB,XTR)..(HDCR,HT200805-200808

*EHT,T=3.5,GREEN,*301

sub64801-0K102

main64801-0K100iGGN15,25,KUN26..DCB..SR..ARL200808-201107

*EHT,T=3.5,GREEN

sub64801-0K102

main64801-0K100iTGN16..4FC..TH;TGN16..RHD..DCB;KUN26..GEN,IDN,TH;GGN15,25..DCB..DLX;KUN26..XTR..ARL..CBU;KUN15,35..HDCR..(GEN,TH);KUN26..(DCB,XTR)..DLX..ARL;GGN15,25,KUN25,TGN26..T200808-201107

*EHT,T=3.5,GREEN,REAR WINDOW DEFOGGER-WITH

sub64801-0K102

main64810-0K010iKUN35..SR..SA;KUN25,35..RHD..SCB..SA;GGN25,35,KUN26,36,LAN25,TGN36..RHD..(DCB,SCB)..SA200810-201108

*TEM,T=4.0,GREEN,AIR CONDITIONER-SINGLE AIR CONDITIONER

main64810-0K010iKUN15,LAN15,TGN15..RHD..DLX..SA200504-201108

*TEM,T=4.0,GREEN

main64810-0K010iKUN15,LAN15,TGN15..RHD..SA200504-200810

*TEM,T=4.0,GREEN,SINGLE AIR CONDITIONER

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0K020iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

64818SPACER, BACK WINDOW GLASS

main64818-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

12 parts on this diagram · 3 diagrams in section
