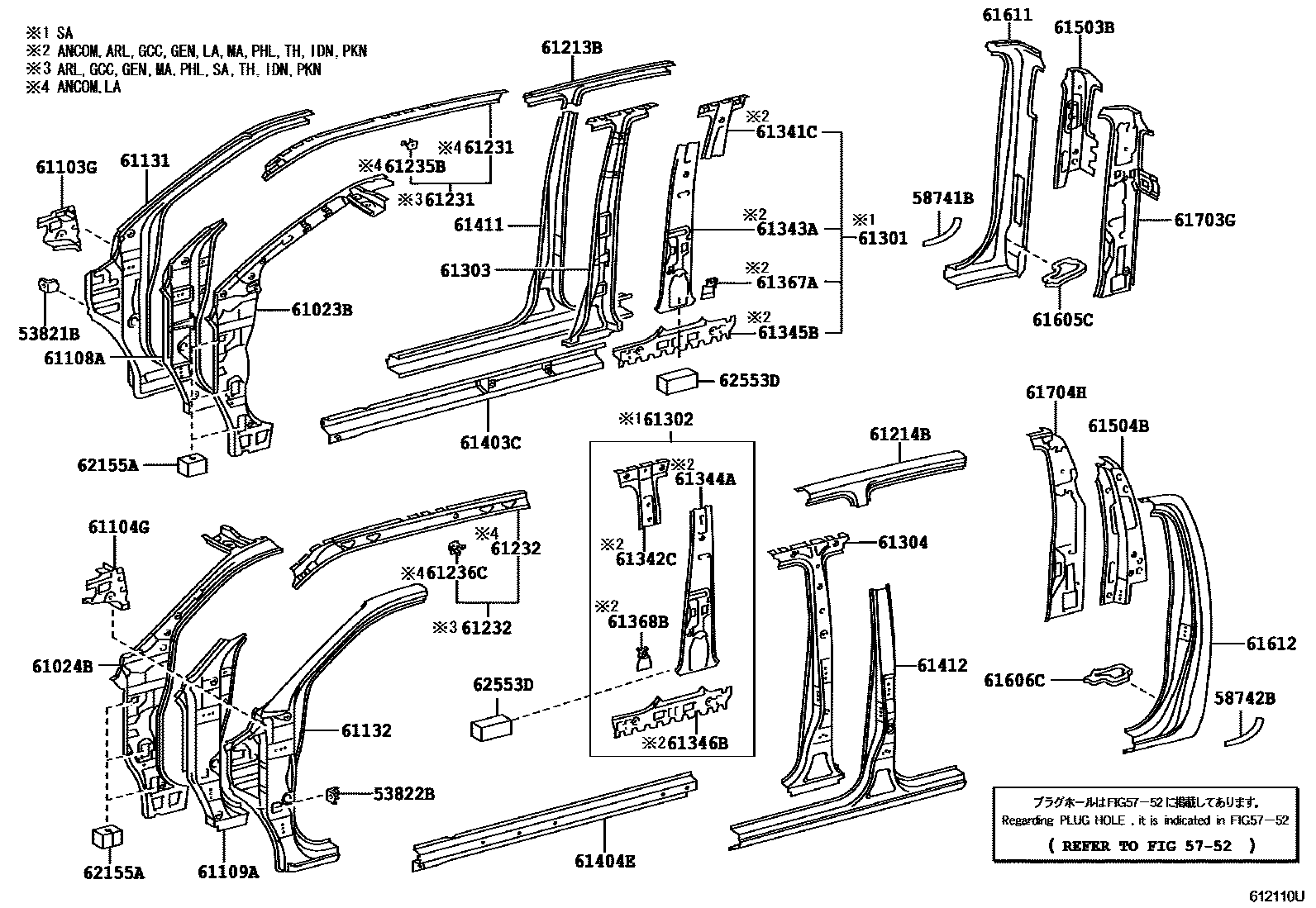

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iTGN15..IV3;KUN15..SR..SA¥280200408-201202

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,¥280200408-201202

5752

58741BPROTECTOR, QUARTER PANEL, RH

main58741-0K050iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..SA200604-201108

main58741-0K060iKUN15,25,35,LAN15,25,TGN15,16..(SCB,XTR)..SA200604-201108

58742BPROTECTOR, QUARTER PANEL, LH

main58742-0K040iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..DLX..SA200604-201108

main58742-0K050iKUN15,25,35,LAN15,25,TGN15,16,26..SCB..SA200604-201108

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K010iGGN15,KUN1#,LAN15,TGN1#200408-200709

sub61023-0K011

main61023-0K011iKUN15..LHD..SCB..SA;KUN15,16,TGN16..XTR..TH;KUN15,16..RHD..(DCB,SCB);TGN16..5F..(ARL,GCC,GEN);LAN15,TGN16..SCB..(PKN,SA);GGN15,KUN10,TGN10,11,15..DLX,SR;KUN15..LHD.200710-201202

main61023-0K020iKUN2#,3#,TGN26,36..LA200408-201102

sub61023-0K022

sub61023-0K130

main61023-0K022iKUN2#,3#,TGN26,36..LA201103-201110

sub61023-0K091

main61023-0K081iLAN15..SCB..SA;KUN15..RHD..(DLX,SR);TGN16..ARL,GCC,GEN,TH;KUN15..LHD..(GCC,GEN,PHL);KUN15,TGN16..LHD..SCB..SA;GGN15,KUN10,16,TGN10,11,15200808-201108

main61023-0K091iGGN25..5FC..SA;GGN25..ANCOM,ARL;KUN15,LAN15,TGN16..DCB..SA;TGN26..LHD..(ANCOM,GCC,GEN,SA)..CBU;GGN35,KUN2#,3#,LAN25,35,TGN36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH200808-201204

main61023-0K130iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB,XTR)..5F;KUN15,26,LAN15,TGN16..DCB..5F..SA;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,THDCB,XTR)..(A200710-200812

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0K010iGGN15,KUN1#,LAN15,TGN1#200408-200709

sub61024-0K011

main61024-0K011iKUN15..LHD..SCB..SA;KUN15,16,TGN16..XTR..TH;KUN15,16..RHD..(DCB,SCB);TGN16..5F..(ARL,GCC,GEN);LAN15,TGN16..SCB..(PKN,SA);GGN15,KUN10,TGN10,11,15..DLX,SR;KUN15..LHD.200710-201009

sub61024-0K012

main61024-0K012iKUN15..PKN201010-201202

main61024-0K020iGGN25,KUN2#,3#,TGN26,36..LA200408-201102

sub61024-0K130

sub61024-0K022

main61024-0K022iKUN2#,3#,TGN26,36..LA201103-201110

sub61024-0K102

main61024-0K091iKUN15..RHD;LAN15..SCB..SA;TGN16..ARL,GCC,GEN,TH;KUN15..LHD..(GCC,GEN,PHL);KUN15,TGN16..LHD..SCB..SA;GGN15,KUN10,16,TGN10,11,15200808-201009

sub61024-0K092

main61024-0K092iKUN15..LHD..SCB..SA;KUN15..RHD..(DLX,SR);LAN15,TGN16..SCB..SA;TGN16..ARL,GCC,GEN,TH;KUN15..LHD..(GCC,GEN,PHL);GGN15,KUN10,16,TGN10,11,15201010-201108

main61024-0K101iGGN25..5FC..SA;GGN25..ANCOM,ARL;KUN15,LAN15,TGN16..DCB..SA;TGN26..LHD..(ANCOM,GCC,GEN,SA)..CBU;GGN35,KUN2#,3#,LAN25,35,TGN36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH200808-201009

sub61024-0K102

main61024-0K102iKUN15,LAN15,TGN16..DCB..SA;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201010-201204

main61024-0K130iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB,XTR)..5F;KUN15,26,LAN15,TGN16..DCB..5F..SA;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,THDCB,XTR)..(A200710-200812

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)¥1,690200408-201202

61104GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61104-0K010iGGN15..DCB..DLX;TGN36..SCB..CBU;TGN26..ANCOM..CBU;TGN16..ARL,GCC,TH;TGN36..ANCOM..IV3;KUN15,TGN16..XTR..DLX;KUN2#,3#..(SCB,XTR)..SA;KUN15,TGN16..LHD..SCB..SA;GGN15,200408-201202

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,¥8,100200408-201202

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K010iKUN25..DCB..SR;KUN25,TGN16..RHD..DCB..5F..(ARL,GEN,SA);GGN15,25,KUN15,16,26,3#,LAN25,35,TGN26,36..RHD..DCB200408-201107

main61131-0K020iTGN36..DCB..DLX..LA;TGN26..SR..(ANCOM,GEN);TGN36..4FC..(ANCOM,PHL);TGN26..(DCB,THDCB)..DLX;GGN25,KUN15,2#,36,LAN15,25,TGN15..LHD..(DCB,THDCB);KUN35,TGN16..LHD..(DCB¥24,200200411-201107

main61131-0K030iKUN16..SCB;KUN16,TGN16..XTR..TH;KUN15,26,36..RHD..(SCB,XTR)..(ARL,GEN,PKN,TH);GGN15,25,KUN25,35,LAN15,25,TGN15,26,36..RHD..(SCB,XTR);KUN15,36,TGN10,16..RHD..SCB..5F200408-201202

main61131-0K040iTGN15..IV3200502-201108

main61131-0K090iKUN15,16,2#,3#,TGN16..SMT200809-201107

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;KUN25..LHD..DCB..SA;TGN16..DCB..(ARL,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15..RHD..DCB..(ARL,GEN,TH);KUN2#,3#..RHD..DCB..(200408-201107

main61132-0K020iTGN16..DCB..GCC;GGN25,KUN15,2#,3#,TGN15,26,36..LHD..(DCB,THDCB)..(ANCOM,GCC,GEN,LA,PHL)200411-201107

main61132-0K030iKUN15..LHD..SCB..SA;TGN16..SCB..(ARL,SA,TH);KUN15,TGN15..RHD..(SCB,XTR)..DLX..CBU;GGN15,KUN16,2#,3#,LAN15,25,TGN10,36..(SCB,XTR)..(ARL,GEN,IDN,MA,SA,TH)200408-201202

main61132-0K040iTGN16..SCB..GEN200502-201107

main61132-0K100iKUN15,16,2#,3#,TGN16..SMT200809-201107

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-201107

61231RAIL, ROOF SIDE, INNER RH

main61210-0K020iKUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);KUN16,36,TGN10,36..SCB..(DLX,SR).200408-201011

sub61210-0K021

sub61210-0K050

main61210-0K021iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201011-201108

main61210-0K050iKUN15..PKN201011-201204

main61231-0K010iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200501-200709

sub61231-0K011

main61231-0K011iKUN2#,3#,TGN26,36..DCB..LA200710-201204

main61231-0K901iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)200408-200710

sub61231-0K902

main61231-0K902iKUN25..SR..MA200710-200809

sub61231-0K903

main61231-0K903iKUN25..DCB..MA200710-201202

61232RAIL, ROOF SIDE, INNER LH

main61220-0K020iTGN26,36..SCB..ANCOM;KUN25,35..SCB..(ANCOM,LA)200408-201011

sub61220-0K021

sub61220-0K060

main61220-0K021iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201011-201108

main61220-0K060iKUN15..PKN201011-201204

main61232-0K010iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200501-200709

sub61232-0K011

main61232-0K011iKUN2#,3#,TGN26,36..DCB..LA200710-201009

sub61232-0K012

main61232-0K012iKUN2#,3#,TGN26,36..DCB..LA201010-201204

main61232-0K901iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)200408-200710

sub61232-0K902

main61232-0K902iKUN25..SR..MA200710-200809

sub61232-0K903

main61232-0K903iGGN25..5FC..SA;GGN25..DCB..ARL;GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)200710-201012

sub61232-0K904

main61232-0K904iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201012-201202

61235BBRACKET, ASSIST GRIP

main61235-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)¥1,260200408-201204

61236CBRACKET, ASSIST GRIP

main61235-0K010iKUN2#,36..LA;KUN35..DCB..LA;KUN35..LHD..SCB;TGN26,36..SCB..ANCOM¥1,260200408-201204

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0K901iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200504-200710

main61301-0K903iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200710-200801

sub61301-0K904

main61301-0K904iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200801-201108

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-0K070iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-201101

sub61302-0K071

main61302-0K071iGGN15,25,KUN15,16,26,36,TGN16..XTR201102-201108

main61302-0K901iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200504-200710

main61302-0K903iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200710-200801

sub61302-0K904

main61302-0K904iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200801-201108

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K010iKUN2#,3#,TGN26,36..DCB..LA200408-200810

main61303-0K020iGGN25..IV3;TGN16..SCB..GEN200409-201202

main61303-0K030iGGN15,25,KUN15,16,26,36,TGN16..XTR200408-201009

sub61303-0K031

main61303-0K031iGGN25..XTR201010-201108

main61303-0K060iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200710-201107

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB200408-200810

main61304-0K020iTGN15..IV3200409-201202

main61304-0K030iGGN15,25,KUN15,16,26,36,TGN16..XTR200408-201009

sub61304-0K031

main61304-0K031iGGN25..XTR201010-201108

main61304-0K060iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200710-201107

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-200712

sub61341-0K040

main61341-0K040iKUN26..4FC..LA200710-201204

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-200712

sub61342-0K040

main61342-0K040iKUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN);GGN15,25,KUN15,16,26,36,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,TH)200710-201204

61343APILLAR, CENTER BODY, INNER RH

main61343-0K010iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200408-200712

sub61343-0K012

main61343-0K012iGGN25,KUN2#,3#,TGN26,36..DCB..LA200801-201110

main61343-0K040iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200710-200712

sub61343-0K041

main61343-0K041iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)200801-201204

61344APILLAR, CENTER BODY, INNER LH

main61344-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-200712

sub61344-0K012

main61344-0K012iGGN25,KUN2#,3#,TGN26,36..DCB..LA200801-201110

main61344-0K040iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200710-200712

sub61344-0K041

main61344-0K041iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200801-201204

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K010iKUN26..5F..LA;KUN26..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,16,25,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH)200408-201204

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-0K010iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200408-201204

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K010iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200408-201204

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-0K010iGGN25,KUN2#,36,LAN15,25,35,TGN16,26,36..DCB..SA200408-201204

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-201107

main61403-0K050iKUN15,16,2#,3#,TGN16..SMT200809-201107

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-201107

main61404-0K020iKUN15,16,2#,3#,TGN16..SMT200809-201107

61411PANEL, ROCKER, OUTER RH

main61411-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

61412PANEL, ROCKER, OUTER LH

main61412-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,200408-201107

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200408-201107

main61503-0K020iGGN15,25,KUN15,16,26,36,TGN16..XTR200408-201009

sub61503-0K021

main61503-0K021iGGN15,25,KUN15,16,26,36,TGN16..XTR201010-201102

sub61503-0K022

main61503-0K022iGGN15,KUN15,16,26,36,TGN16..XTR201103-201108

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200408-201107

main61504-0K020iKUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR200408-201009

sub61504-0K021

main61504-0K021iGGN15,25,KUN15,16,26,36,TGN16..XTR201010-201102

sub61504-0K022

main61504-0K022iGGN25..XTR201103-201108

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61567-0K010iGGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)200408-201107

61606CPANEL SUB-ASSY, QUATER, REAR INNER LH

main61568-0K010iKUN25..SR..MA200408-201107

61611PANEL, QUARTER, RH

main61611-0K010iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,¥45,000200408-201107

main61611-0K020iTGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCO200409-201202

main61611-0K030iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-201108

main61611-0K070iKUN15,16,2#,3#,TGN16..SMT200809-201107

61612PANEL, QUARTER, LH

main61612-0K010iGGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,3200408-201107

main61612-0K020iTGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCO200409-201202

main61612-0K030iGGN25..XTR200408-201108

main61612-0K070iKUN15,16,2#,3#,TGN16..SMT200809-201107

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB200408-201009

sub61703-0K111

sub61703-0K012

main61703-0K012iKUN2#,3#,TGN26,36..DCB..LA201010-201110

main61703-0K110iGGN25..5FC..SA;GGN25..DCB..(ANCOM,ARL);GGN15,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH)200710-201009

sub61703-0K111

main61703-0K111iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201010-201204

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-0K010iKUN2#,3#,TGN26,36..DCB..LA200408-201009

sub61704-0K151

sub61704-0K012

main61704-0K012iKUN2#,3#,TGN26,36..DCB..LA201010-201110

main61704-0K150iGGN25,KUN25,35,TGN26,36..DCB..ANCOM200710-201009

sub61704-0K151

main61704-0K151iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201010-201204

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K010iKUN16,26..(SCB,XTR)..ARL200408-201202

62553DPAD, PILLAR, NO.3

main62557-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

main62557-0K050iKUN2#,3#..LA;TGN36..5F..DLX..LA;TGN26..DCB..DLX..LA201007

45 parts on this diagram · 4 diagrams in section
