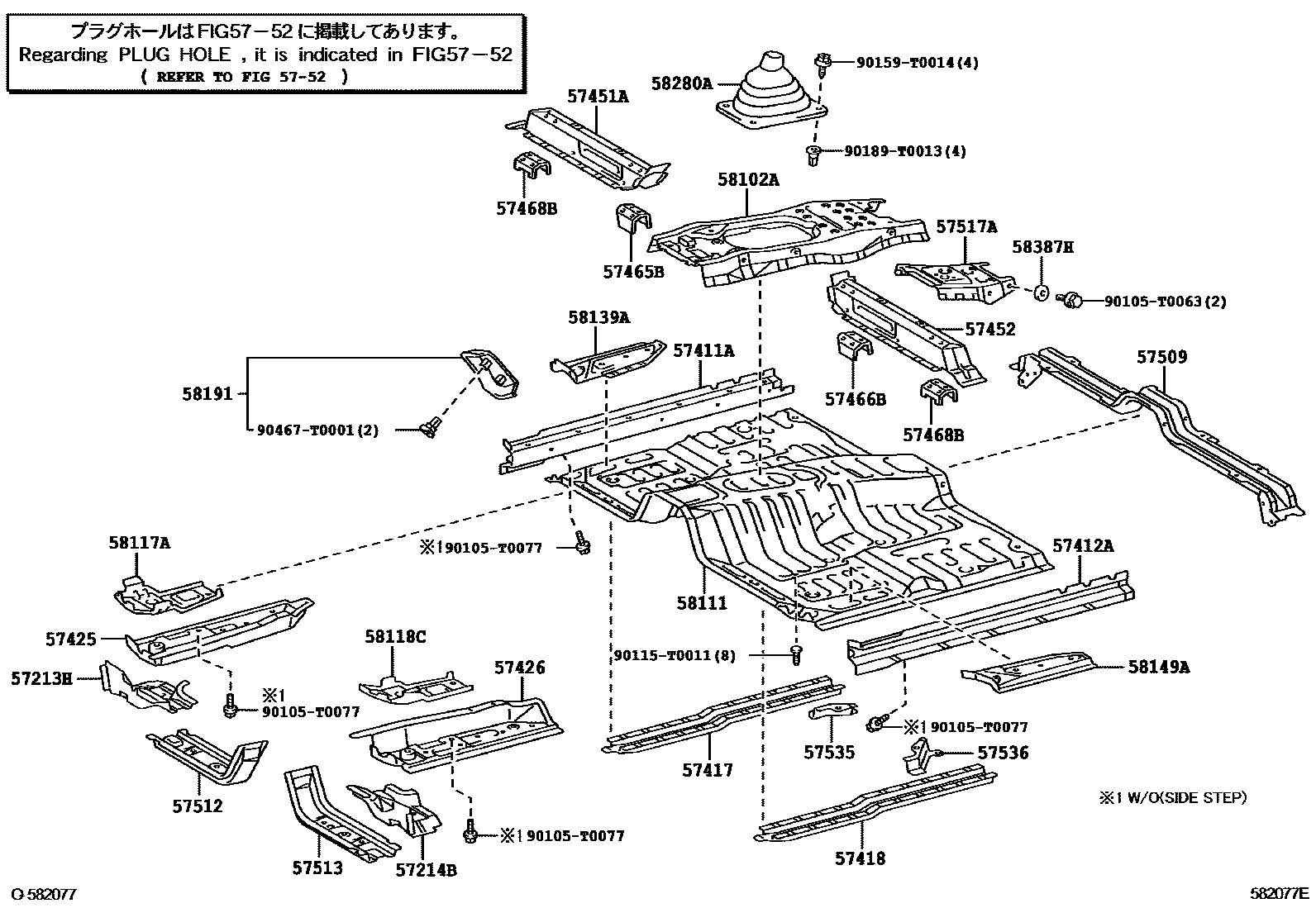

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1SIDE STEP 0005 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

main57411-0K040iKUN15,16,2#,3#,TGN16..SMT200809-201107

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

main57412-0K040iKUN15,16,2#,3#,TGN16..SMT200809-201107

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-0K010iKUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN200408-201202

main57451-0K020iTGN26..ANCOM;TGN36..5F..DLX;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0K010iKUN15..DCB,SCB;KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36200408-201202

main57452-0K020iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200710-201108

57465BBRACKET, FRONT SEAT, INNER

main57465-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

57466BBRACKET, FRONT SEAT, INSIDE LH

main57466-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

57468BBRACKET, FRONT SEAT, REAR

main57468-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0K010iGGN15,KUN1#,LAN15,TGN1#..DLX,SR200408-201202

main57509-0K020iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200906-201108

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

sub57512-0K030

sub58151-0K030

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57516-0K010iGGN25,KUN26..LHD..(4FC,5FC);TGN26,36..4FC..(ANCOM,GCC,PHL)200411-200812

main57516-0K020iTGN26..DCB..DLX..LA;KUN35,TGN36..LHD..5F..DLX;TGN26..LHD..5F..(ANCOM,GCC,GEN,SA);KUN10,15,2#,36,LAN15,25,TGN1#..LHD..5F200411-201107

main57517-0K010iTGN16..XTR..TH;GGN15,25,KUN16,2#,TGN26..RHD..(4FC,5FC)200408-201109

main57517-0K020iKUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..RHD..(GEN,SA);KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN16,36..RHD..(DCB,SCB)..5F;KUN26..(SCB,XTR)..5F..(ARL,T200408-201202

5752

57535BRACE, FRONT FLOOR, RH

main57535-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

sub57535-KK010

57536BRACE, FRONT FLOOR, LH

main57536-0K010iTGN15..IV3;KUN15..SR..SA200408-201202

sub57536-KK010

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0K010iTGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)200408-201107

main58102-0K020iTGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN16..5F..(ARL,GCC,SA,TH);GGN15,TGN10..5F..(DLX,STD);TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN15..(DCB,SCB,SMT200408-201202

58111PAN, FRONT FLOOR

main58111-0K010iGGN15,35,KUN16,36,TGN16,36..4FC,5FC200408-200812

main58111-0K020iGGN25..5FC..CBU;KUN2#,TGN26..4FC200408-201107

main58111-0K030iTGN36..SCB;TGN36..DCB..SA;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(D200408-201202

main58111-0K040iTGN26..DCB..DLX..LA;KUN2#..SCB..5F..(ARL,MA);KUN25..(DCB,XTR)..5F..SR;KUN26..(DCB,THDCB,XTR)..5F;TGN26..5F..(ANCOM,GCC,GEN,SA);GGN25,KUN25,LAN25..5F..(ANCOM,ARL,GCC200408-201107

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

58191FOOTREST, FRONT FLOOR

main58191-0K010iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200408-201202

58280ABOOT ASSY, SHIFT LEVER

main58280-0K010iTGN10,15200502-201108

main58280-0K020iTGN16..XTR;TGN36..5F..CBU;TGN36..ANCOM..IV3;TGN11,16..5F..(ARL,GCC,SA,TH)200502-201204

main58280-0K030iKUN36..5F;KUN15,35..HDCR;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR200408-201204

main58280-0K040iKUN10,15..DCR..(GCC,GEN,PHL,SA,TH)200408-201202

main58280-0K050iLAN15,35200507-201108

main58280-0K060iGGN15..5F200502-201107

main58280-0K070iTGN26..TH200501-200808

main58280-0K080iKUN2#..RHD..4FC200408-201109

main58280-0K090iGGN25..RHD..5FC..CBU200502-201108

main58280-0K100iTGN26..4FC..GCC200708-201107

main58280-0K110iKUN26..LHD..4FC200411-201204

main58280-0K120iGGN25..LHD200507-201204

main58280-0K130iLAN25..RHD200504-201108

main58280-0K140iKUN2#..RHD..5F200408-200709

sub58280-0K200

main58280-0K150iGGN25..5F..ARL200502-201107

main58280-0K160iTGN26..ANCOM..CBU;LAN25,TGN26..LHD..5F..(GCC,GEN,LA,SA)200502-201204

main58280-0K170iKUN2#..5F..LA200411-200810

sub58280-0K210

sub90467-07071

main58280-0K200iKUN2#..RHD..5F..(ARL,GEN,MA,PKN,SA,TH)200710-201107

main58280-0K210iKUN2#..LHD..5F..(ANCOM,GCC,GEN,PHL,SA)200710-201204

58387HPLATE, REAR FLOOR

main58387-0K010iKUN25..SA200408-201202

main58387-0K010iKUN25..RHD..SA200808-201107

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

90105T0063

main90105-T0063

90105T0077

main90105-T0077

90115T0011

main90115-T0011

90159T0014

main90159-T0014

90189T0013

main90189-T0013

90467T0001

main90467-T0001

35 parts on this diagram · 5 diagrams in section
