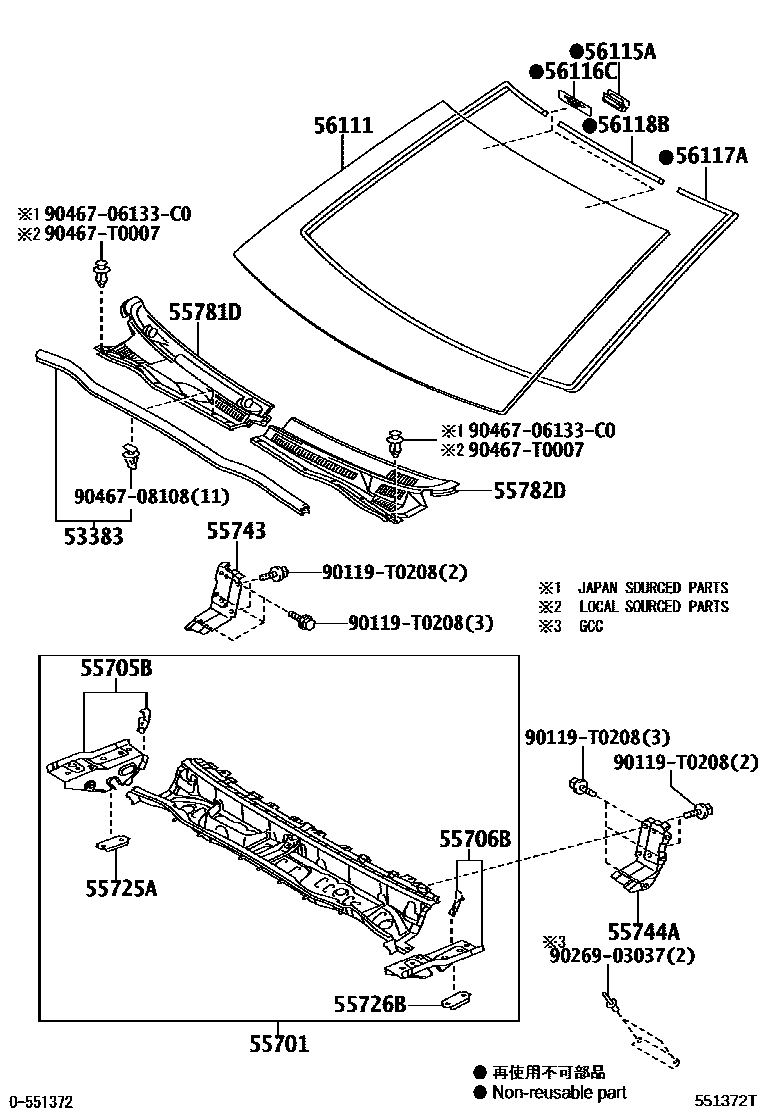

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main53383-0K020iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-201204

sub53383-0K010

55701PANEL SUB-ASSY, COWL

main55700-0K010iKUN25..SCB..MA;KUN26,36..XTR..TH;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN26..DCB..5F..(SA,TH);KUN36..RHD..(DCB,SCB)..5F;KUN26,TGN16..(DCB,XTR)..4FC..TH;GGN15,2200408-201202

main55700-0K020iTGN16..(DCB,SCB)..GEN200411-201204

main55700-0K030iKUN10,15,25,TGN1#,26..GCC200507-201204

main55700-0K090iKUN16,26..ARL200608-201107

main55700-0K110iKUN15,26,36..XTR..SA201008-201108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0K050iTGN15..IV3;KUN15..SR..SA200408-201202

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0K050iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K010iKUN15..SR..SA200408-201202

sub55708-0K290

main55708-0K020iKUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)200411-201107

sub55708-0K021

main55708-0K040iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-201108

main55708-0K050iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-201108

main55708-0K070iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-201204

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K010iKUN26,36..XTR..SA;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,TH);GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH);G200408-201202

main55709-0K020iKUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)200411-201107

sub55709-0K021

main55709-0K040iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200504-201108

main55709-0K050iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-201108

main55709-0K070iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-201204

56111GLASS, WINDSHIELD

main56101-0K010iKUN25..SCB..MA;TGN26..ANCOM..CBU;GGN25,KUN25,35,TGN36..ANCOM200408-201201

*LAM,T=4.76,GREEN

sub56101-0K190

main56101-0K020iKUN15..SR..DCR..TH200408-201109

*LAM,T=4.76,GREEN

sub56101-0K200

main56101-0K030iKUN10,15,25,TGN10,11,15..GCC200507-200712

*LAM,T=4.76,GREEN

sub56101-0K031

main56101-0K031iKUN10,15,25,TGN10,11,15..GCC200801-201107

*LAM,T=4.76,GREEN

sub56101-0K041

main56101-0K040iTGN16,26..GCC200507-200712

*LAM,T=4.76,GREEN

sub56101-0K041

main56101-0K041iTGN16,26..GCC200801-201204

*LAM,T=4.76,GREEN

sub56101-0K043

main56101-0K060iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200504-201108

*LAM,T=4.96,GREEN

main56101-0K070iGGN25,KUN2#,3#,TGN26,36..LA200501-201204

*LAM,T=4.96,GREEN

sub56101-0K071

main56101-0K190iTGN16..XTR;TGN26..SR..GEN;TGN16..RHD..DLX;KUN15..DCR..(GEN,PHL,TH);GGN25,KUN35..DLX..(ARL,PHL)..CBU;GGN15,KUN16,2#,TGN10,15,26..(DCB,SCB,XTR)..(DLX,STD)..(ARL,GEN,I200801-201202

*LAM,T=4.76,GREEN

sub56101-0K192

main56101-0K200iKUN35..GEN,TH;KUN35..SR..PHL;KUN2#,TGN26..(THDCB,THSCB)..DLX;KUN26..SR..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,16,25,36,TGN16..SR..(ARL,TH)200801-201107

*LAM,T=4.76,GREEN

sub56101-0K201

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

L=3089

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

L=706

90119T0208

main90119-T0208

9026903037

main90269-03037

9046706133C0

main90467-06133C0

9046708108

main90467-08108

90467T0007

main90467-T0007

20 parts on this diagram · 2 diagrams in section
