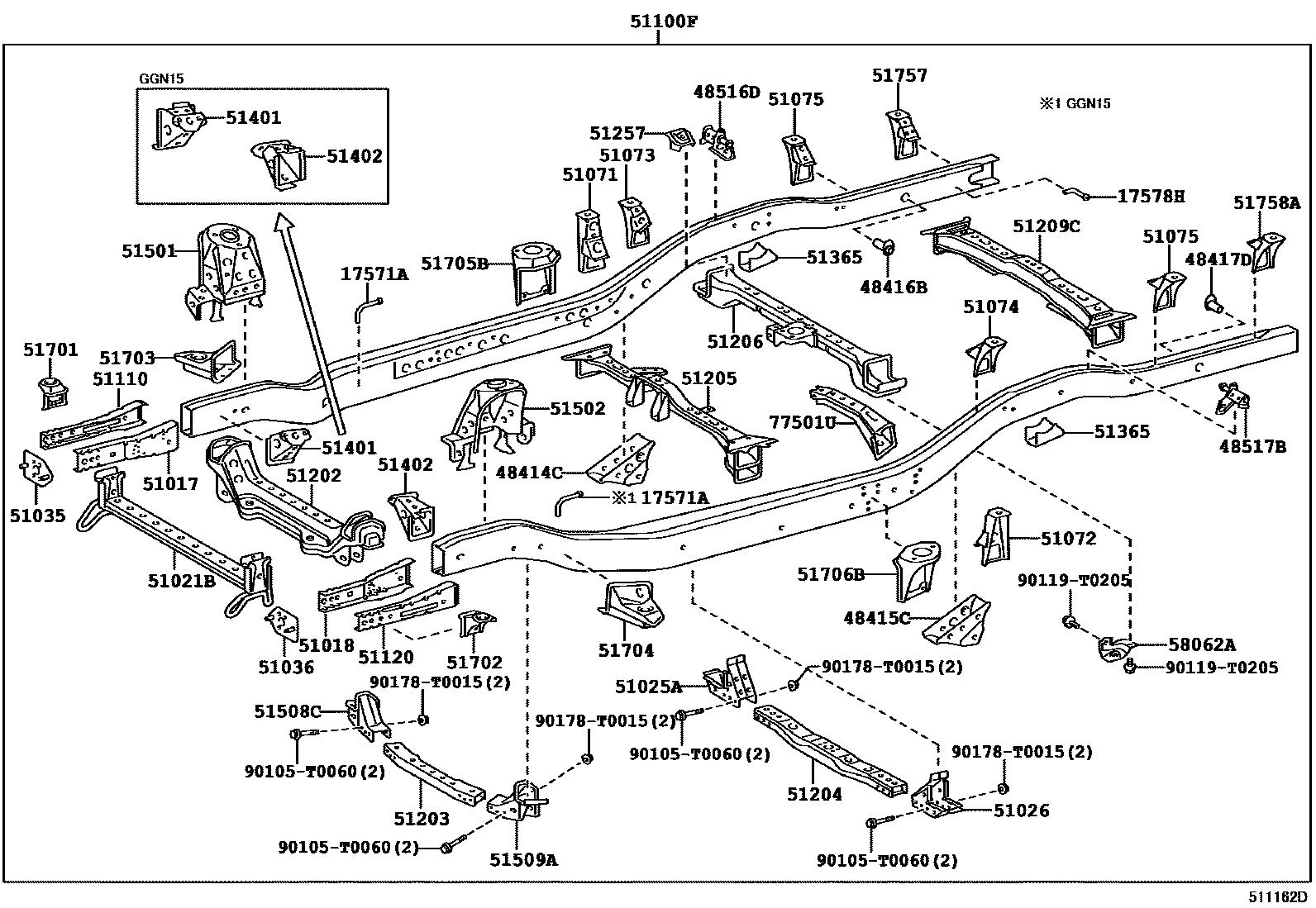

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i5LE..LAN35200408-201204

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L010i2TRFE..TGN36..SCB;1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25..(DCB,XTR)..SR;2TRFE..TGN26,36..200408-201202

48414CBRACKET, SPRING, NO.3 RH

main48404-0K010iKUN15..DCB,SMT;KUN16..SMT,XTR;KUN15,TGN16..XTR..DLX;GGN15,KUN16..(DCB,XTR)..(4FC,5FC);TGN16..(DCB,SMT)..(ARL,GCC,SA,TH);GGN15,KUN16,LAN15,TGN15..DCB..5F..DLX200408-201108

main48404-0K020iLAN35200408-201107

main48404-0K030iTGN16..SCB..GEN200409-201202

main48404-0K040iKUN10,TGN10,11200510-201107

48415CBRACKET, SPRING, NO.3 LH

main48407-0K010iKUN16..DCB..ARL;KUN16,TGN16..(DCB,XTR)..TH;GGN15,KUN15,LAN15,TGN15,16..(DCB,XTR)..(5F,5FC)200408-201108

main48407-0K020iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,P200408-201107

main48407-0K030iTGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN15,16,LAN15,TGN15..SCB..(ARL,GCC,GEN,PHL,SA,TH)200409-201202

main48407-0K040iKUN10,TGN10,11200510-201107

48416BBRACKET, SPRING, NO.4 RH

main48405-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

48417DBRACKET, SPRING, NO.4 LH

main48405-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48505-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51017-0K020iKUN2#..DCB..5F..TH200408-201107

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51018-0K020iKUN26..IDN;GGN25..SCB,XTR200408-201107

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51021-0K020iKUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..200408-201107

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201204

sub51025-0K030

main51025-0K030iTGN15..IV3201102-201202

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-0K010iGGN25..ARL;GGN25..5FC..SA;KUN15..XTR..TH;TGN16..SMT..DLX;TGN16..DCB,SCB,XTR;TGN10,15..GCC,IDN,SA;TGN26..LHD..(GCC,GEN,SA);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);200408-201204

sub51026-0K030

main51026-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR201102-201202

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-0K010iKUN10,TGN10,11200510-200808

main51071-0K020iKUN36,TGN16..SCB..5F..(ARL,GCC,GEN,SA);KUN26,TGN26..SCB..DLX..(ANCOM,ARL,GCC,SA);GGN15,25,KUN15,16,25,35,LAN15,25,TGN15,36..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PK200409-201202

main51071-0K030iGGN25..5FC..SA;GGN25..DCB..(ANCOM,ARL,LA);GGN15,35,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..DCB,THDCB200408-201010

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-0K020iTGN36..SCB..CBU;TGN36..ANCOM..IV3;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;GGN15,25,KUN15,16,2#,3#,LAN15,25,TGN15,16..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,S200409-201202

main51072-0K010iKUN10,TGN10,11200510-200808

main51072-0K030iLAN35200408-201010

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-0K010iGGN25..SCB,XTR;TGN16..SCB..GEN200408-201202

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-0K010iKUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36.200408-201202

51075BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH

main51075-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

51100FFRAME SUB-ASSY

main51001-0K011iTGN10..GCC200510-200711

sub51001-0K012

main51001-0K012iTGN10..GCC200712-201007

sub51001-0K013

main51001-0K013iTGN10..GCC201008-201107

main51001-0K021iTGN11200510-200711

sub51001-0K022

main51001-0K022iTGN11200712-201007

sub51001-0K023

main51001-0K023iTGN11201008-201107

main51001-0K050iTGN15..SCB..GEN200502-200711

sub51001-0K051

main51001-0K051iTGN15..SCB..GEN200712-201007

main51001-0K060iTGN16..SCB..GEN200502-200712

sub51001-0K061

main51001-0K061iTGN16..SCB..GEN200712-201007

sub51001-0K062

main51001-0K062iTGN16..SCB..(GEN,TH)201008-201107

main51001-0K070iKUN15..SCB..(GEN,TH)200409-200712

sub51001-0K071

main51001-0K071iKUN15..SCB..(GEN,TH)200712-201007

sub51001-0K072

main51001-0K072iKUN15..SCB..(GEN,PHL,TH)201008-201202

sub51001-0K073

main51001-0K090iKUN16..DLX..TH200409-200712

sub51001-0K091

main51001-0K091iKUN16..DLX..TH200712-201007

sub51001-0K092

main51001-0K092iKUN16..DLX..TH201008-201107

sub51001-0K093

main51001-0K100iLAN15..SCB..SA200507-200711

sub51001-0K101

main51001-0K101iLAN15..SCB..SA200712-200810

sub51001-0K102

main51001-0K102iLAN15..SCB..SA200810-201009

sub51001-0K103

main51001-0K103iLAN15..SCB201010-201108

main51001-0K110iTGN16..TH200501-200711

sub51001-0K111

main51001-0K111iTGN16..TH200712-201007

main51001-0K120iTGN16..XTR..GEN200502-200711

sub51001-0K121

main51001-0K121iTGN16..XTR200712-201007

sub51001-0K122

main51001-0K122iTGN16..SMT,XTR201008-201107

main51001-0K130iKUN15..XTR..DCR200408-200711

sub51001-0K131

main51001-0K131iKUN15..XTR..DCR200712-201007

sub51001-0K132

main51001-0K132iKUN15..(SMT,XTR)..DCR..TH201008-201107

sub51001-0K133

main51001-0K150iKUN16..XTR;KUN15..XTR..HDCR200408-200711

sub51001-0K151

main51001-0K151iKUN15,16..XTR..SR200712-201007

sub51001-0K152

main51001-0K152iKUN15,16..SMT..SR201008-201107

sub51001-0K153

main51001-0K170iTGN15..DCB..GEN200502-200711

sub51001-0K171

main51001-0K171iTGN15..DCB..GEN200712-201007

main51001-0K180iTGN16..DCB..GEN200502-200711

sub51001-0K181

main51001-0K181iTGN16..DCB..GEN200712-201007

sub51001-0K182

main51001-0K182iTGN16..DCB..(GEN,TH)201008-201107

main51001-0K190iKUN15,16..DCB..SR..TH200408-200711

sub51001-0K191

main51001-0K191iKUN15,16..DCB..SR..TH200712-201007

sub51001-0K192

main51001-0K192iKUN15,16..DCB..SR..TH201008-201107

sub51001-0K193

main51001-0K210iKUN15..DCB..DCR..(GEN,PHL,TH)200408-200711

sub51001-0K211

main51001-0K211iKUN15..DCB..DCR..(GEN,PHL,TH)200712-201007

sub51001-0K212

main51001-0K212iKUN15..DCB..DCR..(GEN,PHL,TH)201008-201107

sub51001-0K213

main51001-0K230iLAN15..DCB200507-200711

sub51001-0K231

main51001-0K231iLAN15..DCB200712-200810

sub51001-0K232

main51001-0K232iLAN15..DCB200810-201009

sub51001-0K233

main51001-0K233iLAN15..DCB201010-201108

main51001-0K300iTGN26..SCB..ANCOM200508-200611

sub51001-0K301

main51001-0K301iTGN26..SCB..ANCOM200612-200711

sub51001-0K302

main51001-0K302iTGN26..SCB..ANCOM200712-200812

main51001-0K310iKUN25..SCB..(GEN,MA)200502-200610

sub51001-0K311

main51001-0K311iKUN25..(SCB,THSCB)..(GEN,MA)200608-200711

sub51001-0K312

main51001-0K312iKUN25..(SCB,THSCB)..GEN200712-201204

main51001-0K330iLAN25..SCB200507-200609

sub51001-0K331

main51001-0K331iLAN25..SCB200610-200711

sub51001-0K332

main51001-0K332iLAN25..SCB200712-200810

sub51001-0K333

main51001-0K333iLAN25..SCB200810-201010

sub51001-0K335

main51001-0K334iLAN25..SCB201010-201108

sub51001-0K335

main51001-0K340iTGN26..XTR200501-200607

sub51001-0K341

main51001-0K341iTGN26..XTR200608-200711

sub51001-0K342

main51001-0K342iTGN26..XTR200712-200808

main51001-0K350iKUN2#..XTR..TH200408-200607

sub51001-0K351

main51001-0K351iKUN2#..XTR..TH200608-200711

sub51001-0K352

main51001-0K352iKUN2#..SMT200712-201007

sub51001-0K353

main51001-0K353iKUN2#..SMT201008-201107

sub51001-0K354

main51001-0K370iTGN26..DCB..(ANCOM,GEN,TH)200501-200610

sub51001-0K371

main51001-0K371iTGN26..LA200608-200711

sub51001-0K372

main51001-0K372iTGN26..DCB..DLX..LA;TGN26..(DCB,THDCB)..(ANCOM,GEN,TH)200712-201204

main51001-0K380iKUN2#..DCB..5F200408-200411

main51001-0K400iLAN25..DCB200507-200609

sub51001-0K401

main51001-0K401iLAN25..DCB200610-200711

sub51001-0K402

main51001-0K402iLAN25..DCB200712-200810

sub51001-0K403

main51001-0K403iLAN25..DCB200810-201009

sub51001-0K404

main51001-0K404iLAN25..DCB201010-201108

sub51001-0K405

main51001-0K440iTGN36..SCB..DLX200504-200711

sub51001-0K441

main51001-0K441iTGN36..SCB..DLX200712-201204

sub51001-0K442

main51001-0K450iKUN35..LHD..SCB200502-200711

sub51001-0K451

main51001-0K451iKUN35..LHD..SCB200712-201204

main51001-0K460iTGN36..4FC200501-200711

sub51001-0K461

main51001-0K461iTGN36..4FC..(ANCOM,PHL)200712-201204

main51001-0K470iTGN36..DCB..LA200504-200711

sub51001-0K471

main51001-0K471iTGN36..DCB..LA200712-201204

sub51001-0K472

main51001-0K480iKUN3#..(DCB,THDCB)..(ANCOM,GEN,LA,TH)200501-200711

sub51001-0K481

main51001-0K481iKUN3#..DCB..(ANCOM,LA)200712-201204

sub51001-0KF50

main51001-0K490iLAN35200507-200711

sub51001-0K491

main51001-0K491iLAN35200712-200810

sub51001-0K492

main51001-0K492iLAN35200810-201009

main51001-0K530iGGN15..SCB200502-200711

sub51001-0K531

main51001-0K531iGGN15..SCB200712-201007

sub51001-0K532

main51001-0K532iGGN15..SCB201008-201107

main51001-0K550iGGN15..XTR200502-200711

sub51001-0K551

main51001-0K551iGGN15..XTR200712-201007

sub51001-0K552

main51001-0K552iGGN15..XTR201008-201107

main51001-0K560iGGN15..DCB200502-200711

sub51001-0K561

main51001-0K561iGGN15..DCB200712-201007

sub51001-0K562

main51001-0K562iGGN15..DCB201008-201107

main51001-0K580iGGN25..5F..IV3200502-200607

sub51001-0K581

main51001-0K581iGGN25..5F..IV3200608-200711

sub51001-0K582

main51001-0K582iGGN25..5F..IV3200712-201007

sub51001-0K583

main51001-0K583iGGN25..5F..IV3201008-201107

main51001-0K590iGGN25..XTR200502-200607

sub51001-0K591

main51001-0K591iGGN25..XTR200608-200711

sub51001-0K592

main51001-0K592iGGN25..XTR200712-201007

sub51001-0K593

main51001-0K593iGGN25..XTR201008-201107

main51001-0K600iGGN25..DCB..5F200502-200607

sub51001-0K601

main51001-0K601iGGN25..DCB..5F200608-200711

sub51001-0K602

main51001-0K602iGGN25..DCB..5F..ARL200712-201007

main51001-0K603iGGN25..DCB..5F201008-201107

sub51001-0K604

main51001-0K640iGGN25..5FC..IV3200502-200607

sub51001-0K641

main51001-0K641iGGN25..5FC..IV3200608-200711

sub51001-0K642

main51001-0K642iGGN25..5FC..IV3200712-201007

sub51001-0K643

main51001-0K643iGGN25..5FC..IV3201008-201107

main51001-0K650iGGN25..ANCOM200507-200611

sub51001-0K651

main51001-0K651iGGN25..ANCOM200612-200711

sub51001-0K652

main51001-0K652iGGN25..ANCOM200712-201204

main51001-0K670iKUN26..4FC..TH200408-200607

sub51001-0K671

main51001-0K671iKUN26..4FC..TH200608-200711

sub51001-0K672

main51001-0K672iKUN26..4FC..TH200712-201007

sub51001-0K673

main51001-0K673iKUN26..4FC..TH201008-201107

sub51001-0K674

main51001-0K691iKUN10200510-200711

sub51001-0K692

main51001-0K692iKUN10200712-201007

sub51001-0K693

main51001-0K693iKUN10201008-201107

sub51001-0K694

main51001-0K760iTGN15..SCB..(GCC,SA)200504-200711

sub51001-0K761

main51001-0K761iTGN15..SCB..(GCC,SA)200712-201007

main51001-0K762iTGN15..SCB..GCC201008-201107

main51001-0K770iTGN16..SCB..(ARL,GCC,SA)200502-200711

sub51001-0K771

main51001-0K771iTGN16..SCB..5F..(ARL,GCC,SA)200712-201007

main51001-0K772iTGN16..SCB..5F..(ARL,GCC)201008-201107

AFRICA SPEC

main51001-0K780iKUN15..SCB..(GCC,SA)200504-200711

sub51001-0K781

main51001-0K781iKUN15..SCB..GCC200712-201007

main51001-0K782iKUN15..LHD..SCB..GEN201008-201107

AFRICA SPEC

sub51001-0K783

main51001-0K782iKUN15..SCB..GCC201008-201107

ALGERIA SPEC

sub51001-0K783

main51001-0K790iKUN16..IV3200502-200711

sub51001-0K791

main51001-0K791iKUN16..IV3200712-201007

sub51001-0K792

main51001-0K792iKUN16..IV3201008-201107

sub51001-0K793

main51001-0K800iTGN15..DCB..GCC200507-200711

sub51001-0K801

main51001-0K801iTGN15..DCB..GCC200712-201007

sub51001-0K802

main51001-0K802iTGN15..DCB201008-201107

main51001-0K810iTGN16..DCB..(ARL,GCC,SA)200502-200711

sub51001-0K811

main51001-0K811iTGN16..DCB..5F..(ARL,GCC)200712-201007

main51001-0K812iTGN16..DCB..5F..(ARL,GCC)201008-201107

main51001-0K820iKUN16..ARL..CBU200502-200711

sub51001-0K821

main51001-0K821iKUN16..DCB..ARL200712-201007

sub51001-0K822

main51001-0K822iKUN16..DCB..ARL201008-201107

sub51001-0K823

main51001-0K830iKUN15..DCB..(GCC,SA)200507-200711

sub51001-0K831

main51001-0K831iKUN15..DCB..(GCC,SA)200712-201007

main51001-0K832iKUN15..DCB..GCC201008-201107

AFRICA SPEC

sub51001-0K833

main51001-0K832iKUN15..DCB..GCC201008-201107

ALGERIA SPEC

sub51001-0K833

main51001-0K840iTGN26..SCB..(GCC,SA)200504-200607

sub51001-0K841

main51001-0K841iTGN26..SCB..(GCC,SA)200608-200711

sub51001-0K842

main51001-0K842iTGN26..SCB..GCC200712-201007

main51001-0K843iTGN26..SCB..GCC201008-201107

sub51001-0K844

main51001-0K850iKUN2#..SCB..(ARL,SA)200502-200607

sub51001-0K851

main51001-0K851iKUN2#..SCB..(ARL,SA)200608-200711

sub51001-0K852

main51001-0K852iKUN26..SCB..IV3200712-201007

main51001-0K853iKUN26..SCB..IV3201008-201107

sub51001-0K854

main51001-0K860iKUN26..XTR..ARL200502-200607

sub51001-0K861

main51001-0K861iKUN26..XTR..ARL200608-200711

sub51001-0K862

main51001-0K862iKUN26..XTR200712-201007

sub51001-0K863

main51001-0K863iKUN26..XTR201008-201108

sub51001-0K864

main51001-0K870iTGN26..DCB..(GCC,SA)200507-200607

sub51001-0K871

main51001-0K871iTGN26..DCB..(GCC,SA)200608-200711

sub51001-0K872

main51001-0K872iTGN26..DCB..GCC200712-201007

main51001-0K873iTGN26..DCB..GCC201008-201107

AFRICA SPEC

sub51001-0K874

main51001-0K880iKUN2#..DCB..(ARL,GCC,SA)200502-200607

sub51001-0K881

main51001-0K881iKUN2#..DCB..(ARL,GCC,SA)200608-200711

sub51001-0K882

main51001-0K882iKUN2#..DCB..(ARL,GCC)200712-201007

main51001-0K883iKUN2#..DCB..(ARL,GCC)201008-201107

ALGERIA SPEC

sub51001-0K884

main51001-0K883iKUN2#..DCB..(ARL,GCC)201008-201107

AFRICA SPEC

sub51001-0K884

main51001-0K890iGGN25..RHD..5FC..CBU200502-200607

sub51001-0K891

main51001-0K891iGGN25..RHD..5FC..CBU200608-200711

sub51001-0K892

main51001-0K892iGGN25..RHD..5FC..CBU200712-201007

main51001-0K893iGGN25..5FC..ARL..CBU201008-201107

main51001-0KA00iTGN36..SCB..SA200504-200711

sub51001-0KA01

main51001-0KA01iTGN36..SCB..SA200712-200810

sub51001-0KA02

main51001-0KA02iTGN36..SCB..SA200810-201009

sub51001-0KA03

main51001-0KA03iTGN36..SCB..SA201010-201108

main51001-0KA10iKUN3#..SCB..SA200504-200711

sub51001-0KA11

main51001-0KA11iKUN3#..SCB..SA200712-200810

sub51001-0KA12

main51001-0KA12iKUN3#..SCB..SA200810-201009

sub51001-0KA13

main51001-0KA13iKUN3#..SCB..SA201010-201108

sub51001-0KA14

main51001-0KA20iTGN36..DCB..SA200504-200711

sub51001-0KA21

main51001-0KA21iTGN36..DCB..SA200712-200810

sub51001-0KA22

main51001-0KA22iTGN36..DCB..SA200810-201009

sub51001-0KA23

main51001-0KA23iTGN36..DCB..SA201010-201108

main51001-0KA30iKUN3#..DCB..SA200504-200711

sub51001-0KA31

main51001-0KA31iKUN3#..DCB..SA200712-200810

sub51001-0KA32

main51001-0KA32iKUN3#..DCB..SA200810-201009

sub51001-0KA33

main51001-0KA33iKUN3#..DCB..SA201010-201108

sub51001-0KA34

main51001-0KA40iKUN2#..DCB..LA200411-200610

sub51001-0KA41

main51001-0KA41iKUN26..4FC..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL,TH);KUN25..(DCB,THDCB)..(ANCOM,GEN,MA,TH)200608-200711

sub51001-0KA42

main51001-0KA42iKUN2#..DCB..(ANCOM,LA)200712-201204

sub51001-0KF60

main51001-0KA50iKUN36..XTR200512-200711

sub51001-0KA51

main51001-0KA51iKUN3#..SMT200712-201007

sub51001-0KA52

main51001-0KA52iKUN3#..SMT201008-201107

sub51001-0KA53

main51001-0KA60iTGN10..IDN200608-200711

sub51001-0KA61

main51001-0KA61iTGN10..IDN200712-201007

sub51001-0KA62

main51001-0KA62iTGN10..IDN201008-201107

main51001-0KB10iLAN15..PKN200710-200711

sub51001-0KB11

main51001-0KB11iLAN15..PKN200712-201009

main51001-0KB31iTGN16..4FC..DLX..CBU200808-201007

sub51001-0KB32

main51001-0KB32iTGN16..4FC..CBU201008-201107

main51001-0KB41iTGN16..4FC..IV3200808-201007

sub51001-0KB42

main51001-0KB42iTGN16..4FC..IV3201008-201107

main51001-0KB51iKUN16..XTR200808-201007

sub51001-0KB52

main51001-0KB52iKUN16..XTR201008-201107

sub51001-0KB53

main51001-0KB72iGGN35200810-201009

sub51001-0KB73

main51001-0KB73iGGN35201010-201108

main51001-0KC41iTGN26..SCB..LA;TGN26..SCB..ANCOM..CBU200810-201204

main51001-0KE30iTGN15..SA200810-201009

sub51001-0KE31

main51001-0KE31iTGN15..SA201010-201108

main51001-0KE40iTGN16..SCB..SA200810-201009

sub51001-0KE41

main51001-0KE41iTGN16..SCB..SA201010-201108

main51001-0KE50iKUN15..SCB..SA200810-201009

sub51001-0KE51

main51001-0KE51iKUN15..SCB..SA201010-201108

sub51001-0KE52

main51001-0KE60iTGN16..DCB..SA200810-201009

sub51001-0KE61

main51001-0KE61iTGN16..DCB..SA201010-201108

main51001-0KE70iKUN15..DCB..SA200810-201009

sub51001-0KE71

main51001-0KE71iKUN15..DCB..SA201010-201108

sub51001-0KE72

main51001-0KE80iKUN2#..SCB..SA200810-201009

sub51001-0KE81

main51001-0KE81iKUN2#..SCB..SA201010-201108

sub51001-0KE82

main51001-0KE90iTGN26..SA200810-201009

sub51001-0KE91

main51001-0KE91iTGN26..SA201010-201108

sub51001-0KE92

main51001-0KF00iKUN2#..DCB..SA200810-201009

sub51001-0KF01

main51001-0KF01iKUN2#..DCB..SA201010-201108

sub51001-0KF02

main51001-0KF10iGGN25..SA200810-201009

sub51001-0KF11

main51001-0KF11iGGN25..SA201010-201108

main51001-0KF20iKUN36..XTR201008-201108

main51001-0KF30iKUN25..SCB..MA201008-201109

sub51001-0KF31

main51001-0KF40iTGN26..GEN201008-201107

sub51001-0KF41

main51001-0KF50iKUN3#..(DCB,THDCB)..(GEN,PHL,TH)201008-201107

sub51001-0KF51

main51001-0KF60iKUN26..IDN201008-201107

MALAYSIA SPEC&VSC-WITHOUT

sub51001-0KF61

main51001-0KF60iKUN26..4FC..(GEN,PHL);KUN2#..(DCB,THDCB)..5F..(GEN,PHL,PKN,TH)201008

sub51001-0KF61

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-0K010iTGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..(DCB,SCB,SMT).200408-201202

main51110-0K020iKUN26..IDN;GGN25..SCB,XTR200408-201107

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main51120-0K020iKUN26..IDN;GGN25..SCB,XTR200408-201107

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-0K010iTGN15;GGN15,KUN1#,TGN16..ARL,GEN,PHL,TH200408-200507

main51201-0K020iKUN2#200408-200411

sub51201-0K030

main51201-0K030iKUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..200411-200911

sub51201-0K031

main51201-0K031iKUN26..IDN;GGN25..SCB,XTR200912-201107

main51201-0K040iKUN15..XTR..HDCR;KUN10,LAN15,TGN10,11..CBU;TGN15,16..LHD..5F..(GCC,SA);KUN15..(DLX,STD)..(GCC,PKN,SA)200504-201202

main51201-0K050iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main51201-0K060iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA200810-200911

sub51201-0K061

main51201-0K061iLAN35200912-201108

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51202-0K020iKUN2#200408-200411

sub51202-0K030

main51202-0K030iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,P200411-201107

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0K010iKUN35..DLX;KUN16..DCB,SCB;KUN36..DCB..DLX;KUN16,TGN16..XTR..TH;TGN36..4FC..(ANCOM,PHL);KUN36..(DCB,SCB,XTR)..5F..SR;GGN15,KUN15..(DCB,SCB,XTR)..(HDCR,HTWC)200408-201204

main51203-0K020iKUN2#;GGN25..5FC200408-200711

sub51203-0K021

main51203-0K021iGGN25..RHD..5FC;KUN2#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH200712-201204

sub51203-0K090

main51203-0K030iLAN35200408-201204

main51203-0K040iTGN10,15200502-201108

main51203-0K050iGGN25,LAN25,TGN26..4FC,5F200501-200711

sub51203-0K051

main51203-0K051iTGN26..DCB..DLX..LA;GGN25,LAN25,TGN26..(4FC,5F)..(ANCOM,ARL,GCC,GEN,SA,TH)200712-201204

sub51203-0K100

main51203-0K090iGGN25..RHD..5FC..CBU;KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA,TH201102-201107

main51203-0K100iGGN25,LAN25,TGN26..(DCB,SCB,THDCB)..(4FC,5F)..(ARL,GCC,GEN,SA)..CBU201102-201108

sub51203-0K101

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0K020iKUN15..XTR..TH;GGN15,KUN16,LAN15,TGN15,16..DLX,SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH)200408-201202

main51204-0K040iKUN2#..SCB..(ARL,SA);GGN25..RHD..5FC..CBU200408-200611

sub51204-0K041

main51204-0K041iTGN26..SR..LA;TGN26..SCB..LA;TGN26..SCB..ANCOM..CBU200608-201012

sub51204-0K042

main51204-0K042iKUN25..MA201003-201204

main51204-0K060iTGN36..CBU;GGN35,KUN3#;TGN36..ANCOM..IV3200501-201204

main51204-0K070iGGN25..ANCOM200408-200611

sub51204-0K071

main51204-0K071iGGN25..ANCOM200608-201012

sub51204-0K072

main51204-0K072iGGN25..ANCOM201003-201204

main51204-0K081iKUN10,TGN10,11200510-200712

main51204-0K100iKUN10,TGN10,11200712-201107

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0K030iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51205-0K050iKUN10,TGN10,11200510-201107

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-0K010iKUN16..4FC;TGN16..XTR;TGN26..GEN,LA;TGN36..LHD..CBU;TGN36..ANCOM..IV3;KUN16..(SCB,SMT)..CBU;TGN16,26..(ANCOM,TH)..CBU;KUN25,TGN10..ANCOM,GEN,IDN,LA,MA,PKN,TH;GGN25,200408-201202

main51209-0K030iGGN15..5F..SR;GGN25..SCB,XTR200502-201108

51257REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH

main51257-0K010iKUN2#..DCB..5F..TH200408-201202

51365STOPPER, REAR BUMPER

main57081-0K010iTGN16..SCB..5F..(ARL,GCC)200408-201202

main57081-0K020iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,P200408-201107

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0K010iTGN1#..5F;TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA)200501-201204

main51401-0K020iKUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH200408-201202

sub51401-0K050

main51401-0K030iLAN35200507-201108

main51401-0K040iGGN15,25200502-201204

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0K010iTGN16..XTR;TGN15,36..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);TGN10,11,16..ARL,GCC,IDN,SA,TH200501-201204

main51402-0K020iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..200408-201202

sub51402-0K050

main51402-0K030iLAN15,25..SA200507-201108

main51402-0K040iGGN15..SCB,XTR;GGN25..5FC..SA;GGN15..DCB..DLX;GGN15,35..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA)200502-201204

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main51501-0K020iTGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,P200408-201107

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main51502-0K020iKUN26..IDN;GGN25..SCB,XTR200408-201107

51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main51508-0K010iTGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..(DCB,SCB,SMT).200408-201202

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-0K020iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

sub51701-KK010

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-0K020iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

sub51701-KK010

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-0K010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,200408-201202

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-0K010iTGN15..IV3200408-201202

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-0K010iKUN15..(SMT,XTR)..TH;GGN15,KUN16,2#,3#,TGN16..SMT,XTR200408-201108

main51705-0K020iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

main51731-0K010iTGN16..SCB..5F..(ARL,GCC,GEN,SA);KUN26,TGN10,26..SCB..DLX..(ANCOM,ARL,GCC,IDN,SA);GGN15,25,KUN1#,25,3#,LAN15,25,TGN11,15,36..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,P200409-201202

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-0K010iGGN25..XTR200408-201108

main51706-0K020iLAN35200408-201107

main51731-0K010iTGN16..SCB..5F..(ARL,GCC,GEN,SA);KUN26,TGN10,26..SCB..DLX..(ANCOM,ARL,GCC,IDN,SA);GGN15,25,KUN1#,25,3#,LAN15,25,TGN11,15,36..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,P200409-201202

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-0K010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36200408-200711

sub51077-0K011

main51077-0K011iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN200712-201202

51758ABRACKET, BODY SUPPORT, NO.4 LH

main51077-0K010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36200408-200711

sub51077-0K011

main51077-0K011iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN200712-201202

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-0K010iTGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..L200408-201202

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K010iKUN10,TGN10,11200510-201107

main77501-0K020iLAN35200408-201202

90105T0060

main90105-T0060

90119T0205

main90119-T0205

90178T0015

main90178-T0015

50 parts on this diagram · 6 diagrams in section
