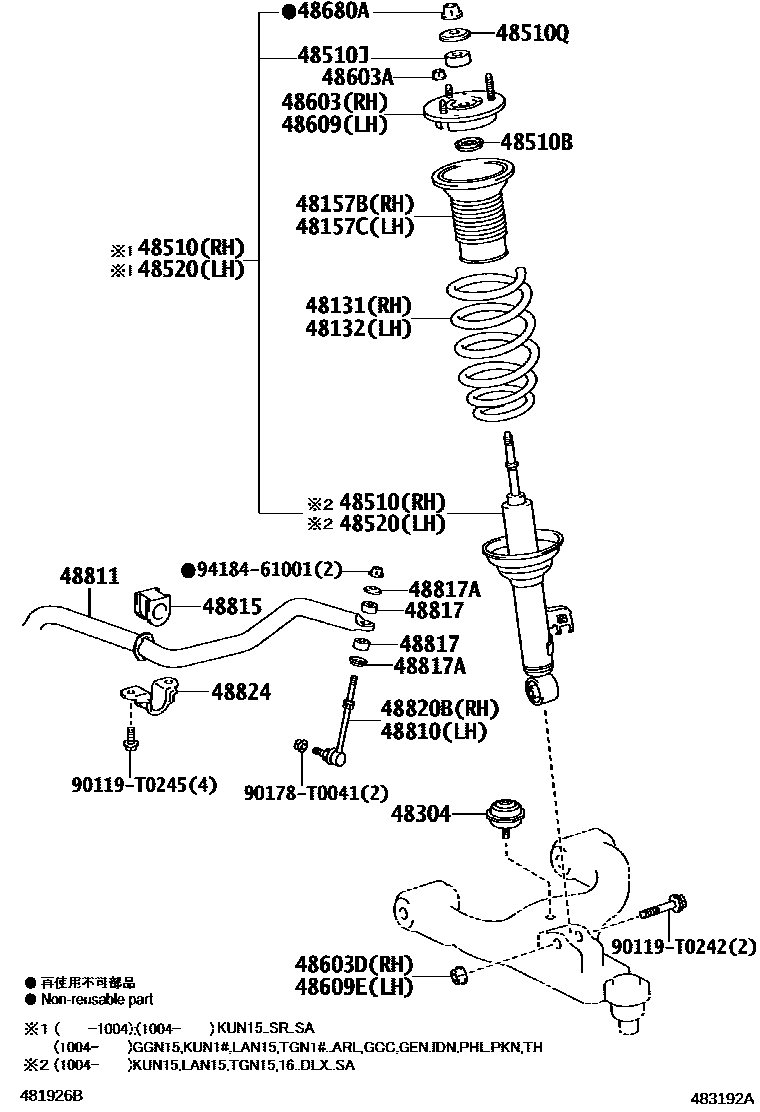

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-0K030iGGN15..XTR;TGN15..SCB..GEN;KUN10,TGN16..SCB..(ARL,GCC,GEN,TH)200408-201107

main48131-0K040iTGN15,16..SCB..SA200504-201108

main48131-0K050iGGN15..SCB..5F200502-201107

main48131-0K070iKUN16..SCB,XTR;KUN15..SCB..(GCC,GEN,PHL,TH)200409-201202

main48131-0K080iKUN15,LAN15..SCB..SA200504-201108

main48131-0K090iKUN15,TGN16..XTR..5F200408-201108

main48131-0K100iKUN15..DCB..(GCC,GEN,PHL,TH)200408-201107

main48131-0K110iKUN16..DCB200408-201107

main48131-0K300iKUN36,TGN26..DCB..TH200501-201107

main48131-0K310iKUN25..DCB..TH200408-201008

main48131-0K320iKUN26..DCB..TH200408-201107

main48131-0K400iKUN15,LAN15..DCB..SA200507-201108

main48131-0K620iKUN25..MA200503-201109

main48131-0K660iTGN36..5F..ANCOM200507-201012

main48131-0K670iKUN35..SCB..ANCOM;TGN26..DCB..ANCOM200507-201012

main48131-0K681iGGN25..ANCOM200507-201012

main48131-0K690iKUN25..ANCOM200507-200812

main48131-0K750iTGN36..PHL200501-200808

main48131-0K770iTGN26..SCB..GCC200501-201108

main48131-0K780iGGN25..ARL..CBU200408-201107

main48131-0K790iKUN25..GCC,GEN;KUN26..XTR..TH200408-200808

main48131-0K800iKUN26..SMT200411-201107

main48131-0K810iTGN36..SA200504-201108

main48131-0K820iKUN36..DCB..SA;KUN35,LAN35,TGN26..SA200504-201108

main48131-0K830iGGN25..SA;KUN36..SCB200504-201108

main48131-0K840iGGN25..SA200504-201108

main48131-0K850iKUN25..SCB..SA200504-201108

main48131-0K860iTGN36..LA200504-200810

main48131-0K870iKUN35..DCB..LA200501-200810

main48131-0K880iKUN36..LA200501-201010

main48131-0KA00iKUN25..LA200501-200810

main48131-0KA10iKUN26..LA200501-200810

main48131-0KB10iTGN10,11;TGN16..TH200501-201107

main48131-0KB20iTGN15,16..DCB..(ARL,GCC,GEN)200502-201107

main48131-0KB30iGGN15..DCB200502-201107

main48131-0KB40iTGN16..DCB..SA200507-201108

main48131-0KB50iTGN36..4FC200507-200812

main48131-0KC00iKUN36..LA200903

48132SPRING, FRONT COIL, LH

main48131-0K030iKUN15..SMT;GGN15..SCB..5FC200408-201107

main48131-0K040iTGN15,16..SCB..SA200504-201108

main48131-0K050iGGN15..SCB..5FC200502-201107

main48131-0K070iKUN16..SCB,XTR;KUN15..SCB..(GCC,GEN,PHL,TH)200409-201202

main48131-0K080iKUN15,LAN15..SCB..SA200504-201108

main48131-0K090iTGN15..SCB..GCC200408-201108

main48131-0K100iKUN15..DCB..(GCC,GEN,PHL,TH)200408-201107

main48131-0K110iKUN16..DCB200408-201107

main48131-0K300iKUN3#..DCB..TH200501-201107

main48131-0K310iKUN25..DCB..TH200408-201008

main48131-0K320iKUN26..DCB..TH200408-201107

main48131-0K400iKUN15,LAN15..DCB..SA200507-201108

main48131-0K620iKUN25..MA200503-201109

main48131-0K660iTGN36..5F..ANCOM200507-201012

main48131-0K670iTGN26..ANCOM;KUN35..SCB..ANCOM200507-201012

main48131-0K681iGGN25..ANCOM200507-201012

main48131-0K690iKUN25..ANCOM200507-200812

main48131-0K750iTGN36..PHL200501-200808

main48131-0K770iKUN35..PHL;KUN3#..SMT,THDCB,XTR;TGN26..(DCB,THDCB)..(GCC,GEN)200501-201108

main48131-0K780iGGN25..ARL;KUN25..XTR200408-201107

main48131-0K790iKUN25..SMT;KUN26..XTR..SA;KUN25..GCC,GEN,PKN200408-200808

main48131-0K800iKUN26..SMT200411-201107

main48131-0K810iTGN36..SA200504-201108

main48131-0K820iGGN35,KUN35,LAN35,TGN26..SA200504-201108

main48131-0K830iKUN36..SCB200504-201108

main48131-0K840iKUN25..SCB..SA200504-201108

main48131-0K850iKUN25..SCB..SA200504-201108

main48131-0K860iTGN36..LA200504-200810

main48131-0K870iKUN35..DCB..LA200501-200810

main48131-0K880iKUN35..SCB..LA;KUN36,TGN26..DCB..LA200501-201010

main48131-0KA00iKUN25..LA200501-200810

main48131-0KA10iKUN26..LA200501-200602

main48131-0KB10iTGN10,11;TGN16..SMT200501-201107

main48131-0KB20iTGN15,16..DCB..(ARL,GCC,GEN)200502-201107

main48131-0KB30iTGN16..DCB..(ARL,GCC,GEN,TH)200502-201107

main48131-0KB40iTGN16..DCB..SA200507-201108

main48131-0KB50iTGN36..4FC200507-200812

main48131-0KB60iKUN26..LA200602-200810

main48131-0KC00iGGN25..LA200903

main48131-0KC10iGGN25..ANCOM200805-200812

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K010iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200408-201202

main48304-0K040iGGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);GGN35,KUN2#,3#,LAN25,35,TGN36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH200408-200810

sub48304-0K041

main48304-0K050iKUN25..LA;TGN36..DLX;TGN26..ANCOM;KUN35..LHD..SCB;GGN25,KUN26,36..ANCOM,LA;KUN35,TGN26..DCB..DLX..LA200501-200812

sub48304-0K041

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09G80iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH)200409-200509

MARK 48510-0K020

sub48510-09Q20

main48510-09G90iGGN15,KUN1#,TGN1#..(DCB,XTR)..(ARL,GCC,GEN,PHL,TH)200408-200509

MARK 48510-0K050

sub48510-09Q30

main48510-09J00iGGN25,KUN25..ANCOM200507-201204

MARK 48510-0K360

main48510-09J10iGGN25,KUN2#,TGN26..ARL,GCC200502-201108

MARK 48510-0K410

main48510-09J20iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200504-201108

MARK 48510-0K420

main48510-09J60iKUN15,LAN15..PKN200710-201202

MARK 48510-0K300

main48510-09J70iKUN15,LAN15,TGN16..DCB..SA200507-200902

MARK 48510-0K060

main48510-09J80iKUN15,LAN15,TGN15,16..SCB..SA200504-200902

MARK 48510-0K040

main48510-09J90iKUN36..DCB..TH200408-201202

MARK 48510-0K140

main48510-09K00iGGN25,KUN2#..LA200501-201110

MARK 48510-0K180

sub48510-09K01

main48510-09K20iKUN25..MA200503-201109

MARK 48510-0K330

main48510-09K30iTGN26..DCB..ANCOM;KUN35,TGN36..ANCOM200507-201204

MARK 48510-0K350

main48510-09K80iKUN3#,TGN26,36..GEN,PHL,TH200501-201107

MARK 48510-0K100

main48510-09K90iKUN35..SCB..LA200504-201110

MARK 48510-0K130

sub48510-09K91

main48510-09Q20iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,TH)200509-200811

MARK 48510-0K021

main48510-09Q30iGGN15,KUN15,16,TGN15,16..(DCB,XTR)..(ARL,GCC,GEN,PHL,TH)200509-201108

MARK 48510-0K051

main48510-09U90iKUN16..SMT;KUN15..(DCB,SMT)..TH200808-201107

MARK 48510-0K460

main48510-09Y90iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,PHL,TH)200811-201107

MARK 48510-0K500

main48510-09Z00iTGN16..DCB..SR..GCC;KUN15..(SMT,XTR)..DCR..TH;KUN15..DCB..DLX..(GCC,GEN,PHL);TGN16..(DCB,SMT,XTR)..DLX..(ARL,GCC,GEN,TH);GGN15,KUN16,TGN15..(DCB,XTR)..(ARL,GCC,GEN)200811-201107

MARK 48510-0K510

main48510-09Z10iKUN15,16..SMT..SR;KUN15,TGN16..DCB..TH200811-201107

MARK 48510-0K520

main48510-09Z60iKUN15,LAN15,TGN15,16..SCB..SA200902-201004

MARK 48510-0K530

sub48510-0K530

main48510-09Z70iKUN15,LAN15,TGN16..DCB..SA200902-201004

MARK 48510-0K540

sub48510-0K540

main48510-0K530iKUN15,LAN15,TGN15,16..SCB..SA201004-201108

MARK 48510-0K530

main48510-0K540iKUN15,LAN15,TGN16..DCB..SA201004-201108

MARK 48510-0K540

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003iKUN25,35..DCB..ANCOM200408-201202

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1001iKUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,AR200408-201202

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004iKUN25,35..DCB..ANCOM200408-201202

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09J00iGGN25,KUN25..ANCOM200507-201204

MARK 48510-0K360

main48510-09J10iGGN25,KUN2#,TGN26..ARL,GCC200502-201108

MARK 48510-0K410

main48510-09J20iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200504-201108

MARK 48510-0K420

main48510-09J90iKUN2#..GEN,PHL,TH200408-201202

MARK 48510-0K140

main48510-09K00iKUN2#,3#..LA200501-201110

MARK 48510-0K180

sub48510-09K01

main48510-09K20iKUN25..MA200503-201109

MARK 48510-0K330

main48510-09K30iKUN35,TGN26,36..ANCOM200507-201204

MARK 48510-0K350

main48510-09K80iKUN36..SMT;KUN35,TGN26..GEN,PHL,TH200501-201107

MARK 48510-0K100

main48510-09K90iTGN26,36..LA;KUN35..DCB..LA200504-201110

MARK 48510-0K130

sub48510-09K91

main48520-09C60iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH)200409-200509

MARK 48520-0K020

sub48520-09J70

main48520-09C70iGGN15,KUN1#,TGN1#..(DCB,XTR)..(ARL,GCC,GEN,PHL,TH)200408-200509

MARK 48520-0K050

sub48520-09J80

main48520-09D00iKUN15,LAN15..PKN200710-201202

MARK 48520-0K100

main48520-09D10iKUN15,LAN15,TGN16..DCB..SA200507-200902

MARK 48520-0K060

main48520-09D30iKUN15,LAN15,TGN15,16..SCB..SA200504-200902

MARK 48520-0K040

main48520-09J70iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,TH)200509-200811

MARK 48520-0K021

main48520-09J80iKUN15..SR..DCR200509-201108

MARK 48520-0K051

main48520-09N00iKUN16..SMT;KUN15..(DCB,SMT)..TH200808-201107

MARK 48520-0K460

main48520-09R70iGGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,PHL,TH)200811-201107

MARK 48520-0K500

main48520-09R80iTGN16..DCB..SR..GCC;KUN15..(SMT,XTR)..DCR..TH;KUN15..DCB..DLX..(GCC,GEN,PHL);TGN16..(DCB,SMT,XTR)..DLX..(ARL,GCC,GEN,TH);GGN15,KUN16,TGN15..(DCB,XTR)..(ARL,GCC,GEN)200811-201107

MARK 48520-0K510

main48520-09R90iKUN15,16..SMT..SR;KUN15,TGN16..DCB..TH200811-201107

MARK 48520-0K520

main48520-09S40iKUN15,LAN15,TGN15,16..SCB..SA200902-201004

MARK 48520-0K530

sub48520-0K530

main48520-09S50iKUN15,LAN15,TGN16..DCB..SA200902-201004

MARK 48520-0K540

sub48520-0K540

main48520-0K530iKUN15,LAN15,TGN15,16..SCB..SA201004-201108

MARK 48520-0K530

main48520-0K540iKUN15,LAN15,TGN16..DCB..SA201004-201108

MARK 48520-0K540

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main48609-0K040iKUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(AR200408-200810

main48609-0K050iKUN25,35..DCB..ANCOM200501-200812

sub48609-0K040

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iKUN25,35..DCB..ANCOM200408-201202

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iKUN25,35..DCB..ANCOM200408-201202

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K010iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200408-201202

main48609-0K040iKUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(AR200408-200810

main48609-0K050iKUN25,35..DCB..ANCOM200501-200812

sub48609-0K040

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG200408-201202

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01241iKUN25,35..DCB..ANCOM200408-201202

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iKUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(AR200408-200810

main48810-0K020iKUN25..LA;TGN36..DLX;TGN26..ANCOM;KUN35..LHD..SCB;GGN25,KUN26,36..ANCOM,LA;KUN35,TGN26..DCB..DLX..LA200501-200812

main48820-0K010iTGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH200408-201202

48811BAR, STABILIZER, FRONT

main48811-0K011iKUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN15,KUN10,15,LAN15,TGN11,15..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main48811-0K021iKUN15,LAN15,TGN15,16..SCB..SA200504-201108

sub48811-0K011

main48811-0K050iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200408-200809

main48811-0K050iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200512-200607

(L)

main48811-0K070iKUN25..LA;TGN36..DLX;TGN26..ANCOM;KUN35..LHD..SCB;GGN25,KUN26,36..ANCOM,LA;KUN35,TGN26..DCB..DLX..LA200501-200812

main48811-0K080iKUN15,TGN16..SMT..SR;GGN15,KUN16,TGN15..DCB,SMT;KUN15,TGN16..DCB..(ARL,GCC,GEN,PHL,TH)200408-201107

main48811-0K090iKUN15,LAN15,TGN16..DCB..SA200507-201108

main48811-0K100iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200611-201108

main48811-71010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200504-200512

sub48811-0K050

main48811-71010iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA200512-200607

(J)

sub48811-0K050

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K010iGGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);GGN35,KUN2#,3#,LAN25,35,TGN36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH200408-200810

main48815-0K040iKUN25..LA;TGN36..DLX;TGN26..ANCOM;KUN35..LHD..SCB;GGN25,KUN26,36..ANCOM,LA;KUN35,TGN26..DCB..DLX..LA200501-200812

sub48815-0K010

main48815-0K050iKUN15..DCB;KUN15,16..SMT..SR;TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16,LAN15,TGN15..DCB..DLX;GGN15,KUN16,TGN16..(DCB,SMT)..(4FC,5FC)..SR200408-201108

main48815-0K070iKUN15..SCB..SA;KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;KUN15..(SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15..SCB,XTR;TGN16..(SCB,XTR)..5F..DLX..(A200408-201202

48817CUSHION, FRONT STABILIZER

main90948-T1002iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-T2002iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main48820-0K030iKUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(AR200408-200810

main48820-0K040iKUN25,35..DCB..ANCOM200501-200812

48824BRACKET, STABILIZER, FRONT

main48824-0K010iKUN25,35..DCB..ANCOM200408-201202

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

9418461001

main94184-61001

27 parts on this diagram · 2 diagrams in section
