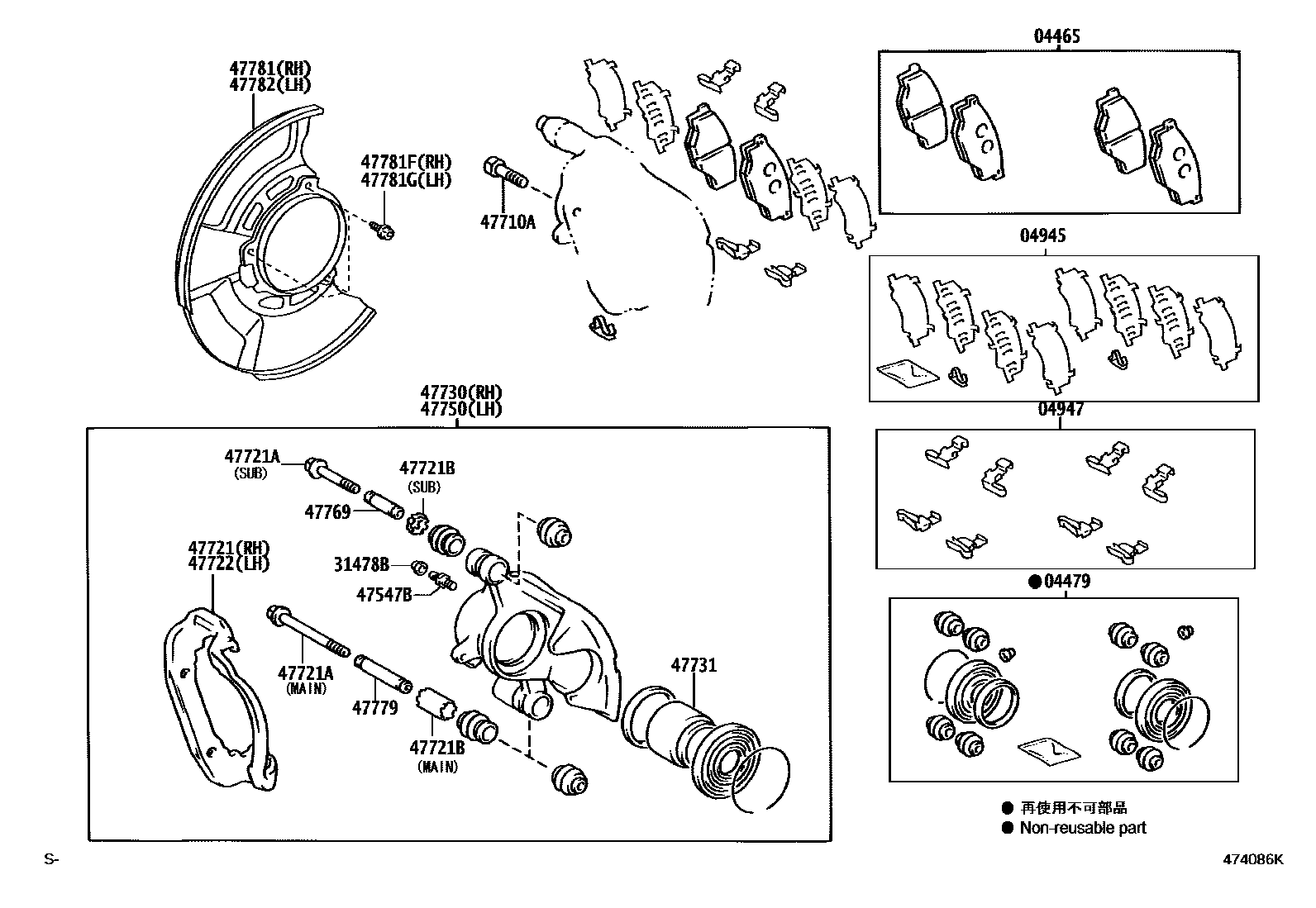

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1 0006 1 0013 1 0016 1 0018 1 0020 1 0021 1 0022 1MARK S12WAA 0023 1MARK S13WG 0024 1W(VSC) 0026 1ECUADOR & COLOMBIA OR BRAZIL 0029 1ECUADOR SPEC 0030 1MALAYSIA SPEC & W/O(VSC)

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K010iGGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH200408-200506

MARK ADVICS PS558H

sub04465-0K160

main04465-0K020iGGN25,KUN2#,36,TGN26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH)200408-201107

MARK ADVICS PS558H

main04465-0K020iKUN26..DCB..GEN201008

MARK ADVICS PS558H,MARK S12WAA:SEE ILL.

main04465-0K090iKUN26..DCB..5F..TH200808-201107

MARK SUMITOMO PS558H,VSC-WITH

main04465-0K090iKUN26..THDCB;KUN26..4FC..TH200808-201107

MARK SUMITOMO PS558H

main04465-0K130iKUN15,LAN15,TGN15,16..SA200504-200810

MARK ADVICS PS558H

main04465-0K140iKUN25..DCB..SA;KUN25..LHD..SCB..SA;GGN25,KUN26,3#,LAN25,35,TGN26,36..SA200504-200810

MARK ADVICS PS558H

main04465-0K141iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200501-200705

MARK TRW NS265H

sub04465-0K200

main04465-0K160iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200506-201202

MARK ADVICS PS558H

main04465-0K200iGGN25,KUN2#,3#,TGN26,36..ANCOM,LA200705-200712

MARK AK NS265H

sub04465-0K230

main04465-0K210iKUN2#,35,TGN26..THDCB,THSCB200708-200712

MARK AK NS265H

sub04465-0K220

main04465-0K220iKUN2#,35,TGN26..THDCB,THSCB200712-200808

MARK AK NS265H

main04465-0K230iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200712-200812

MARK AK NS265H

main04465-0K240iKUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA200810-201108

MARK ADVICS PS558H

main04465-0K260iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200808-201108

MARK ADVICS PS558H

sub04465-0K330

main04465-0K280iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

MARK SUMITOMO PS558H

main04465-0K290iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200808-201108

MARK ADVICS PS558H

main04465-0K300iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204

MARK AK NS265H

main04465-0K310iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

MARK ADVICS PS558H

main04465-35290iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K060iKUN15,LAN15,TGN15,16..SA200504-201108

main04478-0K110iKUN25..RHD..SCB..SA200501-201204

main04478-0K130iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main04478-0K130iKUN35..GEN;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200408-201108

main04478-0K140iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main04478-0K150iKUN15..PKN201104-201202

main04478-60050iKUN26..THDCB;KUN26..4FC..TH;GGN25,35..5FC..SA;KUN26,3#,TGN36..DCB..SR..SA200808-201108

main04479-04030iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200408-201108

sub04478-0K150

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K130iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main04945-0K150iKUN26..IDN;GGN25..SCB,XTR200408-201107

main04945-0K150iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main04945-0K170iKUN15,TGN15..SA200504-200505

sub04945-0K171

main04945-0K171iKUN15,LAN15,TGN15,16..DLX..SA200505-201108

main04945-0K180iTGN36..SCB;KUN26..4FC..LA;TGN26..ANCOM,SA;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN2#..DCB..5F..(ANCOM,LA,SA);GGN25,KU200501-200812

main04945-0K210iKUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA200810-201108

main04945-0K220iKUN26..DCB..5F..TH200808-201107

VSC-WITH

main04945-0K240iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200808-201108

main04945-0K250iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200808-201108

main04945-0K260iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main04945-0K270iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204

main04945-35120iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main04947-0K020iKUN15,LAN15,TGN15,16..DLX..SA200504-201108

main04947-0K030iTGN36..SCB;KUN26..4FC..LA;TGN26..ANCOM,SA;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN2#..DCB..5F..(ANCOM,LA,SA);GGN25,KU200501-200812

main04947-0K040iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200808-201011

main04947-0K050iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201111

main04947-0K060iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201007

sub04947-0K080

main04947-0K070iKUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA200810-201108

main04947-0K080iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR201007-201204

main04947-35050iKUN26..THDCB;KUN26..4FC..TH;GGN25,35..5FC..SA;KUN26,3#,TGN36..DCB..SR..SA200808-201108

main04947-60080iKUN26..IDN;GGN25..SCB,XTR200408-201107

main04947-60080iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main04947-71010iGGN25201111-201204

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iKUN15..PKN201104-201202

main31478-0K020iKUN15,LAN15,TGN15,16..DLX..SA200504-201108

main31478-0K030iKUN25..RHD..SCB..SA200501-201204

main31478-30010iKUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,S200408-201104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

main47547-20030iKUN26..IDN;GGN25..SCB,XTR200408-201108

main47547-20030iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47547-27030iKUN26..DCB..5F..TH200808-201107

VSC-WITH

main47547-35020iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

main90069-0K072iKUN25..RHD..SCB..SA200501-201204

main90069-39011iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iKUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB.200408-201204

*12-1.25PX35-27

main91552-C1230iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH200408-201202

*12-1.25PX30-26.25

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09500iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47721-0K010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main47721-0K020iKUN15,LAN15,TGN15,16..SA200504-200810

main47721-0K110iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200808-201108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA201iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

*10-1.25PX89.7-30,MAIN PIN SIDE

main90080-10190iKUN15,LAN15,TGN15,16..SA200504-201108

*8-1.00PX22-14.5

main90080-11308iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

*10-1.25PX63.7-30,SUB PIN SIDE

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AX202iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200408-201202

MAIN PIN SIDE

main90016-AX203iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

SUB PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09200iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47722-0K010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main47722-0K020iKUN15,LAN15,TGN15,16..SA200504-200810

main47722-0K110iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main47730-0K020iKUN15,LAN15,TGN15,16..SA200504-200810

main47730-0K060iGGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200408-200708

sub47730-0K061

main47730-0K061iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47730-0K061iKUN35..GEN;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200708-201107

main47730-0K070iGGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,LA,SA200501-200705

sub47730-0K071

main47730-0K071iKUN25..RHD..SCB..SA200705-200812

main47730-0K110iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200808-201108

main47730-0K120iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47730-0K130iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main47730-0K140iKUN26..DCB..5F..TH200808-201107

VSC-WITH

main47730-0K170iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204

main47730-0K180iKUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA200810-201108

main47730-0K190iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200808-201108

main47730-71010iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

47731PISTON, FRONT DISC BRAKE

main47731-04050iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,TGN10,11,15..GCC,GEN,IDN,PHL,TH200408-201202

main47731-0K060iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200408-201108

main47731-0K060iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47731-0K070iTGN36..SCB;KUN26..4FC..LA;TGN26..ANCOM,SA;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN2#..DCB..5F..(ANCOM,LA,SA);GGN25,KU200501-201204

main47731-0K130iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main47731-35040iKUN26..THDCB;KUN26..4FC..TH;GGN25,35..5FC..SA;KUN26,3#,TGN36..DCB..SR..SA200808-201108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

main47750-0K020iKUN15,LAN15,TGN15,16..SA200504-200810

main47750-0K060iGGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH200408-200708

sub47750-0K061

main47750-0K061iKUN26..IDN;GGN25..SCB,XTR200708-201107

main47750-0K061iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47750-0K070iGGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,LA,SA200501-200705

sub47750-0K071

main47750-0K071iTGN36..SCB;KUN26..4FC..LA;TGN26..ANCOM,SA;KUN25..LHD..SCB;KUN35..(DCB,SCB)..DLX;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN2#..DCB..5F..(ANCOM,LA,SA);GGN25,KU200705-200812

main47750-0K110iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201108

main47750-0K120iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47750-0K130iTGN26,36..SR..LA;TGN36..4FC..DLX..LA;GGN25,KUN26,36..ANCOM,LA200810-201204

main47750-0K140iKUN26..THDCB;KUN26..4FC..TH200808-201107

VSC-WITH

main47750-0K170iTGN26..DLX..LA;TGN26..ANCOM..CBU;TGN36..4FC..ANCOM;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204

main47750-0K180iKUN26,36,TGN36..SCB..SA;KUN25,35,LAN25,35,TGN26..DLX..SA200810-201108

main47750-0K190iKUN26..XTR..SA;KUN25,3#,TGN26..THDCB,THSCB,XTR200808-201108

main47750-71010iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA200810-201108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-04010iKUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH)200408-201202

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-0K010iTGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-0K010iKUN15..SR..SA;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH200808-201108

main47781-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main47781-0K020iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47781-0K030iGGN25,KUN2#,3#,LAN25,35,TGN26,36200408-200605

sub47781-0K031

main47781-0K031iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47781-0K031iKUN35..DLX;TGN36..SCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB.200606-201107

main47781-0K050iKUN26..THDCB;KUN26..4FC..TH;TGN36..4FC..DLX..LA;KUN26,36..DCB..(LA,SA);GGN25,35..5FC..(ANCOM,LA,SA);KUN35,TGN26,36..DCB..SR..(LA,SA)200808-201204

main47781-0K070iTGN36..ANCOM..IV3;TGN36..DCB..5F..DLX;TGN26,36..DCB..ANCOM;TGN26..LHD..DLX..(LA,SA);KUN25,LAN25,35..ANCOM,LA,SA;KUN35..DLX..(ANCOM,GEN,LA,SA);KUN26,36,TGN36..(SCB,X200808-201204

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-T0005iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-T0005iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-0K010iKUN15..SR..SA;GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH200808-201108

main47782-0K010iKUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)200408-201202

main47782-0K020iKUN15,LAN15,TGN15,16..DLX..SA200810-201108

main47782-0K030iGGN25,KUN2#,3#,LAN25,35,TGN26,36200408-200605

sub47782-0K031

main47782-0K031iKUN26..4FC..(ARL,PHL);KUN26..5F..(ARL,PHL,TH);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT)..(ARL,GCC,GEN,MA,PHL,PKN,TH)..CBU200606-201107

main47782-0K031iKUN26..DCB..GEN201008

MARK S12WAA:SEE ILL.

main47782-0K050iKUN26..THDCB;KUN26..4FC..TH;TGN36..4FC..DLX..LA;KUN26,36..DCB..(LA,SA);GGN25,35..5FC..(ANCOM,LA,SA);KUN35,TGN26,36..DCB..SR..(LA,SA)200808-201204

main47782-0K070iTGN36..ANCOM..IV3;TGN36..DCB..5F..DLX;TGN26,36..DCB..ANCOM;TGN26..LHD..DLX..(LA,SA);KUN25,LAN25,35..ANCOM,LA,SA;KUN35..DLX..(ANCOM,GEN,LA,SA);KUN26,36,TGN36..(SCB,X200808-201204

20 parts on this diagram · 16 diagrams in section
