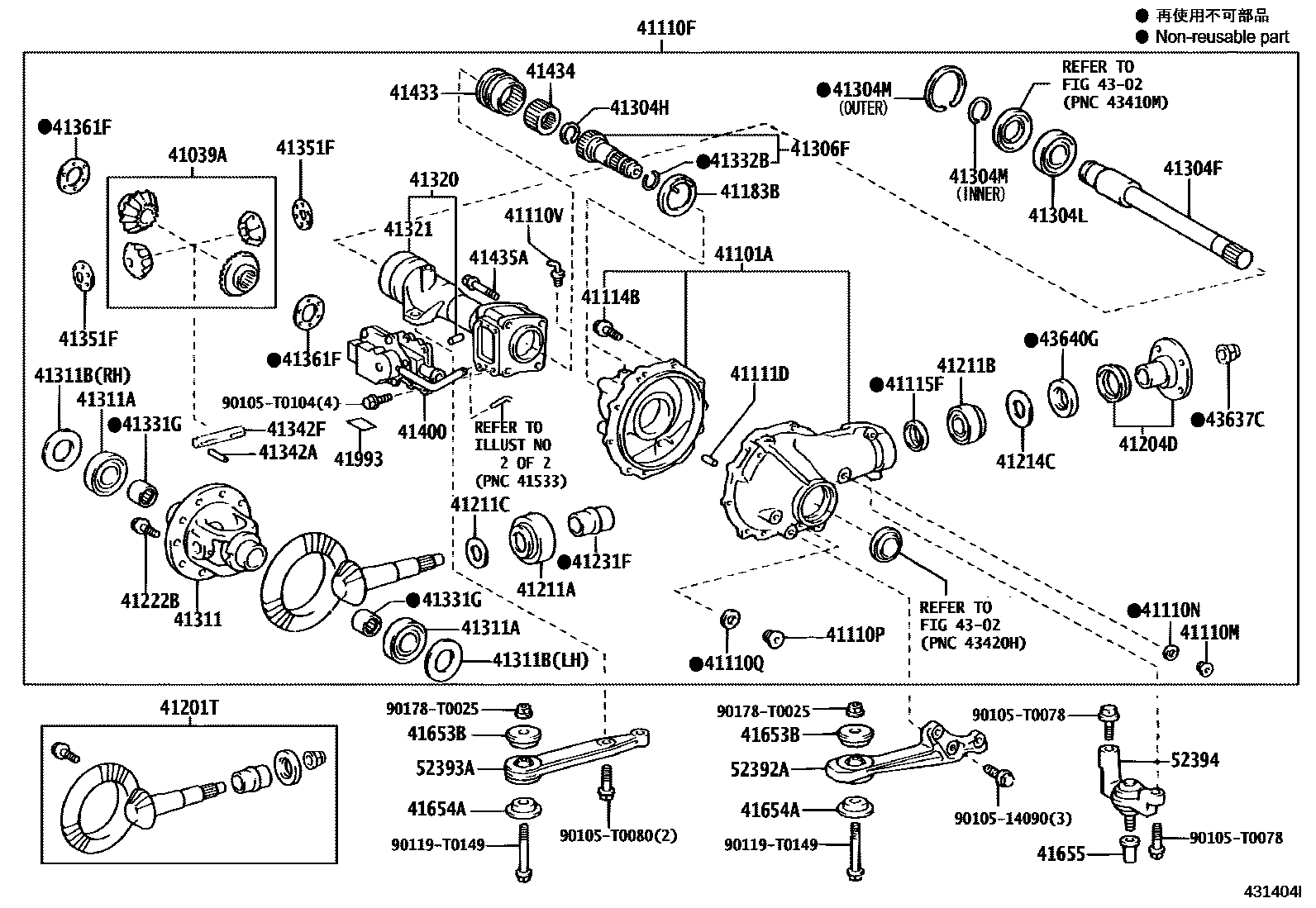

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1W(A.D.D) 0003 1 0006 1W(A.D.D) 0007 1 0009 1W(A.D.D) 0011 1 0014 1 0015 1

41039AGEAR KIT, DIFFERENTIAL

main41039-35010iKUN26..(DCB,SCB)..(LA,SA);GGN25,KUN25,LAN25,TGN26..ANCOM,SA201104-201204

main41039-71020iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201107

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-0K030iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

main41101-71010iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-0K240iKUN26..DLX..GEN200502-201001

*FGR=43:12=3.583

sub41110-0K241

main41110-0K240iGGN25,KUN26..(5F,5FC)..DLX..ARL200808-201001

*FGR=43:12=3.583,AUTO DISCONNECT DIFFERENTIAL-WITHOUT

sub41110-0K241

main41110-0K241iKUN26..DLX..GEN201001-201107

*FGR=43:12=3.583,AUTO DISCONNECT DIFFERENTIAL-WITHOUT

sub41110-0K242

sub41336-0K080

main41110-0K241iKUN26..DLX..GEN201001-201107

*FGR=43:12=3.583

sub41110-0K242

sub41336-0K080

main41110-0K250iKUN25..GCC,GEN200502-201001

*FGR=43:11=3.909

sub41110-0K251

main41110-0K251iKUN25..SCB..MA;KUN25..GCC,GEN,PKN201001-201202

*FGR=43:11=3.909

sub41110-0K252

sub41336-0K080

main41110-0K270iTGN26..5F..DLX..(GCC,GEN)200502-201001

*FGR=41:9=4.555

sub41110-0K271

main41110-0K271iTGN26..5F..DLX..(GCC,GEN)201001-201107

*FGR=41:9=4.555

sub41110-0K272

sub41336-0K080

main41110-0K280iKUN26..5F..DLX..ARL200408-201001

*FGR=43:12=3.583

sub41110-0K281

main41110-0K280iKUN26..DLX..GEN;GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,IDN,PHL,TH)200808-201001

*FGR=43:12=3.583,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K281

main41110-0K281iKUN26..XTR..SA;KUN26..DLX..GEN;GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,IDN,PHL,TH)201001-201108

*FGR=43:12=3.583

sub41110-0K282

sub41336-0K080

main41110-0K290iKUN25..GCC;KUN25..SCB..MA;KUN25..THDCB,THSCB200408-201001

*FGR=43:11=3.909

sub41110-0K291

main41110-0K290iKUN26..4FC..(GEN,TH);KUN25..(DCB,SMT)..(MA,TH)200808-201001

*FGR=43:11=3.909,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K291

main41110-0K291iKUN25..GCC;KUN25..SCB..MA;KUN25..THDCB,THSCB201001-201109

*FGR=43:11=3.909

sub41110-0K292

sub41336-0K080

main41110-0K291iKUN25..GCC;KUN25..SCB..MA;KUN25..THDCB,THSCB201001-201109

*FGR=43:11=3.909,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K292

sub41336-0K080

main41110-0K310iTGN26..SR..GEN;TGN26..4FC..GCC200501-201001

*FGR=41:9=4.555

sub41110-0K311

main41110-0K310iTGN26..SR..GEN;TGN26..4FC..GCC200808-201001

*FGR=41:9=4.555,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K311

main41110-0K311iTGN26..SR..GEN;TGN26..4FC..GCC201001-201107

*FGR=41:9=4.555

sub41110-0K312

sub41336-0K080

main41110-0K311iTGN26..THDCB..DLX;TGN26..DCB..5F..GCC201001-201107

*FGR=41:9=4.555,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K312

sub41336-0K080

main41110-0K350iKUN26..4FC..DLX200502-201001

*FGR=41:11=3.727

sub41110-0K351

main41110-0K351iKUN26..4FC..DLX201001-201107

*FGR=41:11=3.727

sub41110-0K352

sub41336-0K080

main41110-0K360iKUN26..4FC..SR..ARL200411-201001

*FGR=41:11=3.727

sub41110-0K361

main41110-0K360iKUN26..4FC..SR..ARL200808-201001

*FGR=41:11=3.727,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K361

main41110-0K361iKUN26..4FC..PHL201001-201107

*FGR=41:11=3.727,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-0K362

sub41336-0K080

main41110-0K361iKUN26..4FC..PHL201001-201107

*FGR=41:11=3.727,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM

sub41110-0K362

sub41336-0K080

main41110-0K361iKUN26..4FC..PHL201001-201107

*FGR=41:11=3.727

sub41110-0K362

sub41336-0K080

main41110-35A10iKUN26..4FC..LA200501-200810

*FGR=41:11=3.727

sub41110-35A11

main41110-71090iKUN26..DLX..LA200610-200810

*FGR=43:12=3.583

sub41110-71180

sub41336-0K010

sub41336-0K050

main41110-71110iTGN26..DCB..SA;LAN25..LHD..SCB200507-200903

*FGR=41:9=4.555

sub41110-71210

main41110-71120iKUN26..DLX..LA200501-200903

*FGR=43:12=3.583

sub41110-71220

sub41336-0K010

sub41336-0K050

main41110-71130iKUN25..SA200504-200903

*FGR=43:11=3.909

sub41110-71230

sub41336-0K010

sub41336-0K050

main41110-71130iKUN25..ANCOM,SA;KUN26..4FC..(LA,SA)200810-200903

*FGR=43:11=3.909,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-71230

sub41336-0K010

sub41336-0K050

main41110-71150iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;TGN26..ANCOM..CBU200504-200903

*FGR=41:9=4.555

sub41110-71240

sub41336-0K010

sub41336-0K050

main41110-71150iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;TGN26..ANCOM..CBU200810-200903

*FGR=41:9=4.555,AUTO DISCONNECT DIFFERENTIAL-WITH

sub41110-71240

sub41336-0K010

sub41336-0K050

main41110-71160iKUN25..LA200501-200905

*FGR=43:11=3.909

sub41110-71190

sub41336-0K010

sub41336-0K050

main41110-71160iKUN25..LHD..SCB..SA200810-200905

*FGR=43:11=3.909,AUTO DISCONNECT DIFFERENTIAL-WITHOUT

sub41110-71190

sub41336-0K010

sub41336-0K050

main41110-71190iKUN25..LA200905-201110

*FGR=43:11=3.909

sub41110-71191

main41110-71210iLAN25..LHD..SCB;TGN26..DLX..(LA,SA)200903-201110

*FGR=41:9=4.555

sub41110-71420

sub41336-0K051

sub41336-0K071

main41110-71220iGGN25,KUN26..(DCB,SCB)..(5F,5FC)..(ANCOM,LA,SA)200903-201204

*FGR=43:12=3.583

sub41110-71221

sub41336-0K051

sub41336-0K071

main41110-71230iKUN25..ANCOM,SA;KUN26..4FC..(LA,SA)200903-201204

*FGR=43:11=3.909

sub41110-71231

sub41336-0K051

sub41336-0K071

main41110-71240iLAN25..RHD;TGN26..ANCOM;TGN26..SR..LA;LAN25..LHD..DCB200903-201204

*FGR=41:9=4.555

sub41110-71241

sub41336-0K051

sub41336-0K071

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iGGN25,KUN2#,LAN25,TGN26..ANCOM,LA,SA200501-200701

main90341-18066iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200701-201204

sub90341-18032

main90341-T0002iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,KUN26,TGN26..ARL,GCC,GEN,IDN,PHL,TH200408-201202

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

main90341-T0003iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

sub90430-24017

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

main90250-T0004iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-T0101iGGN25,KUN26..(5F,5FC)..DLX..ARL200408-201107

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-0K010iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

main41115-35010iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER

main41183-0K010iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

main41183-0K010iKUN25..SR..MA200408-201107

main41183-35040iKUN25..LA;LAN25..LHD..SCB;TGN26..DCB..DLX..(LA,SA)200501-200810

AUTO DISCONNECT DIFFERENTIAL-WITH

main41183-35040iKUN26,TGN26..DLX..LA200501-200812

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-79095iGGN25..5FC..SA;GGN25..DCB..(ANCOM,ARL,LA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH)200408-201204

*FGR=43:12=3.583

main41201-79135iKUN25..SCB..MA;KUN26..4FC..TH;KUN25..(DCB,XTR)..SR;KUN25..ANCOM,GCC,GEN,LA,SA200408-201110

*FGR=43:11=3.909

main41201-79165iTGN26..DCB..DLX..LA;LAN25,TGN26..ANCOM,GCC,GEN,SA,TH200501-201204

*FGR=41:9=4.556

main41201-80327iKUN26..4FC..PHL200411-201107

*FGR=41:11=3.727

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-0K030iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

sub41204-0K120

main41204-35110iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35087iGGN25,KUN25,TGN26..ANCOM200501-201204

main90366-T0016iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30067iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

main90366-T0013iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

41211CGEAR, DIFFERENTIAL RING

main90564-35109iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=1.70

main90564-35110iGGN25,KUN25,TGN26..ANCOM200408-201110

OD=52,T=1.73

main90564-35111iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

OD=52,T=1.76

main90564-35112iGGN25,KUN25,TGN26..ANCOM200408-201110

OD=52,T=1.79

main90564-35113iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=1.82

main90564-35114iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=1.85

main90564-35115iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

OD=52,T=1.88

main90564-35116iGGN25,KUN25,TGN26..ANCOM200408-201110

OD=52,T=1.91

main90564-35117iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=1.94

main90564-35118iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

OD=52,T=1.97

main90564-35119iGGN25,KUN25,TGN26..ANCOM200408-201110

OD=52,T=2.00

main90564-35120iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=2.03

main90564-35121iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

OD=52,T=2.06

main90564-35123iKUN25..MA200408-201110

OD=52,T=2.09

main90564-35124iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

OD=52,T=2.12

main90564-35125iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

OD=52,T=2.15

main90564-35126iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=2.18

main90564-35127iGGN25,KUN25,TGN26..ANCOM200408-201110

OD=52,T=2.21

main90564-35128iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

OD=52,T=2.24

main90564-35129iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

OD=52,T=2.27

main90564-35130iKUN25..MA200408-201110

OD=52,T=2.30

main90564-35131iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

OD=52,T=2.33

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26011iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90901-05002iKUN25..MA200408-201110

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-35040iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35050iKUN25..SCB..MA;KUN26..DLX..ARL;TGN26..DCB..5F..(GCC,GEN,SA);GGN25,KUN25..DLX..(ARL,GCC,GEN,PKN)..CBU;LAN25,TGN26..LHD..(SCB,THDCB)..DLX..(GCC,GEN,LA,SA)200501-201107

main41337-35050iKUN26..LHD..DLX;KUN25..LHD..SCB..SA200808-201110

AUTO DISCONNECT DIFFERENTIAL-WITHOUT

main41337-35060iGGN25,KUN25..SA;LAN25..LHD..DCB;KUN26..SR..(LA,SA);LAN25,TGN26..RHD..SA200408-201107

main41337-35060iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..ANCOM..CBU;TGN26..5F..SR..(GEN,LA);KUN25..DCB..DLX..(ANCOM,MA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN26..SR..(ARL,GEN,LA200808-201204

AUTO DISCONNECT DIFFERENTIAL-WITH

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-31011iKUN25..LA;LAN25..LHD..SCB;TGN26..DCB..DLX..(LA,SA)200501-200810

AUTO DISCONNECT DIFFERENTIAL-WITH

main90520-31011iKUN26,TGN26..DLX..LA200501-200812

main90520-T0028iKUN25..SR..MA200408-201107

main90520-T0028iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-T0014iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-41014iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

INNER

main90520-75002iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

OUTER

main90520-T0027iGGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH200408-201107

INNER

main90521-T0002iGGN25,KUN2#,TGN26..ARL,GCC,GEN,MA,PHL,TH200408-201107

OUTER

41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

main41306-0K020iKUN25..SR..MA200408-201107

sub41306-0K030

main41306-0K020iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

sub41306-0K030

main41306-35050iKUN25..LA;TGN26..DCB..SA;LAN25..LHD..SCB200501-200810

AUTO DISCONNECT DIFFERENTIAL-WITH

sub41306-35060

main41306-35050iKUN26,TGN26..DLX..LA200501-200812

sub41306-35060

41311CASE, FRONT DIFFERENTIAL

main41311-0K040iKUN25..DLX..MA200502-200809

main41311-0K050iGGN25,KUN26..DLX..ARL200808-201107

AUTO DISCONNECT DIFFERENTIAL-WITHOUT

main41311-0K050iGGN25,KUN26..DLX..(ARL,GEN)200502-200808

main41311-0K060iKUN26..4FC..SR..(ARL,GEN,PHL);GGN25,KUN26..(5F,5FC)..SR..(ARL,GEN,PHL,TH)200408-201108

main41311-0K060iGGN25..XTR;KUN26..IDN200808-201107

AUTO DISCONNECT DIFFERENTIAL-WITH

main41311-0K070iKUN26,TGN26..4FC..(GCC,TH);KUN25,TGN26..5F..SR..(GEN,TH)200408-201109

main41311-0K070iKUN25..SCB..MA;KUN25,TGN26..DCB..5F..GCC;KUN25,TGN26..(THDCB,THSCB)..DLX200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

main41311-71010iGGN25,KUN26..(DCB,SCB)..(5F,5FC)..(ANCOM,LA,SA)200501-201204

main41311-71020iTGN26..LA200501-201110

main41311-71030iKUN26..DLX..LA200610-200810

main41311-71040iTGN26..LA200504-200812

main41311-71040iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;KUN25..ANCOM,SA;TGN26..ANCOM..CBU;KUN26..4FC..(LA,SA)200810-201204

AUTO DISCONNECT DIFFERENTIAL-WITH

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-53004iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

main90366-T0031iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50124iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=1.60,LH

main90564-50126iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.66,LH

main90564-50128iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.72,LH

main90564-50130iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.78,LH

main90564-50132iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=1.84,LH

main90564-50134iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.90,LH

main90564-50136iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.96,LH

main90564-50138iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

T=2.02,LH

main90564-50140iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=2.08,LH

main90564-50142iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=2.14,LH

main90564-50154iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.60,RH

main90564-50156iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.66,RH

main90564-50158iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.72,RH

main90564-50160iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.78,RH

main90564-50162iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.84,RH

main90564-50164iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.90,RH

main90564-50166iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=1.96,RH

main90564-50168iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=2.02,RH

main90564-50170iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

T=2.08,RH

main90564-50172iGGN25,KUN25,TGN26..ANCOM200408-201110

T=2.14,RH

main90564-50184iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.58,LH

main90564-50185iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.62,LH

main90564-50186iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=1.64,LH

main90564-50187iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.68,LH

main90564-50188iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.70,LH

main90564-50189iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=1.74,LH

main90564-50190iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.76,LH

main90564-50191iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=1.80,LH

main90564-50192iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.82,LH

main90564-50193iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.86,LH

main90564-50194iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=1.88,LH

main90564-50195iKUN25..MA200408-201110

T=1.92,LH

main90564-50196iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=1.94,LH

main90564-50197iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.98,LH

main90564-50198iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=2.00,LH

main90564-50199iKUN25..MA200408-201110

T=2.04,LH

main90564-50200iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=2.06,LH

main90564-50201iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

T=2.10,LH

main90564-50202iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=2.12,LH

main90564-50203iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=2.16,LH

main90564-50204iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.58,RH

main90564-50205iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.62,RH

main90564-50206iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.64,RH

main90564-50207iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.68,RH

main90564-50208iKUN25..MA200408-201110

T=1.70,RH

main90564-50209iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

T=1.74,RH

main90564-50210iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=1.76,RH

main90564-50211iGGN25,KUN2#,LAN25,TGN26..LA,SA200408-201110

T=1.80,RH

main90564-50212iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.82,RH

main90564-50213iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=1.86,RH

main90564-50214iKUN25..MA200408-201110

T=1.88,RH

main90564-50215iKUN25..LA;TGN26..DCB..DLX..LA200408-201110

T=1.92,RH

main90564-50216iKUN25..MA200408-201110

T=1.94,RH

main90564-50217iGGN25,KUN25,TGN26..ANCOM200408-201110

T=1.98,RH

main90564-50218iTGN26..4FC;TGN26..DCB..5F..GCC;GGN25..DCB..(ANCOM,ARL,LA);KUN25,TGN26..5F..SR..(LA,TH);GGN25,KUN25..(4FC,5FC)..(MA,SA);TGN26..(SCB,THDCB)..(GCC,GEN,LA);KUN26,LAN25.200408-201110

T=2.00,RH

main90564-50219iKUN25..MA200408-201110

T=2.04,RH

main90564-50220iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201110

T=2.06,RH

main90564-50221iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=2.10,RH

main90564-50222iKUN25..MA200408-201110

T=2.12,RH

main90564-50223iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201110

T=2.16,RH

main90564-50224iGGN25,KUN2#,LAN25,TGN26..LA,SA200507-201204

T=1.44,RH

main90564-50225iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200507-201204

T=1.46,RH

main90564-50226iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200507-201204

T=1.48,RH

main90564-50227iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200507-201204

T=1.50,RH

main90564-50228iKUN25..LA;TGN26..DCB..DLX..LA200507-201204

T=1.52,RH

main90564-50229iGGN25,KUN2#,LAN25,TGN26..LA,SA200507-201204

T=1.54,RH

main90564-50230iKUN25..LA;TGN26..DCB..DLX..LA200507-201204

T=1.56,RH

main90564-50231iKUN25..LA;TGN26..DCB..DLX..LA200507-201204

T=2.18,LH

main90564-50232iGGN25,KUN2#,LAN25,TGN26..LA,SA200507-201204

T=2.20,LH

main90564-50233iGGN25,KUN25,TGN26..ANCOM200507-201204

T=2.22,LH

main90564-50234iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200507-201204

T=2.24,LH

main90564-50235iGGN25,KUN25,TGN26..ANCOM200507-201204

T=2.26,LH

main90564-50236iGGN25,KUN2#,LAN25,TGN26..LA,SA200507-201204

T=2.28,LH

main90564-50237iKUN25..LA;TGN26..DCB..DLX..LA200507-201204

T=2.30,LH

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-0K010iGGN25..XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

main41320-0K010iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

main41320-35050iGGN25,KUN25,TGN26..ANCOM200501-200812

main41320-35050iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;KUN25..ANCOM,SA;TGN26..ANCOM..CBU;GGN25,KUN26..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

AUTO DISCONNECT DIFFERENTIAL-WITH

41321TUBE, DIFFERENTIAL EXTENSION FLANGE

main41321-0K010iKUN26..DLX..GEN200808-201107

AUTO DISCONNECT DIFFERENTIAL-WITHOUT

main41321-0K010iTGN26..5F..DLX..(GCC,GEN);GGN25,KUN2#..DLX..(ARL,GCC,GEN)200502-200809

main41321-0K020iTGN26..4FC;TGN26..SR..GEN;GGN25,KUN2#..SR..(ARL,GEN,PHL,TH)200408-201107

main41321-0K020iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

main41321-35050iKUN26..DLX..LA;KUN25..LHD..SCB..SA200810-201110

AUTO DISCONNECT DIFFERENTIAL-WITHOUT

main41321-35050iKUN26,TGN26..DLX..LA200501-200810

41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)

main90364-35010iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;KUN25..ANCOM,SA;TGN26..ANCOM..CBU;GGN25,KUN26..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

AUTO DISCONNECT DIFFERENTIAL-WITH

main90364-35010iKUN26,TGN26..DLX..LA200501-200812

main90364-T0009iGGN25..XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

main90364-T0009iKUN25..SCB..MA;TGN26..DCB..5F..GCC;KUN2#..DLX..(ARL,GCC);KUN25,TGN26..(THDCB,THSCB)..DLX200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)

main90521-34003iKUN26..DLX..ARL;LAN25..LHD..SCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA);KUN25,TGN26..(THDCB,THSCB)..DLX;TGN26..DCB..5F..DLX..(GCC,LA,SA)200808

AUTO DISCONNECT DIFFERENTIAL-WITH

main90521-34003iKUN26,TGN26..DLX..LA200408-201107

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

main90250-T0006iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-0K010iKUN25..MA200408-201107

sub41342-0K040

main41342-35020iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

sub41342-53020

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-0K010iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

main41351-35030iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

T=1.55

main41361-0K030iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

T=1.60

main41361-0K040iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

T=1.65

main41361-0K050iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

T=1.70

main41361-0K060iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

T=1.75

main41361-0K070iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

T=1.80

main41361-0K080iGGN25..SCB,XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

T=1.85

main41361-0K090iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

T=1.90

main41361-34010iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

T=1.50

main41361-34020iGGN25,KUN2#,LAN25,TGN26..LA,SA200501-201204

T=1.55

main41361-34030iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

T=1.60

main41361-34040iGGN25,KUN25,TGN26..ANCOM200501-201204

T=1.65

main41361-34050iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

T=1.70

main41361-34060iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

T=1.75

main41361-34070iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

T=1.80

main41361-34080iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

T=1.85

main41361-34090iKUN25..LA;TGN26..DCB..DLX..LA200501-201204

T=1.90

41400ACTUATOR ASSY, DIFFERENTIAL VACUUM

main41400-35031iKUN26,TGN26..DLX..LA200408-201107

sub41400-35032

main41400-35031iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..ANCOM..CBU;TGN26..5F..SR..(GEN,LA);KUN25..DCB..DLX..(ANCOM,MA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN26..SR..(ARL,GEN,LA200808-201112

AUTO DISCONNECT DIFFERENTIAL-WITH

sub41400-35032

main41400-35032iGGN25,KUN25,TGN26..ANCOM201112

sub41400-35033

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-35010iKUN26,TGN26..DLX..LA200408-201107

main41433-35010iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..ANCOM..CBU;TGN26..5F..SR..(GEN,LA);KUN25..DCB..DLX..(ANCOM,MA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN26..SR..(ARL,GEN,LA200808

AUTO DISCONNECT DIFFERENTIAL-WITH

41434HUB, DIFFERENTIAL CLUTCH

main41434-35030iGGN25,KUN25,TGN26..ANCOM200408-201107

main41434-35030iLAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..ANCOM..CBU;TGN26..5F..SR..(GEN,LA);KUN25..DCB..DLX..(ANCOM,MA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN26..SR..(ARL,GEN,LA200808

AUTO DISCONNECT DIFFERENTIAL-WITH

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12002iLAN25..RHD;TGN26..SR..LA;LAN25..LHD..DCB;KUN25..ANCOM,SA;TGN26..ANCOM..CBU;GGN25,KUN26..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

*12-1.25PX78-30,AUTO DISCONNECT DIFFERENTIAL-WITH

main90107-12002iGGN25,KUN25,TGN26..ANCOM200501-201204

*12-1.25PX78-30

main90107-12003iKUN25..LA;LAN25..LHD..SCB;TGN26..DLX..(LA,SA)200810-201110

*12-1.25PX24-16.5,AUTO DISCONNECT DIFFERENTIAL-WITHOUT

main90107-12003iKUN25..LA;TGN26..DCB..SA;LAN25..LHD..SCB200501-201110

*12-1.25PX24-16.5

main90107-T0001iGGN25..XTR;KUN2#..5F..SR..(IDN,MA)200408-201109

*12-1.25PX78-30

main90107-T0001iKUN26..XTR..SA;KUN26..DLX..GEN;KUN25..DCB..DLX..MA;KUN25,TGN26..4FC..(GCC,MA);KUN26..SR..(ARL,GEN,PHL,TH);GGN25,KUN25,TGN26..(DCB,SMT,THDCB)..SR..(ARL,GEN,TH)200808-201109

*12-1.25PX78-30,AUTO DISCONNECT DIFFERENTIAL-WITH

main90107-T0002iKUN25..SCB..MA;KUN26..DLX..ARL;GGN25,KUN25,TGN26..(5F,5FC)..DLX..(ARL,GCC,GEN,PKN)..CBU200502-201107

*12-1.25PX24-16.5

main90107-T0002iGGN25..IV3200808-201107

*12-1.25PX24-16.5,AUTO DISCONNECT DIFFERENTIAL-WITHOUT

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-60030iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60010iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-0K011iGGN25,KUN25,TGN26..ANCOM200408-201107

41993LABEL, DIFFERENTIAL OIL INFORMATION

main41993-0K010iKUN25..SCB..MA;TGN26..DCB..5F..GCC;KUN2#..DLX..(ARL,GCC);KUN25,TGN26..(THDCB,THSCB)..DLX200808-201109

AUTO DISCONNECT DIFFERENTIAL-WITH

main41993-0K010iGGN25..XTR;KUN2#..5F..SR..(IDN,MA)200408-201107

main41993-35010iKUN25..LA;TGN26..DCB..SA;LAN25..LHD..SCB200501-200701

AUTO DISCONNECT DIFFERENTIAL-WITH

main41993-35010iKUN26,TGN26..DLX..LA200501-200610

4302

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90177-22003iKUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THD200408-201204

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-41009iTGN26..SR..LA;TGN26..SCB..LA;KUN25,TGN26..(ANCOM,SA)..CBU;GGN25,KUN26,LAN25..(DCB,SCB)..(ANCOM,LA,SA)200501-201204

main90311-T0013iKUN25..TH;KUN25..4FC;KUN26..XTR..SA;KUN26..ARL,GEN,PHL,TH;KUN25..DLX..(GCC,GEN,MA,PKN);GGN25,TGN26..(DCB,SCB,THDCB)..(ARL,GCC,GEN)..CBU200408-201107

52392ASUPPORT, FRONT DIFFERENTIAL, NO.1

main52380-71010iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-71020iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

52394SUPPORT, FRONT DIFFERENTIAL, NO.3

main52380-71030iGGN25,KUN2#,TGN26..ARL,GCC,GEN,PHL,TH200408-201107

9010514090

main90105-14090

90105T0078

main90105-T0078

90105T0080

main90105-T0080

90105T0104

main90105-T0104

90119T0149

main90119-T0149

90178T0025

main90178-T0025

56 parts on this diagram · 8 diagrams in section
