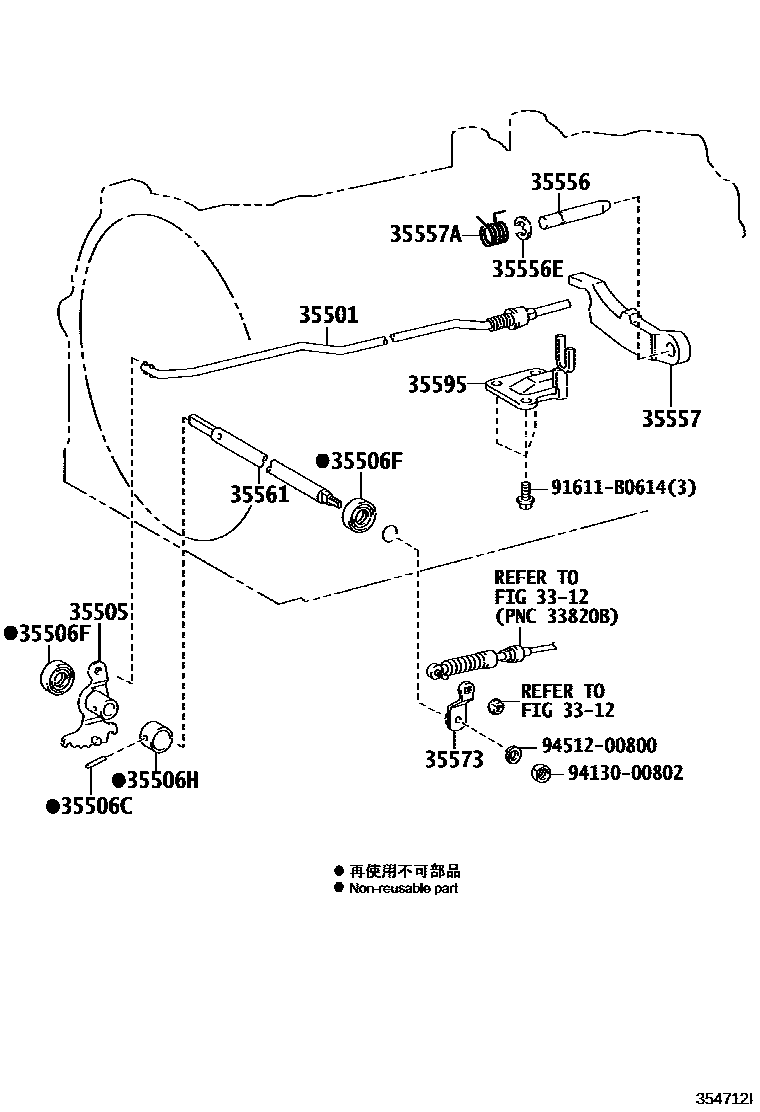

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-60010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35501-60020iGGN15,25..5FC200502-201107

main35501-71010iKUN26..4FC..(GEN,LA,PHL,SA,TH)200808

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

sub35505-26020

main35505-60040iGGN15,25..5FC200502-201107

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGGN25..5FC..IV3200408-201107

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGGN25..5FC..IV3200408-201107

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGGN25..5FC..CBU;GGN15,35,KUN16,2#,36,TGN16,26,36..4FC,5FC200408-201107

35556SHAFT, PARKING LOCK PAWL

main35556-30020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35556-60020iGGN15,25..5FC200502-201107

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)200408-201107

35557PAWL, PARKING LOCK

main35557-60020iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35557-60040iGGN15,35..5FC;GGN25..5FC..CBU200502-201107

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main90949-03123iGGN25..5FC..IV3200502-201107

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35561-60030iGGN15,25..5FC200502-201107

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iGGN25..5FC..CBU;GGN15,35,KUN16,2#,36,TGN16,26,36..4FC,5FC200408-201107

35595BRACKET, PARKING LOCK PAWL

main35595-60010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35595-60030iGGN15,35..5FC;GGN25..5FC..CBU200502-201107

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
