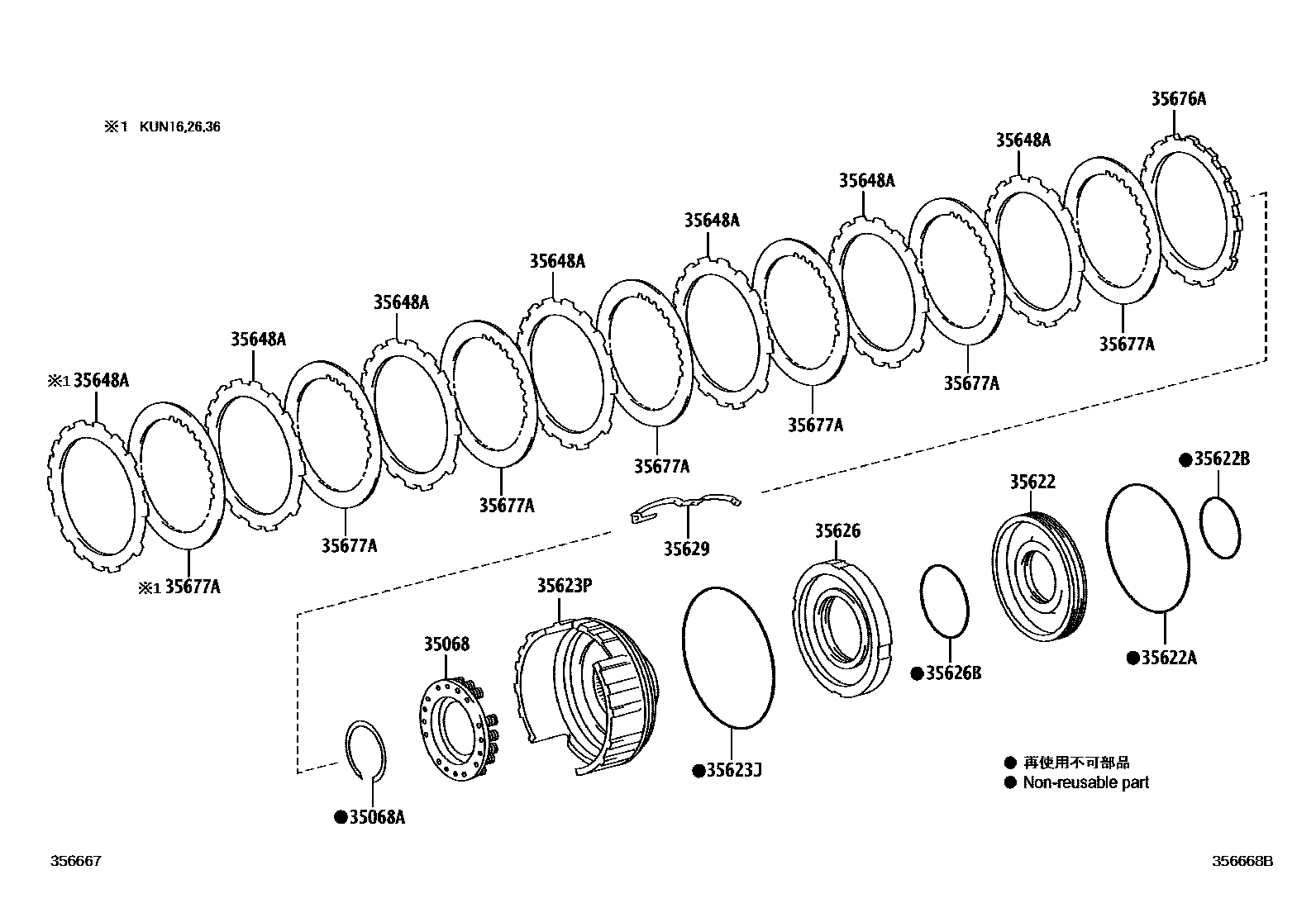

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-50010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main35068-60010iGGN15,25..5FC200502-201107

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main90520-61001iGGN25..5FC..IV3200502-201107

35622PISTON, BRAKE, NO.2

main35622-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35622BRING (FOR BRAKE PISTON INNER)

main90301-56007iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGGN15,35..5FC;GGN25..5FC..CBU200502-201107

main90301-99110iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-14011iKUN16,26..4FC200408-200810

main35623-30012iTGN26..4FC..(GCC,TH);KUN25,TGN16,36..(DCB,XTR)..4FC..(ANCOM,MA,PHL,TH)200501-200812

35626SLEEVE, BRAKE REACTION

main35626-30020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35626-60010iGGN25..5FC..IV3200502-201107

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iKUN16,2#,36,TGN16,26,36..4FC200408-200812

main90301-79003iGGN15,35..5FC;GGN25..5FC..CBU200502-201107

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iKUN25,TGN16,26,36..4FC200408-200812

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=5.2

main35676-30110iKUN16,2#,36,TGN16,26,36..4FC200408-200812

T=5.4

main35676-50010iKUN16,2#,36,TGN16,26,36..4FC200408-200812

T=5.0

main35676-50020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.8

main35676-50030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.6

main35676-50040iKUN16,2#,36,TGN16,26,36..4FC200408-200812

T=4.4

main35676-50050iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.2

main35676-50060iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30180iKUN25,TGN16,26,36..4FC200408-200908

main35677-60020iKUN16,26,36..4FC200908

13 parts on this diagram · 2 diagrams in section
