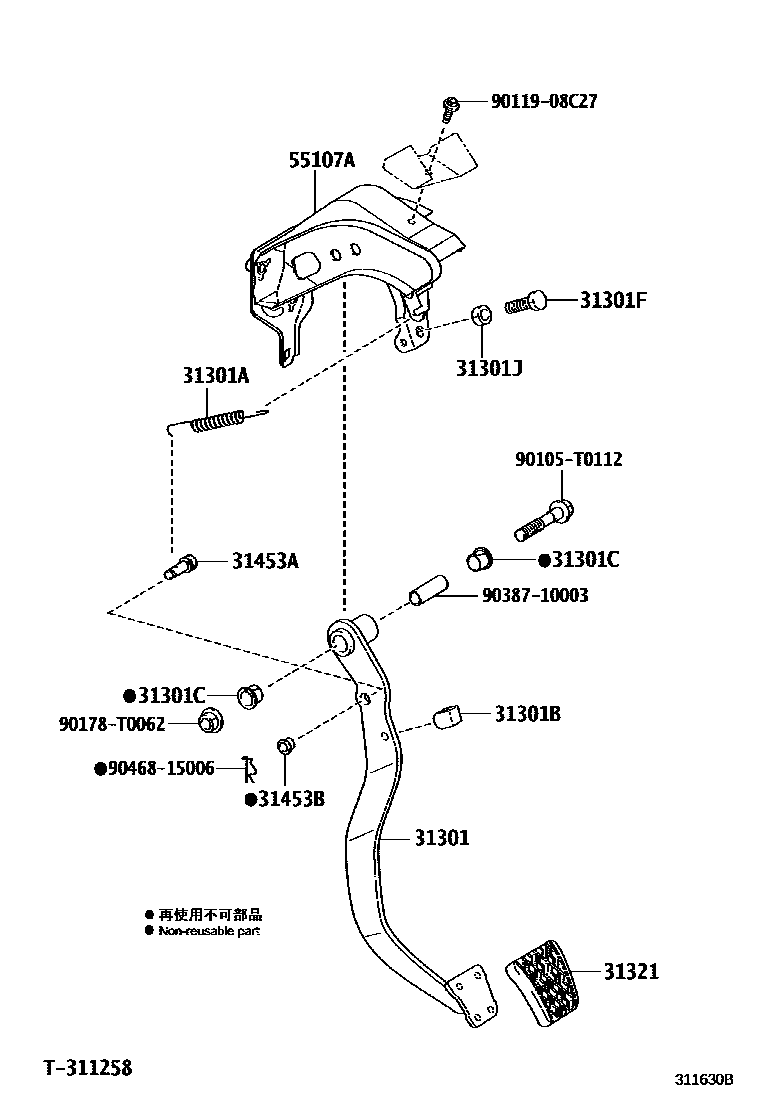

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0006 1W/O(CRUISE CONTROL) 0021 1W(CRUISE CONTROL) 0024 1 0027 1 0030 1 0032 1 0036 1 0042 1 0045 1 0046 1 0047 1 0048 1 0049 1 0050 1 0052 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K010iTGN10,16..RHD..5F200408-201107

main31301-0K020iKUN16..XTR..TH;KUN16..(DCB,SCB)..5F;KUN26,36..5F..(ARL,TH);GGN15,25,KUN15,25..RHD..5F..(HDCR,HTWC)..(ARL,GEN,MA,TH)200408-201107

main31301-0K030iTGN1#,26..5F..(GCC,GEN)200411-201107

main31301-0K040iKUN26..5F..PHL200411-201009

main31301-0K050iKUN15,LAN15,25,35,TGN15,26,36..RHD..SA200504-201108

main31301-0K060iKUN25,35..RHD..SA200810-201010

EXPORT FROM SOUTH AFRICA

main31301-0K060iGGN25,KUN2#,3#..RHD..5F..SA200504-200810

main31301-0K070iLAN15,25,TGN16,26..LHD..SA200507-201108

main31301-0K080iKUN25..LHD..SA200710-201010

main31301-0K090iTGN26..5F..LA;TGN36..LHD..5F;TGN26..ANCOM..CBU200504-200812

main31301-0K100iKUN25,35..ANCOM200501-201012

main31301-0K110iGGN25,KUN26..XTR..CBU200808-201008

main31301-0K130iKUN26,36..(DCB,SCB)..5F..SA200810-201010

main31301-0K150iKUN15..PKN201008-201202

main31301-0K160iKUN25..5F..MA201008

main31301-0K170iKUN15..PHL..CBU201008-201107

main31301-0K180iKUN26..5F..PHL201008-201107

main31301-0K190iKUN15..RHD..DLX..SA201010-201108

main31301-0K200iKUN2#,3#..RHD..(DCB,SCB)..5F..SA201010-201108

main31301-0K210iKUN15..LHD..SA201010-201108

main31301-0K220iKUN25..LHD..SA201010-201108

main31301-0K230iKUN2#,3#..5F..LA201010

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iTGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,LAN15,25,35,TGN10,11..CBU;TGN15,16,26..5F..(ANCOM,ARL,GCC,GEN,SA);KUN15..200408-201202

main90905-06079iGGN15,25..5F..DLX200408-201012

NO.2

main90949-T3001iKUN16..XTR..TH;KUN36..DCB..DLX;KUN16..(DCB,SCB)..5F;KUN2#..SCB..5F..(ARL,MA);KUN26..(DCB,THDCB,XTR)..5F;KUN25,36..(DCB,SCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GE200408-201107

NO.1

main90949-T3001iKUN2#,3#..(DCB,SCB)..5F..(LA,SA)201008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN15,2#..5F..(MA,PHL)..CBU200808-201202

NO.1

main90541-T0004iGGN15,25..5F..DLX;LAN15,25,35,TGN10,15,16,36..RHD..5F..(ARL,IDN,SA,TH)200808-201202

NO.2

main90541-T0004iKUN25..SCB..MA;KUN16,36..XTR..TH;KUN15,35..RHD..DLX..SA;KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN16,36..RHD..(DCB,SCB)..5F;KUN26..(SCB,XTR)..5F..(ARL200408-201010

main90541-T0005iKUN15..PHL..IV3;KUN15,26..LHD..5F..(GCC,GEN);KUN10,25,35..LHD..(GCC,GEN,PHL)201008

NO.2

main90541-T0005iKUN25,3#..LA;KUN15,26..5F..(LA,PHL)..CBU200411-201012

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iTGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR200408-201202

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKUN2#,3#..5F..LA200408-201202

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN2#,3#..5F..LA200408-201202

31321PAD, CLUTCH PEDAL

main31321-02010iTGN26..ANCOM;TGN36..5F..DLX;TGN26..DCB..DLX..LA;KUN2#,3#..5F..(ANCOM,LA)200501-201009

main31321-52010iKUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..(DCB,XTR)..5F..SR;KUN25,35..DLX..(GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,PHL,SA,TH);KUN15..(DCB,SC200408-201202

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iTGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR200408-201202

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKUN2#,3#..5F..LA200408-201202

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K010iKUN2#,3#..5F..(ANCOM,LA)200408-201009

main55107-0K010iKUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F..SA200810-201010

EXPORT FROM SOUTH AFRICA

main55107-0K011iKUN25,35..ANCOM201009-201012

main55107-0K020iKUN10,TGN10,11,15..GCC,IDN;KUN15,TGN16,26..5F..(DCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200408-201010

sub55107-0K021

main55107-0K021iKUN15..PHL..CBU201008-201009

main55107-0K030iKUN16,36..5F..(ARL,TH);KUN26..5F..(GEN,IDN,PHL,TH);GGN15,25,KUN26..5F..DLX..ARL;KUN15,25,35..5F..HDCR..(GCC,GEN,MA,PHL,TH)200808-201008

main55107-0K031iGGN15,25..5F..DLX201008-201107

main55107-0K040iKUN26,36..(DCB,SCB)..5F..SA200808-201010

main55107-0K050iKUN15..DLX..SA201008-201202

main55107-0K060iKUN2#..5F..(MA,PHL)201008

main55107-0K070iKUN25,35..ANCOM201010

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9038710003

main90387-10003

9046815006

main90468-15006

15 parts on this diagram · 16 diagrams in section
