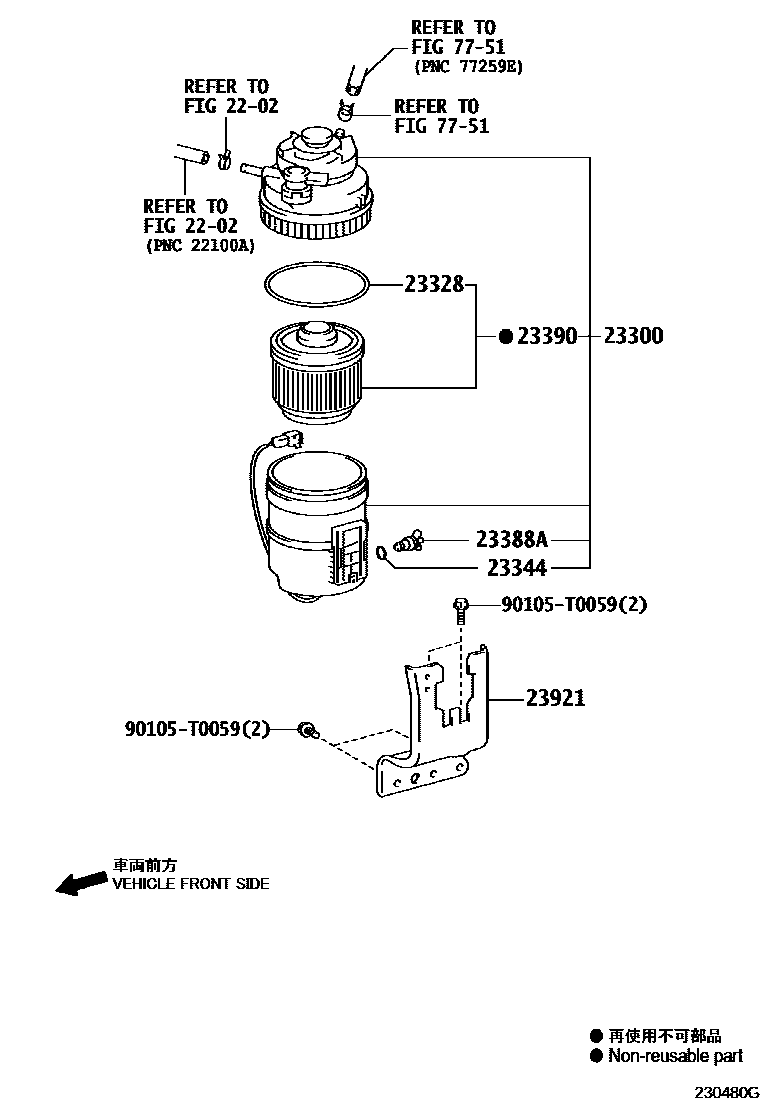

FUEL FILTER

0001 1 0002 1

2202

23300FILTER ASSY, FUEL

main23300-0L020i1KDFTV,2KDFTV..KUN1#,2#,3#200408-200910

sub23300-0L041

main23300-0L041i5LE..LAN15..PKN200911-201204

sub23300-0L042

23328GASKET(FOR FUEL FILTER)

main23344-0L010i5LE..LAN15,25,35200408-201202

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i5LE..LAN15,25,35200408-201202

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2KDFTV..KUN25;1KDFTV,2KDFTV..KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH200408-201202

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i1KDFTV,2KDFTV..KUN1#,2#,3#200408-200911

sub23390-0L041

main23390-0L041i5LE..LAN15,25,35..SA200911-201202

23921SUPPORT, FUEL FILTER

main23921-0L010i1KDFTV..KUN16..XTR..TH;1KDFTV,2KDFTV..KUN10,15,2#,36..ARL,GCC,GEN,MA,PHL,TH;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,TH)200408-201109

main23921-0L040i1KDFTV,2KDFTV..KUN15,2#,3#..(DCB,SCB)..SA200504-201108

main23921-0L050i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200812

sub23921-0L010

main23921-0L080i5LE..LAN15..PKN200710-201202

7751

90105T0059

main90105-T0059

9 parts on this diagram · 2 diagrams in section
