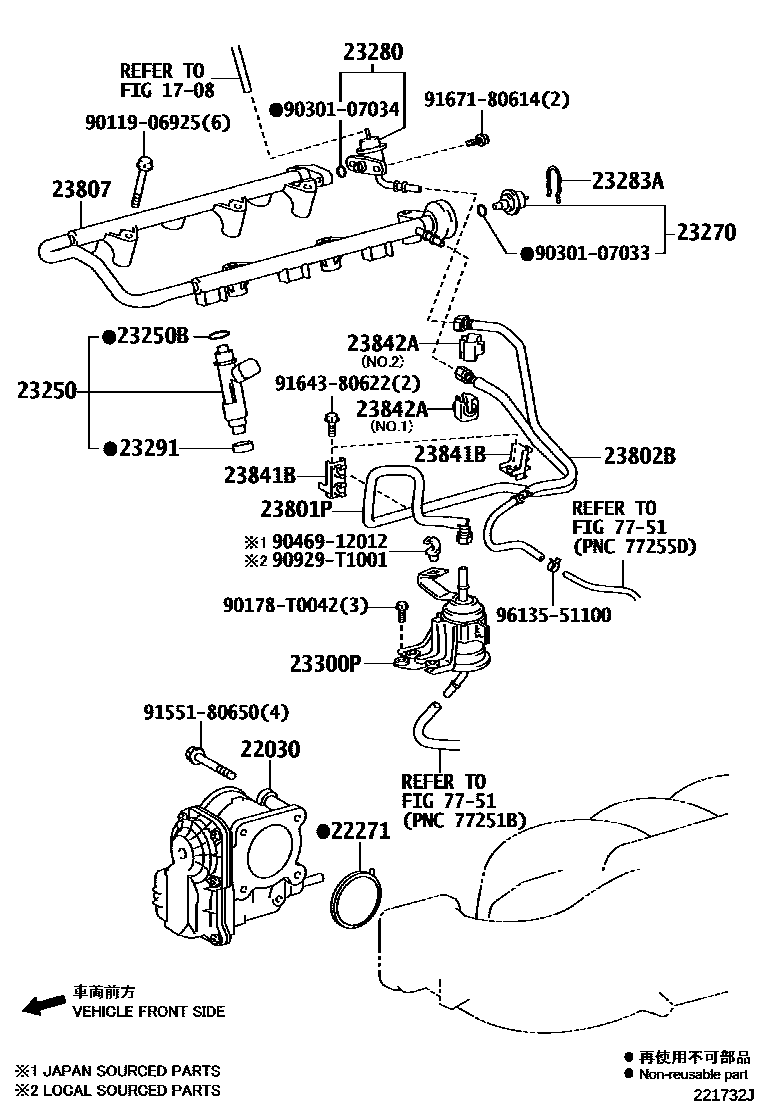

FUEL INJECTION SYSTEM

0001 1 0002 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C010i1TRFE..TGN10,15200502-201108

(L)

main22030-0C020i2TRFE..TGN36..SCB;2TRFE..TGN11,16..5F;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

*191

main22030-31010i1GRFE..GGN15,25200502-201204

main22030-75010i1TRFE..TGN15..SA200609-201005

(J)

main22030-75020i2TRFE..TGN16,26,36..SA200609-201006

*125

22271GASKET, THROTTLE BODY

main22271-0C010i1TRFE..TGN10,15200502-201108

sub22271-37010

main22271-0C020i2TRFE..TGN11,16;2TRFE..TGN36..CBU;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201110

sub22271-0C021

main22271-0C021i2TRFE..TGN26,36201110-201204

main22271-31012i1GRFE..GGN15,25200502-201204

23250INJECTOR ASSY, FUEL

main23209-09045i1TRFE..TGN15..IV3200801-201204

(L)

sub23209-79155

main23209-09045i1TRFE,2TRFE..TGN15,16,26,36..SA200501-200801

sub23209-79155

main23209-09055i2TRFE..TGN16,26..(DCB,SCB,XTR)..GEN200502-201008

main23209-09055i2TRFE..TGN16,26..(DCB,SCB,XTR)..GEN201008-201107

(L)

main23209-09055i2TRFE..TGN16,26..(DCB,SCB,XTR)..GEN201008-201107

IRAQ SPEC,(L)

main23209-09190i2TRFE..TGN26..THDCB..DLX201008-201107

(L)

main23209-09190i2TRFE..TGN26..THDCB..DLX201008-201107

COLOMBIA SPEC,(L)

main23209-09190i2TRFE..TGN26..THDCB..DLX201008-201107

ECUADOR SPEC,(L)

main23209-39015i1GRFE..GGN15,25200502-200711

DENSO

main23209-39075i1GRFE..GGN15,25200502-200801

AISAN

sub23209-39015

main23209-39075i1GRFE..GGN15,25200801-201107

sub23209-39015

main23209-79155i1TRFE,2TRFE..TGN15,16,26,36..SA200801-201006

(J)

sub23209-79205

main23209-79155i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200801

sub23209-79205

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1TRFE,2TRFE..TGN1#,26,36200501-200607

main90301-07033i1GRFE..GGN15,25200502-201107

main90301-07037i2TRFE..TGN16..(DCB,SCB)..GEN200607-201204

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i1GRFE..GGN15,25..ARL200502-200908

sub23270-31080

main23270-31060i1GRFE..GGN25,35..ANCOM,LA,SA200901-200908

sub23270-31080

main23270-31080i1GRFE..GGN25,35..DCB;1GRFE..GGN15..SCB,XTR;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15..DCB..5FC..SR200908-201201

sub23270-31140

main23270-31140i1GRFE..GGN25201201-201204

main23270-75010i2TRFE..TGN16..(DCB,SCB)..GEN200808-201204

*191

sub23270-75050

main23270-75010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

sub23270-75050

main23270-75010i1TRFE,2TRFE..TGN15,16,26,36..SA200810-201005

*125

sub23270-75050

main23270-75040i2TRFE..TGN26,36..LA200810-201006

*125

main23270-75040i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201009

*191

main23270-75040i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201009

BRAZIL SPEC,*191

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GGN15,25..ARL200502-201107

main23280-31040i1GRFE..GGN25,35..ANCOM,LA,SA200901-201201

sub23280-31041

main23280-31041i1GRFE..GGN25201201-201204

main23280-75040i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-200812

sub23280-75130

main23280-75040i1TRFE,2TRFE..TGN15,16,26,36..SA200810-201005

*125

sub23280-75130

main23280-75040i2TRFE..TGN16..(DCB,SCB)..GEN200808-201204

*191

sub23280-75130

main23280-75080i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201009

BRAZIL SPEC,*191

main23280-75080i2TRFE..TGN36..5F..DLX..LA;2TRFE..TGN26..DCB..DLX..LA200810-201009

*191

main23280-75080i2TRFE..TGN26,36..LA200810-201006

*125

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN15,25200502-201107

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i1TRFE..TGN15..IV3200501-201204

(L)

main23291-23010i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

main23291-73010i2TRFE..TGN26,36..LA200609-201006

(J)

23300PFILTER, FUEL(FOR EFI)

main23300-31120i1GRFE..GGN15,35;1GRFE..GGN25..5FC..SA;1GRFE..GGN25..ANCOM,ARL,LA200502-201204

main23300-75140i1TRFE..TGN10..IDN200501-201204

main23300-75160i1TRFE..TGN10..IDN200702-201107

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31110i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31050i1GRFE..GGN15,25200502-201204

main23802-31130i1GRFE..GGN25..LA200903-201009

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TGN16..(DCB,SCB)..GEN200808-201112

*191

sub23807-0C012

main23807-0C010i2TRFE..TGN36..DLX;2TRFE..TGN26..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,TH;2TRFE..TGN16,36..(DCB,XTR)..(PHL,TH);1TRFE,2TRFE..TGN1#..5F..(ARL,GCC,GEN,IDN)200501-200812

sub23807-0C012

main23807-0C010i2TRFE..TGN26,36201112-201204

*191,(L)

sub23807-0C012

main23807-0C020i1TRFE,2TRFE..TGN15,16,26,36..SA201105-201108

*191

main23807-0C020i1TRFE,2TRFE..TGN15,16,26,36..SA200504-200609

main23807-31010i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

main23807-75050i2TRFE..TGN26,36201112-201204

*191,(J)

sub23807-75052

main23807-75080i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201009

BRAZIL SPEC,*191

sub23807-75082

main23807-75080i2TRFE..TGN26..SCB..LA;2TRFE..TGN26,36..SR..LA;2TRFE..TGN36..4FC..DLX..LA200810-201009

*191

sub23807-75082

main23807-75080i2TRFE..TGN26,36..LA200810-201006

*125

sub23807-75082

main23807-75080i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200810

sub23807-75082

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

NO.1

main23842-31030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

NO.2

7751

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107033

main90301-07033

9030107034

main90301-07034

9046912012

main90469-12012

90929T1001

main90929-T1001

9155180650

main91551-80650

9164380622

main91643-80622

9167180614

main91671-80614

9613551100

main96135-51100

26 parts on this diagram · 2 diagrams in section
