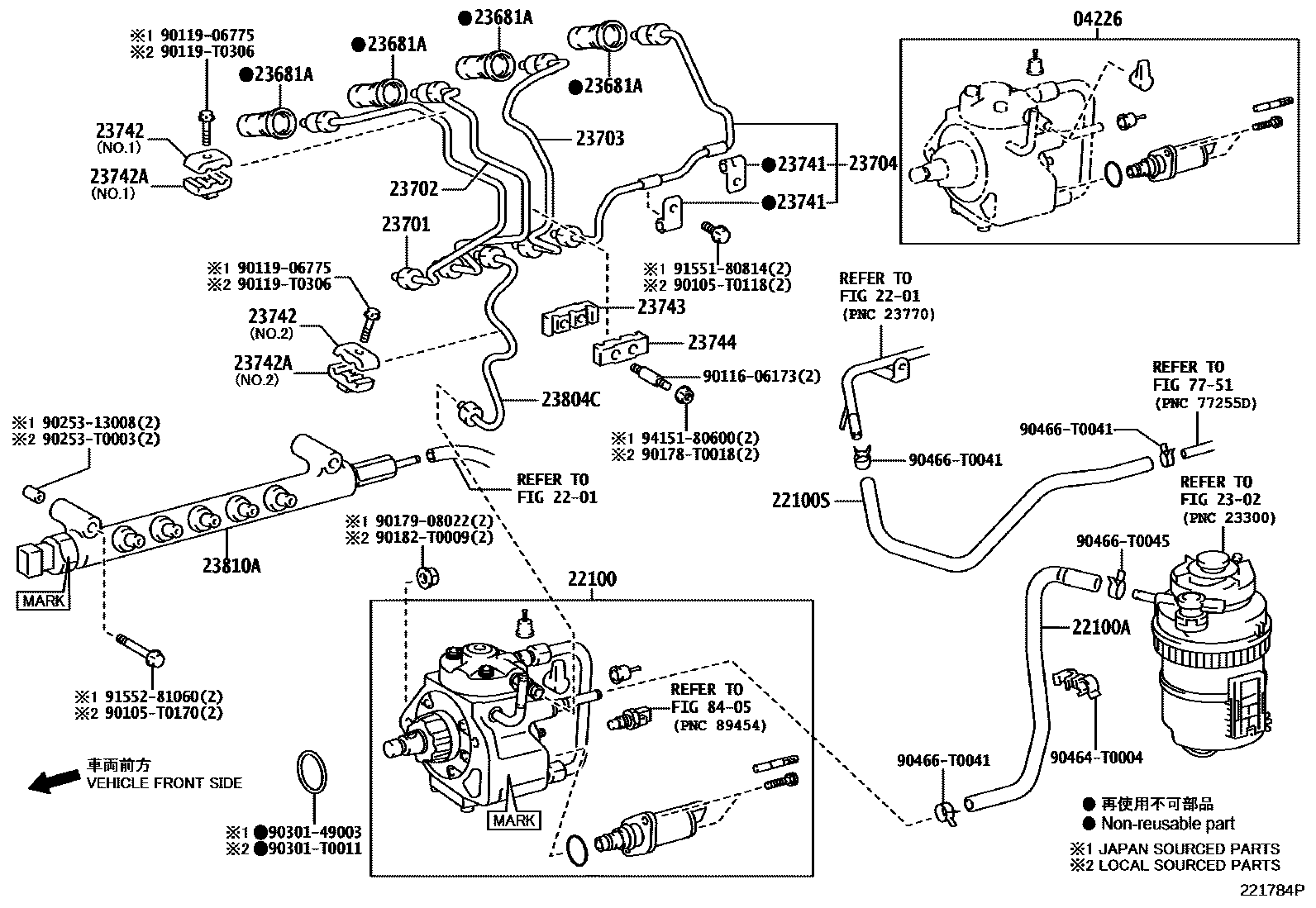

INJECTION PUMP ASSEMBLY

0001 1 0006 1 0007 1 0008 1 0009 1CHILE SPEC 0011 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L010i2KDFTV..KUN35..DCB..SA;2KDFTV..KUN15,25..LHD..SA200408-200801

*505

main04226-0L020i2KDFTV..KUN10,15,25..GCC200808-201204

main04226-0L020i2KDFTV..KUN10,15,25..GCC200809-201204

*163 OR *184

main04226-0L020i2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,25,36..SA;1KDFTV,2KDFTV..KUN26,35..GEN,SA200801-201202

*506

main04226-30010i1KDFTV..KUN16,26..ARL200608-200801

*507

main04226-30020i1KDFTV..KUN16,26..ARL200801-200808

*508

main04226-30020i1KDFTV..KUN16,26..ARL200808-201107

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L020i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-200801

MARK 22100-0L020

sub22100-0L060

main22100-0L030i2KDFTV..KUN10,15,25..GCC200507-200801

MARK 22100-0L030

sub22100-0L070

main22100-0L060i2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F..SA;1KDFTV,2KDFTV..KUN3#..(DCB,SCB,THDCB)..5F..(GEN,SA)200809-201204

*163 OR *184

main22100-0L060i2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,25,36..SA;1KDFTV,2KDFTV..KUN26,35..GEN,SA200801-201202

MARK 22100-0L060

main22100-0L060i2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,25,36..SA;1KDFTV,2KDFTV..KUN26,35..GEN,SA200801-200805

ECUADOR OR COLOMBIA SPEC,*163 OR *184

main22100-0L060i2KDFTV..KUN10,15,25..GCC200808-201204

*130

main22100-0L070i2KDFTV..KUN25..GEN,SA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,THDCB,XTR)..(GEN,SA,TH);1KDFTV,2KDFTV..KUN15,26..(DCB,SC200801-200810

MARK 22100-0L070

sub22100-0L060

main22100-0L070i2KDFTV..KUN10,15,25..GCC200808-201008

*163 OR *184

sub22100-0L060

main22100-0L070i2KDFTV..KUN10,15,25..GCC200808-201101

sub22100-0L060

main22100-30040i1KDFTV..KUN16,26..ARL200608-200801

MARK 22100-30040

sub22100-30090

main22100-30090i1KDFTV..KUN16,26..ARL200801-200805

MARK 22100-30090

main22100-30090i1KDFTV..KUN16,26..ARL200809-201107

main22100-30100i1KDFTV..KUN16,26..ARL200805-200808

MARK 22100-30100

sub22100-30090

main22100-30100i1KDFTV..KUN16,26..ARL200808-200809

sub22100-30090

main22100-5D180i5LE..LAN15,25,35200507-201108

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L010i1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,L200408-200812

main23271-0L060i2KDFTV..KUN15..PKN200808-201202

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30150i1KDFTV,2KDFTV..KUN2#,3#..LA200408-200812

main23273-30250i2KDFTV..KUN25..LA;1KDFTV,2KDFTV..KUN15,26,3#..LA,PKN200808-201204

2302

23681ASEAL, NOZZLE HOLDER

main23681-0L010i1KDFTV,2KDFTV..KUN2#..(THDCB,THSCB)..5F;1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F..SA;1KDFTV,2KDFTV..KUN3#..(DCB,SCB,THDCB)..5F..(GEN,SA)200408-201204

*130

main23681-30010i1KDFTV..KUN16,26..ARL200507-201204

*163 OR *184

main23681-30010i1KDFTV..KUN16,26..ARL200608-200808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0L010i1KDFTV,2KDFTV..KUN2#..(THDCB,THSCB)..5F;1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F..SA;1KDFTV,2KDFTV..KUN3#..(DCB,SCB,THDCB)..5F..(GEN,SA)200408-201204

*130

main23701-0L020i2KDFTV..KUN25,35..SR..TH200908-201107

main23701-30050i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THD200507-201204

*163 OR *184

main23701-30060i1KDFTV..KUN16,26..ARL200608-201107

main23701-54140i5LE..LAN15,25,35..SA200507-201108

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0L010i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-201204

*130

main23702-0L020i2KDFTV..KUN25,35..SR..TH200908-201107

main23702-30050i2KDFTV..KUN35..SCB..SA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV,2KDFTV..KUN15,25,36..RHD..(DCB,SCB)..5F..SA200507-201204

*163 OR *184

main23702-30060i1KDFTV..KUN16,26..ARL200608-201107

main23702-54140i5LE..LAN15,25,35200507-201108

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0L010i1KDFTV..KUN16,26..ARL200408-201204

*130

main23703-0L020i2KDFTV..KUN25,35..SR..TH200908-201107

main23703-30050i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THD200507-201204

*163 OR *184

main23703-30060i1KDFTV..KUN16,26..ARL200608-201107

main23703-54100i5LE..LAN15,25,35..SA200507-201108

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09015i2KDFTV..KUN25..TH200801-201204

*130

main23704-09015i1KDFTV,2KDFTV..KUN15,2#,3#..SA200408-200801

main23704-09040i2KDFTV..KUN25,35..SR..TH200908-201107

main23704-39055i1KDFTV..KUN16,26..ARL200801-201107

main23704-39055i1KDFTV..KUN16,26..ARL200608-200801

*163 OR *184

main23704-39075i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THD200801-201204

*163 OR *184

main23704-39075i2KDFTV..KUN15..LHD..(GCC,SA);2KDFTV..KUN25..LHD..DCB..(GCC,SA);2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV,2KDFTV..KUN10,2#..LHD..(SCB,THDCB,THSCB)..(GCC,GEN,SA)200608-200801

main23704-54100i5LE..LAN15,25,35..SA200507-201108

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L020i2KDFTV..KUN25..TH200408-201204

*130

sub23741-30020

main23741-0L020i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-201107

sub23741-30020

main23741-30010i1KDFTV..KUN16,26..ARL200608-201107

main23741-30020i2KDFTV..KUN35..SCB..SA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV,2KDFTV..KUN15,25,36..RHD..(DCB,SCB)..5F..SA200507-201204

*163 OR *184

main23741-54030i5LE..LAN15,25,35..SA200507-201108

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011i2KDFTV..KUN25..TH200408-201204

*130,NO.1

sub23742-0L090

main23742-0L011i2KDFTV..KUN25,35..SR..TH200908-201107

NO.1

sub23742-0L090

main23742-0L030i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130,NO.1

main23742-0L050i2KDFTV..KUN25,35..SR..TH200908-201107

NO.2

main23742-0L050i2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..IDN,LA,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..GCC,GEN,LA,PH200408-201204

*130,NO.2

main23742-0L070i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130,NO.2

main23742-27010i1KDFTV..KUN16,26..ARL200608-201107

NO.1

main23742-27010i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THD200507-201204

*163 OR *184,NO.1

main23742-30010i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,THD200507-201204

*163 OR *184,NO.2

main23742-30010i1KDFTV..KUN16,26..ARL200608-201107

NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i1KDFTV..KUN16,26..ARL200408-201204

*130,NO.1

main23742-0L021i2KDFTV..KUN25,35..SR..TH200908-201107

NO.1

main23742-0L040i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130,NO.1

main23742-0L060i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA)200408-201204

*130,NO.2

main23742-0L060i2KDFTV..KUN25,35..SR..TH200908-201107

NO.2

main23742-0L080i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130,NO.2

main23742-30020i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,SA);1KDFTV,2KDFTV..KUN200507-201204

*163 OR *184,NO.2

main23742-30020i1KDFTV..KUN16,26..ARL200608-201107

NO.2

main23742-58020i2KDFTV..KUN35..SCB..SA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV,2KDFTV..KUN15,25,36..RHD..(DCB,SCB)..5F..SA200507-201204

*163 OR *184,NO.1

main23742-58020i1KDFTV..KUN16,26..ARL200608-201107

NO.1

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i1KDFTV..KUN16,26..ARL200408-201204

*130

sub23743-0L040

main23743-0L012i2KDFTV..KUN25,35..SR..TH200908-201107

sub23743-0L040

main23743-0L030i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130

main23743-30011i2KDFTV..KUN25..TH200507-201204

*163 OR *184

main23743-30011i1KDFTV..KUN16,26..ARL200608-201107

23744CLAMP, INJECTION PIPE, NO.4

main23743-0L012i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA)200408-201204

*130

sub23743-0L040

main23743-0L012i2KDFTV..KUN25,35..SR..TH200908-201107

sub23743-0L040

main23743-0L030i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200612

*130

main23743-30011i1KDFTV,2KDFTV..KUN15,16,2#,3#..ANCOM,ARL,LA,SA200507-201204

*163 OR *184

main23743-30011i1KDFTV..KUN16,26..ARL200608-201107

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0L010i1KDFTV..KUN16,26..ARL200408-201204

*130

main23804-0L010i2KDFTV..KUN25,35..SR..TH200908-201107

main23804-30050i2KDFTV..KUN25,35..ANCOM;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA200507-201204

*163 OR *184

main23804-30050i1KDFTV..KUN16,26..ARL200608-201107

23810ARAIL ASSY, COMMON

main23810-0L010i1KDFTV..KUN16,26..ARL;2KDFTV..KUN15..SR..DCR..TH200408-200712

sub23810-0L020

main23810-0L011i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200909-201010

*163 OR *184,*319

main23810-0L011i2KDFTV..KUN35..GEN,PHL;2KDFTV..KUN25..(DCB,SCB)..(GCC,GEN);1KDFTV,2KDFTV..KUN1#,26,36..GCC,GEN,IDN,PHL,TH200909-201010

*130,*319

main23810-0L011i2KDFTV..KUN25..MA200909-201009

*163 OR *184,*319,*130,*319

main23810-0L011i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200909-201010

ECUADOR & COLOMBIA SPEC,*130,*319

main23810-0L020i1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH200712-200808

ECUADOR OR COLOMBIA SPEC

sub23810-0L011

main23810-0L020i2KDFTV..KUN25..MA200712-200812

sub23810-0L011

main23810-0L020i1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH200808-200907

*163 OR *184,*319

sub23810-0L011

main23810-0L020i2KDFTV..KUN25..TH200808-200909

*130,*319

sub23810-0L011

main23810-0L020i2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PHL);1KDFTV,2KDFTV..KUN1#,26,36..(DCB,SCB,SMT,XTR)..(GCC,GEN,IDN,LA,PHL,TH)200808-200909

ECUADOR & COLOMBIA SPEC,*130,*319

sub23810-0L011

main23810-0L030i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200908-201204

*130,*320

main23810-0L030i2KDFTV..KUN15..PKN201010-201202

*130

main23810-30091i2KDFTV..KUN25,35..GCC,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN1#,26,36..GCC,GEN,IDN,PHL,SA,TH200907-200909

*163 OR *184,*319

sub23810-0L011

main23810-30100i2KDFTV..KUN35..SR..PHL;2KDFTV..KUN35..DLX..(GEN,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(GCC,GEN,PKN);1KDFTV,2KDFTV..KUN1#,26,36..GCC,GEN,IDN,PHL,TH201008-201204

*163 OR *184,*320

main23810-30100i1KDFTV..KUN16,26..ARL200608-201107

7751

8405

90105T0118

main90105-T0118

90105T0170

main90105-T0170

9011606173

main90116-06173

9011906775

main90119-06775

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

90464T0004

main90464-T0004

90466T0041

main90466-T0041

90466T0045

main90466-T0045

9155180814

main91551-80814

9155281060

main91552-81060

9415180600

main94151-80600

38 parts on this diagram · 6 diagrams in section
