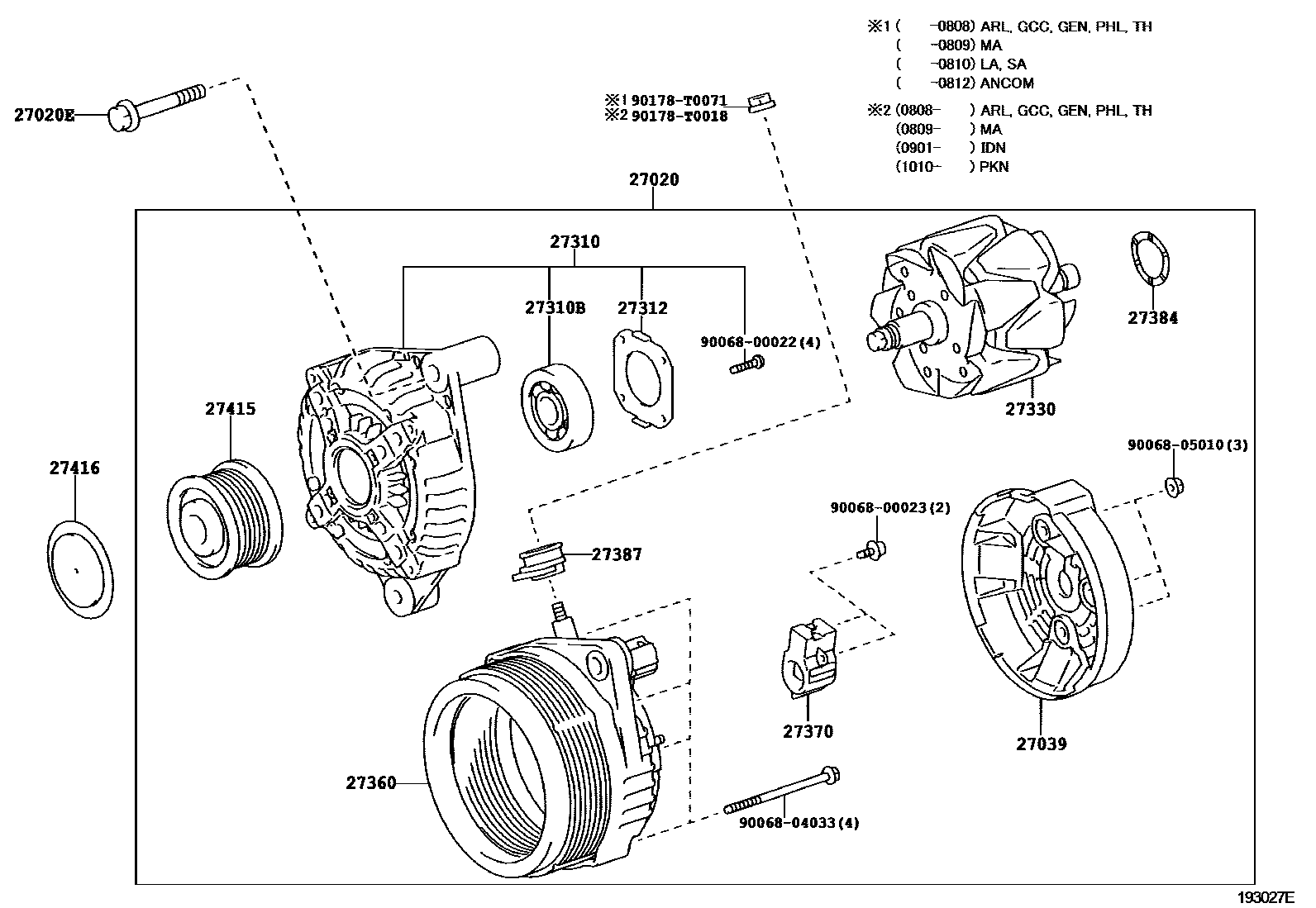

ALTERNATOR

0001 112V 80A 0006 112V 80A 0007 112V 70A 0008 112V 80A 0011 112V 80A 0012 112V 80A 0015 112V 70A 0017 112V 80A, 12V 90A 0020 112V 70A

27020ALTERNATOR ASSY

main27060-0C020i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201002

12V 80A

sub27060-0C021

main27060-0C021i1TRFE..TGN15..CBU;2TRFE..TGN16..XTR;2TRFE..TGN16..ARL,GCC,SA,TH;1TRFE,2TRFE..TGN10,11,26,36201003-201204

12V 80A

main27060-0L020i1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH200408-200612

12V 80A

sub27060-0L021

sub27416-30010

main27060-0L021i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,TH200701-200912

12V 80A

sub27060-0L022

main27060-0L022i1KDFTV..KUN16..DCB..5F..TH;1KDFTV,2KDFTV..KUN2#..IDN,MA201001-201202

12V 80A

main27060-0L030i1KDFTV,2KDFTV..KUN2#,3#..LA200501-200602

12V 70A

sub27060-0L020

main27060-0L040i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200507-201204

12V 80A

main27060-0L050i1KDFTV,2KDFTV..KUN15,2#,3#..SA200504-200604

12V 70A

sub27060-0L021

main27060-0L060i2KDFTV..KUN15..DCB..SA;1KDFTV,2KDFTV..KUN2#,3#..(DCB,SCB)..SA200810-201108

12V 80A

main27060-0P090i1GRFE..GGN25..SA200504-200604

12V 80A

main27060-0P100i1GRFE..GGN25,35..SA200810-201108

12V 90A

main27060-0P110i1GRFE..GGN25..ANCOM200507-200602

12V 80A

main27060-0P120i1GRFE..GGN25..LHD200812-201204

12V 90A

sub27060-0P100

main27060-31010i1GRFE..GGN15,25..ARL200502-200910

12V 80A

sub27060-31011

main27060-31011i1GRFE..GGN15,25..ARL200911-201107

12V 80A

main27060-54360i5LE..LAN15,25,35..SA200507-201108

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,L200408-200812

main90105-10287i5LE..LAN15,25,35..SA200507-201108

main90105-T0074i1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,200808-201202

main90105-T0127i1TRFE..TGN15..IV3200501-201108

main91672-81065i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

27039COVER, ALTERNATOR REAR END

main27039-0C020i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

main27039-0L020i2KDFTV..KUN15..PKN200808-201202

main27039-0L030i1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,LA200501-201204

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C020i2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201003

sub27310-0C021

sub27310-0C040

main27310-0C021i1TRFE,2TRFE..TGN1#,26,36201003-201204

main27310-0L020i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,TH200808-201001

sub27310-0L021

main27310-0L021i2KDFTV..KUN15..GCC,GEN,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;1KDFTV,2KDFTV..KUN10,16,2#,3#..ARL,GCC,GEN,IDN,PHL,PKN,TH201001-201202

main27310-0L030i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-201204

main27310-0P110i1GRFE..GGN25..ANCOM200507-201204

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10024i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,TH200501-201003

main90068-10029i2KDFTV..KUN25..MA201001-201204

main90069-40000i1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,LA200501-201204

27312PLATE, RETAINER

main27312-0C020i2KDFTV..KUN25..MA200501-201204

main27312-0L030i1GRFE,1KDFTV,2KDFTV..GGN25,KUN2#,3#..ANCOM,LA200501-201204

27330ROTOR ASSY, ALTERNATOR

main27330-0C020i1TRFE,2TRFE..TGN1#,26,36200501-200703

sub27330-0M040

main27330-0L030i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-201204

main27330-0L050i2KDFTV..KUN15..SCB..SA200504-201108

main27330-0M040i2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN15,16;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2KDFTV..KUN15..GCC,GEN,PHL,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1KDFTV,2K200704-201204

main27330-0P090i1GRFE..GGN25..SA200504-200604

main27330-0P100i1GRFE..GGN25,35..SA200810-201108

main27330-0P110i1GRFE..GGN25..LHD200812-201204

main27330-30130i1GRFE..GGN15,25..ARL200904-201107

main27330-62220i1GRFE..GGN25..ANCOM200502-200904

sub27330-30130

main27330-64190i5LE..LAN15,25,35..SA200507-201108

27360COIL ASSY, ALTERNATOR

main27360-0C020i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201003

sub27360-0C021

sub27360-0C040

main27360-0C021i2TRFE..TGN16..(DCB,SCB)..GEN201003-201204

main27360-0L020i1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,TH200808-201001

sub27360-0L021

main27360-0L021i2KDFTV..KUN15..SR..SA201001-201202

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i1KDFTV..KUN16..4FC;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1KDFTV..KUN16..SCB,SMT,XTR;2TRFE..TGN16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1KDFT200501-201202

main27370-75060i5LE..LAN15,25,35..SA;1GRFE..GGN15..SCB,XTR;1GRFE..GGN15..DCB..DLX;1GRFE..GGN25..DCB..ARL;1GRFE..GGN15..DCB..5FC..SR200502-201108

27384WASHER

main27384-0C020i1KDFTV..KUN16..4FC;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1KDFTV..KUN16..SCB,SMT,XTR;2TRFE..TGN16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1KDFT200501-201202

27387INSULATOR, TERMINAL

main27387-0C020i1KDFTV..KUN16..DCB..5F..TH;1KDFTV,2KDFTV..KUN2#..IDN,MA;2TRFE..TGN16..(DCB,SCB)..GEN200501-201202

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L010i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200408-200612

sub27415-0L030

sub27416-0L030

main27415-0L020i1KDFTV,2KDFTV..KUN2#,3#..ANCOM,LA200501-200604

sub27415-0L040

main27415-0L030i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;1KDFTV,2KDF200701-201202

main27415-0L040i1KDFTV,2KDFTV..KUN15,2#,3#..(DCB,SCB)..(ANCOM,LA,SA)200810-201204

27416CAP, ALTERNATOR PULLEY

main27416-0L010i1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH200408-200701

main27416-0L020i1KDFTV,2KDFTV..KUN15,2#,3#..SA200501-200604

main27416-0L030i2KDFTV..KUN15..SR..SA200701-201202

main27416-33010i1KDFTV,2KDFTV..KUN15,2#,3#..(DCB,SCB)..(ANCOM,LA,SA)200810

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006805010

main90068-05010

90178T0018

main90178-T0018

90178T0071

main90178-T0071

19 parts on this diagram · 9 diagrams in section
