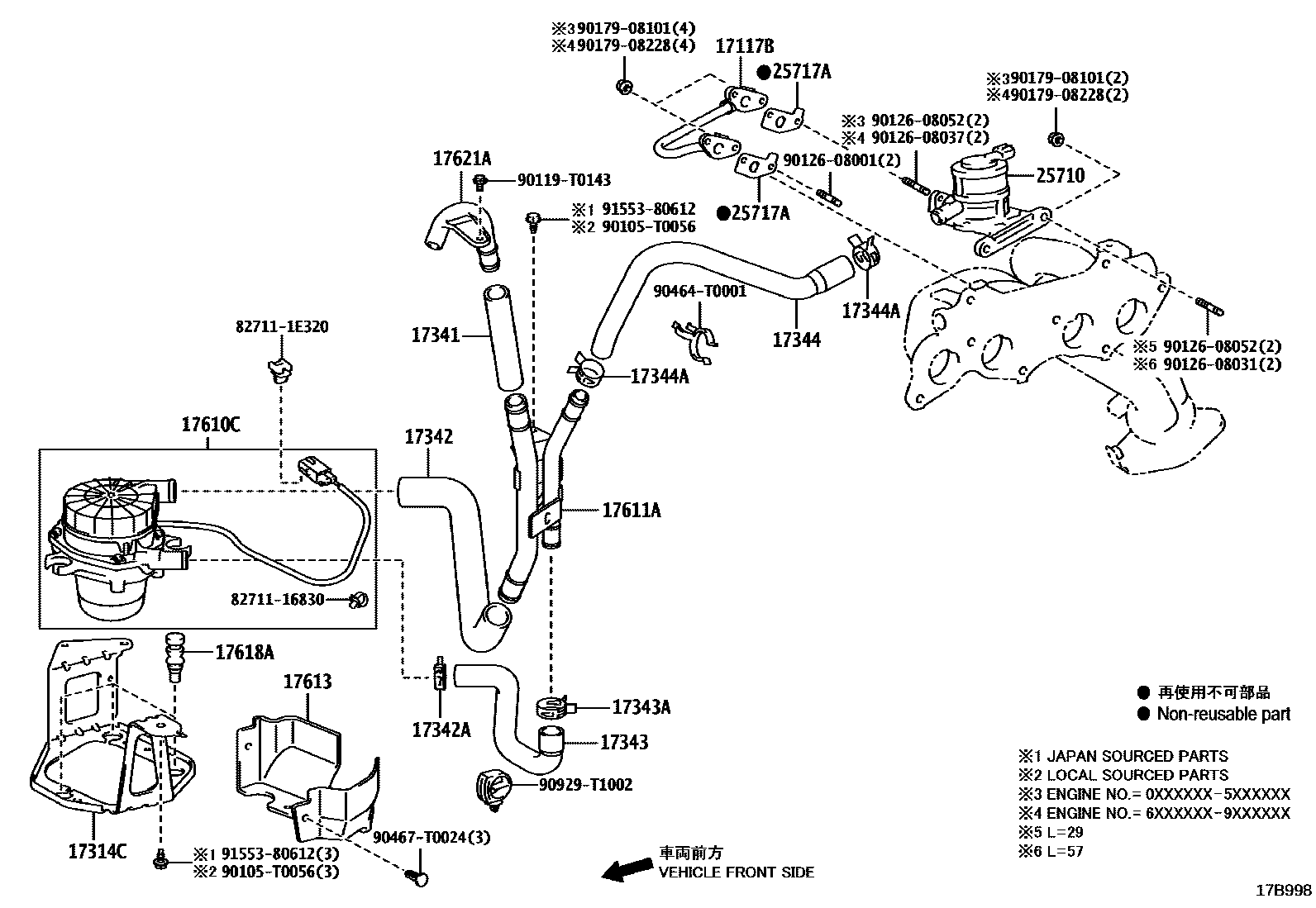

MANIFOLD AIR INJECTION SYSTEM
17117BPIPE, INTAKE, NO.4
main17117-0C010i2TRFE..TGN36..LA..CBU;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH200808-201008
(L)
sub17117-0C011
main17117-0C010i2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..5F..(ARL,LA);2TRFE..TGN16,26..(DCB,XTR)..(LA,TH)200710-200810
sub17117-0C011
(L)
sub17117-75011
(J)
17314CBRACKET, AIR PUMP
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-0C010i2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..5F..(ARL,LA);2TRFE..TGN16,26..(DCB,XTR)..(LA,TH)200501-200810
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
main17344-0C010i2TRFE..TGN36..LA..CBU;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..ARL,LA,TH200501-201110
17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17610CPUMP ASSY, AIR
17611APIPE, AIR PUMP INLET
17613COVER, AIR PUMP
17618AINSULATOR, AIR PUMP
17621AINLET, AIR PUMP
25710VALVE ASSY, AIR SWITCHING
sub25710-75021
sub25710-75023
25717AGASKET, AIR SWITCHING VALVE
ECUADOR OR COLOMBIA SPEC
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
90105T0056
main90105-T0056
90119T0143
main90119-T0143
9012608001
main90126-08001
9012608031
main90126-08031
9012608037
main90126-08037
9012608052
main90126-08052
9017908101
main90179-08101
9017908228
main90179-08228
90464T0001
main90464-T0001
90467T0024
main90467-T0024
90929T1002
main90929-T1002
9155380612
main91553-80612
30 parts on this diagram · 1 diagram in section
