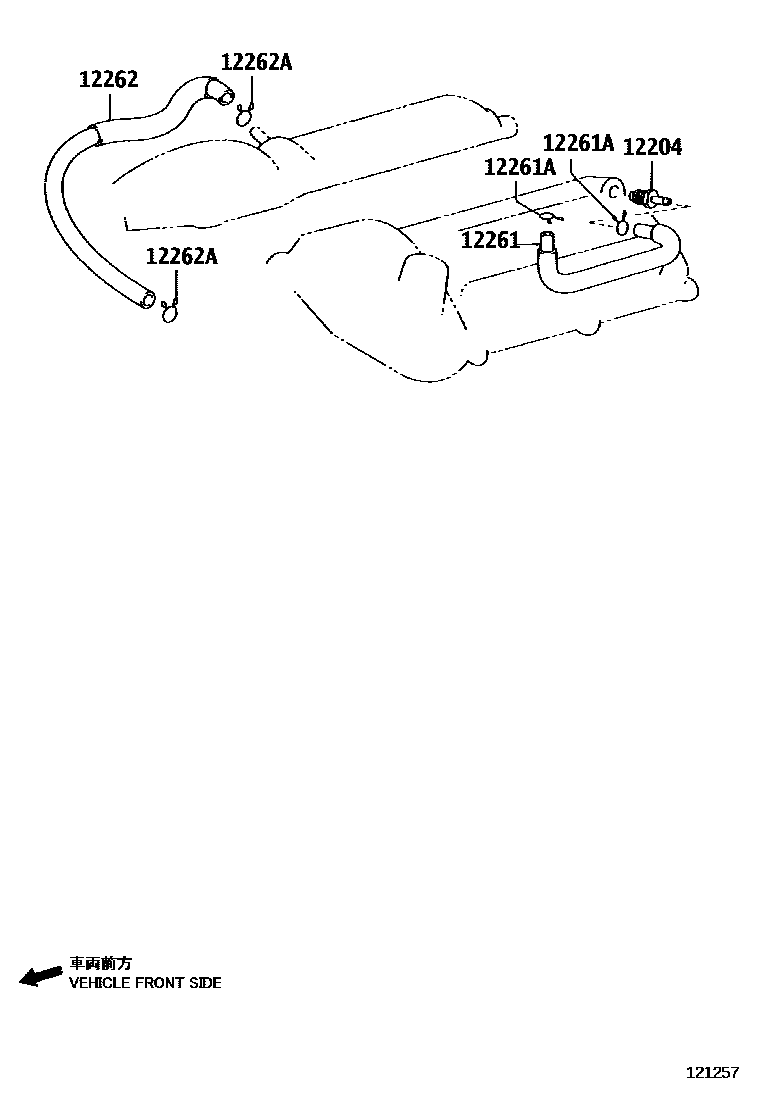

VENTILATION HOSE

0001 1 0002 1 0007 1 0008 1CHILE SPEC 0009 1CHILE SPEC 0011 1 0013 1 0014 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0C010i2TRFE..TGN36..CBU;1TRFE,2TRFE..TGN1#;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201204

main12204-31030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

12261HOSE, VENTILATION

main12261-0C010i1TRFE..TGN15..IV3200504-201204

*191

main12261-0C020i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH201008-201107

*191

main12261-0C020i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH200501-201008

main12261-0L020i2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA200408-200607

main12261-0L021i2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..D200607-201204

main12261-0L030i1KDFTV..KUN26,36..SA200408-201110

*130

main12261-0P060i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808-201107

(L)

main12261-30040i2KDFTV..KUN15..DCB..HDCR;2KDFTV..KUN25..(DCB,XTR)..TH200507-201108

*163 OR *184

main12261-30090i1KDFTV..KUN16,26..ARL200908-201008

main12261-31030i1GRFE..GGN15,25200502-200812

main12261-31030i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200808-201107

(J)

main12261-54200i5LE..LAN15,25,35..SA200507-201108

main12261-75090i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

*125

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-T0026i2TRFE..TGN36;2TRFE..TGN26..LA,SA;2TRFE..TGN26..ANCOM..CBU;1TRFE,2TRFE..TGN15,16..SCB..SA..CBU;2TRFE..TGN16..(DCB,SMT)..DLX..(SA,TH)200504-201204

(L)

main90466-T0026i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH200501-201008

main90466-T0032i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN10,25,35..ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..DCR..(GCC,GEN,PHL,SA,TH)200408-201202

main90467-14001i2TRFE..TGN26,36..LA200609-201006

(J)

main90467-14017i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

main90467-22010i1KDFTV..KUN16,26..ARL200908-201008

12262HOSE, VENTILATION, NO.2

main12262-0C010i2TRFE..TGN26..LA,SA;1TRFE..TGN15..SA..CBU;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN16,36..ANCOM,LA,SA200504-201108

main12262-0C020i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH200501-201107

main12262-0L010i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26,36..(DCB,SCB)..5F..SA200408-201110

*130

main12262-0P050i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808-201107

(L)

main12262-30040i1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH)200507-201108

*163 OR *184

main12262-31030i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808-201107

(J)

main12262-31030i1GRFE..GGN15,25200502-200812

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-T0027i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201108

NO.1

main90467-18003i5LE..LAN15,25,35200507-201108

main90467-21152i1GRFE..GGN15,25200502-201107

main90467-24038i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201108

NO.2

5 parts on this diagram · 8 diagrams in section
