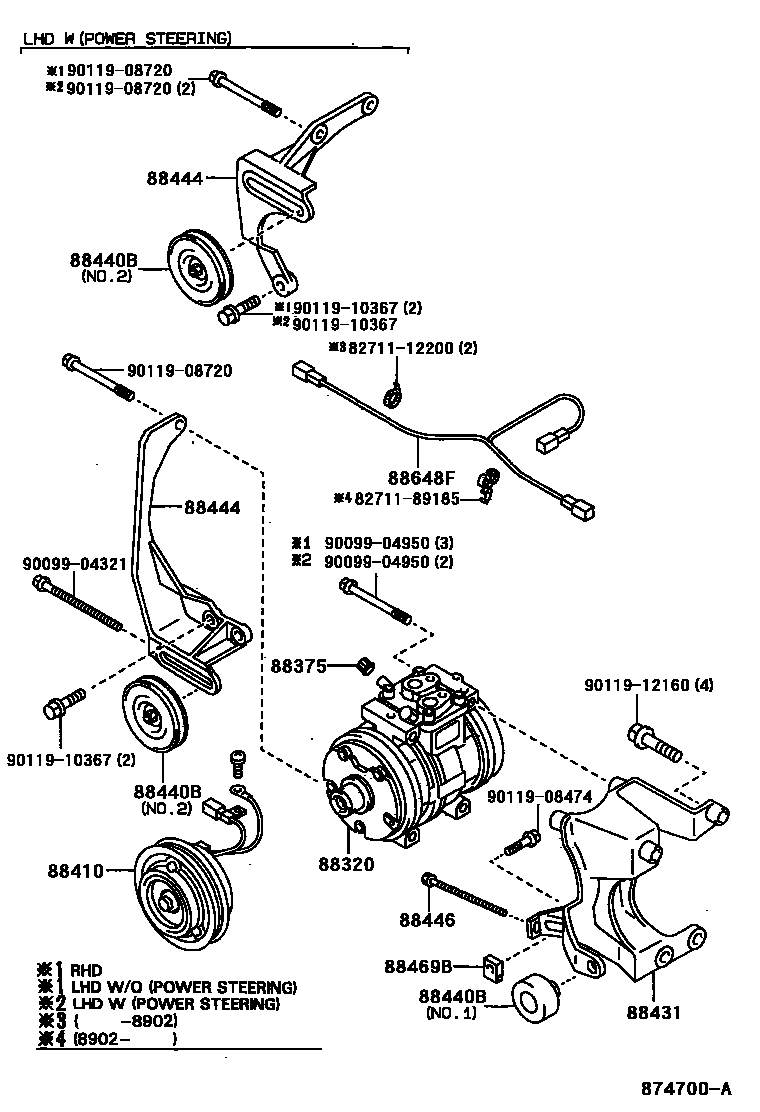

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88320COMPRESSOR ASSY, COOLER

main88320-35250iLN85..LHD..T1..5F..GEN..CBU199208-199401

W(POWER STEERING)

sub88320-35H91

main88320-35250iLN85..LHD..TW1199208-199401

MAKER OPTION

sub88320-35H91

main88320-35250iLN8#,90,RN85,90..ARL,GEN198808-199208

sub88320-35H91

main88320-35260iYN80,85,87,92..GEN198808-199401

sub88320-35H91

main88320-35270iRN85..LHD..GEN199108-199401

sub88320-35H91

main88320-35290iRN8#,90..V198808-199401

sub88320-35H91

main88320-35310iLN81,86,YN81,86..V198808-199401

sub88320-35H91

main88320-35360iRN125198907-199108

sub88320-35361

main88320-35361iRN125199108-199308

sub88320-22H91

main88320-35490iLN86..ARL199401-199408

sub88320-35560

main88320-35500iYN81,86199401-199408

sub88320-35H92

main88320-35510iLN81,86..V199401-199404

main88320-35520iRN8#,90..V199401-199708

sub88320-35H92

main88320-35530iRN85..LHD..GEN199401-199909

sub88320-35H92

main88320-35560iLN85..LHD..TW1199408-199708

W(POWER STEERING)

sub88320-35H92

main88320-35560iLN85..RHD;LN85..LHD..4F;LN85..LHD..TH;LN80,86,9#,YN80,85,86,92..ARL,GEN,TH199510-200106

sub88320-35H92

main88320-35560iLN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,90..RHD199401-199408

W(AIR CONDITIONER)

sub88320-35H92

main88320-35560iLN85..LHD..T1..5F..GEN..CBU199401-199510

W(POWER STEERING) OR W(AIR CONDITIONER)

sub88320-35H92

main88320-35570iLN81,86..V199404-199708

sub88320-35H92

main88320-60620iRN85,90..ARL199401-199708

sub88320-35H92

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-20010iYN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92198808-200106

DISCHARGE

main88375-30270iRN125,8#,YN81,86..V198808-200106

SUCTION

88410CLUTCH ASSY, MAGNET

main88410-22480iLN80,85,86,90..ARL,GEN,TH199401-200106

main88410-35040iLN85..4FC..IV3;LN85..4FC..GEN;LN80,85,90..MTM198808-199108

main88410-35050iLN85..4FC..ARL;YN80,85,87,92..ARL,GEN198808-199108

main88410-35060iYN81,86198808-199401

main88410-35070iRN8#,90..V198808-199401

main88410-35120iRN85..ARL;RN85..LHD..GEN;RN90,YN80,85,92..ARL,GEN,TH199108-199401

main88410-35130iRN125198907-199308

main88410-35180iLN81,86..V199008-199401

main88410-35300iYN81,86199401-199408

main88410-35310iLN81,86..V199401-199404

main88410-35320iRN8#,90..V199401-199708

main88410-35350iYN8#,92;LN86,YN90..RHD199408-199909

DEALER OPTION

main88410-60310iRN85..LHD..GEN;RN85,90,YN85..ARL199401-199909

main88410-90P80iLN85..LHD..TW1199208-199401

W(POWER STEERING),MAKER OPTION

main88410-90P80iLN85..LHD..T1..5F..GEN..CBU199208-199401

MAKER OPTION

main88410-90P80iLN80,85,86,90..ARL,GEN,TH199108-199208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35150iRN85..LHD..GEN;RN125,8#,90..ARL,V198808-199909

main88431-35160iYN8#,92..GEN,V198808-199909

main88431-35170iLN8#,90..ARL,GEN198808-200106

88440BPULLEY ASSY, IDLE

main88440-26070iLN8#,9#198808-200106

NO.1

main88440-35010iLN80,85,90..GEN,TH198808-199208

NO.2

main88440-35030iLN85..ARL198808-200106

NO.2

main88440-35030iLN85..LHD..TH;LN85..LHD..TW1..CBU198808-199208

W(POWER STEERING),NO.2

main88440-35030iRN85..LHD..GEN;LN85,RN125,8#,90..ARL,V199008-199909

main88440-35040iYN8#,92..ARL,GEN,V198808-199909

sub88440-35020

88444BRACKET, IDLE PULLEY

main88444-35050iLN8#,90..ARL,GEN198808-199909

main88444-35060iLN81,85,86..LHD198808-200106

W(POWER STEERING)

88446BOLT, IDLE PULLEY

main88446-35010iLN80,85,9#..GEN,TH198808-199909

main88446-35030iRN85,90..ARL198808-199909

main88446-35040iLN86..ARL198808-200106

W(POWER STEERING)

main88446-60020iLN200200106

88469BCOLLAR

main88469-30280iLN8#,90..ARL,GEN198808-200106

88648FWIRE, MAGNET CLUTCH

main88648-35040iRN125199108-199308

main88648-35080iLN81,86..V199108-199708

main88648-35090iLN80,85,86,9#..ARL,GEN,TH199108-200106

main88648-89127iRN8#198808-199108

main88648-89128iLN80,85,90198808-199108

main88648-89131iRN125198907-199108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271189185WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89185

9009904321

main90099-04321

9009904950

main90099-04950

9011908474

main90119-08474

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160

17 parts on this diagram · 5 diagrams in section
