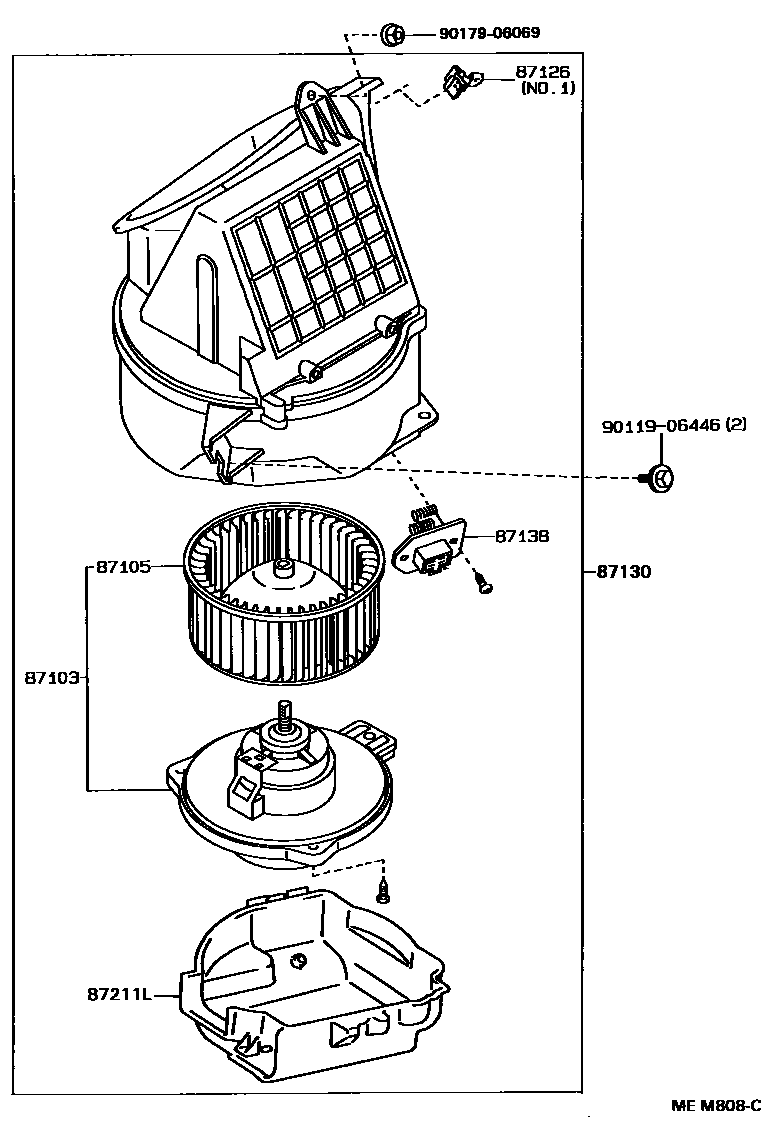

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR 0003 1BOOST VENTILATOR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-04021iRN85..EFI;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,90,YN8#,92..LHD199108-200106

DENSO USA

main87103-17010iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD199012-199701

sub87103-42010

main87103-17020iLN81,85,86,RN8#,90,YN8#,92..LHD199108-199701

DENSO

sub87103-42020

main87103-17020iLN81,85,86,90,RN8#,YN8#,92..LHD199012-199108

sub87103-42020

main87103-20030iRN125198907-199012

sub87103-26020

main87103-26020iRN125199012-199308

main87103-42010iLN80,85,86,9#,RN85,90,YN85..RHD199701-199909

main87103-42020iLN81,85,86,RN8#,90,YN8#,92..LHD199701-200106

DENSO

main87103-89101iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199012

sub87103-17020

main87103-89102iLN8#,RN85,90,YN85,87,92..RHD..(ARL,GEN)198808-199012

sub87103-17010

main87103-89105iRN125199108-199308

W(HEATER) OR W(AIR CONDITIONER)

main87103-89105iRN125198907-199108

W(HEATER OR AIR CONDITIONER)

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iLN8#,RN85,90,YN85,87,92..RHD198808-198908

main87105-32020iLN85,90,RN8#,YN8#,92..LHD198808-198908

main87134-30050iRN125198907-199308

87126CLAMP, HEATER CONTROL

main87126-01010iLN81,85,86,RN8#,90,YN8#,92..LHD199401-200106

NO.1,DENSOUSA

main87126-01010iLN86200105-200106

main87126-01010iLN81,85,86,RN8#,90,YN8#,92..LHD199108-199401

NO.1 DENSOUSA

main87126-04010iLN81,85,86,RN8#,90,YN8#,92..LHD199108-199401

NO.2 DENSOUSA

main87126-04010iLN81,85,86,RN8#,90,YN8#,92..LHD199401-200106

NO.2,DENSOUSA

main87126-12050iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

NO.1 DENSO

main87126-12050iRN125;LN80,85,86,9#,RN85,90,YN80,85,90..RHD198808-199909

NO.1

main87126-89101iLN8#,90,RN125,8#,90,YN8#,92198808-199909

NO.2

main87126-89101iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

NO.2 DENSO

87130BLOWER ASSY, HEATER, FRONT

main87130-04021iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

DENSO USA

main87130-35010iLN80,85,86,9#,RN85,90,YN80,85,90..RHD199108-199909

main87130-35020iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

DENSO

main87130-89114iLN80,85,90,RN85,90,YN80,85,87,92..RHD198808-199108

main87130-89115iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

main87130-89116iRN125198907-199308

sub87130-89117

main87130-89117iRN125199108-199308

W(HEATER) OR W(AIR CONDITIONER)

main87130-89117iRN125198907-199108

W(HEATER OR AIR CONDITIONER)

87138RESISTOR, HEATER BLOWER

main87138-04011iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

DENSO USA

main87138-35010iRN125198907-199108

W(HEATER OR AIR CONDITIONER)

main87138-35010iRN125199108-199308

W(HEATER) OR W(AIR CONDITIONER)

main87138-35020iLN80,85,86,9#,RN85,90,YN80,85,90..RHD199108-199909

main87138-35030iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

DENSO

main87138-89105iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

main87138-89106iLN80,85,90,RN85,90,YN80,85,87,92..RHD198808-199108

main87138-89108iRN125198907-199308

87211LDUCT, AIR

main87211-89119iRN125198907-199308

9011906446

main90119-06446

9017906069

main90179-06069

8 parts on this diagram · 3 diagrams in section
