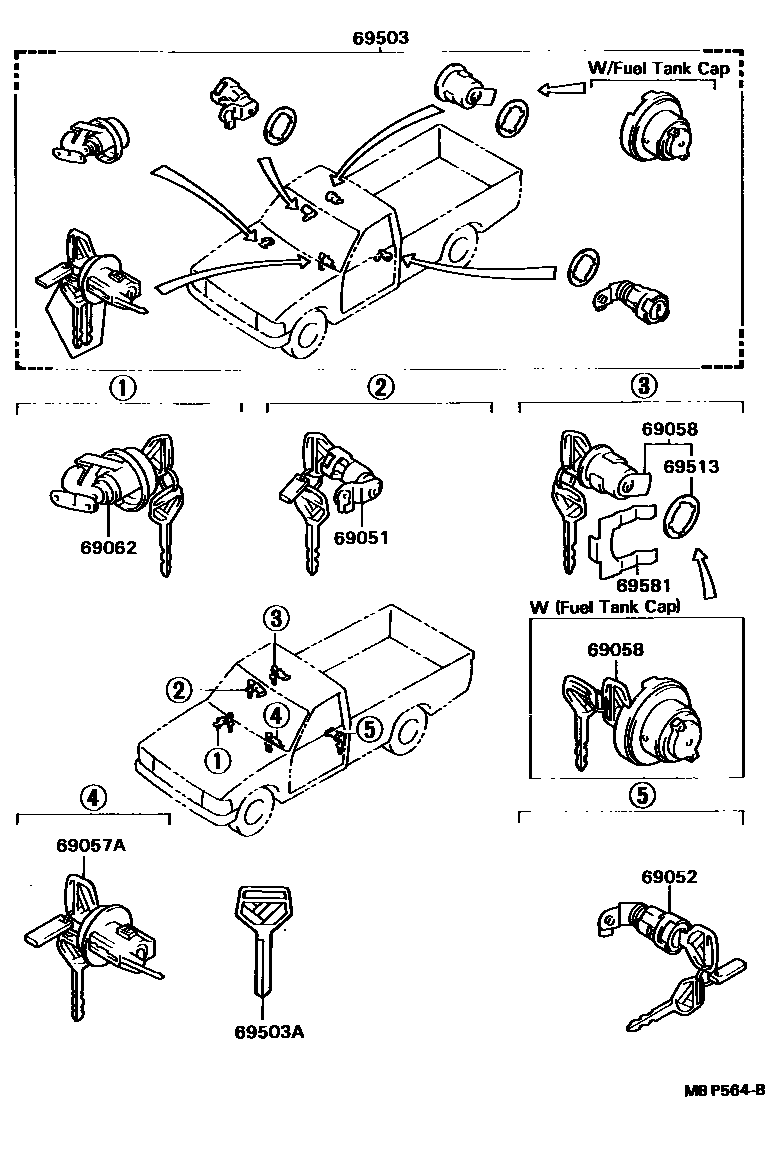

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-35030iLN8#,90,RN125,8#,90,YN8#,92198808-200106

sub69051-35031

main69051-35040iLN86,RN85,90,YN85..ARL199204-199708

sub69051-35050

main69051-35060iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU199001-199010

VW BRAND

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35030iLN200,RZN200198808-200303

sub69052-35031

main69052-35031iLN200,RZN200200303

main69052-35040iLN86,RN85,90,YN85..ARL199204-199708

sub69052-35050

main69052-35060iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU199001-199010

VW BRAND

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35010iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU199001-199010

VW BRAND

sub69057-35060

main69057-35030iLN8#,90,RN125,8#,90,YN8#,92199108-200303

sub69057-35031

main69057-35031iLN200,RZN200200303

main69057-35040iLN86,RN85,90,YN85..ARL199204-199708

sub69057-35050

main69057-89116iLN8#,90,RN125,8#,90,YN8#,92198808-199108

sub69057-35030

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-35010iLN85..RHD..T1..5F..GEN..CBU198910-199010

VW BRAND

main69058-35030iLN8#,90,RN8#,90,YN8#,92..T1..CBU199108-200303

sub69058-35031

main69058-35031iLN200,RZN200..T1200303

main69058-35040iLN86,RN85,90,YN85..T1..ARL..CBU199204-199708

sub69058-35170

main69058-35070iYN85..TW1;RN85..RHD..GEN;RN85,YN86..LHD..TW1;RN85,YN85,92..LHD..T1..IV3198808-200303

sub69058-35071

main69058-35071iRZN200..TW1200303

sub69058-60141

main69058-35080iLN85,86,90..IV3;LN85,86..TW1..CBU198808-200303

sub69058-35081

main69058-35081iLN200..TW1200303

sub69058-35090

main69058-35090iLN86..IV3;LN86..DLX..ARL199204-199708

sub69058-35130

main69058-35100iLN85..RHD..TW1..GEN198910-199010

VW BRAND

main69058-35110iRN85..DLX..ARL;RN85,YN85..ARL..IV3199204-199708

sub69058-60141

main69058-89114iLN8#,90,RN8#,90,YN8#,92..T1..CBU198808-199108

sub69058-89119

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-35010iLN86,RN85,90..(DLX,SR5)..ARL199204-199708

sub69056-35020

main69056-35030iRN85..LHD..IV3;RN85..(GEN,V)..CBU;LN8#,90,RN125,80,90,YN8#,9#..GEN,TH,V199108-200303

sub69056-35031

main69056-35031iRZN200;LN200..SRV200303

sub69056-35020

main69056-89104iLN85,YN85..GEN,TH;LN85,RN85..(DLX,SR5)..(ARL,V);LN80,81,86,90,RN125,80,90,YN80,81,86,87,92198808-199108

sub69056-35030

main69056-89104iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU199001-199010

W(GLOVE BOX KEY)

sub69056-35030

main69056-89105iLN85..RHD..TW1..IV3;LN85..RHD..5F..GEN..CBU199001-199010

W(GLOVE BOX KEY) & VW BRAND

69503CYLINDER SET, LOCK

main69005-35030iLN86,RN85,YN85..STD..ARL..CBU199204-199708

sub69005-35130

main69005-35050iLN85..RHD..STD..TH199208-199806

W/O GLOVE BOX KEY

sub69005-35051

main69005-35050iRN85..STD..ARL..CBU;LN80,85,86,YN80,85,92..T1..(ARL,GEN)..CBU199108-200303

sub69005-35051

main69005-35051iLN200,RZN200..T1200303

sub69005-35130

main69005-35120iRN85..LHD..T1..CBU;LN86,YN85..T1..(TH,V);LN80,81,85,90,RN80,90,YN80,81,86..T1..(ARL,TH,V)199108-199408

sub69005-35121

main69005-35120iLN86..T1..DLX;RN85..T1..EFI..CBU;LN80,85,YN80,85,86,92..T1..GEN..CBU199108-200106

W(GLOVE BOX KEY)

sub69005-35121

main69005-35120iLN85..STD..TH;RN85..LHD..T1..CBR..CBU;LN80,81,86,RN80,90,YN80,81,86..T1..(TH,V)199408-200303

W(GLOVE BOX W/KEY LOCK)

sub69005-35121

main69005-35121iRZN200..T1200303

W(GLOVE BOX W/KEY LOCK)

main69005-35160iRN125199108-199308

sub69005-35090

main69005-35190iLN85..RHD..STD..TH199408-199806

W/O(GLOVE BOX KEY & W(FUEL LID OPENER)

sub69005-35250

main69005-35190iLN85..SR5199408-199806

W/O GLOVE BOX KEY

sub69005-35250

main69005-35190iRN85..T1..EFI..CBU;LN80,85,90,YN80,85,87,92..T1..GEN..CBU198808-199909

W(FUEL LID OPENER)

sub69005-35250

main69005-35200iLN81,86,RN8#,90,YN81,86..T1..V198808-199806

W(FUEL LID OPENER)

main69005-35200iRN85..T1..EFI..CBU;LN80,85,90,YN80,85,87,92..T1..GEN..CBU198808-199909

W(GLOVE BOX KEY & FUEL LID OPENER)

main69005-35210iRZN200..TW1198808-200303

sub69005-35211

main69005-35211iRZN200..TW1200303

main69005-35220iLN85..IV3;LN85,86..TW1..GEN..CBU198808-200303

sub69005-35221

main69005-35221iLN200..DLX200303

sub69005-35150

main69005-35230iYN85,87..TW1;RN85..DLX..ARL;YN85,87,92..T1..GEN..IV3198808-199909

W(GLOVE BOX KEY)

sub69005-35231

main69005-35230iRZN200..TW1199705-200303

W(GLOVE BOX W/KEY LOCK)

sub69005-35231

main69005-35230iYN86..TW1..V;RN85..LHD..IV3;RN85..TW1..CBR..(GEN,V)198808-199705

sub69005-35231

main69005-35231iRZN200..TW1200303

W(GLOVE BOX W/KEY LOCK)

main69005-35240iLN85..IV3;LN85,86..TW1..GEN..CBU198808-200106

W(GLOVE BOX KEY)

sub69005-35241

main69005-35240iLN86..TW1..V199008-200303

sub69005-35241

main69005-35241iLN200..SRV200303

sub69005-35340

main69005-35260iRN85..DLX..ARL;RN85,YN85..ARL..IV3199204-199708

sub69005-35330

main69005-35270iLN86..IV3;LN86..DLX..ARL199204-199708

sub69005-35150

main69005-35280iLN85..RHD..T1..5F..GEN..CBU199001-199010

VW BRAND & W(FUEL LID OPENER)

main69005-35300iLN85..RHD..TW1..GEN198910-199010

VW BRAND

main69005-35310iRN90..ARL199204-199708

main69005-35320iRN90..ARL199204-199708

W(FUEL LID OPENER)

main69005-35330iRN85..DLX..ARL199204-199708

W(GLOVE BOX KEY)

main69005-35340iLN86..DLX..ARL199204-199708

W(GLOVE BOX KEY)

main69005-89203iRN90;LN8#,90,RN8#,YN8#..T1..(TH,V)198808-199108

W(GLOVE BOX KEY)

main69005-89204iLN80,85,90,RN85,YN80,85,87,92..T1..(ARL,GEN)..CBU198808-199108

main69005-89229iRN125198907-199108

main69005-89232iLN85..RHD..T1..5F..GEN..CBU198910-199010

VW BRAND

main69005-89235iLN85..RHD..T1..5F..GEN..CBU199001-199010

VW BRAND & W(GLOVE BOX KEY)

main69005-89237iLN85..RHD..T1..5F..GEN..CBU199001-199010

VW BRAND & W(GLOVE BOX KEY & FUEL LID OPENER)

main69005-89238iLN85..RHD..TW1..GEN199001-199010

VW BRAND & W(GLOVE BOX KEY)

69503AKEY, BLANK

main90999-00130iRZN200..T1198808-200412

MASTER KEY

sub90999-00153

main90999-00130iRN85..EFI..CBU;LN86,RN85..DLX..(ARL,GEN);LN80,85,YN80,85,86,92..GEN199108-200106

MASTER KEY,W(GLOVE BOX KEY)

sub90999-00153

main90999-00130iLN200..SRV;RZN200..TW1200303-200412

MASTER KEY,W(GLOVE BOX W/KEY LOCK)

sub90999-00153

main90999-00130iLN85..RHD..STD..TH199208-199806

MASTER KEY,W/O GLOVE BOX KEY

sub90999-00153

main90999-00132iLN200,RZN200198808-200303

MASTER KEY,W(*68)

sub90999-00174

main90999-00137iRN90;RN85..LHD..IV3;RN85..CBR..(GEN,V)..CBU;LN8#,9#,RN80,YN80,81,86,90..TH,V198808-199909

SUB KEY

sub90999-00165

main90999-00137iRN85..EFI..CBU;LN85,86,RN85..DLX..(ARL,GEN);LN80,85,90,YN80,85,86,87,92..GEN198808-200106

SUB KEY,W(GLOVE BOX KEY)

sub90999-00165

main90999-00156iLN85..RHD..5F..GEN..CBU198910-199010

MASTER KEY,W(*68),VW BRAND

main90999-00156iLN85..RHD..TW1..GEN199001-199010

MASTER KEY,W(*68),VW BRANDE OR VW BRAND & W(GLOVE BOX KEY)

main90999-00165iRZN200;LN200..SRV200303-200412

SUB KEY

main90999-00175iLN200,RZN200200303-200412

MASTER KEY,W(*68)

sub90999-00174

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iLN200,RZN200..T1198808-200106

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iLN8#,90,RN8#,90,YN8#,9#..T1..CBU198808-200106

9 parts on this diagram · 2 diagrams in section
