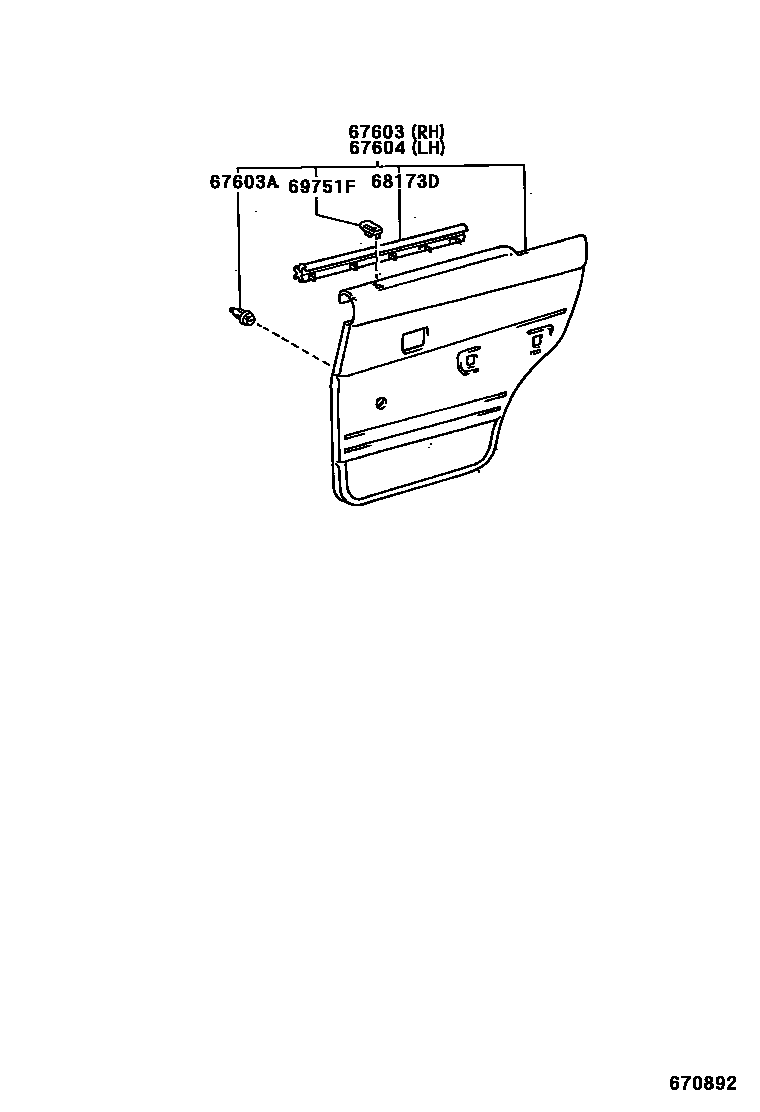

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-35010-B0iRN85..DLX..V199204-200106

W(VINYL SEAT),GRAY,TRIM1#

main67630-35010-B0iLN85,86,RN85,YN85,86..TW1..STD199108-199909

GRAY,TRIM1#

main67630-35010-J0iRN85..DLX..V199204-199408

W(VINYL SEAT),BLUE,TRIM8#

main67630-35010-J0iLN86,YN86..TW1..STD..V199108-199708

BLUE,TRIM8#

main67630-35020-B0iLN86,RN85,YN86..TW1..DLX199108-200106

GRAY,TRIM1#

main67630-35020-B0iRN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86..TW1..GEN199108-199909

DLX PACKAGE,GRAY,TRIM1#

main67630-35020-D0iRN85,YN86..TW1..DLX..V199108-199708

RED,TRIM3#

main67630-35020-J0iLN86,RN85,YN86..TW1..DLX199108-199708

BLUE,TRIM8#

main67630-35020-J0iLN86,RN85,YN86..TW1..DLX199108-199408

DLX PACKAGE,BLUE,TRIM8#

main67630-35030-B0iRN85..TW1..SR5199108-199308

GRAY,TRIM1#

sub67630-35320¥14,800

main67630-35030-D0iRN85..TW1..SR5199108-199308

RED,TRIM3#

sub67630-35320¥14,800

main67630-35030-J0iRN85..TW1..SR5199108-199308

BLUE,TRIM8#

sub67630-35320¥14,800

main67630-35040-B0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

sub67630-35240¥18,700

main67630-35040-D0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

sub67630-35240¥18,700

main67630-35040-J0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

sub67630-35240¥18,700

main67630-35060-B0iRN125199108-199308

GRAY,TRIM1#

main67630-35060-J0iRN125199108-199308

BLUE,TRIM8#

main67630-35150-B0iRN85..TW1..SR5199308-199408

GRAY,TRIM1#

sub67630-35320¥14,800

main67630-35150-D0iRN85..TW1..SR5199308-199408

RED,TRIM3#

sub67630-35320¥14,800

main67630-35150-J0iRN85..TW1..SR5199308-199408

BLUE,TRIM8#

sub67630-35320¥14,800

main67630-35160-B0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

sub67630-35240¥18,700

main67630-35160-D0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

sub67630-35240¥18,700

main67630-35160-J0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

sub67630-35240¥18,700

main67630-35240-B0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),GRAYK,TRIM1#

main67630-35240-B0iRN85..TW1..SR5199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

main67630-35240-D0iRN85..TW1..SR5..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67630-35240-D0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67630-35240-J0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67630-35240-J0iRN85..TW1..SR5..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67630-35320-B0iYN86..TW1..DLX199408-199508

CHINA SPEC,GRAYK,TRIM1#

main67630-35320-B0iRN85..TW1..SR5199408-199708

GRAYK,TRIM1#

main67630-35320-D0iRN85..TW1..SR5..V199408-199708

RED,TRIM3#

main67630-35320-D0iYN86..TW1..DLX199408-199508

CHINA SPEC,RED,TRIM3#

main67630-35320-J0iRN85..TW1..SR5..V199408-199708

BLUE,TRIM8#

main67630-35320-J0iYN86..TW1..DLX199408-199508

CHINA SPEC,BLUE,TRIM8#

main67630-35330-B0iRN85,YN86..TW1..DLX..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

main67630-35330-D0iRN85,YN86..TW1..DLX..V199408-199508

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67630-35330-J0iRN85,YN86..TW1..DLX..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67630-35510-D0iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C),RED,TRIM3#

main67630-89117-03iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

GRAY,TRIM1#

main67630-89117-04iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

BLUE,TRIM8#

main67630-89117-06iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

BROWN,TRIM4#

main67630-89118-03iLN85,RN85,YN86..TW1..DLX198808-199108

GRAY,TRIM1#

main67630-89118-03iLN85,YN85,87..TW1..GEN198808-199108

DLX PACKAGE,GRAY,TRIM1#

main67630-89118-04iLN85,RN85,YN86..TW1..DLX198808-199108

BLUE,TRIM8#

main67630-89118-04iLN85,RN85,YN86..TW1..DLX198808-199108

DLX PACKAGE,BLUE,TRIM8#

main67630-89118-06iLN85,RN85,YN86..TW1..DLX198808-199108

DLX PACKAGE,BROWN,TRIM4#

main67630-89118-06iLN85,RN85,YN86..TW1..DLX198808-199108

BROWN,TRIM4#

main67630-89120-03iRN125198907-199108

GRAY,TRIM1#

main67630-89120-04iRN125198907-199108

BROWN,TRIM8#

main67630-89120-06iRN125198907-199108

BLUE,TRIM4#

main67630-89125-02iRN85..TW1..SR5199008-199108

RED,TRIM3#

main67630-89125-03iRN85..TW1..SR5199008-199108

GRAY,TRIM1#

main67630-89125-04iRN85..TW1..SR5199008-199108

BLUE,TRIM8#

main67630-89125-06iRN85..TW1..SR5199008-199108

BROWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080iRN85..DLX..V¥160199408-199508

CHINA SPEC OR W(POWER WINDOW & MAGNET DOOR LOCK)

main67771-16080iYN86..TW1..DLX¥160199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK)

main67771-16080iRN85..TW1..SR5¥160198808-199708

main67771-89109iLN200,RZN200..TW1¥130200006-200106

main67771-89111iLN85,86,RN85..TW1¥120198907-200006

main67771-89111iLN86..TW1¥120200105-200106

PVC T=1.5

main67771-89111iLN85..TW1..IV3;YN85,86..TW1..GEN;RN85..RHD..GEN..CBU;LN85,RN85..LHD..TW1..(DSL,EFI)¥120199201-199909

DLX PACKAGE OR W(CUT PILE CARPET)

main67771-89111iRN85..RHD..GEN..CBU;LN85,YN85,87..TW1..GEN¥120198907-199909

DLX PACKAGE

main67771-89111iRN85..DLX..V¥120199204-199708

W(VINYL SEAT)

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-35010-B0iLN86..TW1199204-200106

W(VINYL SEAT),GRAY,TRIM1#

main67640-35010-B0iLN85,86,RN85,YN85,86..TW1..STD199108-199909

GRAY,TRIM1#

main67640-35010-J0iRN85..DLX..V199204-199408

W(VINYL SEAT),BLUE,TRIM8#

main67640-35010-J0iLN85,86,RN85,YN85,86..TW1..STD199108-199408

BLUE,TRIM8#

main67640-35020-B0iRN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86..TW1..GEN199108-199909

DLX PACKAGE,GRAY,TRIM1#

main67640-35020-B0iLN86,RN85,YN86..TW1..DLX199108-200106

GRAY,TRIM1#

main67640-35020-D0iRN85,YN86..TW1..DLX..V199108-199708

RED,TRIM3#

main67640-35020-J0iLN86,RN85,YN86..TW1..DLX199108-199708

BLUE,TRIM8#

main67640-35020-J0iLN85,YN85..TW1;RN85..TW1..EFI;RN85..RHD..GEN..CBU199108-199408

DLX PACKAGE,BLUE,TRIM8#

main67640-35030-B0iRN85..TW1..SR5199108-199308

GRAY,TRIM1#

sub67640-35320¥14,800

main67640-35030-D0iRN85..TW1..SR5199108-199308

RED,TRIM3#

sub67640-35320¥14,800

main67640-35030-J0iRN85..TW1..SR5199108-199308

BLUE,TRIM8#

sub67640-35320¥14,800

main67640-35040-B0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

sub67640-35240¥18,700

main67640-35040-D0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

sub67640-35240¥18,700

main67640-35040-J0iRN85..TW1..SR5199108-199308

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

sub67640-35240¥18,700

main67640-35060-B0iRN125199108-199308

GRAY,TRIM1#

main67640-35060-J0iRN125199108-199308

BLUE,TRIM8#

main67640-35150-B0iRN85..TW1..SR5199308-199408

GRAY,TRIM1#

sub67640-35320¥14,800

main67640-35150-D0iRN85..TW1..SR5199308-199408

RED,TRIM3#

sub67640-35320¥14,800

main67640-35150-J0iRN85..TW1..SR5199308-199408

BLUE,TRIM8#

sub67640-35320¥14,800

main67640-35160-B0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

sub67640-35240¥18,700

main67640-35160-D0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

sub67640-35240¥18,700

main67640-35160-J0iRN85..TW1..SR5199308-199408

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

sub67640-35240¥18,700

main67640-35240-B0iRN85..TW1..SR5199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

main67640-35240-B0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),GRAYK,TRIM1#

main67640-35240-D0iRN85..TW1..SR5..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67640-35240-D0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67640-35240-J0iRN85..TW1..SR5..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67640-35240-J0iYN86..TW1..DLX199408-199508

CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67640-35320-B1iYN86..TW1..DLX199408-199508

CHINA SPEC,GRAY,TRIM1#

main67640-35320-B1iRN85..TW1..SR5199408-199708

GRAY,TRIM1#

main67640-35320-D0iYN86..TW1..DLX199408-199508

CHINA SPEC,RED,TRIM3#

main67640-35320-D0iRN85..TW1..SR5..V199408-199708

RED,TRIM3#

main67640-35320-J0iRN85..TW1..SR5..V199408-199708

BLUE,TRIM8#

main67640-35320-J0iYN86..TW1..DLX199408-199508

CHINA SPEC,BLUE,TRIM8#

main67640-35330-B0iRN85,YN86..TW1..DLX..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#

main67640-35330-D0iRN85,YN86..TW1..DLX..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#

main67640-35330-J0iRN85,YN86..TW1..DLX..V199408-199708

W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#

main67640-35510-D0iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C),RED,TRIM3#

main67640-89117-03iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

GRAY,TRIM1#

main67640-89117-04iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

BLUE,TRIM8#

main67640-89117-06iLN85,86,RN85,YN85,86,87..TW1..STD198808-199108

BROWN,TRIM4#

main67640-89118-03iLN85,RN85,YN86..TW1..DLX198808-199108

GRAY,TRIM1#

main67640-89118-03iLN85,YN85,87..TW1..GEN198808-199108

DLX PACKAGE,GRAY,TRIM1#

main67640-89118-04iLN85,YN85,87..TW1..GEN198808-199108

BLUE,TRIM8#

main67640-89118-04iLN85,RN85,YN86..TW1..DLX198808-199108

DLX PACKAGE,BLUE,TRIM8#

main67640-89118-06iLN85,RN85,YN86..TW1..DLX198808-199108

DLX PACKAGE,BROWN,TRIM4#

main67640-89118-06iLN85,YN85,87..TW1..GEN198808-199108

BROWN,TRIM4#

main67640-89120-03iRN125198907-199108

GRAY,TRIM1#

main67640-89120-04iRN125198907-199108

BLUE,TRIM8#

main67640-89120-06iRN125198907-199108

BROWN,TRIM4#

main67640-89127-02iRN85..TW1..SR5199008-199108

RED,TRIM3#

main67640-89127-03iRN85..TW1..SR5199008-199108

GRAY,TRIM1#

main67640-89127-04iRN85..TW1..SR5199008-199108

BLUE,TRIM8#

main67640-89127-06iRN85..TW1..SR5199008-199108

BROWN,TRIM4#

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12030-06iLN85,RN85,YN86..TW1..DLX198907-198910

BROWN,TRIM4#

sub69751-12030¥260

main69751-12030-06iLN85,YN85,87..TW1..GEN198907-198910

DLX PACKAGE,BROWN,TRIM4#

sub69751-12030¥260

main69751-12030-12iRN85,YN86..TW1..(DLX,SR5)..V199008-199109

RED,TRIM3#

sub69751-12030¥260

main69751-12030-13iLN85,YN85,87..TW1..GEN198907-198910

DLX PACKAGE,GRAY,TRIM1#

sub69751-12030¥260

main69751-12030-13iLN85,RN125,85,YN86..(4D,TW1)..DLX198907-198910

GRAY,TRIM1#

sub69751-12030¥260

main69751-12030-24iLN85,YN85,87..TW1..GEN198907-198910

DLX PACKAGE,BLUE,TRIM8#

sub69751-12030¥260

main69751-12030-24iLN85,RN125,85,YN86..(4D,TW1)..DLX198907-198910

BLUE,TRIM8#

sub69751-12030¥260

main69751-12030-B0iRN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN198910-199909

DLX PACKAGE,MEDIUM GRAY,TRIM1#

sub69751-12030¥260

main69751-12030-B0iLN85,86,RN125,85,YN86..(4D,TW1)..(DLX,SR5)198910-200106

MEDIUM GRAY,TRIM1#

sub69751-12030¥260

main69751-12030-D0iRN85,YN86..TW1..(DLX,SR5)..V199109-199708

RED,TRIM3#

sub69751-12030¥260

main69751-12030-E0iLN85,YN85,87..TW1..GEN198910-199108

DLX PACKAGE,BROWN,TRIM4#

sub69751-12030¥260

main69751-12030-E0iLN85,RN125,85,YN86..(4D,TW1)..(DLX,SR5)198910-199108

BROWN,TRIM4#

sub69751-12030¥260

main69751-12030-J0iLN85,86,RN125,85,YN86..(4D,TW1)..(DLX,SR5)198910-199708

MEDIUM BLUE,TRIM8#

sub69751-12030¥260

main69751-12030-J0iLN85,86,RN125,85,YN86..(4D,TW1)..(DLX,SR5)198910-199408

DLX PACKAGE,MEDIUM BLUE,TRIM8#

sub69751-12030¥260

4 parts on this diagram · 5 diagrams in section
