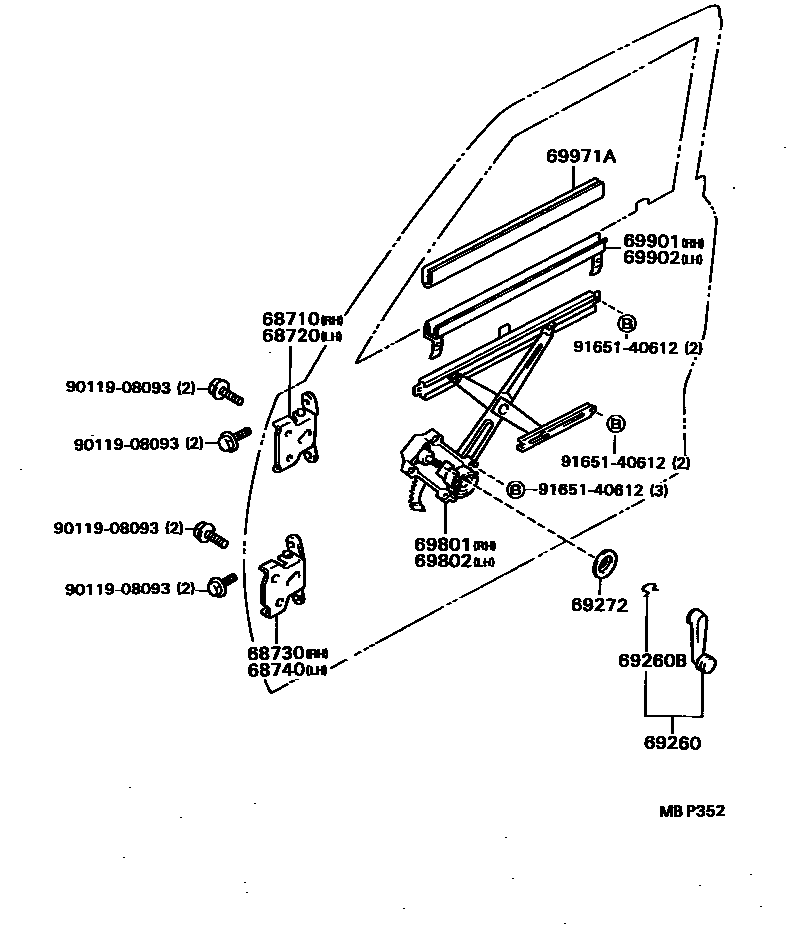

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iLN8#,90,RN125,8#,90,YN8#,92198808-199108

main68710-35010iLN8#,9#,RN125,8#,90,YN8#,9#199108-200106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iLN8#,90,RN125,8#,90,YN8#,92198808-199108

main68720-35010iLN8#,9#,RN125,8#,90,YN8#,9#199108-200106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iLN8#,90,RN125,8#,90,YN8#,92198808-199108

main68730-35010iLN8#,9#,RN125,8#,90,YN8#,9#199108-200106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iLN8#,90,RN125,8#,90,YN8#,92198808-199108

main68740-35010iLN8#,9#,RN125,8#,90,YN8#,9#199108-200106

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-02iRN8#..SR5199008-199108

RED,TRIM3#

sub69260-89104

main69260-89104-03iLN8#,90,RN8#,90,YN8#,92198808-198901

GRAY,TRIM1#

sub69260-89104

main69260-89104-04iLN8#,90,RN8#,90,YN8#,92198808-198901

BLUE,TRIM8#

sub69260-89104

main69260-89104-06iLN8#,90,RN8#,90,YN8#,92198808-198901

BROWN,TRIM4#

sub69260-89104

main69260-89104-B0iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198901-200412

MEDIUM GRAY,TRIM1#

sub69260-89104

main69260-89104-D0iRN8#,90,YN86..(DLX,SR5)..V199109-199708

RED,TRIM3#

sub69260-89104

main69260-89104-E0iLN8#,90,RN125,8#,90,YN8#,92198901-199108

BROWN,TRIM4#

sub69260-89104

main69260-89104-J0iLN8#,90,RN125,8#,90,YN8#,9#198901-199708

MEDIUM BLUE,TRIM8#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198808-200106

sub90520-01274

main90520-01274iLN200,RZN200..DLX,STD200106

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iLN8#,90,RN125,8#,90,YN8#,92198808-199108

sub69268-20020

main69268-20020iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199108-200106

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35010iLN200,RZN200..T1199204-200106

main69801-35020iLN200,RZN200..TW1..DLX199206-200106

main69801-35030iRN90..SR5..V199208-199608

W(POWER WINDOW)

main69801-35030iLN9#,RN8#,90..T1..SR5..(TH,V)199608-199806

W(*PW)

main69801-35040iRN85,YN86..LHD..TW1..(DLX,SR5)199408-199708

W(*PW)

main69801-35040iRN85..TW1..SR5199206-199408

W(POWER WINDOW)

main69801-35050iRN85..EFI..IV3;RN85..T1..CBR..GEN..CBU;LN86,RN85,90,YN85..T1..ARL199112-199909

main69801-35050iRN85..T1..EFI..CBU;LN86,RN85,YN86..T1..V;LN80,81,85,RN80,90,YN80,81,85,92..T1..(GEN,V)199112-199909

W(FRONT DOOR VENTILATOR WINDOW)

main69801-35060iYN86..TW1..V;RN85..TW1..EFI;LN85,86,YN85..TW1..STD;RN85..LHD..TW1..(DLX,SR5)199112-199909

W(FRONT DOOR VENTILATOR WINDOW)

main69801-35070iRN8#,90..T1..SR5..V199208-199708

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69801-35080iRN85..TW1..SR5..V199112-199708

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69801-89113iRN85..T1..V;RN85..RHD..GEN..IV3;LN8#,90,RN80,YN8#,92..T1..(GEN,TH,V)198808-199204

sub69801-35010

main69801-89114iRN85..LHD..T1..GEN;LN85,86,RN85,90,YN85..T1..ARL198808-199112

W(FRONT DOOR VENTILATOR WINDOW)

sub69801-35050

main69801-89117iRN85..TW1..V;RN85..RHD..GEN..CBU;LN85,86,RN125,YN85,86,87..(4D,TW1)..(GEN,V)198808-199206

sub69801-35020

main69801-89118iLN85,86,RN125,85,YN85,86,87..(4D,TW1)..(GEN,V)198808-199112

W(FRONT DOOR VENTILATOR WINDOW)

sub69801-35060

main69801-89118iRN85..LHD..TW1..GEN;LN85,86,RN85..DLX..ARL198808-199112

sub69801-35060

main69801-89120iRN85..TW1..SR5199108-199206

W(POWER WINDOW)

sub69801-35040

main69801-89121iRN85..TW1..SR5199108-199112

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

sub69801-35080

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35010iLN200,RZN200..T1199204-200106

main69802-35020iLN200,RZN200..TW1..DLX199206-200106

main69802-35030iRN90..SR5..V199208-199608

W(POWER WINDOW)

main69802-35030iLN9#,RN8#,90..T1..SR5..(TH,V)199608-199806

W(*PW)

main69802-35040iLN200..SRV199408-199708

W(*PW)

main69802-35040iRN85..TW1..SR5199206-199408

W(POWER WINDOW)

main69802-35050iRN85..LHD..T1..CBR..GEN;LN86,RN85,90,YN85..T1..ARL199112-199909

main69802-35050iRN85..T1..EFI..CBU;LN86,RN85,YN86..T1..V;LN80,81,85,RN80,90,YN80,81,85,92..T1..(GEN,V)199112-199909

W(FRONT DOOR VENTILATOR WINDOW)

main69802-35060iLN86,RN85..DLX..ARL;RN85..LHD..TW1..STD..CBR199112-199909

W(FRONT DOOR VENTILATOR WINDOW)

main69802-35070iRN90..SR5..V199208-199708

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69802-35080iRN85..TW1..SR5..V199112-199708

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69802-89111iRN85..T1..V;RN85..RHD..GEN..IV3;LN8#,90,RN80,YN8#,92..T1..(GEN,TH,V)198808-199204

sub69802-35010

main69802-89112iRN85..T1..V;LN8#,90,RN80,YN8#,92..T1..(GEN,V)198808-199112

W(FRONT DOOR VENTILATOR WINDOW)

sub69802-35050

main69802-89115iRN85..TW1..V;RN85..RHD..GEN..CBU;LN85,86,RN125,YN85,86,87..(4D,TW1)..(GEN,V)198808-199206

sub69802-35020

main69802-89116iLN85,86,RN125,85,YN85,86,87..(4D,TW1)..(GEN,V)198808-199112

W(FRONT DOOR VENTILATOR WINDOW)

sub69802-35060

main69802-89116iRN85..LHD..TW1..GEN;LN85,86,RN85..DLX..ARL198808-199112

sub69802-35060

main69802-89117iRN85..TW1..SR5199108-199206

W(POWER WINDOW)

sub69802-35040

main69802-89118iRN85..TW1..SR5199108-199112

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

sub69802-35080

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89113iRN85..TW1..SR5199108-199111

W(POWER WINDOW)

main69901-89113iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V198808-200106

GLASS T=3.5

main69901-89114iRN85..EFI..IV3;LN86,RN85,90,YN85..ARL;RN85..LHD..STD..CBR..CBU198808-199909

GLASS T=3.5

main69901-89114iLN8#,90,RN125,8#,YN8#,92..GEN,V198808-199001

W(FRONT DOOR VENTILATOR WINDOW)

main69901-89114iLN8#,90,RN125,8#,YN8#,92..GEN,V199001-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=3.5

main69901-89114iRN85..TW1..SR5199108-199111

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69901-89115iRN90..SR5..V199208-199806

W(POWER WINDOW)

main69901-89115iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V199001-200106

GLASS T=4.0

main69901-89116iRN85..LHD..STD..CBR..GEN;LN85,86,RN85,90,YN85..ARL199001-199909

GLASS T=4.0

main69901-89116iLN86,YN86..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,90,YN80,81,85,92..GEN,V199001-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=4.0

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89113iRN85..TW1..SR5199108-199111

W(POWER WINDOW)

main69901-89113iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V198808-200106

GLASS T=3.5

main69901-89114iRN85..EFI..IV3;LN86,RN85,90,YN85..ARL;RN85..LHD..STD..CBR..CBU198808-199909

GLASS T=3.5

main69901-89114iRN85..TW1..SR5199108-199111

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69901-89114iLN8#,90,RN125,8#,YN8#,92..GEN,V198808-199001

W(FRONT DOOR VENTILATOR WINDOW)

main69901-89114iLN8#,90,RN125,8#,YN8#,92..GEN,V199001-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=3.5

main69901-89115iRN90..SR5..V199208-199806

W(POWER WINDOW)

main69901-89115iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V199001-200106

GLASS T=4.0

main69901-89116iRN85..LHD..STD..CBR..GEN;LN85,86,RN85,90,YN85..ARL199001-199909

GLASS T=4.0

main69901-89116iLN8#,90,RN125,8#,YN8#,92..GEN,V199001-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=4.0

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-35020iRN85..EFI..IV3;LN86,RN85,90,YN85..ARL;RN85..LHD..STD..CBR..CBU199401-199909

GLASS T=4.0

main69971-35020iRN90..SR5..V199208-199708

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

main69971-35020iLN86,YN86..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,90,YN80,81,85,92..GEN,V199401-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=4.0

main69971-89104iRN85..V;LN8#,RN80,90,YN8#,92..GEN,V198808-199401

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=4.0

sub69971-35020

main69971-89104iRN85..LHD..GEN;LN85,86,RN85,90,YN85..ARL198808-199401

GLASS T=4.0

sub69971-35020

main69971-89106iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V198808-200106

GLASS T=3.5

main69971-89106iRN85..TW1..SR5199108-199111

W(POWER WINDOW)

main69971-89107iRN85..EFI..IV3;LN86,RN85,90,YN85..ARL;RN85..LHD..STD..CBR..CBU198808-199909

GLASS T=3.5

sub69971-89106

main69971-89107iLN8#,90,RN125,8#,YN8#,92..GEN,V198808-199909

W(FRONT DOOR VENTILATOR WINDOW),GLASS T=3.5

sub69971-89106

main69971-89107iRN85..TW1..SR5199108-199111

W(POWER WINDOW & FRONT DOOR VENTILATOR WINDOW)

sub69971-89106

main69971-89109iYN86..TW1..DLX;RN85..LHD..(DLX,SR5);LN9#,RN80,90..SR5..(TH,V)199208-199806

W(POWER WINDOW)

sub69971-89103

main69971-89109iRN85..STD..V;RN85..RHD..GEN;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN8#,9#,RN125,80,90,YN8#,9#..GEN,TH,V199001-200106

GLASS T=4.0

sub69971-89103

9011908093

main90119-08093

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
