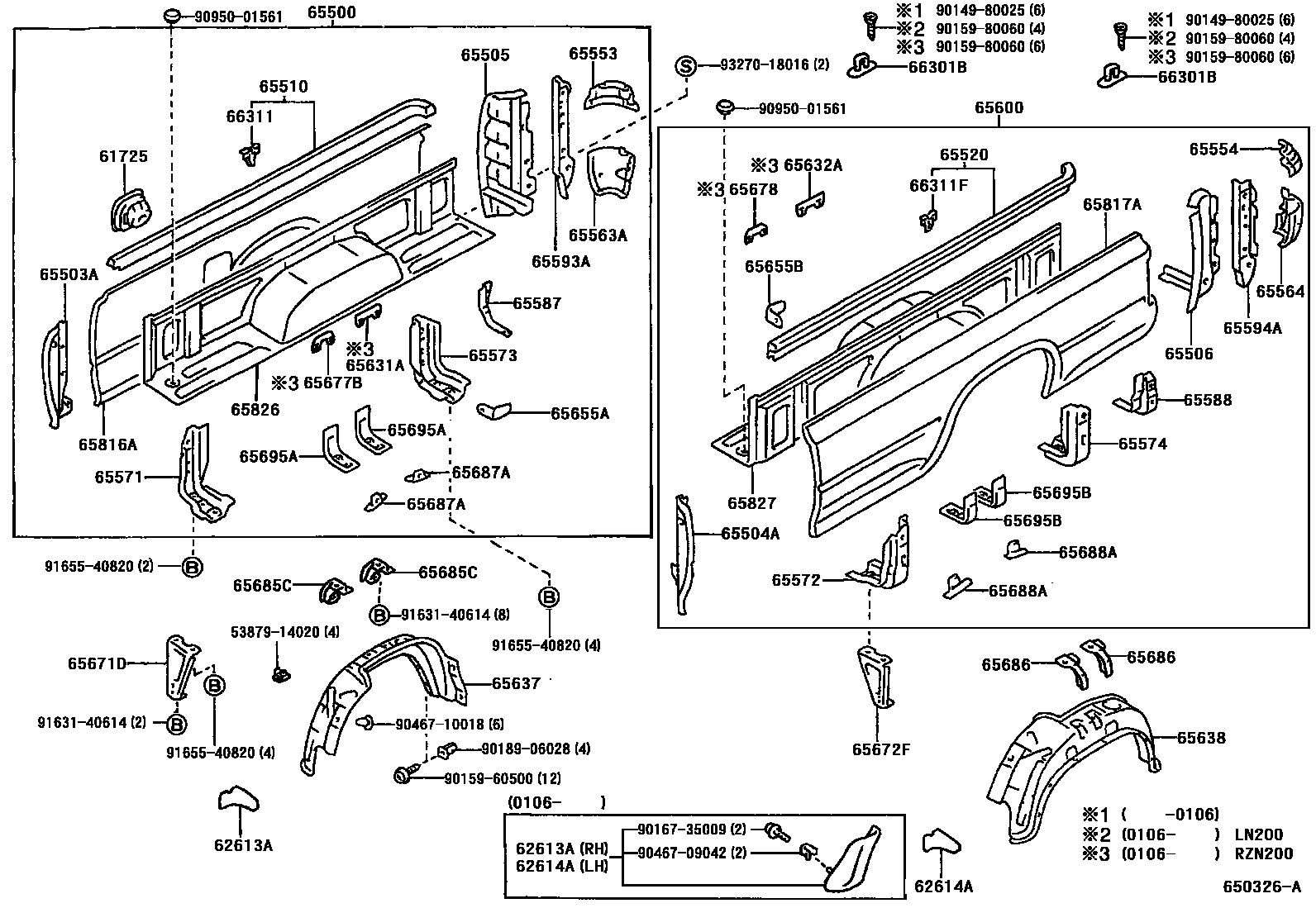

REAR BODY SIDE PANEL

0001 1 0003 1 0004 1 0006 1 0007 1

61725BOX, FUEL INLET

main61709-89108iLN8#,90,RN8#,YN8#,90..T1..CBU198808-200106

main61709-89109iLN90,RN90,YN92..(ARL,GEN,V)..CBU198902-199708

main61709-89110iLN90,RN90,YN92..CBU198808-198902

main61725-89112iRN85..T1..V;RN85..T1..EFI;LN8#,RN80,YN8#..T1..(GEN,V)..CBU198808-199909

W(FUEL LID OPENER)

main61725-89112iLN85..SR5199408-199806

main61725-89113iLN9#,YN90199408-199806

main61725-89113iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199708

W(FUEL LID OPENER)

62613ACOVER, QUARTER WHEEL HOUSE, RH

main62613-89106-01iLN90,YN92..GEN..CBU199008-199108

BLACK,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2 ,8H9

sub62613-89106

main62613-89106-01iRN90198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN90198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iLN90,YN92..GEN..CBU199008-199108

BLACK,147 ,179 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9

sub62613-89106

main62613-89106-01iRN90198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub62613-89106

main62613-89106-01iRN90198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub62613-89106

main62613-89106-06iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199008

BROWN,4J9

sub62613-89106

main62613-89106-08iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199008

WHITE,033

sub62613-89106

main62613-89106-18iLN90,RN90,YN92..(ARL,GEN)..CBU199008-199108

WHITE,045

sub62613-89106

main62613-89106-A0iYN90199408-199501

WHITE,045

sub62613-89106

main62613-89106-A0iYN92..CBU199108-199408

WHITE,TRIM1#,8#&045

sub62613-89106

main62613-89106-C0iRN90..ARL199208-199308

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2

sub62613-89106

main62613-89106-C0iRN90199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2

sub62613-89106

main62613-89106-C0iRN90199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199208-199308

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199208-199308

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,751 ,8E2

sub62613-89106

main62613-89106-C0iRN90..ARL199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5

sub62613-89106

main62613-89106-C0iRN90..ARL199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751

sub62613-89106

main62613-89106-C0iRN90..ARL199508-199708

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,8E3

sub62613-89106

main62613-89106-C0iLN9#,RN90,YN92..GEN,TH,V199508-199806

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,751 ,8E3

sub62613-89106

main62613-89106-C0iLN200,RZN200..T1200106-200412

BLACK,056 ,199 ,3K4 ,6Q7 ,8L7

sub62613-89106

main62613-89107iLN8#,RN8#,YN8#..T1..CBU198808-200106

main62613-89108-02iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

RED,3H7

sub62613-89108

sub62613-89106

main62613-89108-12iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

RED MICA,3H4

sub62613-89108

sub62613-89106

main62613-89108-D0iYN90199408-199504

RED,3H7

sub62613-89108

sub62613-89106

main62613-89108-D0iYN92..CBU199208-199408

RED,TRIM1#,8#&3H7

sub62613-89108

sub62613-89106

main62613-89108-D1iYN90199408-199504

RED MICA,3K3

sub62613-89108

sub62613-89106

main62613-89108-D1iYN92..CBU199208-199408

RED MICA,TRIM1#,8#&3K3

sub62613-89108

sub62613-89106

62614ACOVER, QUARTER WHEEL HOUSE, LH

main62614-89106-01iRN90198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN90198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iRN90199008-199108

BLACK,147 ,179 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9

sub62614-89106

main62614-89106-01iRN90199008-199108

BLACK,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2 ,8H9

sub62614-89106

main62614-89106-01iLN90,YN92..CBU198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub62614-89106

main62614-89106-01iLN90,YN92..CBU198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub62614-89106

main62614-89106-06iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199008

BROWN,4J9

sub62614-89106

main62614-89106-08iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199008

WHITE,033

sub62614-89106

main62614-89106-18iLN90,RN90,YN92..(ARL,GEN)..CBU199008-199108

WHITE,045

sub62614-89106

main62614-89106-A0iYN92..CBU199108-199408

WHITE,TRIM1#,8#&045

sub62614-89106

main62614-89106-A0iYN90199408-199501

WHITE,045

sub62614-89106

main62614-89106-C0iYN92..CBU199208-199308

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62614-89106

main62614-89106-C0iYN92..CBU199208-199308

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62614-89106

main62614-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2

sub62614-89106

main62614-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E2

sub62614-89106

main62614-89106-C0iRN90..ARL199308-199408

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,751 ,8E2

sub62614-89106

main62614-89106-C0iLN90,RN90,YN9#..GEN,TH,V199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5

sub62614-89106

main62614-89106-C0iRN90..ARL199508-199708

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,8E3

sub62614-89106

main62614-89106-C0iLN9#,RN90,YN92..GEN,TH,V199508-199806

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,751 ,8E3

sub62614-89106

main62614-89106-C0iLN200,RZN200..T1200106-200412

BLACK,056 ,199 ,3K4 ,6Q7 ,8L7

sub62614-89106

main62614-89106-C0iRN90199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2

sub62614-89106

main62614-89106-C0iRN90199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub62614-89106

main62614-89106-C0iRN90..ARL199208-199308

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2

sub62614-89106

main62614-89106-C0iRN90..ARL199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751

sub62614-89106

main62614-89107iLN8#,RN8#,YN8#..T1..CBU198808-200106

main62614-89108-02iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

RED,3H7

sub62614-89108

sub62614-89106

main62614-89108-12iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

RED MICA,3H4

sub62614-89108

sub62614-89106

main62614-89108-D0iYN90199408-199504

RED,3H7

sub62614-89108

sub62614-89106

main62614-89108-D0iYN92..CBU199208-199408

RED,TRIM1#,8#&3H7

sub62614-89108

sub62614-89106

main62614-89108-D1iYN92..CBU199208-199408

RED MICA,TRIM1#,8#&3K3

sub62614-89108

sub62614-89106

main62614-89108-D1iYN90199408-199504

RED MICA,3K3

sub62614-89108

sub62614-89106

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-35060iRN85..T1..CBR..GEN..CBU199108-199909

main65500-35060iRN85..T1..EFI..CBU199709-199909

COLUMBIA SPEC

main65500-89340iRN90199208-199708

SEVERE USAGE PACKAGE

main65500-89340iLN90,YN92..CBU198808-198902

main65500-89345iLN86..T1..(ARL,GEN)..CBU;LN85,RN85,YN85..STD..ARL..CBU198808-200106

main65500-89345iLN85..LHD..T1..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65500-89346iLN85,YN85,87..T1..GEN..CBU198808-198907

sub65500-89377

main65500-89349iLN85,YN85,87..T1..GEN..CBU198808-198907

W(FUEL LID OPENER)

sub65500-89378

main65500-89356iLN80,YN80198808-198907

sub65500-89379

main65500-89358iLN80,YN80198808-198907

W(FUEL LID OPENER)

sub65500-89380

main65500-89360iLN85,RN85..DLX..ARL198808-200106

main65500-89360iLN85..LHD..TW1199206-199708

BRAZIL SPEC

main65500-89363iLN85,86,RN85..DLX..ARL198907-199206

sub65500-89360

sub65681-89104

main65500-89365iRN85..STD..V;RN85..TW1..EFI;RN85..RHD..GEN..CBU;RN85..LHD..TW1..(DLX,SR5);LN85,86,YN85,86,87..TW1..(GEN,V)..CBU198907-199512

sub65500-89381

sub65681-89104

main65500-89370iRN85..LHD..TW1..STD..CBR199108-199909

sub65500-89360

main65500-89370iRN85..TW1..EFI199709-199909

COLUMBIA SPEC

sub65500-89360

main65500-89371iLN90,YN92..CBU198808-198907

W(FUEL LID OPENER)

sub65500-89372

main65500-89372iLN90,RN90,YN92..(ARL,GEN)..CBU198907-199708

W(FUEL LID OPENER)

sub65500-89375

sub65681-89104

main65500-89375iRN90198808-199708

W(FUEL LID OPENER)

main65500-89375iRN90198808-199708

SEVERE USAGE PACKAGE & W(FUEL LID OPENER)

main65500-89376iRN90198808-198902

SEVERE USAGE PACKAGE

sub65500-89340

sub65681-89104

main65500-89376iLN90,RN90,YN92..(ARL,GEN)..CBU198902-199708

sub65500-89340

sub65681-89104

main65500-89377iYN86..T1198808-198907

SEVERE USAGE PACKAGE & 2 LATCH HANDLE

main65500-89377iLN86,RN85..T1..V;RN85..T1..EFI..CBU;LN85,YN85,86,87..T1..(GEN,V)..CBU198907-199909

main65500-89378iLN85,YN85,87..T1..GEN..CBU198808-199909

W(FUEL LID OPENER)

main65500-89378iYN86..T1198808-198907

SEVERE USAGE PACKAGE & W(FUEL LID OPENER) & 2 LATCH HANDLE

main65500-89379iLN80,81,RN80,YN80,81..GEN,V198907-199708

main65500-89379iRN80,YN81198808-198907

SEVERE USAGE PACKAGE & 2 LATCH HANDLE

main65500-89380iLN80,YN80198808-198907

SEVERE USAGE PACKAGE & W(FUEL LID OPENER) & 2 LATCH HANDLE

main65500-89380iLN80,YN80198808-199708

W(FUEL LID OPENER)

main65500-89381iRN85..RHD..GEN..CBU;LN85,YN85,86..TW1..CBU;RN85..LHD..TW1..(DLX,SR5);LN86,RN85..TW1..STD..(DSL,EFI)198808-199909

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-89101iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199708

main65503-89102iLN85..LHD..T1..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65503-89102iLN86..T1..(ARL,GEN)..CBU;LN85,RN85,YN85..STD..ARL..CBU198808-200106

main65551-89115iLN86..T1..V;LN80,81,85,RN8#,YN8#..T1..(GEN,V)..CBU198808-199909

main65551-89116iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65504-89101iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199708

main65504-89102iLN85..LHD..T1..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65504-89102iLN86..T1..(ARL,GEN)..CBU;LN85,RN85,YN85..STD..ARL..CBU198808-200106

main65552-89115iLN86..T1..V;LN80,81,85,RN8#,YN8#..T1..(GEN,V)..CBU198808-199909

main65552-89116iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-89108iLN9#,RN90,YN9#198808-199806

main65505-89109iRN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

main65505-89110iRN85..LHD..STD..CBR..CBU199108-199909

main65505-89110iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65505-89111iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65505-89111iLN86..(ARL,GEN)..CBU;LN85,RN85,YN85..ARL..CBU198808-200106

65506POST SUB-ASSY, SIDE PANEL REAR END, LH

main65506-89108iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199806

main65506-89109iRN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

main65506-89110iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65506-89110iRN85..LHD..STD..CBR..CBU199108-199909

main65506-89111iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65506-89111iLN86..(ARL,GEN)..CBU;LN85,RN85,YN85..ARL..CBU198808-200106

65510RAIL ASSY, SIDE PANEL TOP, RH

main65510-89144iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65510-89145iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65510-89146iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65520RAIL ASSY, SIDE PANEL TOP, LH

main65520-89144iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65520-89145iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65520-89146iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65553PLATE, SIDE PANEL REAR END POST, UPPER RH

main65553-89110iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65553-89110iLN200..DLX,STD198808-200106

main65553-89110iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65553-89111iLN8#,RN8#,YN8#..(GEN,V)..CBU198808-199909

65554PLATE, SIDE PANEL REAR END POST, UPPER LH

main65554-89110iLN200..DLX,STD198808-200106

main65554-89110iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65554-89110iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65554-89111iRN85..V;RN85..EFI;RN85..RHD..GEN..CBU;LN8#,90,RN80,YN8#,90..(GEN,TH,V)..CBU198808-199909

65563APLATE, SIDE PANEL REAR END POST, LOWER RH

main65563-89103iLN200..DLX,STD200106

main65563-89105iLN8#,RN8#,YN8#..CBU198808-200106

65564PLATE, SIDE PANEL REAR END POST, LOWER LH

main65564-89102iLN200..DLX,STD200106

main65564-89104iLN8#,90,RN8#,YN8#,90..CBU198808-200106

65571FRAME, SIDE PANEL, FRONT RH

main65571-89101iLN8#,90,RN8#,90,YN8#,92..T1..(ARL,GEN,V)..CBU198808-200106

65572FRAME, SIDE PANEL, FRONT LH

main65572-89101iLN8#,90,RN8#,90,YN8#,92..T1..(ARL,GEN,V)..CBU198808-200106

65573FRAME, SIDE PANEL, REAR RH

main65547-35010iLN200..SRV;RZN200..TW1200106

main65573-89101iLN200,RZN200..T1198808-200106

65574FRAME, SIDE PANEL, REAR LH

main65547-35010iLN200..SRV;RZN200..TW1200106

main65574-89101iLN9#,YN90;LN8#,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198808-200106

65587FRAME, SIDE PANEL, B RR RH

main65587-89101iLN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198808-200106

65588FRAME, SIDE PANEL, B RR LH

main65588-89101iLN9#,YN90;LN8#,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198808-200106

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main65593-89101iLN9#,RN90,YN9#198808-199806

main65593-89102iLN86..(ARL,GEN)..CBU;LN85,RN85,YN85..ARL..CBU;RN85..LHD..STD..CBR..GEN..CBU198808-200106

main65593-89102iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65593-89102iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65593-89103iRN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

65594APLATE, SIDE PANEL REAR END POST INSIDE, LH

main65594-89101iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199806

main65594-89102iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

main65594-89102iLN200..DLX,STD198808-200106

main65594-89102iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65594-89103iLN86..V;RN85..EFI..CBU;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-35050iRN85..T1..EFI..CBU199709-199909

COLUMBIA SPEC

main65600-35050iRN85..T1..CBR..GEN..CBU199108-199909

main65600-89286iLN90,YN92..CBU198808-198907

sub65600-89316

main65600-89287iRN90199208-199708

SEVERE USAGE PACKAGE

main65600-89291iLN85..LHD..T1..5F..GEN..CBU199206-199708

BRAZIL SPEC

main65600-89291iLN86..T1..(ARL,GEN)..CBU;LN85,RN85,YN85..STD..ARL..CBU198808-200106

main65600-89292iLN85,YN85,87..T1..GEN..CBU198808-198907

sub65600-89317

main65600-89300iLN80,YN80198808-198907

sub65600-89318

main65600-89303iLN85,RN85..DLX..ARL198808-200106

main65600-89303iLN85..LHD..TW1199206-199708

BRAZIL SPEC

main65600-89306iLN85,86,RN85..DLX..ARL198907-199206

sub65600-89303

sub65682-89104

main65600-89308iRN85..STD..V;RN85..TW1..EFI;RN85..RHD..GEN..CBU;RN85..LHD..TW1..(DLX,SR5);LN85,86,YN85,86,87..TW1..(GEN,V)..CBU198907-199512

sub65600-89319

sub65682-89104

main65600-89313iRN85..TW1..EFI199709-199909

COLUMBIA SPEC

sub65600-89303

main65600-89313iRN85..LHD..TW1..STD..CBR199108-199909

sub65600-89303

main65600-89315iRN90198808-198907

SEVERE USAGE PACKAGE

sub65600-89316

main65600-89316iYN92..CBU198907-199708

sub65600-89287

sub65682-89104

main65600-89317iLN85,YN85,87..T1..GEN..CBU198808-198907

SEVERE USAGE PACKAGE & 2 LATCH HANDLE

main65600-89317iLN86,RN85..T1..V;RN85..T1..EFI..CBU;LN85,YN85,86,87..T1..(GEN,V)..CBU198907-199909

main65600-89318iRN80,YN81198808-198907

SEVERE USAGE PACKAGE & 2 LATCH HANDLE

main65600-89318iLN80,81,RN80,YN80,81..GEN,V198907-199708

main65600-89319iRN85..RHD..GEN..CBU;LN85,YN85,86..TW1..CBU;RN85..LHD..TW1..(DLX,SR5);LN86,RN85..TW1..STD..(DSL,EFI)198808-199909

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-89113iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-89112iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65637LINER, REAR WHEEL HOUSE, RH

main65637-89101iRN80,YN86..T1;LN8#,90,RN85,YN80,81,85,87,90..T1..(SR5,STD)..CBU198808-200106

main65637-89102iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199806

main65637-89103iLN200,RZN200..TW1198808-200106

65638LINER, REAR WHEEL HOUSE, LH

main65638-89101iLN8#,RN8#,YN8#..T1..CBU198808-200106

main65638-89102iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199806

main65638-89103iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65655ABRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iLN200,RZN200..T1198808-200106

65655BBRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iLN8#,90,RN8#,90,YN8#,92..CBU198808-200106

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-89106iLN8#,90,RN8#,90,YN8#,92..T1..CBU198808-198901

sub65671-89107

main65671-89107iLN8#,9#,RN8#,90,YN8#,9#..T1..CBU198901-200412

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-89101iLN8#,90,RN8#,90,YN8#,92..T1..CBU198808-198901

sub65672-89102

main65672-89102iLN8#,9#,RN8#,90,YN8#,9#..T1..CBU198901-200412

65677BPATCH, WHEEL HOUSE, REAR RH

main65677-35010iRZN200..T1200106

65678PATCH, WHEEL HOUSE, REAR LH

main65678-35010iRZN200..T1200106

65685CBRACE, WHEEL HOUSE, RH

main65685-89101iLN200,RZN200198808-200412

main65685-89102iLN8#,RN8#,YN8#..T1..CBU198808-200106

65686BRACE, WHEEL HOUSE, LH

main65686-89101iLN85,86,90,RN85,90,YN85,86,87,92..(DCB,XTR)..(ARL,GEN,V)..CBU198808-200412

main65686-89102iLN8#,RN8#,YN8#..T1..CBU198808-200106

65687ABRACKET, WHEEL HOUSE BRACE, RH

main65687-89101iLN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198808-200106

65688ABRACKET, WHEEL HOUSE BRACE, LH

main65688-89101iLN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198808-200106

65695ABRACKET, WHEEL HOUSE BRACE, NO.2

main65695-89102iLN8#,9#,RN8#,90,YN8#,9#..CBU198808-200106

65695BBRACKET, WHEEL HOUSE BRACE, NO.2

main65695-89102iLN85..DLX;YN85..RHD..GEN;LN85,YN85..LHD..TW1;LN86,RN85,YN86,87..TW1;LN85..RHD..5F..GEN..CBU198808-200106

65816APANEL, REAR BODY SIDE, RH

main65816-35020iLN200..SRV;RZN200..TW1200106

main65816-89131iRZN200..T1200106

main65816-89133iLN9#,RN90,YN9#198808-199806

main65816-89136iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65816-89138iLN200..STD200106

main65816-89139iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65816-89141iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65817APANEL, REAR BODY SIDE, LH

main65817-35020iLN200..SRV;RZN200..TW1200106

main65817-89129iRZN200..T1200106

main65817-89131iLN9#,RN90,YN9#198808-199806

main65817-89134iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65817-89136iLN200..STD200106

main65817-89137iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65817-89139iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65826PANEL, REAR BODY SIDE, INNER RH

main65826-35020iLN200..SRV;RZN200..TW1200106

main65826-89109iRZN200..T1200106

main65826-89110iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199806

main65826-89111iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65826-89114iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65826-89116iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

65827PANEL, REAR BODY SIDE, INNER LH

main65827-35020iLN200..SRV;RZN200..TW1200106

main65827-89109iRZN200..T1200106

main65827-89110iLN9#,RN90,YN9#198808-199806

main65827-89111iLN85,86,RN85,YN85,86,87..T1..(ARL,GEN,V)..CBU198808-200106

main65827-89114iLN80,81,RN80,YN80,81..GEN,V198808-199708

main65827-89116iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

66301BHOOK SUB-ASSY, ROPE

main66301-89102iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199208

main66301-89102iLN85..LHD..5F..GEN..CBU199206-199208

BRAZIL SPEC

main66312-34010iLN85..LHD..5F..GEN..CBU199508-199708

BRAZIL SPEC

main66312-34010iLN9#,RN90,YN92199508-200106

main66312-35010iYN85..ARL..CBU;LN86,RN85,YN90..(ARL,TH)..CBU199208-199508

main66312-35010iLN85..LHD..5F..GEN..CBU199208-199508

BRAZIL SPEC

66311HOOK, ROPE

main66311-89109iLN85,86,RN85,YN85,86,87..TW1..CBU198808-200106

66311FHOOK, ROPE, NO.2

main66311-89109iLN80,81,RN80,YN80,81..GEN,V198808-200106

5387914020LINER, FRONT FENDER, LH

main53879-14020

9014980025

main90149-80025

9015960500

main90159-60500

9015980060

main90159-80060

9016735009

main90167-35009

9018906028

main90189-06028

9046709042

main90467-09042

9046710018

main90467-10018

9095001561

main90950-01561

9163140614

main91631-40614

9165540820

main91655-40820

9327018016

main93270-18016

58 parts on this diagram · 5 diagrams in section
