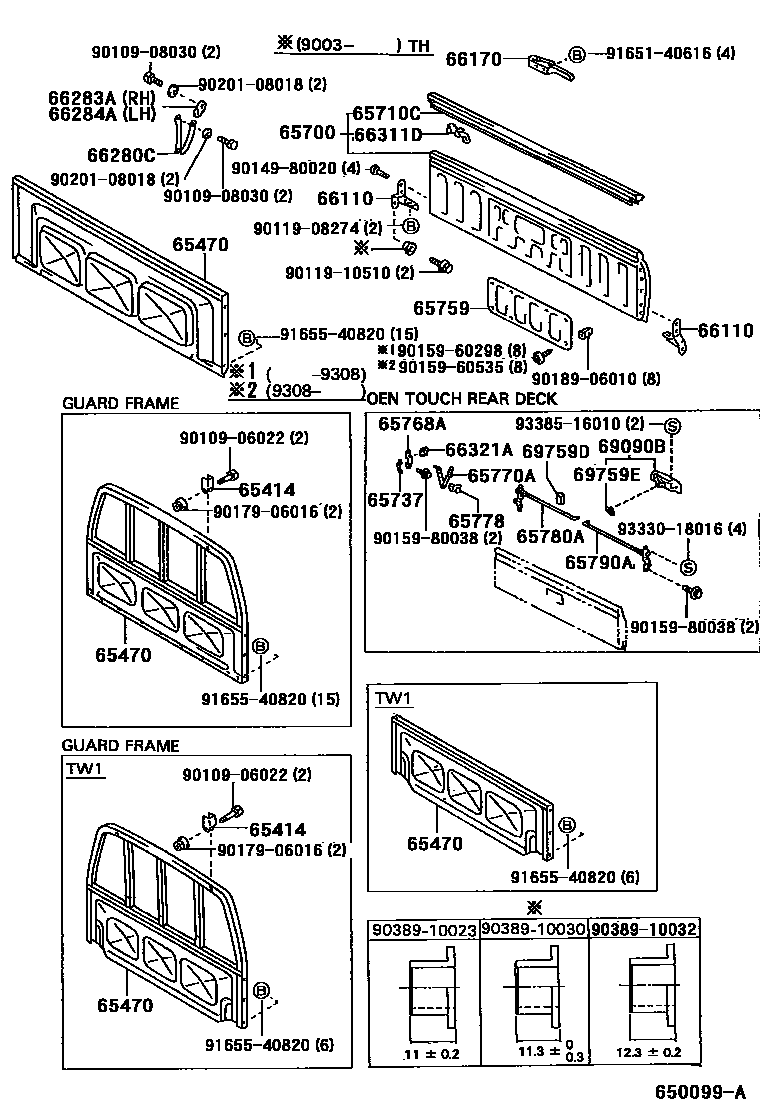

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65414STOPPER, GUARD FRAME

main65414-89102iRN90..V;RN85..(ARL,V)..CBU;LN8#,RN80,YN8#..CBU;RN85..LHD..GEN..CBU198808-200412

65470BOARD ASSY, HEADER

main65405-89104iRN85..T1..EFI;RN85..STD..ARL..CBU;LN80,85,86,90,RN90,YN80,85,86,87,92..T1..(ARL,GEN)..CBU198808-199612

main65470-35010iRN85..SR5..GEN;RN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN..CBU198808-199909

main65470-35170iRZN200..T1200106-200412

sub65470-35190

main65470-89137iRN85..LHD..T1..CBR..CBU;LN81,86,RN80,90,YN81,86..T1..V198808-199909

main65470-89137iRN85..T1..EFI..CBU;RN85..STD..ARL..CBU;LN80,85,86,YN80,85,86,87..T1..(ARL,GEN)..CBU198808-200106

W(GUARD FRAME)

main65470-89139iLN86,RN85,YN86..TW1..V;RN85..LHD..TW1..STD..CBR..GEN198808-199909

W(GUARD FRAME)

main65470-89142iLN85..LHD..TW1199206-199708

BRAZIL SPEC & W(GUARD FRAME)

main65470-89142iLN85,86,RN85..DLX..ARL198808-199511

W(GUARD FRAME)

main65470-89142iLN86,RN85..TW1..DLX..(ARL,GEN)199511-200106

main65470-89143iLN85..LHD..TW1199206-199511

BRAZIL SPEC

sub65470-35020

main65470-89143iLN85,86,RN85..DLX..ARL198808-199511

sub65470-35020

main65471-35090iRN85..T1..EFI..CBU;RN85..STD..ARL..CBU;LN80,85,86,RN90,YN80,85,86,92..T1..(ARL,GEN)..CBU199612-200106

65700GATE ASSY, REAR BODY TAIL

main65700-89146iLN85..LHD..5F..GEN..CBU199401-199708

BRAZIL SPEC & W(TOYOTA MARK)

sub65700-35090

main65700-89146iLN86,RN85,YN85..ARL..CBU;RN85..LHD..STD..CBR..CBU199401-199909

W(TOYOTA MARK)

sub65700-35090

main65700-89146iLN85..LHD..5F..GEN..CBU199206-199401

BRAZIL SPEC

sub65700-35090

main65700-89146iRN85..EFI..CBU199709-199909

COLUMBIA SPEC & W(TOYOTA MARK)

sub65700-35090

main65700-89146iRN85..LHD..GEN..CBU;LN85,86,RN85,YN85..ARL..CBU198808-199401

sub65700-35090

main65700-89147iRN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;RN85..LHD..STD..CBR..CBU199401-200106

sub65700-35100

main65700-89147iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

sub65700-35100

main65700-89147iLN85..LHD..5F..GEN..CBU199401-199708

BRAZIL SPEC

sub65700-35100

main65700-89147iLN85..LHD..5F..GEN..CBU199206-199401

BRAZIL SPEC W/O(TOYOTA MARK)

sub65700-35100

main65700-89148iLN86..V;RN85..EFI..CBU;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU199401-199909

W(TOYOTA MARK)

sub65700-35110

main65700-89148iRN85..V;RN85..RHD..GEN..CBU;LN8#,RN80,YN8#..(GEN,V)..CBU198808-199401

sub65700-35110

main65700-89149iLN80,85,YN80,85,87..GEN..CBU198808-199401

W/O(TOYOTA MARK)

sub65700-35120

main65700-89149iLN85..LHD..5F..CBU;LN85..(4F,4FC)..GEN..CBU;LN80,YN80,85,87..GEN..CBU198808-199008

W/O(TOYOTA MARK) OR VW BRAND

sub65700-35120

main65700-89149iLN86..V;RN85..EFI..CBU;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU199401-199909

sub65700-35120

main65700-89151iLN90,RN90,YN92..(ARL,GEN,V)..CBU198808-199708

65710CRAIL ASSY, TAIL GATE TOP

main65710-89114iLN85..LHD..5F..GEN..CBU199206-199708

BRAZIL SPEC

sub65710-35010

main65710-89114iRN85..EFI..CBU199709-199909

COLUMBIA SPEC

sub65710-35010

main65710-89114iRN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;RN85..LHD..STD..CBR..CBU199108-200106

sub65710-35010

main65710-89115iRN85..EFI..CBU;LN86,RN85..STD..V;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

65737STOP, TAIL GATE

main65737-35010iRN85..LHD..GEN..CBU;LN85,RN85,YN85..ARL..CBU;LN86,90,RN90,YN92..(ARL,GEN)..CBU199010-199109

sub65737-89105

main65737-35020iRN90,YN92..CBU;LN86,RN85,YN85..ARL..CBU;LN85,RN85..LHD..5F..(CBR,DSL)..GEN..CBU199204-200106

main65737-89105iRN85,YN85..ARL..CBU;RN85..LHD..GEN..CBU;LN86,RN90,YN92..(ARL,GEN)..CBU198808-199204

65759COVER, TAIL GATE SERVICE HOLE

main65759-89102iLN90..TH;LN8#,RN8#,YN8#..CBU198808-200106

main65759-89105iLN9#,RN90,YN9#198808-199806

65768ASTRIKER, TAIL GATE LOCK

main65768-35010iRN90,YN92..CBU;LN86,RN85,YN85..ARL..CBU;LN85,RN85..LHD..5F..(CBR,DSL)..GEN..CBU199204-200106

main65768-89102iRN85..LHD..GEN..CBU;LN85,RN85,YN85..ARL..CBU;LN86,90,RN90,YN92..(ARL,GEN)..CBU198808-199204

65770ASTAY ASSY, TAIL GATE

main65770-89103iLN90,YN92..CBU;RN85..LHD..GEN..CBU;LN80,85,86,RN85,90,YN80,85..(ARL,TH)..CBU198808-200106

65778STOPPER, TAIL GATE STAY

main65778-89104iLN85,YN85..ARL..CBU;LN90,RN85,90,YN92..(ARL,GEN)..CBU198808-198901

main65778-89105iLN85,YN85..ARL..CBU;LN90,RN85,90,YN92..(ARL,GEN)..CBU198901-200106

65780ALOCK ASSY, TAIL GATE, RH

main65780-35010iLN9#,RN90,YN9#;RN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;LN85,RN85..LHD..5F..STD..(CBR,DSL)..GEN..CBU199204-200106

main65780-89105iRN85..LHD..GEN..CBU;LN85,RN85,YN85..ARL..CBU;LN86,90,RN90,YN92..(ARL,GEN)..CBU198808-199204

65790ALOCK ASSY, TAIL GATE, LH

main65790-35010iRN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;LN85,RN85..LHD..5F..STD..GEN..CBU199204-200106

main65790-35020iRN90,YN92..CBU199204-199806

main65790-89106iRN85..LHD..GEN..CBU;LN85,86,RN85,YN85..ARL..CBU198808-199204

main65790-89107iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199204

66110HINGE ASSY, TAIL GATE

main66110-89107iLN8#,90,RN8#,90,YN8#,92..CBU198808-199408

RH

sub66110-89108

main66110-89108iLN8#,90,RN8#,90,YN8#,92..(ARL,GEN,V)..CBU198905-200412

RH

main66120-89101iLN8#,90,RN8#,90,YN8#,92..CBU198808-199408

LH

sub66120-89102

main66120-89102iLN8#,9#,RN8#,90,YN8#,9#..CBU198905-200412

LH

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-89106iLN8#,RN8#,YN8#..(GEN,V)..CBU198808-199909

66280CCHAIN ASSY, TAIL GATE

main66280-89106iRN8#,YN86..V;LN8#,90,YN80,81,85,87..(SR5,STD)..(GEN,TH,V)..CBU198808-199909

66283AHOOK, TAIL GATE CHAIN, RH

main66283-89102iLN86..V;RN85..EFI..CBU;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

66284AHOOK, TAIL GATE CHAIN, LH

main66284-89101iLN86..V;RN85..EFI..CBU;RN85..RHD..GEN..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,YN8#..(GEN,V)..CBU198808-199909

66311DHOOK, ROPE

main66311-89109iLN200..DLX,STD198808-200106

66321ABUMPER, GATE RUBBER

main66321-35010iRN85..LHD..GEN..CBU;LN85,RN85,YN85..ARL..CBU;LN86,90,RN90,YN92..(ARL,GEN)..CBU199010-199109

sub66321-89109

main66321-35020iRN90,YN92..CBU;LN86,RN85,YN85..ARL..CBU;LN85,RN85..LHD..5F..(CBR,DSL)..GEN..CBU199204-200106

sub66321-89109

main66321-89109iLN85,YN85..ARL..CBU;LN90,RN85,90,YN92..(ARL,GEN)..CBU198808-199204

69090BHANDLE ASSY, TAIL GATE

main69090-89101iRZN200;LN200..SRV198808-200106

CHROME PLATED PACKAGE

sub69090-0K060

main69090-89102iLN9#,RN90,YN92;RN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;LN85,RN85..LHD..5F..STD..GEN..CBU198808-200106

69759DSILENCER, TAIL GATE LOCK LINK

main69759-89108iRN90,YN92..CBU;LN86,RN85,YN85..ARL..CBU;LN85,RN85..LHD..5F..(CBR,DSL)..GEN..CBU198808-200106

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iRN90,YN92..CBU;LN86,RN85,YN85..ARL..CBU;LN85,RN85..LHD..5F..GEN..CBU198808-200106

RED

main69759-20110iLN9#,RN90,YN9#..CBU;RN85,YN85..ARL..CBU;LN86..(ARL,GEN)..CBU;LN85,RN85..LHD..5F..STD..(CBR,DSL)..GEN..CBU198808-200106

BLACK

9010906022

main90109-06022

9010908030

main90109-08030

9011908274

main90119-08274

9011910510

main90119-10510

9014980020

main90149-80020

9015960298

main90159-60298

9015960535

main90159-60535

9015980038

main90159-80038

9017906016

main90179-06016

9018906010

main90189-06010

9020108018

main90201-08018

9038910032

main90389-10032

9165140616

main91651-40616

9165540820

main91655-40820

9333018016

main93330-18016

9338516010

main93385-16010

37 parts on this diagram · 3 diagrams in section
