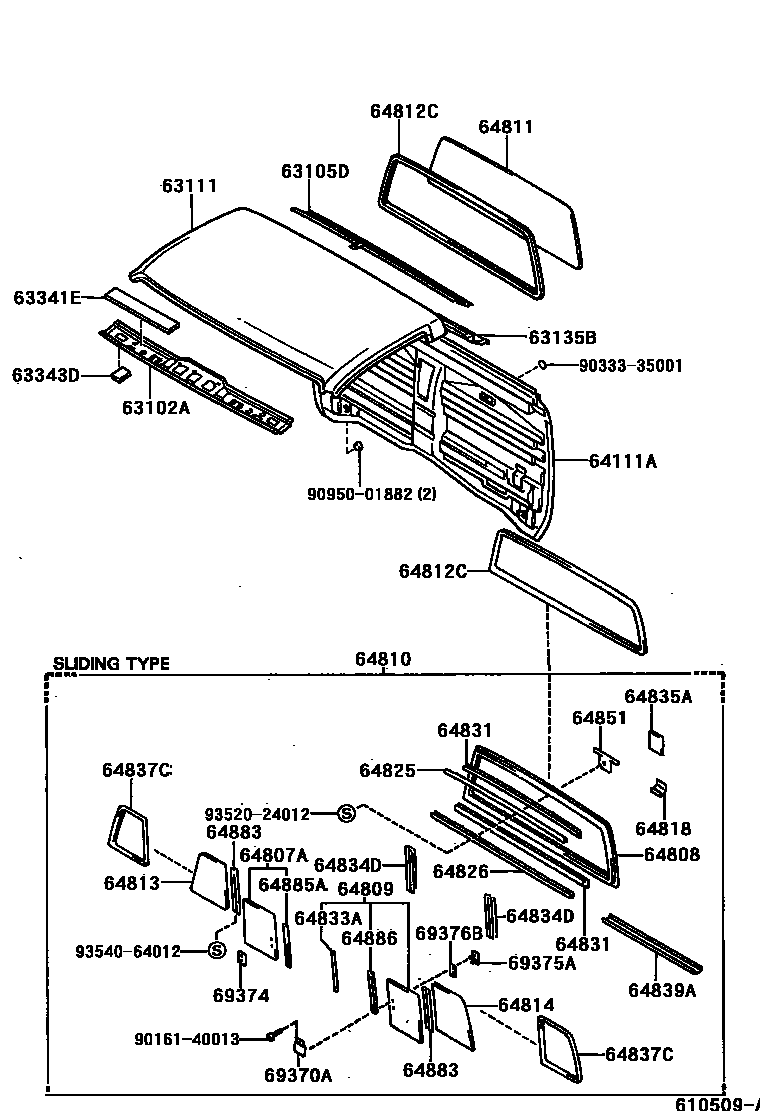

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-89107iLN8#,9#,RN8#,90,YN8#,9#..T1198808-200106

main63102-89108iLN85,86,RN85,YN85,86,87..TW1198808-200106

main63102-89109iRN125198907-199308

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-35020iRN85..EFI..IV3;RN85..T1..(ARL,V);RN85..T1..GEN..CBU;LN8#,RN80,YN8#..T1;RN85..RHD..GEN..IV3199308-200106

main63105-35050iLN9#,RN90,YN9#199308-199806

main63105-89106iLN8#,RN8#,YN8#..T1198808-199308

sub63105-35020

main63105-89109iLN90,RN90,YN92198808-199308

sub63105-35050

main63105-89110iLN85,86,RN85,YN85,86,87..TW1198808-200106

63111PANEL, ROOF

main63111-89118iLN8#,RN8#,YN8#..T1198808-200106

main63111-89120iLN9#,RN90,YN9#198808-199806

main63111-89121iRN90198808-199108

W(MOON ROOF)

main63111-89122iLN200,RZN200..TW1198808-200106

main63111-89123iRN125198907-199308

main63111-89124iRN125198907-199308

W(MOON ROOF)

main63111-89125iRN125198907-199308

W(REAR WIPER)

main63111-89126iRN125198907-199308

W(MOON ROOF & REAR WIPER)

63135BPANEL, BACK WINDOW, UPPER INNER

main63135-35020iLN8#,RN8#,YN8#..T1199308-200106

main63135-89102iLN8#,RN8#,YN8#..T1199108-199308

sub63135-35020

63341ESILENCER, ROOF, RH

main63341-89125iRN125198907-199108

63343DPAD, ROOF SILENCER, NO.3

main63343-89106iLN8#,90,RN8#,90,YN8#,92..T1198909-199103

64111APANEL, BACK

main64101-35160iLN86,RN85..LHD..TW1..(CBR,DSL)199803-200106

main64101-35160iRN85..TW1..EFI199803-199909

COLOMBIA SPEC

main64101-89133iLN85,YN80,85..T1..GEN;LN80,RN80,YN86,87..T1..5F..(GEN,V)198808-200106

W(SEPARATE SEAT)

main64101-89133iLN85..SR5198910-199806

main64101-89135iLN9#,RN90,YN9#..GEN,TH,V198808-199806

main64101-89136iRN90..ARL198808-199708

main64101-89138iLN85,RN85,YN85,86,87..TW1..(GEN,V)198808-199001

main64101-89139iLN85,RN85..DLX..ARL198808-199001

main64101-89140iLN85,RN85..STD..ARL198808-199108

W(SEPARATE SEAT)

main64101-89142iRN85..EFI..IV3;RN85..T1..GEN..CBU;RN85..RHD..GEN..IV3;LN80,85,86,YN80,85,86..T1..GEN198808-200106

main64101-89143iLN86,RN85,YN85..STD..ARL199108-199708

main64101-89143iYN85..ARL198808-199108

W(SPLIT SEAT)

main64101-89144iLN8#,RN80,YN8#..T1..(DLX,STD)..(TH,V)198808-199806

main64101-89144iLN85..T1..5F..GEN..IV3198909-199001

NEW ZEALAND SPEC

main64101-89149iRN85..TW1..EFI;LN85,RN85..RHD..TW1199001-199909

main64101-89150iLN85,86,RN85..DLX..ARL199001-199708

main64101-89151iRN80,YN86..T1..DLX199001-199108

W(SEPARATE SEAT)

main64101-89151iRN8#..T1..SR5199008-199708

main64101-89152iLN85..RHD..T1..GEN..IV3199001-199108

NEW ZEALAND SPEC

main64101-89152iLN81,86,RN80,YN81,86..T1..(DLX,STD)..V199001-199708

64807AGLASS SUB-ASSY, BACK WINDOW SLIDE, RH

main64807-89135iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TEM,T=3.5

main64807-89137iRN85..V;LN8#,RN80,YN8#..GEN,TH,V198808-199909

*TT,T=3.5,BLUE

main64807-89141iRN90,YN92198808-199708

*TEM,T=3.5

sub64807-89147

main64807-89147iLN9#,RN90,YN9#198808-199806

*TT,T=3.5,BLUE

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89105iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

main64808-89106iLN9#,RN90,YN9#198808-199806

64809GLASS SUB-ASSY, BACK WINDOW SLIDE, LH

main64809-89101iLN9#,RN90,YN9#198808-199806

*TT,T=3.5,BLUE

main64809-89102iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TEM,T=3.5

main64809-89103iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TT,T=3.5,BLUE

main64809-89105iLN90,RN90,YN9#198808-199708

*TEM,T=3.5

sub64809-89101

64810WINDOW ASSY, BACK

main64810-89109iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TEM,T=3.5

main64810-89110iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TT,T=3.5,BLUE

main64810-89112iLN90,RN90,YN9#198808-199708

*TEM,T=3.5

sub64810-89115

main64810-89115iLN9#,RN90,YN9#198808-199806

*TT,T=3.5,BLUE

64811GLASS, BACK WINDOW

main64811-04030iRN85..EFI;RN85..ARL,V;RN85..SR5..GEN;LN8#,RN80,YN8#199108-199511

*TEM,T=3.5,GREEN

main64811-35020iLN86..DLX..ARL;RN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN)199201-199909

*EHTT,T=3.5,BLUE

main64811-89119iRN85..ARL,V;RN85..T1..GEN;LN8#,RN80,YN8#;RN85..LHD..TW1..GEN198808-199909

*TEM,T=3.5

sub64811-89120

main64811-89120iRN85..ARL,V;LN8#,RN80,YN8#;RN85..SR5..GEN;RN85..EFI..CBU198808-200106

*TT,T=3.5

main64811-89138iRN90,YN92198808-199708

*TEM,T=3.5

sub64811-89139

main64811-89139iLN9#,RN90,YN9#198808-199806

*TT,T=3.5,BLUE

main64811-89140iLN90,RN90,YN92198808-199708

*EHT,T=3.5

sub64811-89141

main64811-89141iLN90,YN92..LHD198808-199708

*EHTT,T=3.5

main64811-89157iRN85..SR5..GEN;LN85,86,RN85..RHD..TW1..CBU199008-199909

*EHT,T=3.5

sub64811-35020

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-35020iLN200..SRV;RZN200..TW1200106

main64812-89108iRZN200..T1;LN200..DLX,STD198808-200106

main64812-89109iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

W(SLIDING REAR WINDOW)

main64812-89110iLN9#,RN90,YN9#198808-199806

W(SLIDING REAR WINDOW)

main64812-89111iLN9#,RN90,YN9#198808-199806

64813GLASS, BACK WINDOW CORNER, RH

main64813-89101iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TEM,T=3.5

sub64813-89102

main64813-89102iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TT,T=3.5

main64813-89107iLN90,RN90,YN9#198808-199708

*TEM,T=3.5

sub64813-89110

main64813-89110iLN90,YN92198808-199806

*TT,T=3.5,BLUE

64814GLASS, BACK WINDOW CORNER, LH

main64814-89101iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

*TEM,T=3.5

sub64814-89102

main64814-89102iRN85..V;LN8#,RN80,YN8#..GEN,TH,V198808-199909

*TT,T=3.5

main64814-89108iLN90,RN90,YN9#198808-199708

*TEM,T=3.5

sub64814-89111

main64814-89111iLN90,YN92198808-199806

*TT,T=3.5,BLUE

64818SPACER, BACK WINDOW GLASS

main64818-89101iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

64825RUN, BACK WINDOW CHANNEL, UPPER

main64825-89101iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

64826RUN, BACK WINDOW CHANNEL, LOWER

main64826-89101iLN86..T1..V;YN85..GEN,TH;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9#198808-199909

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-89110iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89114iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

main64833-89115iLN9#,RN90,YN9#198808-199806

64834DWEATHERSTRIP, BACK WINDOW SLIDE GLASS

main64834-89101iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

main64834-89102iLN9#,RN90,YN9#198808-199806

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-89101iLN86..T1..V;YN85..GEN,TH;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9#198808-199909

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-89101iLN86..T1..V;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

main64837-89105iLN9#,RN90,YN9#198808-199806

64839APACKING, BACK WINDOW

main64839-89105iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89103iLN86..T1..V;YN85..GEN,TH;RN85..DLX,SR5;RN85..EFI..CBU;LN86..TW1..(ARL,V);RN85..RHD..GEN..IV3;LN80,81,85,9#,RN80,90,YN80,81,86,9#198808-199909

64883FRAME, BACK WINDOW

main64881-89104iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

main64881-89115iLN9#,RN90,YN9#198808-199806

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-89101iLN9#,RN90,YN9#198808-199806

main64885-89102iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-89101iLN9#,RN90,YN9#198808-199806

main64886-89102iRN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V198808-199909

69370ALOCK ASSY, BACK WINDOW

main69370-35010iRN85..V;LN86..TW1;LN86..T1..V;YN85..GEN,TH;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN80,81,85,90,RN80,90,YN80,81,86,92199206-199909

main69370-89103iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199206

sub69370-35010

69374CATCH, BACK WINDOW LOCK

main69374-89103iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

69375ARETAINER, BACK WINDOW LOCK

main69375-89103iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

69376BPACKING, BACK WINDOW LOCK

main69376-89103iRN85..V;LN86..T1..V;RN85..RHD..TW1;LN85,YN85..GEN,TH;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,90,RN80,90,YN80,81,86,87,92198808-199909

9016140013

main90161-40013

9033335001

main90333-35001

9095001882

main90950-01882

9352024012

main93520-24012

9354064012

main93540-64012

37 parts on this diagram · 5 diagrams in section
