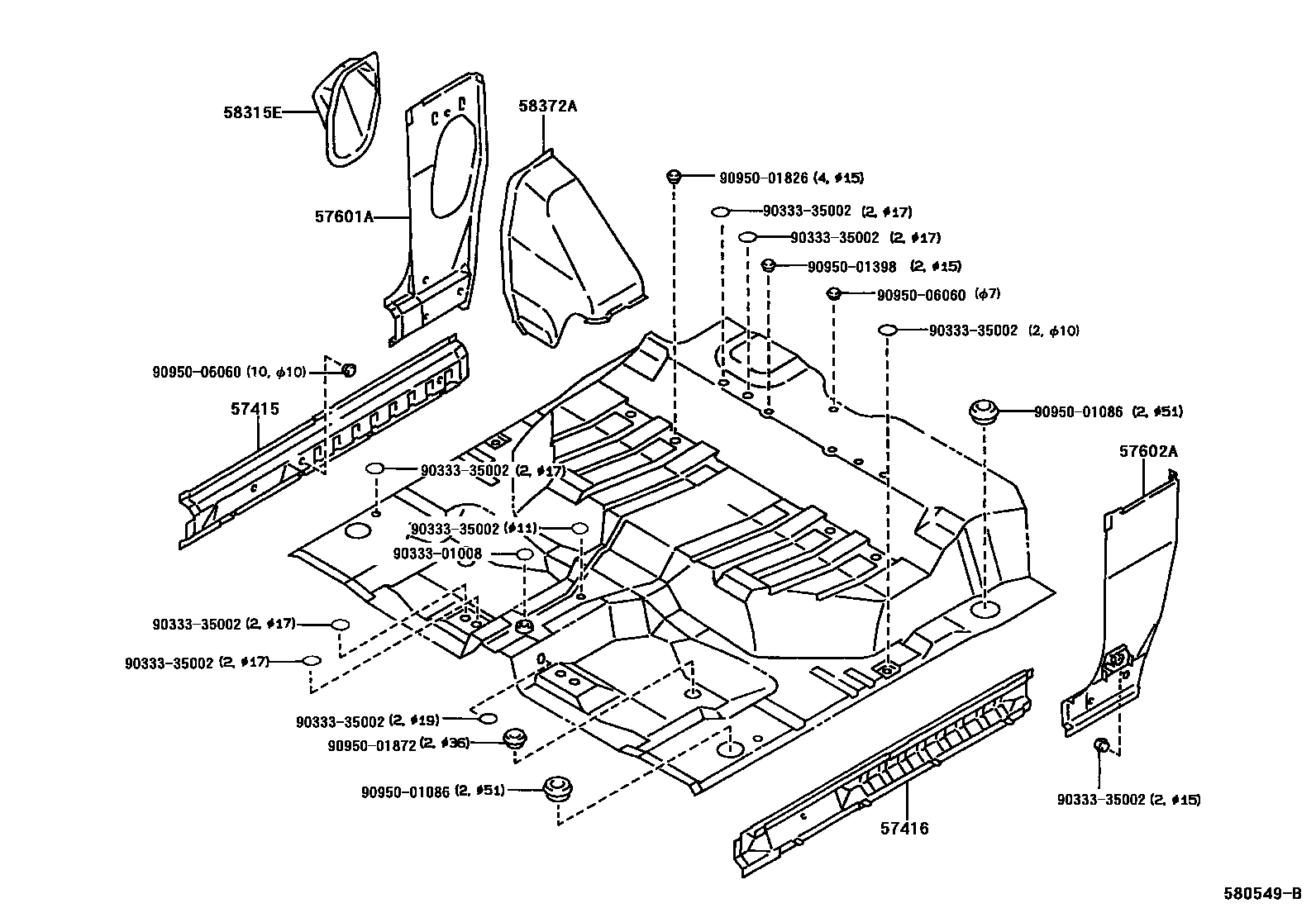

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57415RAIL, FLOOR SIDE, REAR RH

main57415-89104iLN200,RZN200..TW1198808-200106

57416RAIL, FLOOR SIDE, REAR LH

main57416-89102iLN200,RZN200..TW1198808-200106

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-89103iLN85..LHD..TW1198808-198809

BODY RUST PROTECTING & W(REAR SEAT BELT)

main57601-89103iRN85..LHD..TW1;LN85,86,YN85,86,87..TW1..(GEN,V)198808-200106

main57601-89104iLN85,YN87..RHD..TW1..GEN..CBU198908-199909

W(REAR SEAT BELT)

main57601-89104iLN85..LHD..TW1..5F..CBU198808-199101

NEW ZEALAND SPEC

main57601-89104iRN85..RHD..TW1;LN85,86..DLX..ARL198808-199812

main57601-89104iYN87..RHD..TW1198808-198908

W(SEPARATER SEAT) & W(REAR SEAT BELT)

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-89103iLN85,86,RN85,YN85,86,87..TW1198808-200106

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-89103iLN85,86,RN85,YN85,86,87..TW1198808-200106

58372AHOUSING, FUEL INLET PIPE

main58372-89103iLN85,86,RN85,YN85,86,87..TW1198808-200106

9033301008

main90333-01008

9033335002

main90333-35002

9095001086

main90950-01086

9095001398

main90950-01398

9095001826

main90950-01826

9095001872

main90950-01872

9095006060

main90950-06060

13 parts on this diagram · 2 diagrams in section
