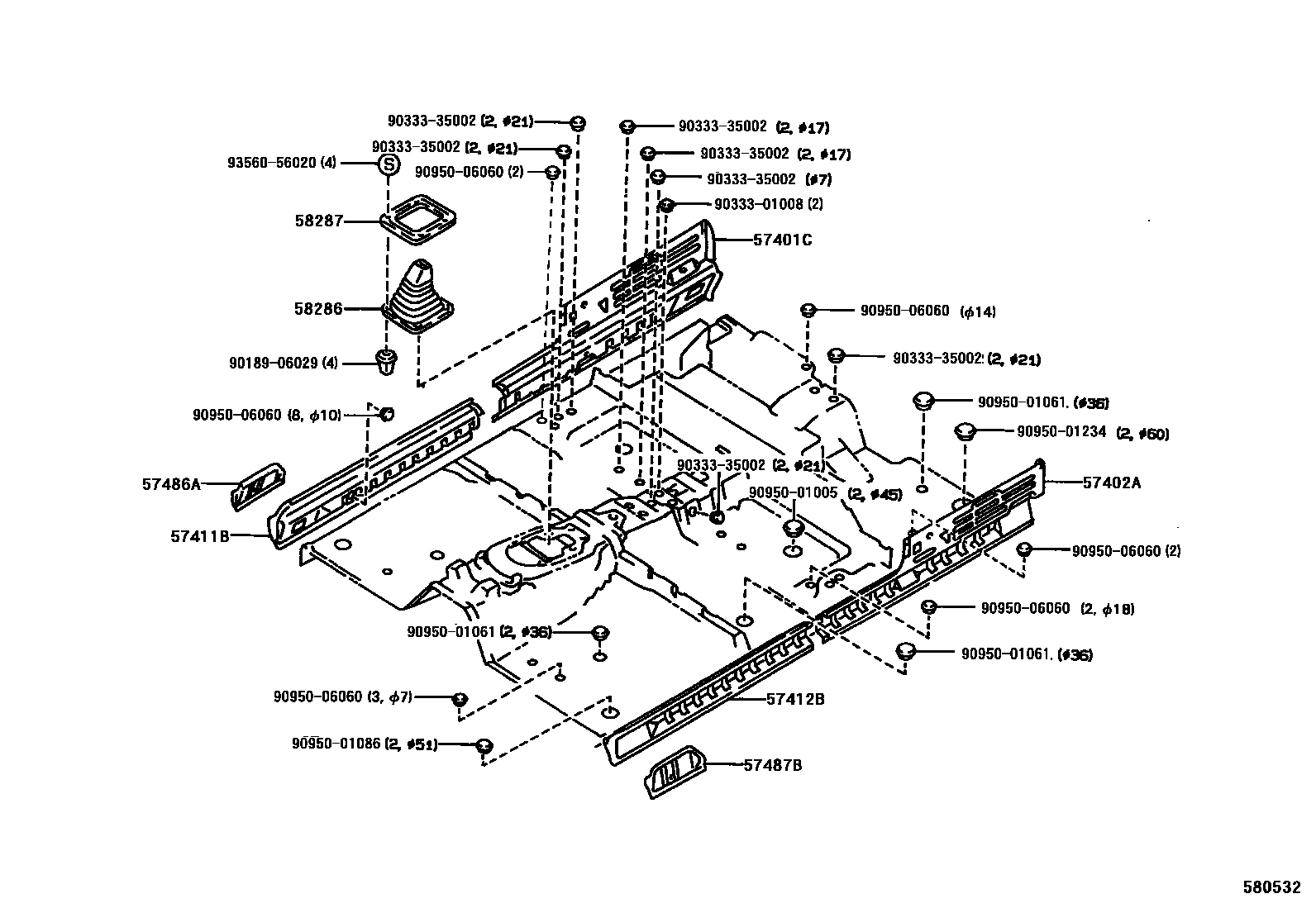

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0005 1 0006 1

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-89114iLN8#,RN8#,YN8#..T1198808-200106

main57401-89114iLN85..SR5198910-199001

BODY RUST PROTECTING

main57401-89115iLN9#,RN90,YN9#198808-199806

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-89114iLN8#,RN8#,YN8#..T1..(DLX,STD)198808-200106

main57402-89114iLN85..SR5198910-199001

BODY RUST PROTECTING

main57402-89115iLN9#,RN90,YN9#198808-199806

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35010iLN8#,9#,RN125,8#,90,YN8#,9#199008-200106

main57411-89104iLN90,RN90;LN8#,RN125,8#,YN8#,92..DLX,STD198808-199008

sub57411-35010

main57411-89104iLN85..SR5198910-199001

BODY RUST PROTECTING

sub57411-35010

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35010iLN200,RZN200199008-200106

main57412-89106iLN90,RN90;LN8#,RN125,8#,YN8#,92..DLX,STD198808-199008

sub57412-35010

main57412-89106iLN85..SR5198910-199001

BODY RUST PROTECTING

sub57412-35010

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-89111iLN8#,9#,RN125,90..MTM;RN8#,YN86..LHD..(DLX,SR5)198808-200106

main58286-89124iYN8#,90..SR5,STD;RN85,YN92..5F..(DLX,STD)..(ARL,GEN)198808-199909

main58286-89125iYN80,85..4F198808-199408

58287RETAINER, SHIFT LEVER BOOT

main58287-04010iRN85..EFI..IV3199709-199909

(L)

main58287-89113iLN200,RZN200198808-200106

main58287-89113iRN85..EFI..IV3199709-199909

(J)

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001005

main90950-01005

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006060

main90950-06060

9356056020

main93560-56020

17 parts on this diagram · 5 diagrams in section
