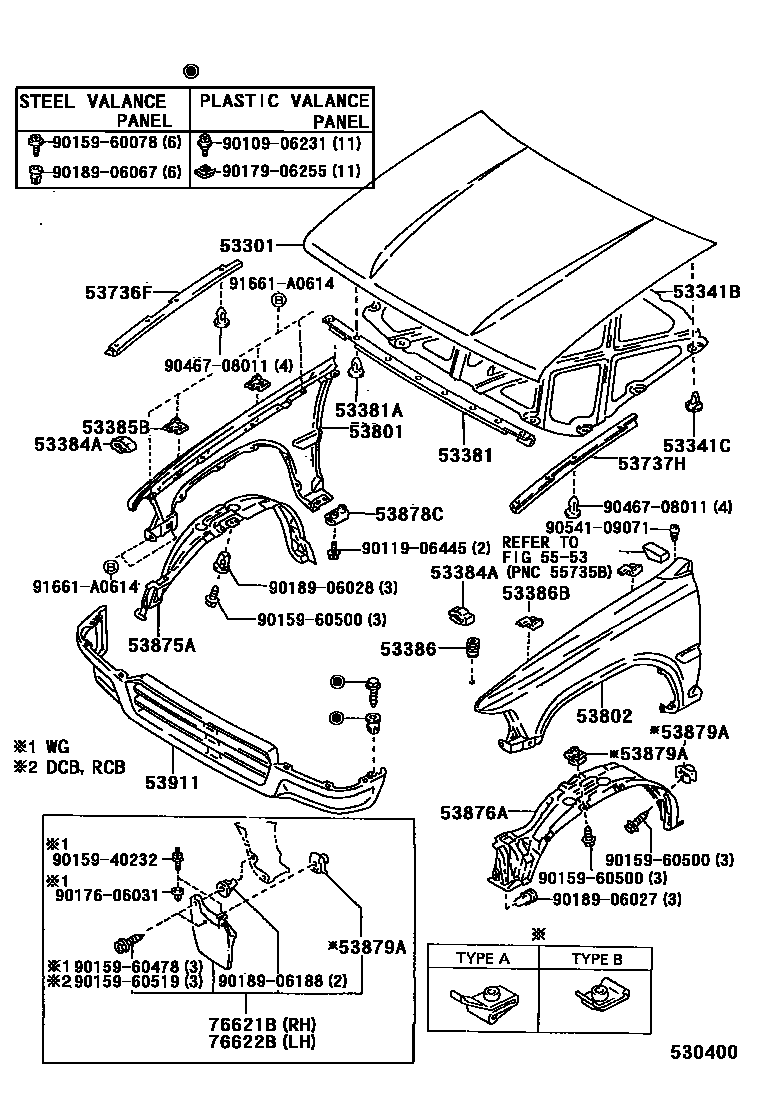

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-89124iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200106

main53301-89124iRN85..T1..V;RN85..DLX..V199204-199708

PERU SPEC

main53301-89125iLN80,85,90,YN80,85,87,92..GEN,TH198808-199108

W(HOOD EMBLEM)

main53301-89125iLN81,86,RN8#,90,YN81,86..V198808-199708

main53301-89125iRN85..SR5..GEN199508-199708

CHINA SPEC

53341BINSULATOR, HOOD

main53341-89106iLN8#,90198808-199108

sub53341-89107

main53341-89107iLN8#,9#199108-200106

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004-01iLN8#,90..GEN198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub90467-09004

main90467-09004-01iLN85..ARL198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub90467-09004

main90467-09004-01iLN85..ARL198908-199008

BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2

sub90467-09004

main90467-09004-01iLN81,86199008-199108

BLACK,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2 ,8H9

sub90467-09004

main90467-09004-01iLN81,86199008-199108

BLACK,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9

sub90467-09004

main90467-09004-01iLN81,86199008-199108

BLACK,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8E2 ,8H9

sub90467-09004

main90467-09004-01iLN81,86199008-199108

BLACK,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2 ,8H9

sub90467-09004

main90467-09004-01iLN81,86..V199108-199208

BLACK,045 ,147 ,179 ,202 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199108-199208

BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199208-199308

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199208-199308

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199308-199401

BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E2

sub90467-09004

main90467-09004-01iLN81,86..V199308-199401

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,751 ,8E2

sub90467-09004

main90467-09004-01iLN86..ARL199308-199408

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2

sub90467-09004

main90467-09004-01iLN86..ARL199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5

sub90467-09004

main90467-09004-01iLN86..ARL199408-199508

BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751

sub90467-09004

main90467-09004-01iLN86..ARL199508-199708

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,8E3

sub90467-09004

main90467-09004-01iLN8#,9#..GEN,TH,V199508-200106

BLACK,045 ,196 ,3H7 ,3K4 ,4L5 ,751 ,8E3

sub90467-09004

main90467-09004-01iLN85..ARL198808-198908

BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2

sub90467-09004

main90467-09118iLN200200106

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35050iLN200,RZN200200106

main53381-89104iRN85..ARL,V;RN85..LHD..GEN;LN8#,9#,RN125,80,90,YN8#,9#198808-200106

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iLN200,RZN200199108-200106

53384ABUMPER, FENDER TO HOOD

main53384-89102iLN8#,90,RN8#,90,YN8#,92198808-198904

main53384-89103iLN8#,9#,RN125,8#,90,YN8#,9#198904-200106

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iLN200,RZN200198808-200106

53386BUMPER, HOOD, REAR

main53382-89102iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

53736FSEAL, FRONT FENDER APRON, RH

main53736-89117iLN85..RHD..4F;LN81,85,86..ARL,V;LN85..RHD..TW1..GEN..CBU199004-199909

53737HSEAL, FRONT FENDER APRON, LH

main53737-89108iLN85..RHD..4F;LN81,85,86..ARL,V;LN85..RHD..TW1..GEN..CBU199004-199909

53801FENDER SUB-ASSY, FRONT RH

main53811-35140iLN200,RZN200199108-199308

main53811-89202iRN8#,YN81,86..V198808-200106

main53811-89202iRN85..SR5..GEN;RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD198808-199909

W(RADIO)

main53811-89204iRN85..SR5..GEN199512-199708

CHINA SPEC

main53811-89204iYN86..GEN;LN85,86,RN85,90,YN85..ARL199008-199708

main53811-89207iYN86..GEN199512-199708

CHINA SPEC & W(RADIO)

main53811-89207iRN85..SR5..GEN199512-199708

W(RADIO)

main53811-89208iRN125198907-199108

main53811-89214iLN86..TW1199801-199804

W/O(RADIO)

main53811-89214iYN86..V;RN85..RHD..GEN;RN85..LHD..(DLX,SR5);LN86,RN85..LHD..STD..(DSL,EFI)..CBU;LN80,81,85,RN80,90,YN80,81,85,92..GEN,TH,V198808-199909

main53811-89215iLN9#199608-199806

53802FENDER SUB-ASSY, FRONT LH

main53812-35150iRN125199108-199308

main53812-89193iRN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,YN80,85,92..(DLX,STD)..(GEN,TH)198808-200106

main53812-89194iRN90..ARL199008-199708

W(RADIO)

main53812-89196iLN80,85,YN80,85,87,92..RHD..(DLX,STD)..(GEN,TH)198808-199909

W(RADIO)

sub53812-89205

main53812-89198iRN85..SR5..GEN199512-199708

CHINA SPEC

main53812-89198iYN86..GEN;LN85,86,RN85,YN85..ARL199008-199708

main53812-89199iRN125198907-199108

main53812-89205iLN85,90..SR5198910-199108

W(BODY RUST PROTECTING)

main53812-89205iLN80,85,YN80,85..RHD..STD..TH199108-199806

W(RADIO)

main53812-89205iLN85..SR5;RN85..RHD..GEN;LN81,86,90,RN8#,90,YN81,86,90..TH,V199008-199812

main53812-89205iLN80,85,YN85..RHD..GEN198808-199909

W(BODY RUST PROTECTING) & W(RADIO)

main53812-89206iLN9#199608-199806

53875ALINER, FRONT FENDER, RH

main53875-89105iLN8#,9#,RN8#,90,YN8#,9#198808-200106

main53875-89106iRN125198907-199308

53876ALINER, FRONT FENDER, LH

main53876-89105iLN8#,9#,RN8#,90,YN8#,9#198808-200106

main53876-89106iRN125198907-199308

53878CSPACER, FRONT FENDER

main53878-89102iLN200,RZN200198808-200106

53879ARETAINER, FRONT FENDER LINER

main53879-14020iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198808-200106

TYPE A

main53879-14020iLN80,85,YN85..RHD..GEN199208-199909

PNG SPEC

main53879-22010iLN8#,9#,RN8#,90,YN8#,9#198808-200106

TYPE B,BLACK

main53879-22010iLN85..LHD..TH;RN85..EFI..IV3;LN80,85,YN85..RHD..GEN199108-199909

TYPE B

53911PANEL, FRONT VALANCE

main53901-35050iRN125199108-199308

NO PAINT REQ.

main53911-35010iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199108-200106

NO PAINT REQ.

main53911-89114iRN8#,YN81,86..STD..V198808-199108

NO PAINT REQ.

main53911-89114iLN8#,90,RN85,90,YN80,85,87,92..ARL,GEN198808-198908

NO PAINT REQ.,W(PAINTED BUMPER)

main53911-89115iRN8#,YN81,86..V198808-198908

NO PAINT REQ.

main53911-89115iLN80,85,90,YN80,85,87,92..GEN198808-199108

NO PAINT REQ.,CHROME PLATED PACKAGE

main53911-89119iRN125198907-199108

NO PAINT REQ.

5553

76621BMUDGUARD, FRONT BODY, RH

main76603-39015iRN125198907-199308

main76621-35090iLN85..LHD;LN85,YN85..GEN199708-199909

main76621-39145iLN80,85,YN85,87,92..RHD..GEN199008-199909

PNG SPEC

sub76621-35090

sub53879-22010

sub90159-60477

sub90189-06027

main76621-39145iLN85..LHD..TH199608-199708

sub76621-35090

sub53879-22010

sub90159-60477

sub90189-06027

76622BMUDGUARD, FRONT BODY, LH

main76604-39015iRN125198907-199308

main76622-35090iLN85..LHD;LN85,YN85..GEN199708-199909

main76622-39145iLN85..LHD..TH199608-199708

sub76622-35090

sub53879-22010

sub90159-60477

sub90189-06027

main76622-39145iLN80,85,YN85,87,92..RHD..GEN199008-199909

PNG SPEC

sub76622-35090

sub53879-22010

sub90159-60477

sub90189-06027

9010906231

main90109-06231

9011906445

main90119-06445

9015940232

main90159-40232

9015960078

main90159-60078

9015960478

main90159-60478

9015960500

main90159-60500

9015960519

main90159-60519

9017606031

main90176-06031

9017906255

main90179-06255

9018906027

main90189-06027

9018906028

main90189-06028

9018906067

main90189-06067

9018906188

main90189-06188

9046708011

main90467-08011

9054109071

main90541-09071

91661A0614

main91661-A0614

37 parts on this diagram · 2 diagrams in section
