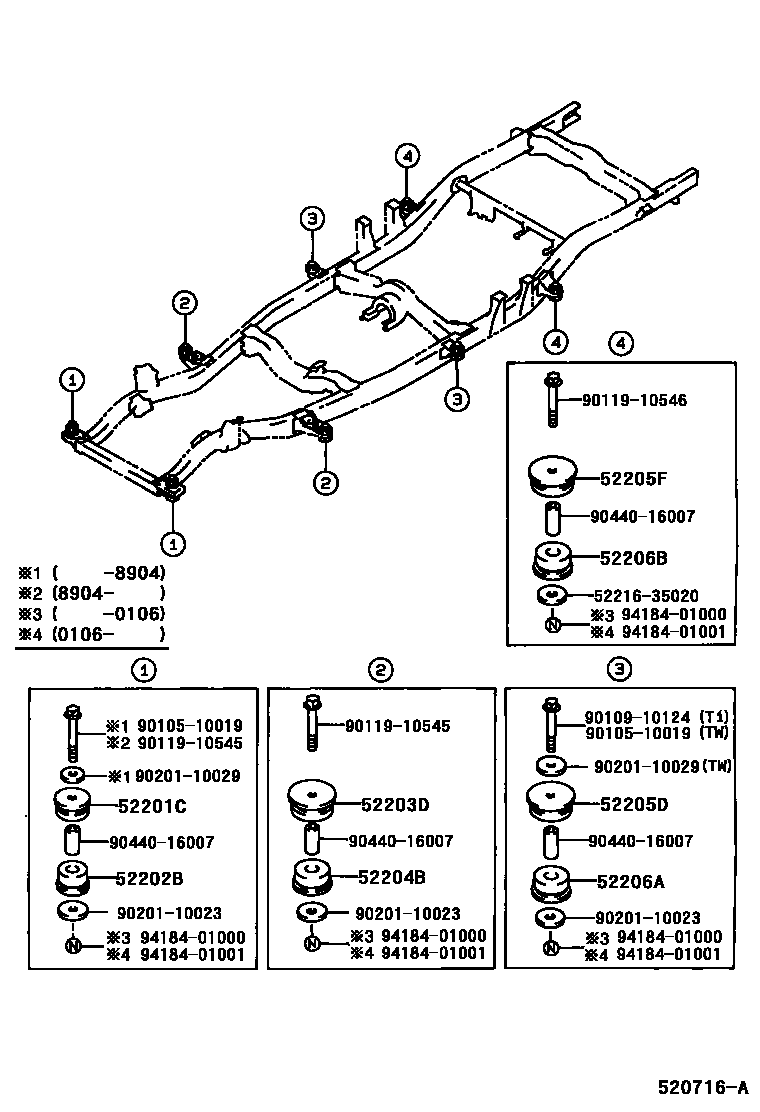

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35021iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main52201-35070iRN125198907-199308

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35021iLN8#,90,RN8#,90,YN8#,9#198808-200106

main52202-35060iRN125198907-199308

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-35031iLN80,85,90,RN85,YN80,85,86,87,92..GEN198808-199909

main52203-35100iLN8#,90,RN8#,90,YN8#,90..ARL,TH,V198808-200106

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35031iLN80,85,90,RN85,YN80,85,86,87,92..GEN198808-199909

main52204-35100iLN8#,90,RN8#,90,YN8#,90..ARL,TH,V198808-200106

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52203-35031iLN85,RN85,YN85,86,87..TW1..GEN198808-199909

main52203-35040iLN80,85,90,RN85,YN80,85,86,87,92..T1..GEN198808-199909

main52205-35020iLN86;YN85..ARL;LN80,81,85,9#,RN8#,90,YN81,86..ARL,TH,V198808-200106

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52203-35031iLN85,RN85,YN85,86,87..TW1..GEN198808-199909

main52205-35020iLN86..TW1;LN85,RN85,YN86..TW1..(ARL,V)198808-200106

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52204-35031iLN85,RN85,YN85,86,87..TW1..GEN198808-199909

main52204-35040iLN80,85,90,RN85,YN80,85,86,87,92..T1..GEN198808-199909

main52206-35010iLN86;YN85..ARL;LN80,81,85,9#,RN8#,90,YN81,86..ARL,TH,V198808-200106

52206BCUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52204-35031iLN85,RN85,YN85,86,87..TW1..GEN198808-199909

main52206-35010iLN86..TW1;LN85,RN85,YN86..TW1..(ARL,V)198808-200106

5221635020SPACER, BODY MOUNTING

main52216-35020

9010510019

main90105-10019

9010910124

main90109-10124

9011910545

main90119-10545

9011910546

main90119-10546

9020110023

main90201-10023

9020110029

main90201-10029

9044016007

main90440-16007

9418401000

main94184-01000

9418401001

main94184-01001

18 parts on this diagram · 2 diagrams in section
