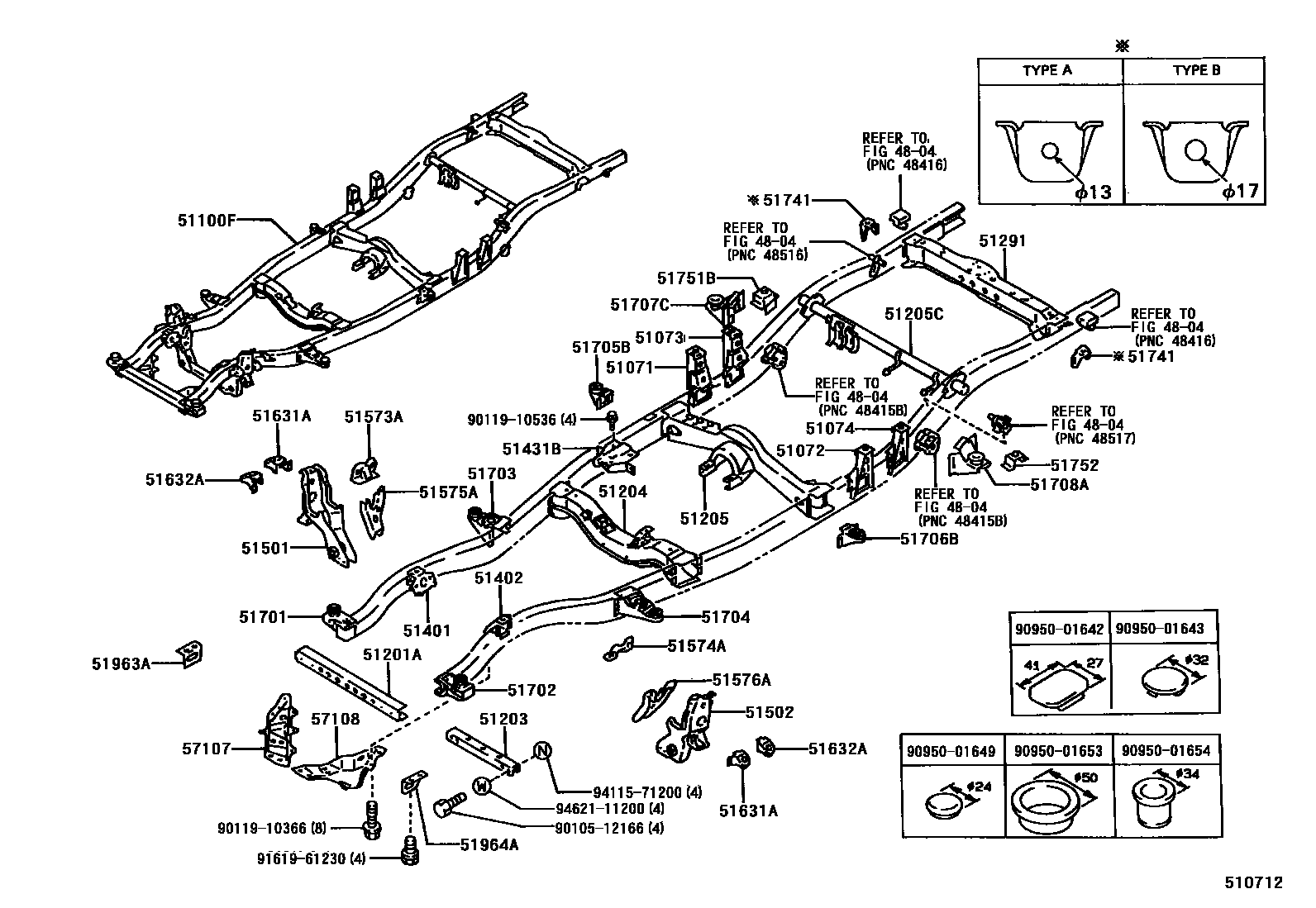

FRAME

0001 1 0002 1 0003 1

4804

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-35040iLN80,81,90,RN80,90,YN80,81,9#198808-199806

main51071-35050iYN85..T1..(ARL,GEN);LN85,86,RN85,YN86..T1198808-200106

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-35050iLN85,86,RN85,YN85,86,87..T1198808-200106

main51072-35020iLN80,81,90,RN80,90,YN80,81,9#198808-199806

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-35020iLN200,RZN200..T1198808-200106

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-35020iLN8#,90,RN8#,90,YN8#,9#..T1198808-200106

51100FFRAME SUB-ASSY

main51001-3D690iLN80..GEN198808-199708

SEVERE USAGE PACKAGE

main51002-3D230iRN125198907-199008

main51002-3D320iYN80,81..LHD198908-199108

sub51002-3D321

main51002-3D321iYN80,81..LHD199108-199708

sub51002-3D331

main51002-3D330iYN80,81..LHD198908-199108

SEVERE USAGE PACKAGE

sub51002-3D331

main51002-3D331iYN80,81..LHD199108-199708

SEVERE USAGE PACKAGE

main51002-3D340iLN81,RN80198908-199108

sub51002-3D341

main51002-3D341iLN81,RN80199108-199708

sub51002-3D351

main51002-3D350iLN81,RN80198908-199108

SEVERE USAGE PACKAGE

sub51002-3D351

main51002-3D351iLN81,RN80199108-199708

SEVERE USAGE PACKAGE

main51002-3D360iYN85,86,87..LHD..T1198908-199108

sub51002-3D361

main51002-3D361iYN86..T1..V;YN85..LHD..T1199108-199708

sub51002-3D371

main51002-3D370iYN85,86,87..LHD..T1198908-199108

SEVERE USAGE PACKAGE

sub51002-3D371

main51002-3D371iYN86..T1..V;YN85..LHD..T1199108-199708

SEVERE USAGE PACKAGE

main51002-3D371iYN86..T1..GEN199512-199708

main51002-3D380iLN85,86,RN85..LHD..T1198908-199108

sub51002-3D381

main51002-3D381iLN86,RN85..T1..V;LN85..LHD..T1..GEN;RN85..T1..EFI..CBU199108-199909

main51002-3D390iLN85,86,RN85..LHD..T1198908-199108

SEVERE USAGE PACKAGE

sub51002-3D391

main51002-3D391iLN86,RN85..LHD..T1..(CBR,DSL)..GEN199108-200106

main51002-3D391iLN86,RN85..T1..V;LN85..LHD..T1..GEN;RN85..T1..EFI..CBU199108-199909

SEVERE USAGE PACKAGE

main51002-3D400iYN85,86,87..LHD..TW1198908-199108

sub51002-3D401

main51002-3D401iYN86..TW1..V;YN85..LHD..TW1199108-199708

sub51002-3D411

main51002-3D410iYN85,86,87..LHD..TW1198908-199108

SEVERE USAGE PACKAGE

sub51002-3D411

main51002-3D411iYN86..TW1..V;YN85..LHD..TW1199108-199708

SEVERE USAGE PACKAGE

main51002-3D411iYN86..TW1..GEN199512-199708

main51002-3D420iLN85,86,RN85..LHD..TW1198908-199108

sub51002-3D421

main51002-3D421iRN85..TW1..V;LN85,86,RN85..LHD..TW1..STD..(DSL,EFI)199108-199909

main51002-3D430iLN85,86,RN85..LHD..TW1198908-199108

SEVERE USAGE PACKAGE

sub51002-3D431

main51002-3D431iLN86,RN85..LHD..TW1..(CBR,DSL)..GEN199108-200106

main51002-3D431iRN85..TW1..V;LN85,86,RN85..LHD..TW1..STD..(DSL,EFI)199108-199909

SEVERE USAGE PACKAGE

main51002-3D440iYN92..LHD198908-199108

sub51002-3D441

main51002-3D441iYN92199108-199708

sub51002-3D451

main51002-3D450iYN92..LHD198908-199108

SEVERE USAGE PACKAGE

sub51002-3D451

main51002-3D451iYN92199108-199708

SEVERE USAGE PACKAGE

main51002-3D460iLN90..GEN198908-199108

sub51002-3D461

main51002-3D461iRN90..V199208-199708

sub51002-3D471

main51002-3D470iLN90..GEN198908-199108

SEVERE USAGE PACKAGE

sub51002-3D471

main51002-3D471iRN90..V199208-199708

SEVERE USAGE PACKAGE

main51002-3D570iYN85,87..TH198910-199108

main51002-3D580iLN85..TH198910-199108

main51002-3D590iLN90..TH198910-199108

main51003-35470iLN80..GEN198808-199708

main51003-35480iYN80..TH198910-199108

main51003-35490iLN80..TH198910-199108

main51003-35500iYN80,81198808-198908

main51003-35510iYN80,81198808-198908

SEVERE USAGE PACKAGE

main51003-35520iRN80198808-198908

main51003-35530iRN80198808-198908

SEVERE USAGE PACKAGE

main51003-35540iYN85,87..RHD..T1..GEN198808-199909

main51003-35560iLN85..RHD..T1..GEN198808-199909

main51003-35580iYN85,87..RHD..T1..GEN198808-199909

SEVERE USAGE PACKAGE

main51003-35580iYN85..ARL198808-199708

main51003-35590iLN85..RHD..T1..GEN198808-199909

SEVERE USAGE PACKAGE

main51003-35590iRN85..RHD..T1;LN85,86..STD..ARL198808-199812

main51003-35620iYN85,86,87..LHD..T1198808-198908

main51003-35630iYN85,86,87..LHD..T1198808-198908

SEVERE USAGE PACKAGE

main51003-35640iLN85..LHD..T1198808-198908

main51003-35650iLN85..LHD..T1198808-198908

SEVERE USAGE PACKAGE

main51003-35660iYN85,87..RHD..TW1198808-199708

main51003-35670iLN85..RHD..TW1..GEN198808-199909

main51003-35680iYN85,87..RHD..TW1198808-199708

SEVERE USAGE PACKAGE

main51003-35690iLN85..RHD..TW1..GEN198808-199909

SEVERE USAGE PACKAGE

main51003-35690iRN85..RHD..TW1;LN85,86..DLX..ARL198808-199812

main51003-35700iYN85,86,87..LHD..TW1198808-198908

main51003-35710iYN85,86,87..LHD..TW1198808-198908

SEVERE USAGE PACKAGE

main51003-35720iLN85,RN85..LHD..TW1198808-198908

main51003-35730iLN85,RN85..LHD..TW1198808-198908

SEVERE USAGE PACKAGE

main51003-35740iYN92..RHD198808-199108

main51003-35750iYN92..RHD198808-199108

SEVERE USAGE PACKAGE

main51003-35760iRN90..ARL198808-199708

main51003-35770iYN92..LHD198808-198908

main51003-35780iYN92..LHD198808-198908

SEVERE USAGE PACKAGE

main51003-35790iLN90198808-198908

main51003-35800iLN90198808-198908

SEVERE USAGE PACKAGE

main51003-3D180iRN125199008-199308

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-35160iLN85..RHD..GEN;LN80,YN85,86,92..GEN,V198808-199408

sub51201-35170

main51201-35170iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199408-200106

main51201-35170iLN80,85,90,RN85,90,YN80,85,87..ARL,TH198808-199408

SEVERE USAGE PACKAGE

main51201-35190iRN125198907-199008

sub51201-35210

main51201-35210iRN125199008-199108

main51201-35240iRN125199108-199308

main51201-35320iLN200,RZN200200106

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35220iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198808-200106

main51203-35270iRN125198907-199308

main51203-35360iLN200,RZN200200106

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-35280iRN125198907-199008

main51202-35290iRN125199008-199308

main51202-35390iRZN200200106

main51202-35410iLN200200106

main51203-35240iYN85..RHD..(ARL,GEN);LN80,85,86,9#,RN85,90..RHD198808-199909

main51203-35250iLN81,85,86,90,RN8#,90,YN8#,92..LHD198808-200106

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35350iYN80..GEN;LN80,81,RN80,YN81198808-199806

main51204-35360iRN85..EFI..IV3;RN85..T1..(ARL,V);RN85..T1..GEN..CBU;LN85,86,YN85,86..T1;RN85..RHD..GEN..IV3198808-200106

main51204-35370iLN90,RN90,YN9#198808-199806

main51204-35380iLN85,86,RN85,YN85,86,87..TW1198808-200106

main51204-35470iRN125198907-199308

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35140iYN80,85..T1..(ARL,GEN);LN8#,9#,RN8#,90,YN81,86,92..T1198808-200106

main51205-35170iLN85,86,RN85,YN85,86,87..TW1198808-200106

main51205-35190iRN125198907-199308

51291CROSSMEMBER, FRAME, REAR

main51209-35112iRN125198907-199308

main51209-35120iRN85..RHD;YN86..TW1..V;RN85..EFI..IV3;RN85..LHD..TW1;LN86,YN86..ARL,GEN;LN85,86,YN85..TW1..STD;RN85..T1..CBR..GEN..CBU;LN80,85,9#,RN90,YN85..ARL,TH198808-200106

main51209-35120iRN85..T1..EFI..CBU;LN86,RN85,YN86..T1..V;LN80,81,85,90,RN80,90,YN80,81,85,87,92..T1..(GEN,V)198808-199909

SEVERE USAGE PACKAGE

main51291-35100iRN85..T1..EFI..CBU;LN86,RN85,YN86..T1..V;LN80,81,85,90,RN80,90,YN80,81,85,87,92..T1..(GEN,V)198808-199909

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35170iLN8#,9#,RN8#,90198808-200106

main51401-35260iYN8#,92..ARL,GEN,V198808-199909

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-35170iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90198808-200106

main51402-35260iYN8#,9#198808-199909

51431BBRACKET, ENGINE REAR MOUNTING

main51431-35050iLN85,86,90,RN85,90..4FC198808-199806

main51431-35060iLN8#,90,YN8#,9#..MTM;RN85,90..5F..(ARL,GEN)198808-200106

main51431-35070iYN80,85..4F198808-199408

main51431-35080iRN8#,90..V199108-199708

main51431-35100iRN125198907-199308

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35030iRN125198907-199008

sub51501-35070

sub51455-35020

sub90119-08766

main51501-35060iLN8#,90,RN8#,90,YN8#,9#198808-200106

main51501-35070iRN125199008-199308

sub51501-35071

main51501-35130iLN200,RZN200200106

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35030iRN125198907-199008

sub51502-35070

sub51456-35020

sub90119-08766

main51502-35060iLN8#,90,RN8#,90,YN8#,9#198808-200106

main51502-35070iRN125199008-199308

sub51502-35071

main51502-35130iLN200,RZN200200106

51573AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 RH

main51573-35010iLN8#,90,RN8#,90,YN8#,9#198808-200106

51574AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 LH

main51573-35010iLN8#,90,RN8#,90,YN8#,9#198808-200106

51575AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH

main51575-35040iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90198808-200106

main51575-35050iYN8#,9#198808-199909

51576AREINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH

main51575-35040iLN8#,9#,RN8#,90198808-200106

main51576-35020iYN8#,9#198808-199909

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51061-35010iRN125198907-199308

51631ASTOPPER, FRONT SUSPENSION REBOUND, NO.1

main51631-35040iLN200,RZN200200106

main51631-35050iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51061-35010iRN125198907-199308

51632ASTOPPER, FRONT SUSPENSION REBOUND, NO.2

main51632-35040iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35110iLN8#,90,RN8#,90,YN8#,9#198808-200106

main51701-35130iRN125198907-199308

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-35090iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198808-200106

main51702-35110iRN125198907-199308

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35060iLN8#,90,RN8#,90,YN8#,9#198808-200106

main51703-35080iRN125198907-199308

main51703-35090iLN200,RZN200200106

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-35080iLN8#,90,RN8#,90,YN8#,9#198808-200106

main51704-35100iRN125198907-199308

main51704-35110iLN200,RZN200200106

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-35090iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main51705-35100iRN125198907-199308

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-35090iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92198808-200106

main51706-35020iRN125198907-199308

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-35030iLN85,86,RN85,YN85,86,87..TW1198808-200106

main51707-35060iRN125198907-199308

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-35030iLN85,86,RN85,YN85,86,87..TW1198808-200106

main51708-35060iRN125198907-199308

51741BRACKET, REAR BODY MOUNTING, NO.1

main51715-35020iLN8#,90,RN8#,90,YN8#,92198808-198904

TYPE A

main51741-35050iLN8#,90,RN8#,90,YN8#,92198808-198904

TYPE B

main51741-35050iLN8#,90,RN8#,90,YN8#,9#198904-200106

51751BBRACKET, BODY SUPPORT, NO.1 RH

main51751-35070iLN200,RZN200..TW1198808-200106

51752BRACKET, BODY SUPPORT, NO.1 LH

main51752-35040iLN85,86,RN85,YN85,86,87..TW1198808-200106

51963AHOOK, TRANSPORT, FRONT RH

main51963-35070iLN8#,90,RN8#,90,YN8#,9#198808-200106

51964AHOOK, TRANSPORT, FRONT LH

main51964-35050iLN8#,90,RN8#,90,YN8#,9#198808-200106

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-35050iLN8#,90,RN8#,90,YN8#,9#198808-200106

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-35050iLN8#,90,RN8#,90,YN8#,9#198808-200106

9010512166

main90105-12166

9011910366

main90119-10366

9011910536

main90119-10536

9095001642

main90950-01642

9095001643

main90950-01643

9095001649

main90950-01649

9095001653

main90950-01653

9095001654

main90950-01654

9161961230

main91619-61230

9411571200

main94115-71200

9462111200

main94621-11200

51 parts on this diagram · 3 diagrams in section
