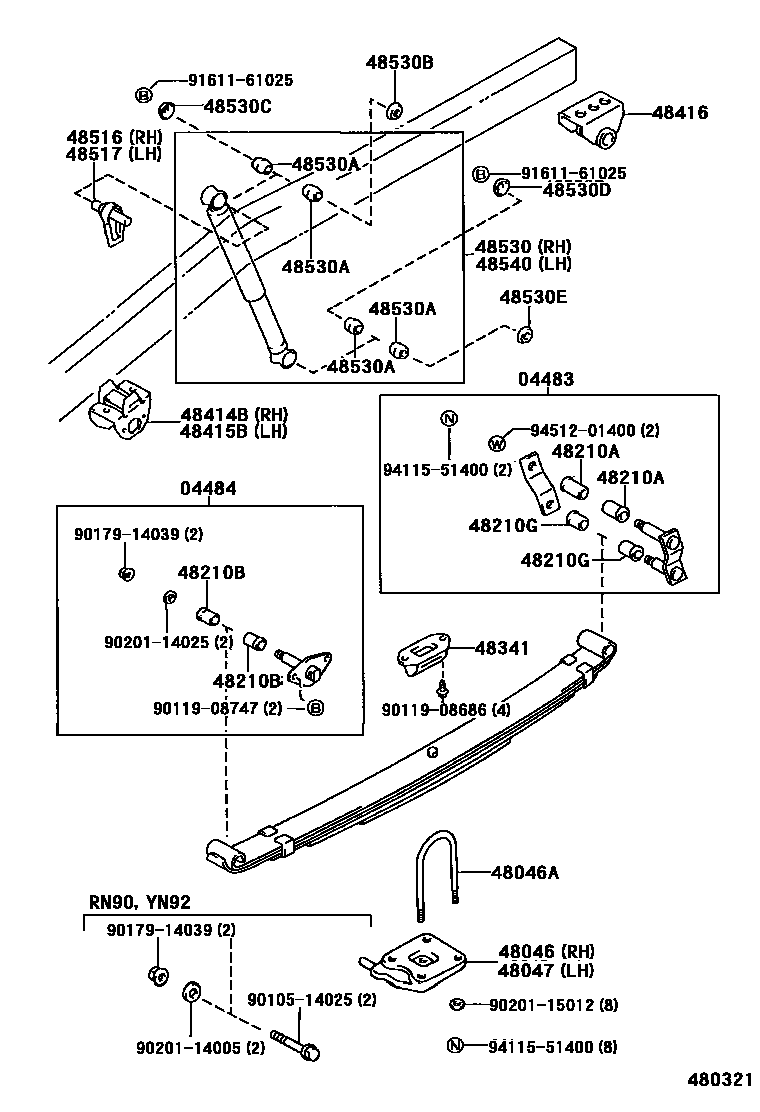

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04483SHACKLE KIT, REAR SPRING

main04483-35051iLN90..TH;LN8#,RN8#,YN8#198808-199108

main04483-35070iLN90,RN125,90,YN92..ARL,GEN,V198808-199708

main04483-35080iLN8#,90,RN8#,YN8#,90199108-200106

main04483-35120iLN200,RZN200200106

04484PIN KIT, REAR SPRING

main04482-35030iLN90..TH;LN8#,RN8#,YN8#198808-199108

main04484-35060iLN8#,90,RN8#,YN8#,90199108-200106

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35140iLN90;LN8#,RN8#,90,YN8#,92..ARL,GEN,V198808-200106

main48046-35170iRN125198907-199308

48046ABOLT, U(FOR REAR SPRING)

main90117-14008iRN125198907-199308

L=155

main90117-14039iLN90,RN90,YN92..ARL,GEN,V198808-199708

L=139

main90117-14040iLN8#,RN8#,YN8#..ARL,GEN,V198808-200106

L=155

main90117-14053iLN9#199108-199806

L=146

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35140iLN90;LN8#,RN8#,90,YN8#,92..ARL,GEN,V198808-200106

main48046-35170iRN125198907-199308

48210SPRING ASSY, REAR RH

main48210-35620iLN90,RN90,YN92..ARL,GEN,V198808-199708

3-LEAF

main48210-35630iLN80,85,YN8#..T1..(GEN,V)198808-199909

5-LEAF

main48210-35640iLN81,86,RN8#..T1;LN85,YN85..STD..ARL198808-200106

5-LEAF

main48210-35640iLN8#,YN81,86..T1..(GEN,V)198808-199909

5-LEAF,W(185R14C TIRE)

main48210-35640iYN81,86..T1199008-199708

5-LEAF,W(195R15 TIRE)

main48210-35640iYN80,85,87..T1..GEN198808-199909

5-LEAF,W(6.50-14 OR 185R14C TIRE)

main48210-35750iLN85,YN85,86,87..TW1..(GEN,V)198808-199909

5-LEAF

main48210-35760iLN85,YN86..TW1..(GEN,V)198808-199909

5-LEAF,W(185R14C TIRE)

main48210-35760iYN85,87..TW1198808-199708

5-LEAF,W(6.50-14 OR 185R14C TIRE)

main48210-35760iYN86..TW1199008-199708

5-LEAF,W(195R15 TIRE)

main48210-35760iLN85..DLX;LN86,RN85..TW1198808-200106

5-LEAF

main48210-35780iRN125198907-199308

5-LEAF

main48210-35881iLN200200106-200304

6-LEAF

sub48210-35882

main48210-35882iLN200200304-200409

6-LEAF

sub48210-35A10

main48210-35A10iLN200200410-200412

6-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18012iLN90,RN125,90,YN92..ARL,GEN,V198808-199708

main90385-18013iLN90..TH;LN8#,RN8#,YN8#..ARL,GEN,V198808-200106

main90385-18019iLN200,RZN200200106

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86198808-200106

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18020iLN200,RZN200200106

main90385-18046iLN8#,90,RN8#,90,YN8#,9#198808-200106

48341BUMPER, REAR SPRING

main48341-35050iRN90;LN80,85,90,YN8#,92..GEN,V198808-199909

main48341-35060iRN85;LN8#,90,RN80,YN80,85,87,90..ARL,TH,V198808-200106

main48341-35060iYN81,86199108-199708

W(195R15 TIRE)

main48341-35060iYN80,85,87..GEN198808-199909

W(6.50-14 OR 185R14C TIRE)

main48341-35060iLN80,85..GEN198808-199909

W(185R14C TIRE)

48414BBRACKET, SPRING, NO.3 RH

main48414-35120iLN90,RN90,YN92..GEN,V198808-199708

main48414-35130iRN90..ARL198808-199708

SEVERE USAGE PACKAGE

main48414-35130iLN200,RZN200200106

main48414-35160iRN85..EFI..CBU;LN86,RN85,YN86..V;LN80,81,85,RN80,YN80,81,85,87..GEN,V198808-199909

main48414-35170iRN85..EFI..CBU;LN86,RN85,YN86..V;LN80,81,85,RN80,YN80,81,85,87..GEN,V198808-199909

SEVERE USAGE PACKAGE

main48414-35170iLN85,YN85..ARL;LN86,RN85,YN86..(CBR,DSL)..(ARL,GEN)198808-200106

main48414-35190iRN125198907-199308

48415BBRACKET, SPRING, NO.3 LH

main48414-35160iRN85..EFI..CBU;LN86,RN85,YN86..V;LN80,81,85,RN80,YN80,81,85,87..GEN,V198808-199909

main48414-35170iRN85..EFI..IV3;LN86,YN86..ARL,GEN;RN85..LHD..CBR..GEN..CBU;RN85,YN85..RHD..(4FC,5F)198808-200106

main48414-35170iRN85..EFI..CBU;LN86,RN85,YN86..V;LN80,81,85,RN80,YN80,81,85,87..GEN,V198808-199909

SEVERE USAGE PACKAGE

main48415-35050iLN90,RN90,YN92..GEN,V198808-199708

main48415-35060iLN200,RZN200200106

main48415-35060iRN90..ARL198808-199708

SEVERE USAGE PACKAGE

main48415-35080iRN125198907-199308

48416BRACKET, SPRING, NO.4

main48416-35080iLN8#,90,RN125,8#,90,YN8#,92..ARL,GEN,V198808-200106

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iLN8#,90,RN8#,90,YN8#,92..ARL,GEN,V198808-200106

main48505-35040iRN125198907-199308

main48505-35070iLN200,RZN200200106

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35010iLN200,RZN200198907-199308

main48506-35030iLN8#,90,RN8#,90,YN8#,9#198808-200106

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39935iLN8#,RN8#,YN8#..ARL,GEN,V198808-199607

sub48531-80513

main48531-39975iLN90,RN90,YN92..ARL,GEN,V198808-199607

sub48531-80514

main48531-80081iRN125198907-199308

sub48531-80501

main48531-80513iLN8#,RN8#,YN8#..ARL,GEN,V199607-199807

sub48531-80664

main48531-80514iRN90,YN92199607-199708

main48531-80664iLN8#,RN85,YN85199807-200008

MARK 48531-35611

sub48531-80699

main48531-80669iLN200,RZN200200106

MARK 48531-3D061

main48531-80699iLN86200008-200106

MARK 48531-35612

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main90385-19004iRN125198907-199308

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main90948-03011iLN200,RZN200200106

main90948-03020iRN125198907-199308

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011iRN125198907-199308

main90948-03012iLN8#,90,RN8#,90,YN8#,9#198808-200106

main90948-03020iLN200,RZN200200106

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03011iRN125198907-199308

main90948-03012iLN8#,90,RN8#,90,YN8#,9#198808-200106

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main90948-03020iRN125198907-199308

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39935iLN8#,RN8#,YN8#..ARL,GEN,V198808-199607

sub48531-80513

main48531-39975iLN90,RN90,YN92..ARL,GEN,V198808-199607

sub48531-80514

main48531-80513iLN8#,RN8#,YN8#..ARL,GEN,V199607-199807

sub48531-80664

main48531-80514iRN90,YN92199607-199708

main48531-80664iLN8#,RN85,YN85199807-200008

MARK 48531-35611

sub48531-80699

main48531-80699iLN86200008-200106

MARK 48531-35612

main48541-39145iRN125198907-199308

sub48541-39146

main48541-39316iLN200,RZN200200106

MARK 48541-35231

9010514025

main90105-14025

9011908686

main90119-08686

9011908747

main90119-08747

9017914039

main90179-14039

9020114005

main90201-14005

9020114025

main90201-14025

9020115012

main90201-15012

9161161025

main91611-61025

9411551400

main94115-51400

9451201400

main94512-01400
