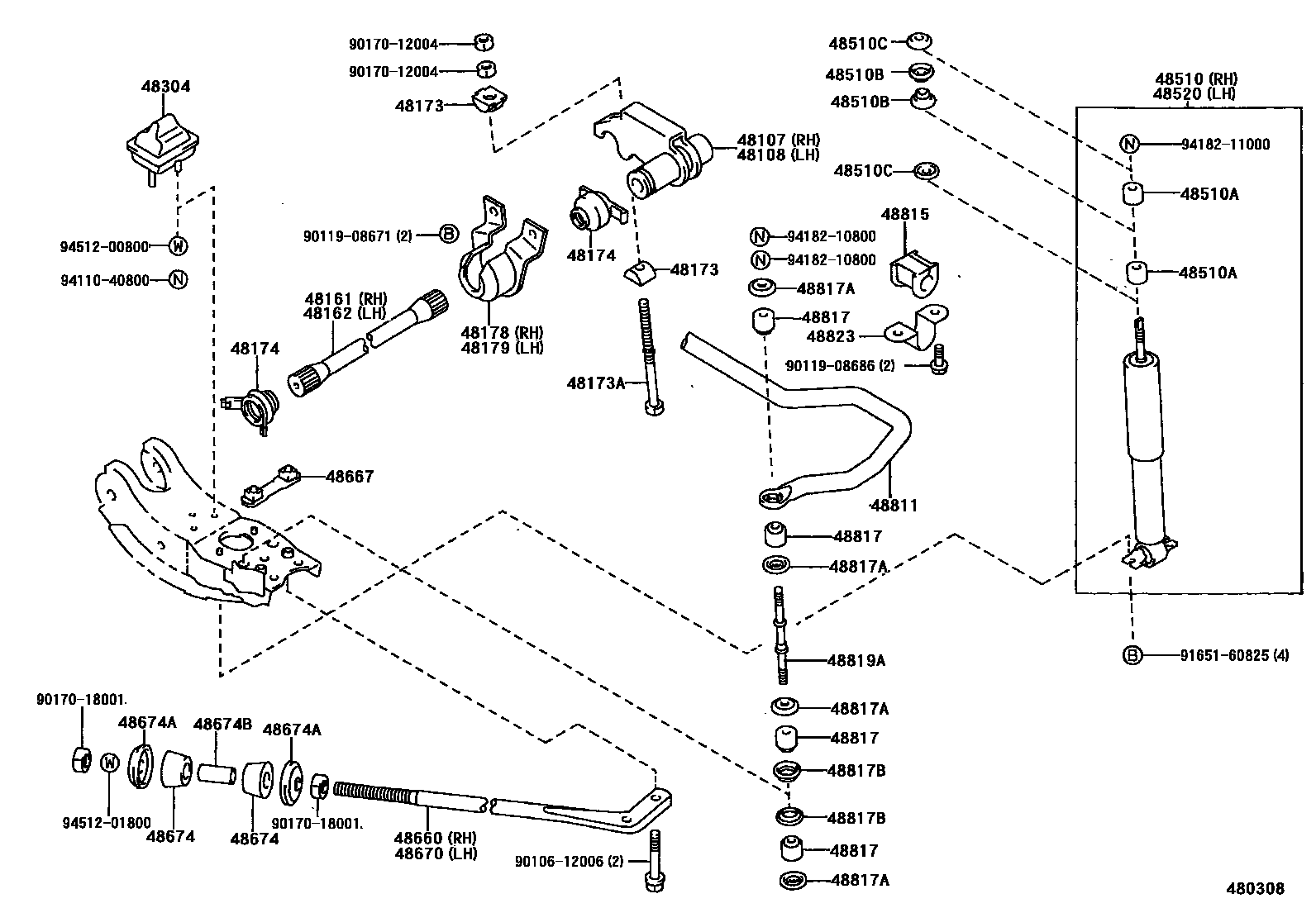

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35040iLN8#,90,RN8#,90,YN8#,92198808-199108

main48107-35050iRN125198907-199308

main48107-35060iLN8#,90,RN8#,90,YN8#,9#199108-200106

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35040iLN8#,90,RN8#,90,YN8#,92198808-199108

main48108-35050iRN125198907-199308

main48108-35060iLN8#,90,RN8#,90,YN8#,9#199108-200106

48161SPRING, TORSION BAR, RH

main48161-35040iYN92198808-199708

main48161-35110iRZN200200106

main48161-35130iLN200200106

main48161-35160iRN90198808-199708

main48161-35170iRN8#,YN8#..ARL,GEN,V198808-199909

main48161-35210iLN90;LN80,85,YN90..TH198808-199806

main48161-35220iLN8#..ARL,GEN,V198808-200106

main48161-35250iRN125198907-199308

48162SPRING, TORSION BAR, LH

main48162-35040iYN92198808-199708

main48162-35110iRZN200200106

main48162-35130iLN200200106

main48162-35160iRN90198808-199708

main48162-35170iRN8#,YN8#198808-199909

main48162-35210iLN80,85,9#..TH198808-199806

main48162-35220iLN8#..ARL,GEN,V198808-200106

main48162-35250iRN125198907-199308

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

UPR

main48173-35010iLN200,RZN200198907-199308

LWR

main48173-35020iLN200,RZN200198907-199308

UPR

main48173-35030iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

LWR

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104iLN8#,90,RN8#,90,YN8#,9#198808-200106

main90101-12159iRN125198907-199308

48174COVER, TORSION BAR DUST

main48174-26010iLN200,RZN200198907-199308

main48174-35010iLN8#,90,RN8#,90,YN8#,92198808-199108

FR

main48174-35020iLN8#,90,RN8#,90,YN8#,92198808-199108

RR

main48174-35030iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199108-200106

sub48174-35031

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-35020iLN8#,90,RN8#,90,YN8#,92198808-199108

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48178-35020iLN8#,90,RN8#,90,YN8#,92198808-199108

main48179-35030iRN125198907-199308

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-04010iLN8#,90,RN8#,90,YN8#,9#199208-200106

(L)

main48304-35120iRN125198907-199308

main48304-35130iLN8#,90,RN8#,90,YN8#,9#198808-200106

(J)

main48304-35170iLN200,RZN200200106

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39675iLN90,YN90..TH198910-199501

sub48511-39676

main48511-39685iLN81,86,RN8#,90,YN81,86..V198808-199607

sub48511-39686

main48511-39686iLN81,86,RN8#,90,YN81,86..V199607-199708

sub48511-39687

main48511-39695iLN90..GEN;LN80,85,86,RN85,90,YN80,85,87,92..ARL,GEN,TH198808-199607

sub48511-39696

main48511-39696iLN80,85,86,RN85,90,YN80,85,86,92..ARL,GEN,TH199607-199807

sub48511-39697

main48511-39765iRN125198907-199308

sub48511-39766

main48511-80061iLN8#,RN85,YN85199807-200008

MARK 48511-3D170

sub48511-80089

main48511-80065iLN200200106-200401

MARK 48511-3D101

main48511-80066iRZN200200106-200401

MARK 48511-3D151

main48511-80089iLN86200008-200106

MARK 48511-3D171

main48511-80111iLN200200401

MARK 48511-3D101

sub48511-80066

main48511-80112iRZN200200401

MARK 48511-3D151

sub48511-80065

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iLN8#,90,RN8#,90,YN8#,9#198808-200106

main90948-01003iRN125198907-199308

L=15

main90948-01045iRN125198907-199308

L=21

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02005iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main90948-02131iRN125198907-199308

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02069iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main90948-02119iLN200,RZN200198907-199308

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39675iLN90,YN90..TH198910-199501

sub48511-39676

main48511-39685iLN81,86,RN8#,90,YN81,86..V198808-199607

sub48511-39686

main48511-39686iLN81,86,RN8#,90,YN81,86..V199607-199708

sub48511-39687

main48511-39695iLN90..GEN;LN80,85,86,RN85,90,YN80,85,87,92..ARL,GEN,TH198808-199607

sub48511-39696

main48511-39696iLN80,85,86,RN85,90,YN80,85,86,92..ARL,GEN,TH199607-199807

sub48511-39697

main48511-39765iRN125198907-199308

sub48511-39766

main48511-80061iLN8#,RN85,YN85199807-200008

MARK 48511-3D170

sub48511-80089

main48511-80065iLN200200106-200401

MARK 48511-3D101

main48511-80066iRZN200200106-200401

MARK 48511-3D151

main48511-80089iLN86200008-200106

MARK 48511-3D171

main48511-80111iLN200200401

MARK 48511-3D101

sub48511-80066

main48511-80112iRZN200200401

MARK 48511-3D151

sub48511-80065

48660BAR ASSY, STRUT, RH

main48661-35030iLN8#,9#,RN8#,90,YN8#,9#198808-200106

48667RETAINER, STRUT BAR

main48667-35020iLN8#,9#,RN8#,90,YN8#,9#198808-199709

sub48667-35030

main48667-35030iLN8#,9#,RN85,YN85199709-200106

48670BAR ASSY, STRUT, LH

main48671-35030iLN8#,9#,RN8#,90,YN8#,9#198808-200106

48674CUSHION, STRUT BAR

main48674-22021iLN8#,9#,RN8#,90,YN8#,9#198808-200106

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iLN8#,9#,RN8#,90,YN8#,9#198808-200106

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iLN8#,9#,RN8#,90,YN8#,9#198808-200106

48811BAR, STABILIZER, FRONT

main48811-35180iRN8#,90198808-199909

main48811-35210iYN81,85,86..ARL,V198808-199708

main48811-35230iLN80,85,90..TH199001-199608

main48811-35290iYN80,85,86,87,92..GEN198808-199909

main48811-35330iRN125198907-199108

main48811-35350iRN125199108-199308

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iRN125,8#,90,YN8#..ARL,TH,V198808-199909

main48815-24010iYN80,85,86,87,92..GEN198808-199909

48817CUSHION, FRONT STABILIZER

main48817-30010iRN85,90,YN80,85,87,92;LN80,85,90,RN80,YN81,86,90..TH,V198808-199909

main90948-01002iLN200,RZN200198907-199308

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iRN125198907-199308

main90948-02032iRN8#,90,YN8#,92198808-199909

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iRN85,90,YN80,85,87,92;LN80,85,90,RN80,YN81,86,90..TH,V198808-199909

main90948-02034iRN125198907-199308

48819ABOLT, FRONT STABILIZER

main48819-35020iRN8#,90,YN8#,92198808-199909

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-35050iRN8#,90,YN8#,92198808-199909

9010612006

main90106-12006

9011908671

main90119-08671

9011908686

main90119-08686

9017012004

main90170-12004

9017018001

main90170-18001

9165160825

main91651-60825

9411040800

main94110-40800

9418210800

main94182-10800

9418211000

main94182-11000

9451200800

main94512-00800

9451201800

main94512-01800

39 parts on this diagram · 4 diagrams in section
