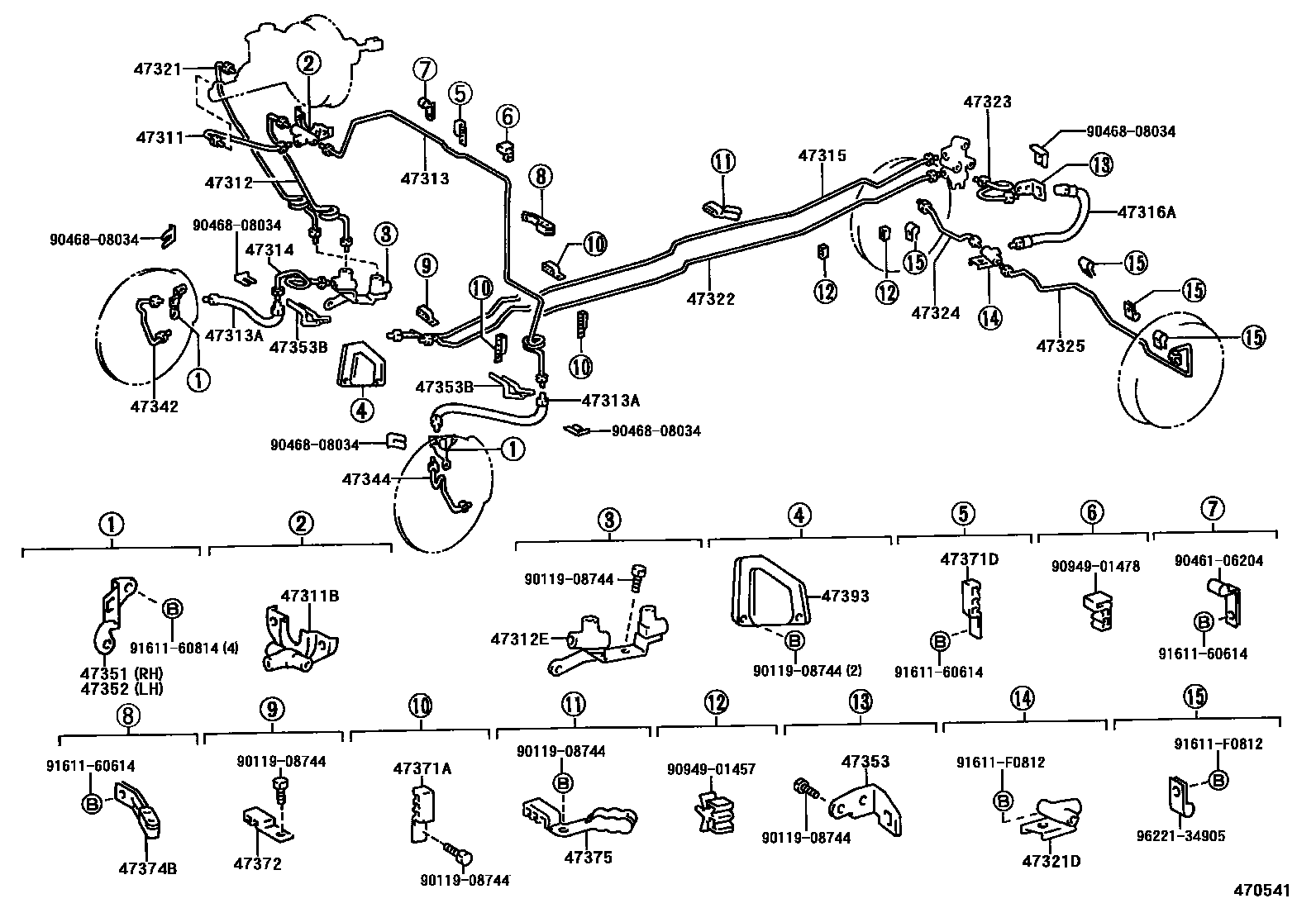

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1W/O(ABS) 0007 1W/O(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1 0011 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-35440iRN85198808-199909

main47311-35450iYN85..RHD..GEN;LN80,85,86,9#,RN85,90..RHD198808-199909

main47311-35460iYN80,85,87,9#..RHD198808-199909

W(FR DISC BRAKE)

main47311-35500iLN200..SRV200106

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10111iLN85,RN85,YN85198808-199909

main90413-10226iYN87,92..RHD;YN80,85,90..ARL,TH198808-199708

main90413-10226iYN85..RHD..GEN198808-199909

W(FR DISC BRAKE)

47312TUBE, FRONT BRAKE, NO.2

main47312-35610iRN85,90,YN85..ARL198808-199708

main47312-35830iLN86..GEN199703-200106

main47312-3D050iRN125198907-199008

main47312-3D090iYN80,85..LHD198808-199708

W(FR DISC BRAKE)

main47312-3D090iRN8#,90,YN81,86,87,92..LHD198808-199909

main47312-3D110iYN80,85..LHD198808-199708

main47312-3D120iLN86..V;LN81,85,90..LHD198808-199806

main47312-3D130iRN85..RHD..GEN;LN80,85,9#..RHD..TH198808-199812

main47312-3D130iYN85..RHD..GEN198808-199909

W(FR DISC BRAKE)

main47312-3D140iLN80,85,YN85..RHD..GEN198808-199909

main47312-3D150iLN85,86..ARL198808-199708

main47312-3D230iRN125199008-199308

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10108iLN8#,90,RN8#,90,YN8#,9#..GEN,TH,V198808-199909

main90412-10135iRN125198907-199308

main90413-10233iLN200,RZN200..DLX,STD200106

main90415-10006iLN86..ARL,GEN;LN85,RN85,90,YN85..ARL198808-200106

main90904-12027iRZN200200106

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-35610iRN8#,90,YN81,86,87,92..LHD198808-199909

main47313-35610iYN80,85..LHD..CBU;YN85..T1..5F..IV3;YN85..4F..GEN..IV3198808-199708

W(FR DISC BRAKE)

main47313-35620iLN86198808-200106

main47313-35630iYN85..RHD..GEN198808-199909

W(FR DISC BRAKE)

main47313-35630iYN87,92..RHD;YN80,85,90..ARL,TH198808-199708

main47313-35640iYN85..RHD..GEN;LN80,85,86..RHD..(ARL,GEN)198808-199909

main47313-35660iRN85..RHD;LN85..RHD..TH;LN80,9#,RN90..ARL,TH198808-199812

main47313-35700iRN125198907-199008

main47313-35780iRN125199008-199308

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02447iLN8#,9#,RN8#,90,YN8#,92199508-200106

main90947-02581iLN8#,90,RN8#,90,YN8#,9#198808-199508

sub90947-02447

main90947-02957iLN200,RZN200200106

main96950-33656iRN125198907-199308

sub96950-33657

47314TUBE, FRONT BRAKE, NO.4

main47314-35170iLN86..ARL,GEN;LN85,RN85,90,YN85..ARL198808-200106

47315TUBE, FRONT BRAKE, NO.5

main47315-35140iLN200,RZN200..DLX,STD200108

main47315-35180iLN86..T1..(ARL,GEN);LN85,RN85,YN85..STD..ARL198808-200106

main47315-35200iRN90..ARL198808-199708

main47315-35210iLN85,86,RN85..TW1..DLX..(ARL,GEN)198808-200106

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02582iLN80,85,YN80,85..GEN198808-199909

sub90947-02488

main90947-02958iLN200,RZN200200106

main96940-34205iLN80,85,YN80,85..GEN199508-199909

RR W/C ID=22.22

main96940-34205iYN85..ARL;LN81,86,RN8#,90,YN81,86,92199508-200106

main96940-34206iLN80,85,YN80,85..GEN198808-199508

RR W/C ID=22.22

sub96940-34205

main96940-34406iRN125198907-199308

sub96940-34405

main96940-34605iLN80,85,9#..TH199508-199806

main96940-34606iLN80,85,90,YN80,85,87,90..TH199001-199508

sub96940-34605

47321TUBE, REAR BRAKE, NO.1

main47321-35460iYN85..ARL198808-199708

main47321-35460iYN85..RHD..GEN198808-199909

W(FR DISC BRAKE)

main47321-35480iLN80,85,86..RHD..(ARL,GEN)198808-199909

main47321-35490iLN81,85,86,90..LHD198808-200106

main47321-35510iYN80,85..LHD198808-199708

W(FR DISC BRAKE)

main47321-35510iRN8#,90,YN81,86,87,92..LHD198808-199909

main47321-35530iRN85,90..RHD198808-199812

main47321-35590iYN80,85..LHD198808-199708

main47321-35600iYN85..RHD..GEN198808-199909

main47321-35620iRN125198907-199307

main47321-35650iLN80,85,9#..RHD..TH198910-199806

main47321-35730iRN125199307-199308

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10162iRN125198907-199308

main90413-10198iLN8#,90,RN8#,90,YN8#,9#198808-200106

main90904-13036iLN200,RZN200200106

47322TUBE, REAR BRAKE, NO.2

main47322-35450iLN200,RZN200..DLX,STD200108

main47322-35460iRN125198907-199308

sub47322-35461

main47322-35480iLN80,YN80..GEN198808-199708

main47322-35490iLN80,81,RN80,YN81..TH,V198808-199806

main47322-35490iLN80,YN80..GEN198808-199708

RR W/C ID=22.22

main47322-35500iLN85,YN85..T1..GEN198808-199909

main47322-35510iLN85,YN85..STD..ARL;LN86,RN85,YN86,87..T1..(ARL,GEN,V)198808-200106

main47322-35510iLN85,YN85..T1..GEN198808-199909

RR W/C ID=22.22

main47322-35540iLN9#,RN90,YN92198808-199806

main47322-35550iLN85,YN85..TW1..GEN198808-199909

main47322-35560iLN85..DLX;LN86,RN85,YN86,87..TW1198808-200106

main47322-35560iLN85,YN85..TW1..GEN198808-199909

RR W/C ID=22.22

47323TUBE, REAR BRAKE, NO.3

main47323-35100iLN8#,9#,RN8#,90,YN8#,9#198808-200106

main47323-35120iRN125198907-199308

main47323-35190iLN200,RZN200200108

47324TUBE, REAR BRAKE, NO.4

main47324-35160iRN125198907-199308

main47324-35180iRN90..ARL198808-199708

main47324-35200iLN80,85,YN80,85..GEN198808-199909

main47324-35230iLN80,85,YN80,85..GEN199410-199909

W(FR DISC BRAKE)

main47324-35230iRN90..V;LN8#,90,RN8#,YN8#,9#199408-200106

main47324-35250iLN200,RZN200200108

47325TUBE, REAR BRAKE, NO.5

main47325-35170iRN125198907-199308

main47325-35190iRN90..ARL198808-199708

main47325-35210iLN80,85,86,90,RN85,YN80,85,9#..ARL,GEN,TH198808-199909

main47325-35240iLN81,86,RN8#,90,YN81,86..V199208-199408

main47325-35250iRN85,YN92..ARL,GEN;LN80,85,86,90,YN80,85,90..ARL,TH199408-200106

main47325-35250iLN80,85,YN80,85..GEN199410-199909

W(FR DISC BRAKE)

main47325-35260iLN81,86,RN8#,90,YN81,86..V199408-199708

main47325-35290iLN200,RZN200200108

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35080iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

main47341-35100iRN125198907-199308

main47341-35110iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

W(FR DISC BRAKE)

main47341-35110iLN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V198808-200106

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35080iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

main47343-35100iRN125198907-199308

main47343-35110iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

W(FR DISC BRAKE)

main47343-35110iLN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V198808-200106

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35100iLN80,85,YN80,85..GEN198808-199909

main47351-35100iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU199010-199108

KENYA SPEC

main47351-35160iRN90..ARL198808-199708

main47351-35170iRN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V198808-200106

main47351-35170iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

W(FR DISC BRAKE)

main47351-35300iLN200,RZN200..DLX,STD200106

main47351-35310iLN200..SRV200106

W(ABS)

main47352-35170iRN125198907-199308

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35100iLN80,85,YN80,85..GEN198808-199909

main47352-35100iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU199010-199108

KENYA SPEC

main47352-35180iRN90..ARL198808-199708

main47352-35190iRN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V198808-200106

main47352-35190iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

W(FR DISC BRAKE)

main47352-35350iLN200,RZN200..DLX,STD200106

main47352-35360iRZN200200106

W(ABS)

main47354-35080iRN125198907-199308

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35200iLN8#,9#,RN8#,90,YN8#,9#198808-200106

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35060iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199108-200106

RH

main47353-35060iYN90199401-199503

LH

main47353-35070iYN90199401-199503

RH

main47353-35070iLN8#,90,RN8#,90,YN8#,92199108-200106

LH

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35070iRN85,YN85,86,87;LN8#,90,RN80,YN80,81..T1198808-200106

main47371-35080iRN85..EFI;LN85,86..TW1198808-200106

main47371-35230iRZN200;LN200..SRV200106

W(ABS)

47371DCLAMP, BRAKE TUBE, NO.8

main47372-35080iLN8#,90,RN125,8#,90,YN8#,9#198808-200106

47372CLAMP, BRAKE TUBE, NO.2

main47372-35030iLN8#,90,RN125,8#,90,YN8#,9#198808-200106

47374BCLAMP, BRAKE TUBE, NO.4

main47373-35040iRN125198907-199308

main47373-35050iLN200,RZN200200106

main47374-35020iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD198808-199909

47375CLAMP, BRAKE TUBE, NO.5

main47375-35060iLN85,86..TW1198808-200106

main47375-35070iLN8#,9#..T1198808-200106

main47375-35080iRN85,YN85,86,87..TW1..CBR198808-199909

main47375-35090iRN85..T1..EFI199401-199909

main47375-35100iRN8#,90,YN8#,92..T1..CBR..(ARL,GEN,V)198808-199909

main47375-35110iRN85..TW1..EFI199401-199909

47393INSULATOR, BRAKE TUBE HEAT

main47393-35051iLN8#,9#198808-200106

main47393-35110iRN125198907-199308

main47393-35160iRZN200200106

9011908744

main90119-08744

9046106204

main90461-06204

9046808034

main90468-08034

9094901457

main90949-01457

9094901478

main90949-01478

9161160614

main91611-60614

9161160814

main91611-60814

91611F0812

main91611-F0812

9622134905

main96221-34905

36 parts on this diagram · 10 diagrams in section
