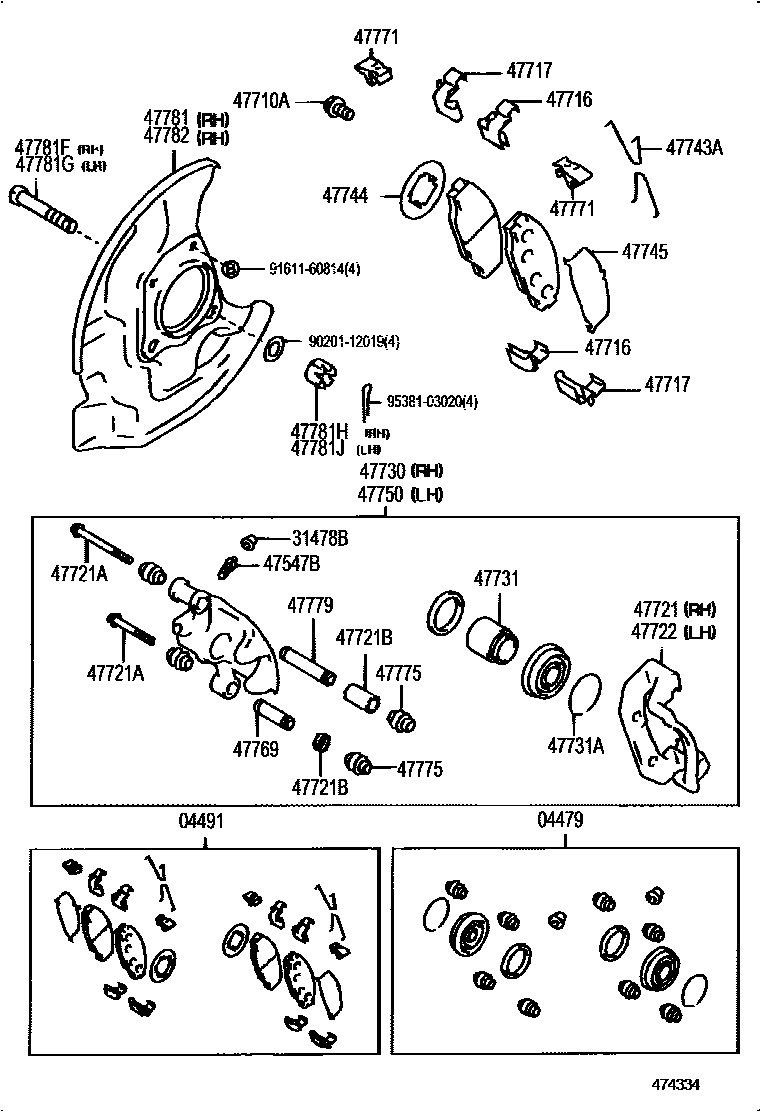

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22020iRN90..ARL198808-199708

main04479-35010iRN125198907-199308

main04479-35050iLN85,RN85,YN85199711-200002

main04479-40010iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199711

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-22280iRN90198808-199108

sub04465-22180

main04491-35160iRN125198907-199108

sub04465-35040

main04491-35170iRN125199108-199308

sub04491-35171

main04491-35200iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199505

sub04465-35020

main04491-35230iRN90..ARL199108-199505

sub04465-22090

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN8#,9#,RN125,8#,90,YN8#,9#198808-199909

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199909

main47547-20030iRN125198907-199308

main47547-35020iRN90..ARL198808-199708

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iRN125198907-200412

*12-1.25PX38-23

main90119-12058iLN8#,9#,RN8#,90,YN8#,9#198808-200106

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iRN90..V;LN8#,9#,RN8#,YN8#,9#199110-200002

main47716-35010iRN90..ARL198808-199708

main47716-40010iLN8#,90,RN8#,YN8#,92198808-199110

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010iRN90..V;LN8#,9#,RN8#,YN8#,9#199110-200002

main47717-35010iRN90..ARL198808-199708

main47717-40010iLN8#,90,RN8#,YN8#,92198808-199110

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-04021iRN90..ARL199210-199708

(L)

main47721-26050iLN85,RN85,YN85198808-200002

main47721-35020iRN90..ARL198808-199708

(J)

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199909

*10-1.25PX65.5-30

main90119-10249iLN85,RN85,YN85198808-199909

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLN85,RN85,YN85198808-199909

SUB

main90387-16005iLN85,RN85,YN85198808-199909

MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

main47722-04021iRN90..ARL199210-199708

(L)

main47722-35020iRN90..ARL198808-199708

(J)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-04021iRN90..ARL199210-199708

(L)

main47730-26080iLN86198808-200002

main47730-35050iRN90..ARL198808-199708

(J)

main47730-35080iRN125198907-199308

47731PISTON, FRONT DISC BRAKE

main47731-35010iRN125198907-199308

main47731-35020iRN90..ARL198808-199708

main47731-40010iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199909

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iLN85,RN85,YN85199711-199909

main90522-48044iRN125198907-199308

main90522-70001iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199711

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

main47744-35020iRN125198907-199308

main47744-35030iRN90..ARL198808-199708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020iRN125198907-199308

main47745-35030iRN90..ARL198808-199708

main47745-40020iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-04021iRN90..ARL199210-199708

(L)

main47750-26080iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

main47750-35050iRN90..ARL198808-199708

(J)

main47750-35080iRN125198907-199308

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199909

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iRN90..ARL198808-199708

main47771-35010iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200002

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iLN85,RN85,YN85198808-199909

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLN85,RN85,YN85198808-199909

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35030iRN90..ARL198808-199708

main47781-35080iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199710

main47781-35140iLN8#,9#,RN85,YN85199710-200106

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90101-12187iLN86199912-200106

FRONT

main90101-12190iLN86199912-200106

REAR

main90102-12006iLN8#,9#,RN8#,90,YN8#,9#198808-199912

FRONT

main90102-12011iLN8#,9#,RN8#,90,YN8#,9#198808-199912

REAR

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90101-12187iLN86199912-200106

FRONT

main90101-12190iLN86199912-200106

REAR

main90102-12006iLN8#,9#,RN8#,90,YN8#,9#198808-199912

FRONT

main90102-12011iLN8#,9#,RN8#,90,YN8#,9#198808-199912

REAR

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12006iLN80198808-198809

FRAME,BODY,CHASSIS FORTIFICATION & W(FR DISC BRAKE)

main90171-12006iLN85,YN80,85..GEN198808-199909

W(FR DISC BRAKE)

main90171-12006iLN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V198808-199912

main90178-12004iLN86199912-200106

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12006iLN85,YN80,85..GEN198808-199909

W(FR DISC BRAKE)

main90171-12006iLN85,YN80,85..GEN198808-198809

FRAME,BODY,CHASSIS FORTIFICATION & W(FR DISC BRAKE)

main90171-12006iLN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V198808-199912

main90178-12004iLN86199912-200106

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35030iRN90..ARL198808-199708

main47782-35080iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-199710

main47782-35140iLN8#,9#,RN85,YN85199710-200106

9020112019

main90201-12019

9161160814

main91611-60814

9538103020

main95381-03020

31 parts on this diagram · 4 diagrams in section
