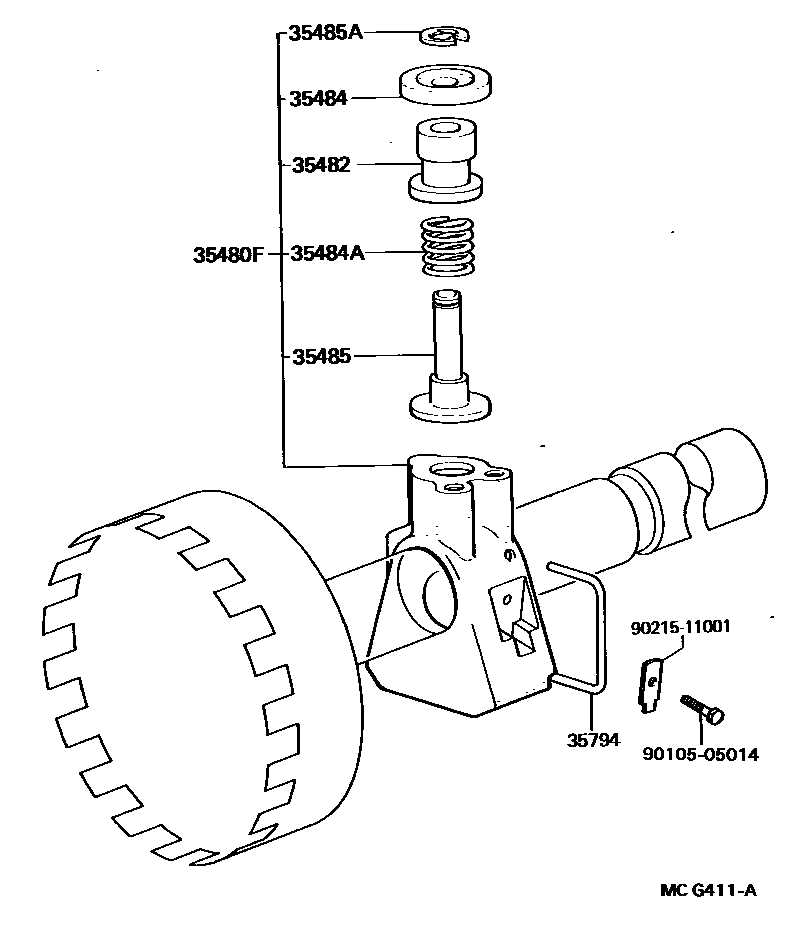

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-30060iRN85,90..4FC198808-199708

main35480-30080iLN85,86,90..4FC198808-199806

35482VALVE, GOVERNOR

main35482-20010iLN85,86,90..4FC198808-199806

main35482-22010iRN85,90..4FC198808-199708

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLN85,86,90..4FC198808-199806

main35484-22010iRN85,90..4FC198808-199708

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLN85,86,90..4FC198808-199806

main90501-09673iRN85,90..4FC198808-199708

35485SHAFT, GOVERNOR VALVE

main35485-22010iLN85,86,90,RN85,90..4FC198808-199806

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLN85,86,90,RN85,90..4FC198808-199806

35794RING, GOVERNOR RETAINING

main35794-22010iLN85,86,90,RN85,90..4FC198808-199806

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
