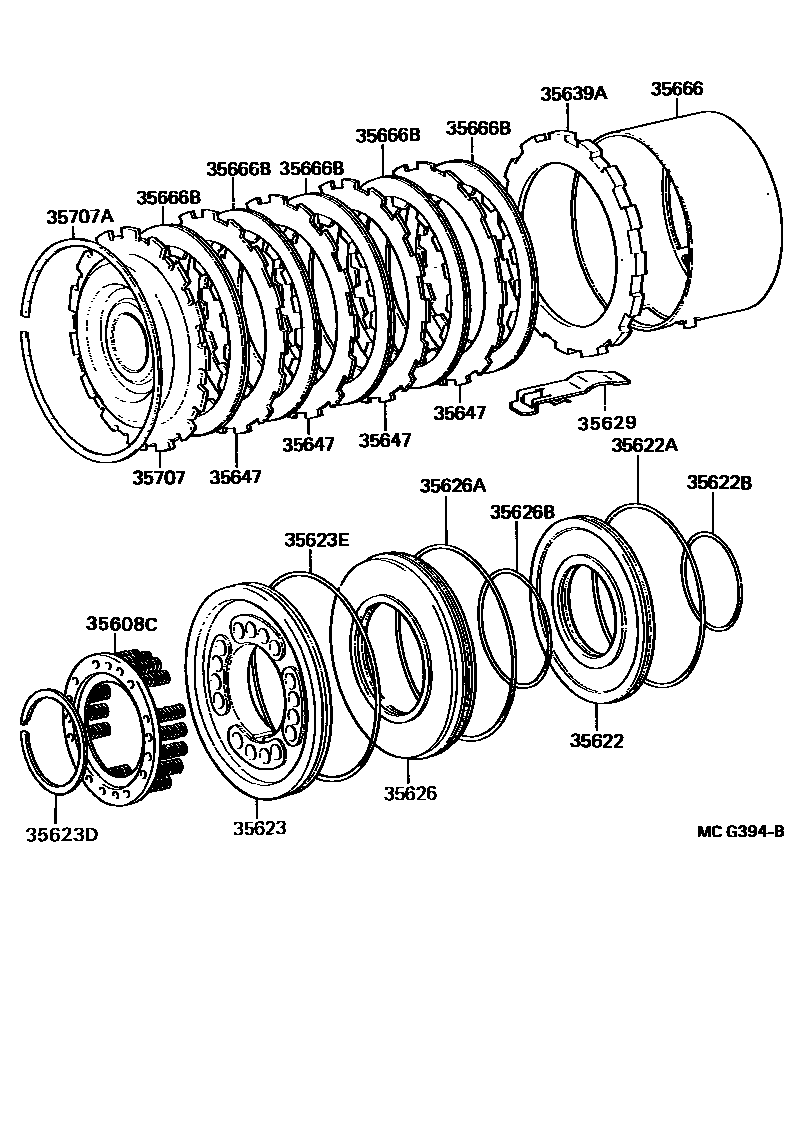

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iLN85,86,90,RN85,90..4FC198808-199806

35622PISTON, BRAKE, NO.2

main35622-22010iLN85,86,90,RN85,90..4FC198808-199806

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iLN85,86,90,RN85,90..4FC198808-199806

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iLN85,86,90,RN85,90..4FC198808-199806

35623PISTON, BRAKE, NO.3

main35623-22010iLN85,86,90,RN85,90..4FC198808-199806

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iLN85,86,90,RN85,90..4FC198808-199806

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99192iLN85,86,90,RN85,90..4FC198808-199806

35626SLEEVE, BRAKE REACTION

main35626-22010iLN85,86,90,RN85,90..4FC198808-199806

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iLN85,86,90,RN85,90..4FC198808-199806

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iLN85,86,90,RN85,90..4FC198808-199806

sub90301-67005

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iLN85,86,90,RN85,90..4FC198906-199806

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iLN85,86,90,RN85,90..4FC198808-199806

35647PLATE, CLUTCH, NO.2

main35647-22010iLN85,86,90,RN85,90..4FC198808-199806

35666TUBE, BRAKE APPLY

main35666-26010iLN85,86,90..4FC198808-199806

main35666-30010iRN85,90..4FC198808-199708

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iRN85,90..4FC198808-199109

sub35633-30060

main35633-30060iRN85,90..4FC199109-199806

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iLN85,86,90,RN85,90..4FC198808-199806

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iLN85,86,90,RN85,90..4FC198808-199806

17 parts on this diagram · 1 diagram in section
