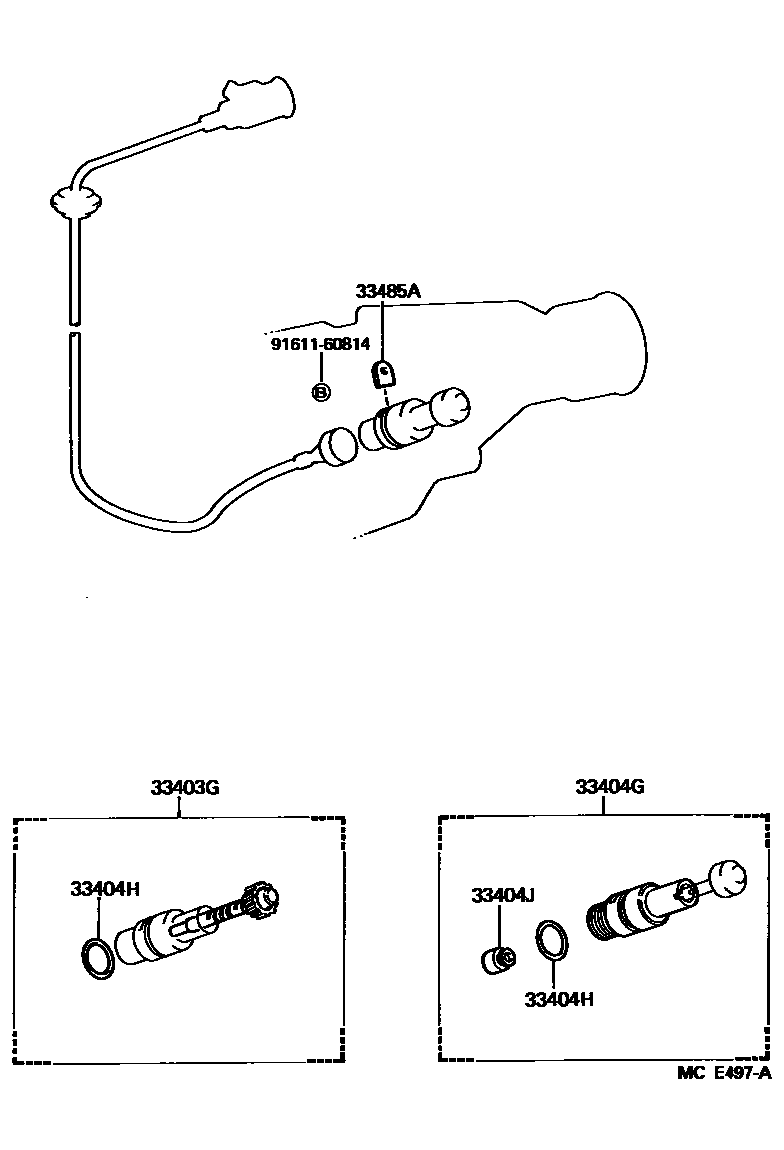

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0003 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iLN86..4FC198808-199708

N=19,MARK 19:5

main33403-39185iRN85,90..4FC198808-199708

N=17,MARK 17:5

main33403-39205iLN85..4FC..GEN198808-199108

N=18,MARK 18:5,W(185R14C TIRE)

main33403-69135iLN85..4FC..GEN198808-199108

N=19,MARK 19:6

main33482-39315iLN90..4FC199611-199806

N=21,MARK 21:6

main33482-39375iRN85,90..4FC199108-199408

N=17,MARK L

sub33482-39901

main33482-39395iLN86..4FC199108-199408

N=19,MARK S

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLN85,RN85,90..4FC198808-199806

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLN86,90,RN85,90..4FC198808-199806

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN85,RN85,90..4FC198808-199806

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLN85,RN85,90..4FC198808-199806

9161160814

main91611-60814

6 parts on this diagram · 2 diagrams in section
