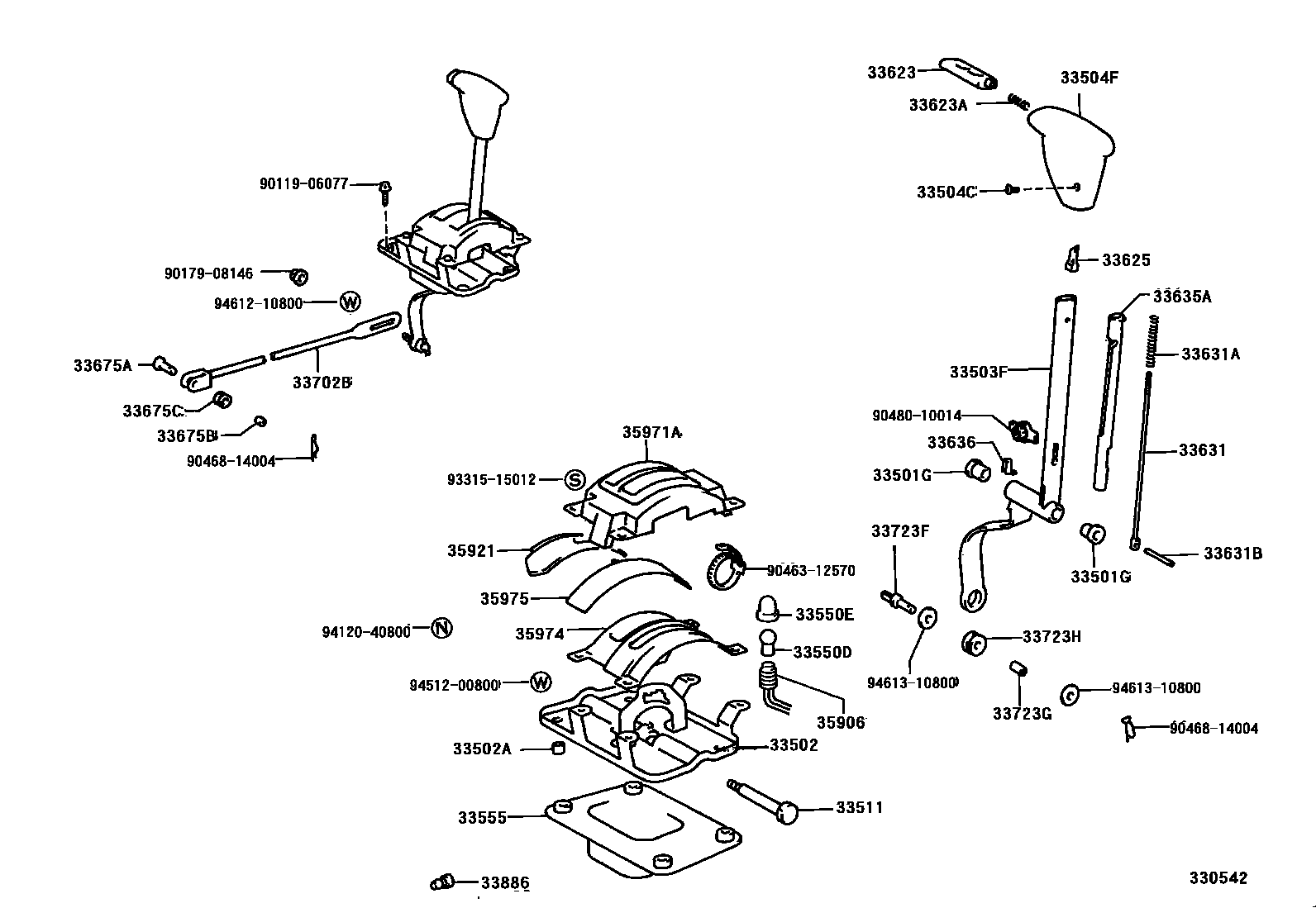

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0009 1 0010 1 0011 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iLN86,90,RN85,90..4FC198808-199806

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-35170iLN85,RN85,90..RHD..4FC198808-199108

main33502-35180iLN85..LHD..4FC198808-199108

main33502-35240iLN86,90,RN85,90..4FC199108-199806

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iLN85,86,90,RN85,90..4FC198808-199806

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-35090iLN86,90,RN85,90..4FC199108-199806

main33503-35080iLN85,RN85,90..RHD..4FC198808-199108

main33503-35090iLN85..LHD..4FC198808-199108

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109iLN86,90,RN85,90..4FC198808-199806

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B0iLN200200106-200412

MEDIUM GRAY,TRIM1#

sub33504-12180

main33504-14040-01iYN80,85..4F198808-199108

BLACK,TRIM1#,4#,8#

sub33504-14040

main33504-14040-23iYN80,85..4F..(GEN,TH)199108-199309

GRAY,TRIM1#

sub33504-14040

main33504-14040-54iYN80,85..4F..(GEN,TH)199108-199408

BLUE,TRIM8#

sub33504-14040

main33504-14050-01iYN86..STD;LN8#,90,RN8#,YN81,85,87,92..5F..(DLX,STD)..(ARL,GEN,V)198808-199108

BLACK,TRIM1#,4#,8#

sub33504-14050

sub33504-14070

main33504-14050-10iRN85..T1..GEN;RN85..LHD..TW1..(DLX,STD);YN80,85,86..5F..STD..(GEN,TH,V);LN8#,RN125,80,90,YN81,92..5F..(DLX,STD)..(GEN,V)199108-199408

LEATHER,BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14050-10iRN85..T1..V199204-199708

POLYPROPYLENE,BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14050-10iYN86..STD..V;LN81,86,RN8#,90,YN81..(DLX,STD)..V199408-199708

BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14050-33iYN86..STD;RN85..T1..GEN;RN85..LHD..TW1..(DLX,STD);LN8#,RN125,80,YN81,85,92..5F..(DLX,STD)..(GEN,V)199108-199109

GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-42iRN8#,90..DLX..V199108-199708

RED,TRIM3#

sub33504-14050

sub33504-14070

main33504-14050-42iRN85..T1..V199204-199708

POLYPROPYLENE,RED,TRIM3#

sub33504-14050

sub33504-14070

main33504-14050-S4iYN90199401-199504

MADE IN PHILIPPINE TRANSMISSION,MEDIUM GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-S4iLN85..SR5199310-199806

MADE IN PHILIPPINE TRANSMISSION & VINYL,MEDIUM GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-S4iLN86,RN85..T1;LN85..5F..GEN;RN85..LHD..TW1199110-200106

MEDIUM GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-S4iRN85..T1..V199204-199708

POLYPROPYLENE,MEDIUM GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14060-10iLN85,YN81,86..4F198808-199408

BLUE,TRIM8#

sub33504-14060

sub33504-14040

main33504-14060-43iLN85,YN81,86..4F198808-199909

GRAY,TRIM1#

sub33504-14060

sub33504-14040

main33504-14060-46iLN85..4F198808-199108

BROWN,TRIM4#

sub33504-14060

sub33504-14040

main33504-20100-B3iRZN200200106-200412

MD.GRAY,TRIM1#

sub33504-24010

sub33504-20100

main33504-35020-03iLN91199707-199806

GRAY,TRIM1#

sub33504-22140

main33504-35030-02iRN8#..SR5199008-199708

RED,TRIM3#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-02iYN86..DLX;RN8#,90..SR5..V199108-199708

URETHANE,RED,TRIM3#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-03iLN85,90,RN8#,90,YN86,92..5F..(DLX,SR5)198808-198901

URETHANE,GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-03iLN85,90,RN8#,90,YN86,92..5F..(DLX,SR5)198808-198901

GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-04iLN85,RN85..5F..STD..ARL198808-198901

BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-04iLN85,90,RN8#,90,YN86,92..5F..(DLX,SR5)198808-198901

URETHANE,BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-06iLN85,RN85..5F..STD..ARL198808-199108

URETHANE,BROWN,TRIM4#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-06iRN85..DLX..V;LN85,YN87..RHD..TW1..GEN;LN85,RN8#..T1..5F..(ARL,V)198808-199108

BROWN,TRIM4#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iLN85..TH;LN80,RN125,90,YN86..5F..(ARL,TH,V);LN85,90,RN85,YN92..(DCB,XTR)..5F..(DLX,SR5)..(ARL,GEN,TH)198901-199108

MEDIUM GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iYN86,92..T1..DLX;LN86,YN85..5F..ARL;RN85..RHD..TW1..5F;LN80,85,RN80..(DLX,STD)..(TH,V)199108-199806

MEDIUM GRAY,TRIM11

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iLN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86,92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V)198901-200106

URETHANE,MEDIUM GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iLN85..RHD..TW1;RN85..5F..STD..ARL199108-199408

URETHANE,MEDIUM GRAY,TRIM11

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iYN86..DLX199108-199708

MEDIUM BLUE,TRIM83

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iLN85,90,RN125,8#,90,YN86,92..5F..(DLX,SR5)198901-199708

MEDIUM BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iLN85,90,RN125,8#,90,YN86,92..5F..(DLX,SR5)198901-199708

URETHANE,MEDIUM BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iLN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86,92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V)199108-199708

URETHANE,MEDIUM BLUE,TRIM83

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35040-03iYN85..ARL198808-199208

GRAY,TRIM1#

sub33504-14060

sub33504-35040

main33504-35040-04iYN85..ARL198808-199208

BLUE,TRIM8#

sub33504-14060

sub33504-35040

main33542-20080-13iLN85,86,90,RN85,90..RHD..4FC198808-199806

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-16iLN85,RN85,90..RHD..4FC198808-199108

BROWN,TRIM4#

sub33542-20080

sub33542-20081

main33542-20080-24iLN85,86,RN85,90..RHD..4FC198808-199408

BLUE,TRIM8#

sub33542-20080

sub33542-20081

main33542-20090-13iLN85..LHD..4FC198808-199108

GRAY,TRIM1#

sub33542-20090

main33542-20090-14iLN85..LHD..4FC198808-199108

BLUE,TRIM8#

sub33542-20090

main33542-20090-16iLN85..LHD..4FC198808-199009

BROWN,TRIM4#

sub33542-20090

main33542-20090-E0iLN85..TW1..4FC199009-199108

BROWN,TRIM4#

sub33542-20090

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-22160iLN85,86,90,RN85,90..4FC198808-199806

33550DBULB, POSITION INDICATOR LAMP

main99132-11034iLN85,86,90,RN85,90..4FC198808-199806

12V 3.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-09001iLN85,86,90,RN85,90..4FC199104-199806

33555BOOT, SHIFT LEVER

main33555-30030iYN80,85..4F198808-199408

main33555-35040iLN200,RZN200198808-200106

main33555-35100iLN85,86,90,RN85,90..4FC198808-199806

33623BUTTON, SHIFT LEVER KNOB

main33623-20020-13iLN85,86,90,RN85,90..RHD..4FC198808-199806

GRAY,TRIM1#

sub33623-20020

main33623-20020-16iLN85,RN85,90..RHD..4FC198808-199108

BROWN,TRIM4#

sub33623-20020

main33623-20020-24iLN85,RN85,90..RHD..4FC198808-199408

BLUE,TRIM8#

sub33623-20020

main33623-20030-13iLN85..LHD..4FC198808-199108

GRAY,TRIM1#

sub33623-20030

main33623-20030-14iLN85..LHD..4FC198808-199108

BLUE,TRIM8#

sub33623-20030

main33623-20030-16iLN85..LHD..4FC198808-199009

BROWN,TRIM4#

sub33623-20030

main33623-20030-E0iLN85..TW1..4FC199009-199108

BROWN,TRIM4#

sub33623-20030

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iLN85,86,90,RN85,90..4FC198808-199806

33625SLEEVE, SHIFT LEVER KNOB

main33625-24010iLN85,86,90,RN85,90..4FC198808-199806

33631ROD, DETENT

main33631-30060iLN85,86,90,RN85,90..4FC198808-199806

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07005iLN85,RN85,90..4FC198808-199104

main90501-07074iLN85,86,90,RN85,90..4FC199104-199806

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-04003iLN85,86,90,RN85,90..4FC198808-199806

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-35030iLN85,86,90,RN85,90..4FC198808-199806

33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)

main33636-35010iLN85,86,90,RN85,90..4FC198808-199806

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iLN86,90,RN85,90..4FC199401-199806

main90240-08054iLN85,86,RN85,90..4FC198808-199401

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iLN85,86,90,RN85,90..4FC198808-199806

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17177iLN85,86,90,RN85,90..4FC198808-199806

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-35120iLN85,RN85,90..4FC198808-199108

main33702-35170iLN86,90,RN85,90..4FC199108-199806

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iLN85,86,90,RN85,90..4FC198808-199806

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iLN85,86,90,RN85,90..4FC198808-199806

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177iLN85,86,90,RN85,90..4FC198808-199806

33886STOPPER, SHIFT LEVER

main33886-16010iLN85,86,90,RN85,90..4FC199104-199806

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-10030iLN85..LHD..4FC198808-199108

sub35906-20030

main35906-20030iLN85,86,90,RN85,90..RHD..4FC198808-199806

sub35906-26030

35921PLATE, CONTROL POSITION INDICATOR

main35921-35080iLN85,RN85,90..RHD..4FC198808-199108

main35921-35090iLN85..LHD..4FC198808-199108

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-35020iLN85,86,90,RN85,90..4FC198808-199806

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35030iLN85,RN85,90..4FC198808-199104

sub35974-35050

sub35974-35060

main35974-35050iLN86,90,RN85,90..4FC199210-199806

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35040iLN85,86,90,RN85,90..4FC198808-199806

9011906077

main90119-06077

9017908146

main90179-08146

9046312570

main90463-12570

9046814004

main90468-14004

9048010014

main90480-10014

9331515012

main93315-15012

9412040800

main94120-40800

9451200800

main94512-00800

9461210800

main94612-10800

9461310800

main94613-10800

41 parts on this diagram · 6 diagrams in section
