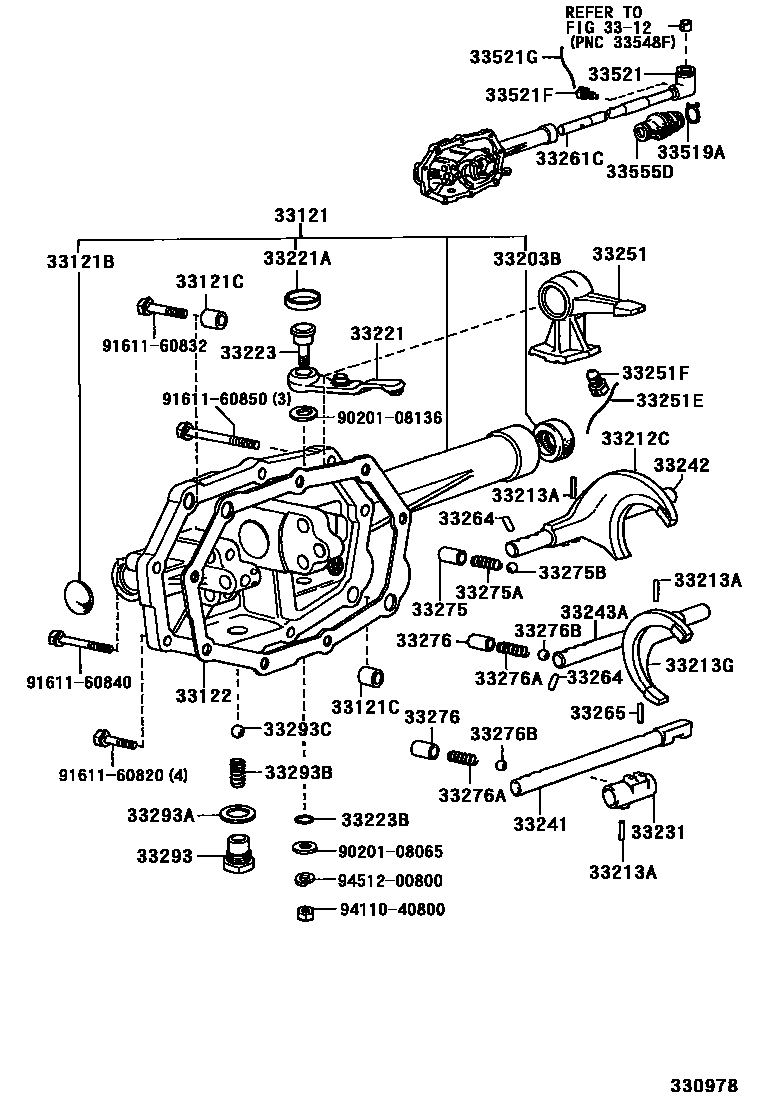

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1G# 0003 1G# 0005 1G# 0007 1W# 0008 1 0009 1

3312

33121COVER, MANUAL TRANSMISSION CASE

main33102-35010iYN80,85..4F¥21,100198808-199108

main33102-38010iYN80,85..4F¥20,100199108-199408

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90330-20011iYN80,85..4F¥120198808-199408

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iYN80,85..4F¥120198808-199408

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iYN80,85..4F¥310198808-199408

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iYN80,85..4F¥160198808-199408

33212CFORK, GEAR SHIFT, NO.1

main33212-28010iYN80,85..4F¥6,000198808-199408

main33212-35023iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM¥2,880198808-200412

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLN86¥110198808-200412

main90254-05016iRN8#,90..V¥140199108-200412

33213GFORK, GEAR SHIFT, NO.2

main33213-22030iRN8#..V¥3,200199108-199110

sub33213-22040¥3,200

main33213-26020iYN80,85..4F¥5,200198808-199408

main33213-30060iRN8#,90..V¥2,550199110-200412

main33213-35032iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM¥2,900198808-199209

sub33213-35033¥2,910

sub33364-26020¥4,190

main33213-35033iLN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH)¥2,910199209-200412

sub33213-35034¥2,010

33221ARM, REVERSE SHIFT

main33221-22020iRN8#,90..V¥880199108-199708

main33221-22021iRZN200¥720200106-200412

main33221-28010iLN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH)¥2,330198808-200412

main33221-30010iYN80,85..4F¥2,510198808-199408

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-42500iYN80,85..4F¥240198808-199408

33223PIVOT, SHIFT ARM

main33223-30011iYN80,85..4F¥1,180198808-199408

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iYN80,85..4F¥390198808-199408

33231HEAD, REVERSE SHIFT

main33231-22040iRN8#,90..V¥1,510199108-199708

main33231-22041iRZN200¥3,740200106-200412

main33231-26010iYN80,85..4F¥3,140198808-199408

main33231-35040iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..5F¥4,430198808-199305

sub33231-35070¥3,080

sub33214-35040¥1,970

sub33244-35050¥2,500

sub33245-35080¥2,930

sub33395-26020¥6,600

sub90105-06143¥90

main33231-35050iLN85,RN8#,YN81,86..4F¥4,440198808-199908

main33231-35070iLN86¥3,080199305-200412

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iYN80,85..4F¥1,390198808-199408

main33244-22021iRN8#..V¥3,590199108-199110

main33244-30050iRN8#,90..V¥3,610199110-199708

main33244-35021iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..5F¥4,220198808-199305

sub33244-35050¥2,500

sub33214-35040¥1,970

sub33231-35070¥3,080

sub33245-35080¥2,930

sub33395-26020¥6,600

sub90105-06143¥90

main33244-35031iLN85,RN8#,YN81,86..4F¥4,240198808-199908

main33244-35050iLN200¥2,500199305-200412

main33244-53020iRZN200¥3,010200106-200412

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-26010iYN80,85..4F¥920198808-199408

main33242-30070iRN8#,90..V¥4,240199110-199708

main33242-30080iRN8#..V¥4,220199108-199110

main33242-35022iLN86¥2,880198808-200412

main33242-53020iRZN200¥2,490200106-200412

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33240-22022iRN8#..V¥7,900199108-199110

main33240-30020iRN8#..V¥7,500199110-199208

main33243-30120iRN8#,90..V¥4,240199208-199309

main33243-30130iRN8#,90..V¥4,230199309-199708

main33243-35042iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM¥2,880198808-200412

main33243-35060iYN80,85..4F¥2,380198808-199408

main33243-53020iRZN200¥3,520200106-200412

33251LEVER, SHIFT & SELECT

main33251-22051iRN8#..V¥6,000199108-199110

main33251-30040iYN80,85..4F¥6,300198808-199108

main33251-30090iRN8#,90..V¥3,670199110-199408

sub33251-30091¥3,680

sub90109-08305¥80

main33251-30100iRN8#,90..V¥3,650199408-200208

sub33251-30101¥3,040

sub90109-08305¥80

main33251-30101iRZN200¥3,040200208-200412

main33251-35060iLN86¥5,900198808-200303

sub33251-35061¥3,670

sub90109-08305¥80

main33251-35061iLN200¥3,670200303-200412

main33251-38010iYN80,85..4F¥1,470199108-199408

33251EWIRE (FOR SHIFT & SELECT LEVER)

main90580-14051iYN80,85..4F¥130198808-199408

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iYN80,85..4F¥360198808-199408

33261CSHAFT, SHIFT & SELECT LEVER

main33261-20010iYN80,85..4F¥5,700198808-199408

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRZN200¥230199108-200412

main33264-30010iYN80,85..4F¥250198808-199408

OD=6,L=16

main90360-10003iLN200¥100199701-200412

OD=9.52,STEEL

main90360-10003iLN8#,90,RN125,8#,90,YN81,85,86,87,92..5F¥100198808-200106

OD=9.52,STEEL,BALL

main90361-10002iLN86¥310198808-200412

L=21.6,PIN

main90361-10003iLN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH)¥130198808-200412

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iRN8#,90..V¥200199108-200412

L=11.2,OD=4

main33265-30010iYN80,85..4F¥250198808-199408

L=28.8,OD=6.0

main33266-22010iRZN200¥220199108-200412

L=13.6,OD=6

main90250-05020iLN200¥190198808-200412

L=11.1,OD=4.8

main90250-06007iRZN200¥110199108-200412

L=8.6,OD=6

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iYN80,85..4F¥200198808-199408

main90341-12008iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM¥220198808-200412

OD=18

main90341-12014iRZN200¥110199108-200412

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14061iLN8#,90,RN8#,90,YN85,86,87,92..5F¥200198808-198904

L=18.3,SHIFT HEAD SIDE

sub90501-14123¥60

main90501-14062iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM¥200198808-198912

L=30.6,SHIFTFORK SHAFT SIDE

sub90501-14132¥100

main90501-14090iYN80,85..4F¥170198808-199408

L=16.4

main90501-14123iLN91¥60199701-199806

L=20.2,MADE IN PHILIPPINE TRANSMISSION

main90501-14123iRN8#,90..V;RN85..EFI..IV3¥60199108-199908

L=20.2

main90501-14123iLN8#,90,RN125,8#,90,YN81,85,86,87,92..5F¥60198904-200106

L=20.2,SHIFT HEAD SIDE

main90501-14132iRN85,90..5F..(ARL,GEN);LN8#,90,RN125,YN8#,9#..5F¥100198912-200106

L=31,SHIFTFORK SHAFT SIDE

main90501-14132iLN85,RN8#,YN81,86..4F¥100198912-199806

L=31,MADE IN PHILIPPINE TRANSMISSION

main90501-14132iRN85..EFI..IV3¥100199709-200412

L=31

main90501-15040iRZN200¥110200106-200412

L=19.9

33275BBALL, SHAFT DETENT

main90360-10003iLN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH)¥100198808-200412

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010iYN80,85..4F¥200198808-199408

main90341-12005iRN8#,90..V¥370199108-199708

SHIFTFORK SHAFT SIDE

sub90341-12018¥250

main90341-12008iLN8#,9#,YN8#,9#..MTM;RN85,90..5F..(ARL,GEN)¥220198808-200412

main90341-12018iRZN200¥250200106-200412

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-10061iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM¥100198808-200106

main90501-14090iYN80,85..4F¥170198808-199408

main90501-14123iRN8#,90..V¥60199108-199708

SHIFTFORK SHAFT SIDE

main90501-14123iLN200¥60200106-200412

main90501-15040iRZN200¥110200106-200412

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..5F¥100198808-200412

main90360-10003iRN8#..V¥100199108-199208

SHIFTFORK SHAFT SIDE

33293HOLDER, REVERSE RESTRICT BALL

main33293-30010iYN80,85..4F¥780198808-199108

33293AGASKET (FOR REVERSE RESTRICT BALL HOLDER)

main90430-18008iYN80,85..4F¥110198808-199108

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-16041iYN80,85..4F¥180198808-199108

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iYN80,85..4F¥100198808-199108

33519ACLIP (FOR CONTROL SHAFT DUST BOOT SET)

main90467-17126iYN80,85..4F¥120198808-199408

33521HOUSING, SHIFT LEVER

main33502-35260iRN8#,90..V¥2,960199110-199309

sub33521-35221¥2,950

main33521-30020iYN80,85..4F¥950198808-199408

main33521-35070iLN8#,9#,YN8#,9#..MTM;RN85,90..5F..(ARL,GEN)¥4,300198808-200412

sub33521-35071¥4,290

main33521-35180iRN8#..V¥2,790199108-199110

sub33502-35260¥2,960

main33521-35221iRN8#,90..V¥2,950199309-200412

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main33218-35010iYN80,85..4F¥360198808-199408

main90105-08079iLN86¥140198808-200210

main90109-08305iRZN200¥80200208-200412

main90113-08001iLN8#,90,RN125,8#,90,YN85,86,87,92..5F¥260198808-199509

33521GWIRE (FOR SHIFT LEVER HOUSING)

main90580-14049iYN80,85..4F¥200198808-199408

33555DBOOT, SHIFT LEVER

main33555-20010iYN80,85..4F¥400198808-199408

9020108065

main90201-08065¥60

9020108136

main90201-08136¥250

9161160820

main91611-60820¥200

9161160832

main91611-60832¥190

9161160840

main91611-60840¥130

9161160850

main91611-60850¥120

9411040800

main94110-40800¥120

9451200800

main94512-00800¥80

46 parts on this diagram · 7 diagrams in section
